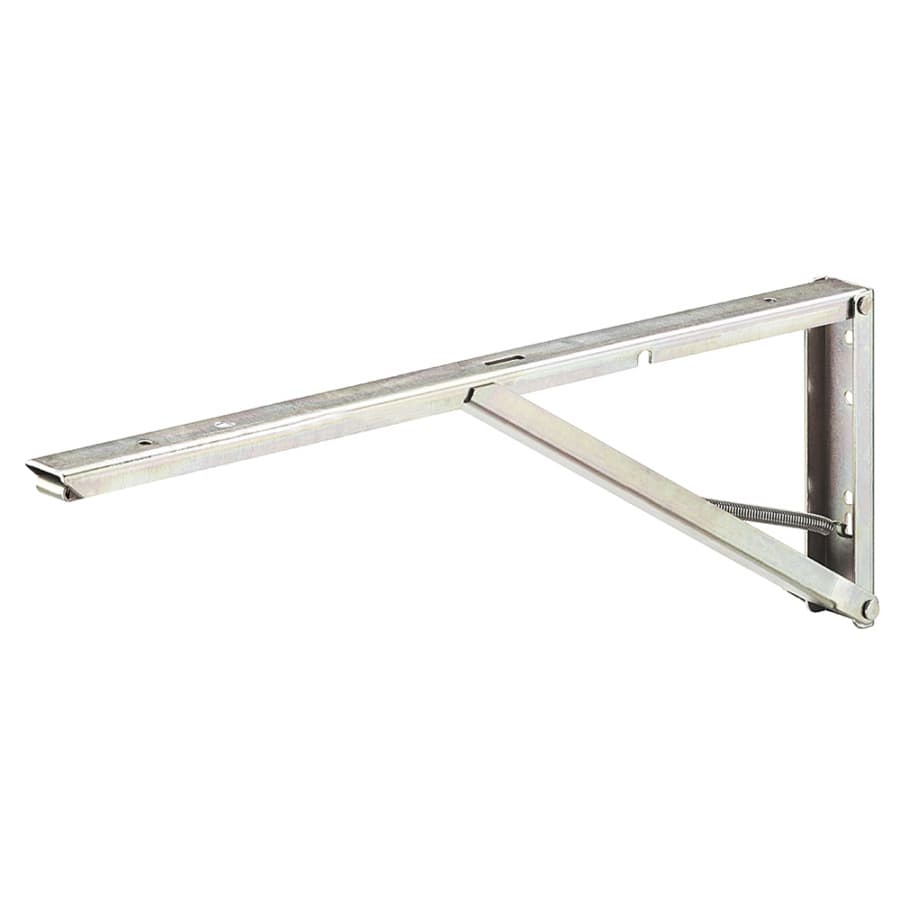

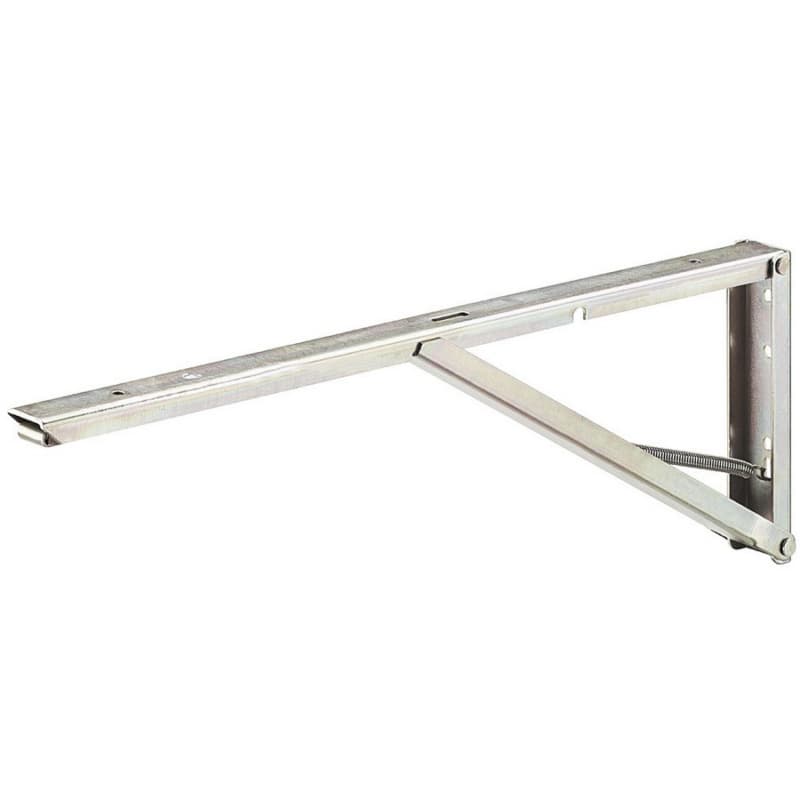

380mm Folding Hinged Spring Bracket, Yellow Chromatized Finish
Item # HA287.41.915
•Mfr # 287.41.915
Product Details
Features:
• Specially designed for extended tables and work tops
• When tilted open, the spring bracket locks automatically
• To close, lightly press the incorporated button

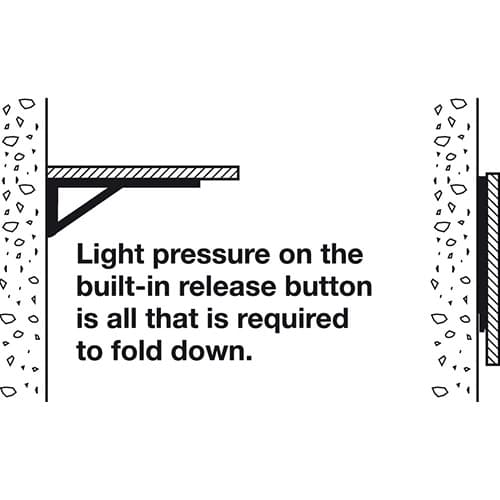

• Vertical Mount Application: To fold down, light pressure on the integral release button is all that is required
• Horizontal Mount Application: When raised, the spring-loaded bracket locks into position automatically
• Installation screws not included
• Specially designed for extended tables and work tops
• When tilted open, the spring bracket locks automatically
• To close, lightly press the incorporated button
• Vertical Mount Application: To fold down, light pressure on the integral release button is all that is required
• Horizontal Mount Application: When raised, the spring-loaded bracket locks into position automatically
• Installation screws not included

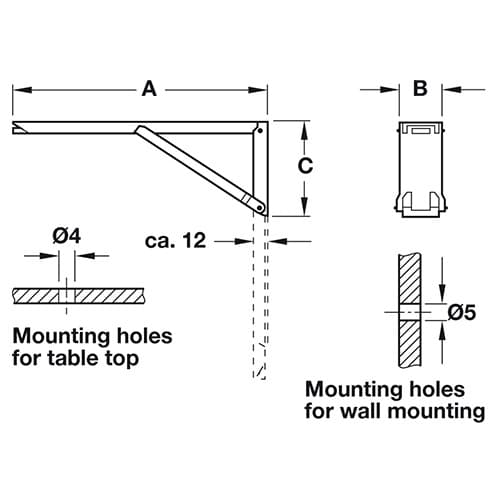

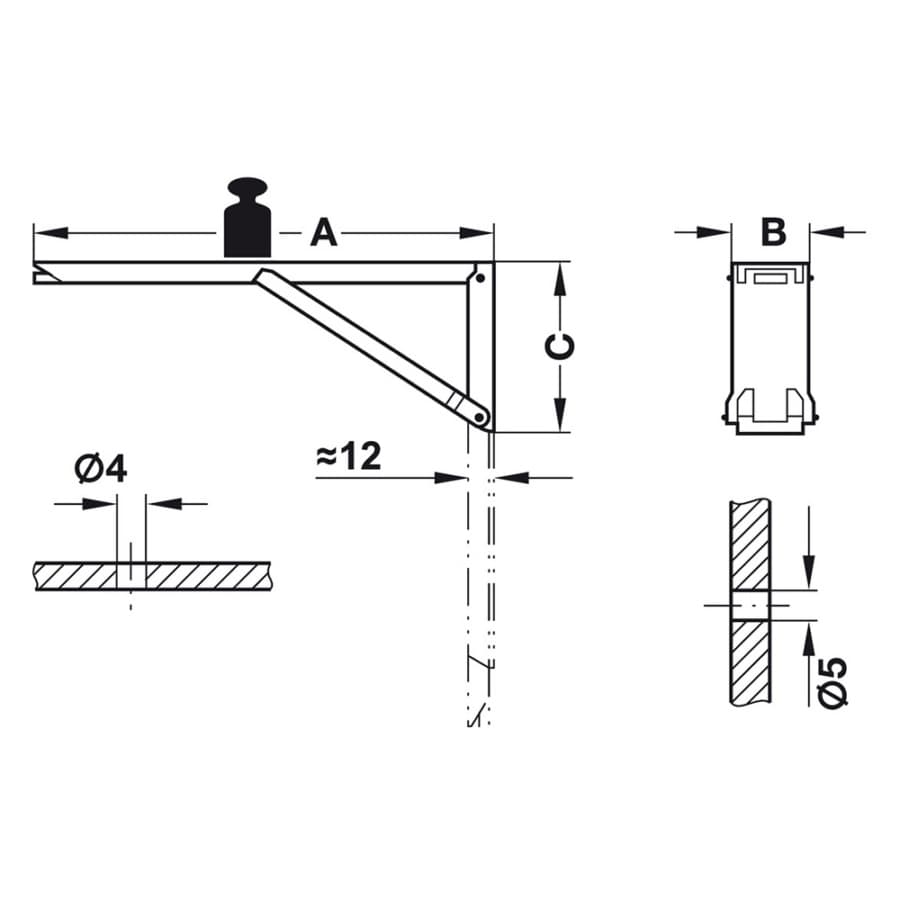

Specifications
| Box Quantity | 1 |
| Depth | 380mm |
| Height | 4-23/32" |
| Product Type | Hinged Spring Bracket |
| Finish | Yellow Chromatized |
| Material | Steel |
| Folding | Yes |
| Weight Capacity | 88lb per pair |
| Width | 1" |
| Style | |
| Length | |
| Application |
