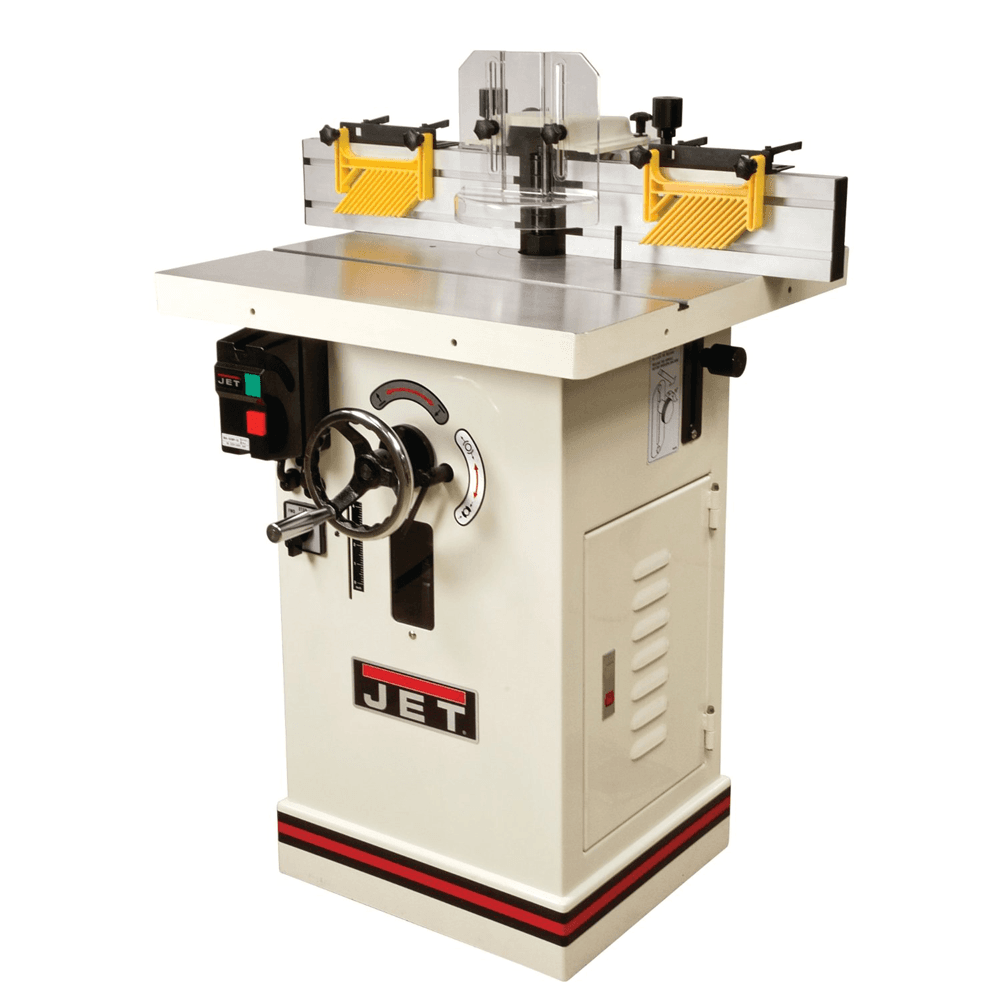

Jet 708322 JWS-25CS 1/2-Inch and 3/4-Inch Interchangeable Spindle 3Ph 1Ph
Product Details
If you're looking for a space-saving shaper for your shop, the new JET JWS-25CS Shaper is what you need. This compact powerhouse features a 8000 and 10000 RPM reversing 3HP motor. The large 25" by 25" precision ground cast iron table provides a large, durable, work area. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. If you feel you just don’t have the space, the nominal 23" x 25" footprint of this workhorse is sure to change your mind. Put the new JET JWS-25CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better."
- Starting Pins for irregular shaping
- Forward/reverse switch for left and right hand operation
- Two-speed step pulley drive lets you select the best speed and torque for different cutter diameters
- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Positive detent spindle lock allows safer, easy cutter set-up
- 4" dust port connects to your collection system to keep your workplace dust and debris-free
- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
- Unique ratcheting style levers allow you to micro-adjust your fence assembly to your exact needs
- Powerful 3HP motor and heavy-duty magnetic controls deliver smooth, consistent power on even the heaviest jobs
- 25" x 18" solid cast iron table comes with an additional 25" x 7" extension wings to handle extra large work pieces
- Four adjustable work hold-downs to secure your work while shaping
| Spindle Speed (RPM) | 8000/10000 |
| Maximum Spindle Diameter (In.) | 1/2, 3/4 |
| Spindles Included | Yes |
| Spindle Size Under Nut (In.) | 1/2 (2-3/4), 3/4 (3) |
| Spindle Travel (In.) | 3 |
| Router Bit Collet Included | 1/4, 3/8, 1/2 |
| Table Opening Diameter (In.) | 6-7/8 |
| Table Insert Opening Diameter (In.) | 1-5/8, 3-1/2 |
| Table Size (L x W) (In.) | 25 x 25 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Table Height from Floor (In.) | 34 |
| Fence Size (L x H) (In.) | 9-1/2 x 2-3/4 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 16 |
Specifications
| Box Quantity | 1 |
Product Details
If you're looking for a space-saving shaper for your shop, the new JET JWS-25CS Shaper is what you need. This compact powerhouse features a 8000 and 10000 RPM reversing 3HP motor. The large 25" by 25" precision ground cast iron table provides a large, durable, work area. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. If you feel you just don’t have the space, the nominal 23" x 25" footprint of this workhorse is sure to change your mind. Put the new JET JWS-25CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better."
- Starting Pins for irregular shaping
- Forward/reverse switch for left and right hand operation
- Two-speed step pulley drive lets you select the best speed and torque for different cutter diameters
- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Positive detent spindle lock allows safer, easy cutter set-up
- 4" dust port connects to your collection system to keep your workplace dust and debris-free
- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
- Unique ratcheting style levers allow you to micro-adjust your fence assembly to your exact needs
- Powerful 3HP motor and heavy-duty magnetic controls deliver smooth, consistent power on even the heaviest jobs
- 25" x 18" solid cast iron table comes with an additional 25" x 7" extension wings to handle extra large work pieces
- Four adjustable work hold-downs to secure your work while shaping
| Spindle Speed (RPM) | 8000/10000 |
| Maximum Spindle Diameter (In.) | 1/2, 3/4 |
| Spindles Included | Yes |
| Spindle Size Under Nut (In.) | 1/2 (2-3/4), 3/4 (3) |
| Spindle Travel (In.) | 3 |
| Router Bit Collet Included | 1/4, 3/8, 1/2 |
| Table Opening Diameter (In.) | 6-7/8 |
| Table Insert Opening Diameter (In.) | 1-5/8, 3-1/2 |
| Table Size (L x W) (In.) | 25 x 25 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Table Height from Floor (In.) | 34 |
| Fence Size (L x H) (In.) | 9-1/2 x 2-3/4 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 16 |
Specifications
| Box Quantity | 1 |
