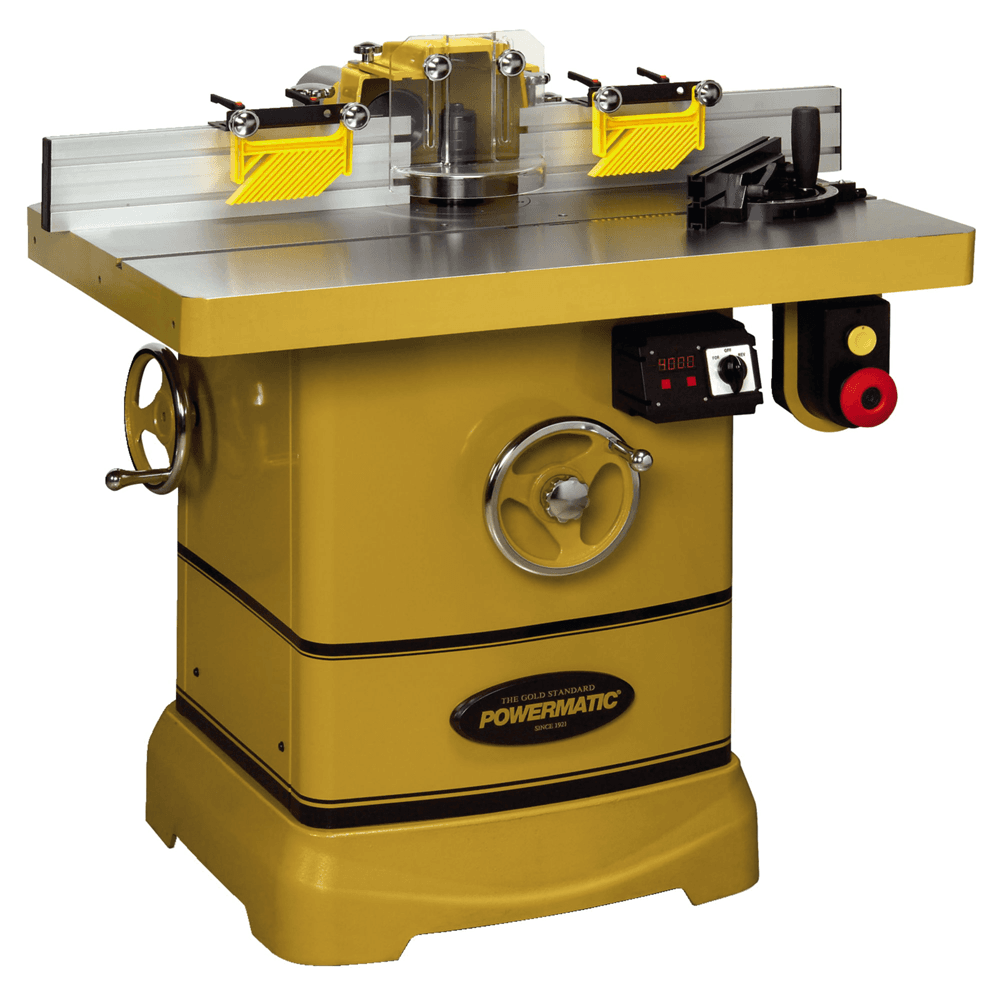

Powermatic PM2700 Shaper 5HP 3Ph 230V/460V
This item may incur additional shipping costs and lead times.
Product Details
This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
- Integrated caster system built into the cast iron base for instant shop mobility
- Spindle height digital readout for making fine incremental adjustments on multiple passes
- Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
- Convenient quick lock belt tensioning for easy speed adjustment
- Industrial fence system with fine adjust dials for more precise positioning
- 5HP totally enclosed motor offers plenty of power
- Two spindle speeds (reversible) for a variety of work
- Superior clear cutter guard promotes safety, allows observation of the entire cut
- Table predrilled and tapped for feeder mounting in two locations
- Fence has dual featherboards for work holding
- Dual 4" ports for attachment to dust collection system
- Standard Equipment:
- 3/4" and 1-1/4" interchangeable spindle collets
- Spindle height digital readout
- Featherboard hold downs
- Deluxe miter gauge
- Integrated caster system
- 460V operation requires an additional 460V magnetic switch, part PM2700-114C
| Style (Type) | Shaper |
| Spindle Speed (RPM) | 7,500, 10,000 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Spindle Size Under Nut (In.) | 3/4 (3 3/4), 1-1/4 (6) |
| Spindle Travel (In.) | 4 |
| Spindle Tilt (Deg.) | N.A. |
| Reversible | Yes |
| Table Opening Diameter (In.) | 7-3/8 |
| Table Inserts (In.) | 2-35/64, 4-5/32, 5-3/4 |
| Table Insert Opening Diameter (In.) | 2-35/64, 4-5/32, 5-3/4 |
| Table Size (In.) | 40 x 30 |
| Table Travel (In.) | N.A. |
| Table Height from Floor (In.) | 35-1/2 |
| Sliding Table Size (In.) | N.A. |
| Fence Size (L x H) (In.) | 18-3/4 x 4-7/8 |
| Fence Travel (Major and Minor) (In.) | N.A. |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Digital Readouts | Spindle Height |
| Electrical Controls | Yes |
| Motor Power (HP) | 5 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230, 460 |
| Prewired Voltage (V.) | 230 |
| Wiring Remarks | Requires 460V Magnetic Switch |
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Shaper |
| Power | 230/460V |
| Phase | |
| Length | |
| Width | |
| Height | |
| Horsepower | 5 HP |
| Rangeof Speeds | |
| Electrical Controls | Yes |
| Table Inserts (In.) | 2-1/2 x 4-1/8 x 5-3/4 |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4" Spindle (3-1/2), 1" Spindle (4-7/8), 1-1/4" Spindle (5-1/8) |
| Recommended Circuit Size (Amps.) | 20/10 |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | Requires 460V Magnetic Switch |
| Table Opening | 7.33 |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | 3 |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | 7,500, 10,000 |
| Motor Voltage (V.) | 230/460 |
| Table Size (In.) | 40 x 30 |
| Fence Size (L x H) (In.) | 18-3/4 x 4-7/8 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Current (Amps) | 13/6.5 |
| Maximum Spindle Diameter (In.) | 37987 |
| Style (Type) | Shaper |
| Spindle Pivot | |
| Spindle Travel (In.) | 4 |
| Digital Readouts | Spindle Height |
| Prewired Voltage (V.) | 230 |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | 5 |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | 35-1/2 |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | 3 |
| Range of Speeds |
