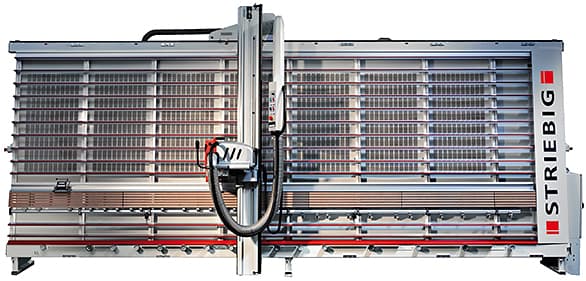

Striebig 5164 Compact Plus Vertical Panel Saw 3Ph 208/240/480V

Striebig 5164 Compact Vertical Panel Saw

The Compact Plus has all of the features of its little brother with more cutting area (15'1" x 5' 4"), plus these working advantages:

• More measuring capacity to the left of the main cutting station
• Easier to rotate the panel with the wider spaced rollers
• Ability to stage material on the right while working on the left Standard Features
• Swiss made quality for accuracy and durability!
• Free standing, one-piece fully welded frame
• Heavy-duty support rollers with integral panel stop assembly
• Full-length, split (for staging of material) center shelf with adjustable spacing for fingers
• Built-in small parts backing support across full length of center shelf
• Special new measuring flip stop for use with small parts
• Automatic, mechanically upward-shifting support grid to keep off-cuts from binding grid
• TRK dust system exceeds European standards; note: requires an external collector
• Cutting stations 40 inches on center (1 meter optional)
• 5-1/4 hp, 220/440* volt, 3 Phase motor with electric brake
• Noise protection below 80 db (Super Silent)
• 250 mm (9-7/8") HFG carbide saw blade
• Template bar including six adjustable stops for setting common rip cuts
• Repeat rip device with roller bearing & 24" capacity for top-down strip cutting
• Auto-engaging splitting wedge

Specifications
	Cut capacities:	15'1" W x 5'4" H*; depth 2-3/8" (60mm) *(up to 17'6" x 7'2" available as option)
	Weight (approx.):	1364 lbs. (net), 2000 lbs. (gross)
	Main Saw Blade	250 mm dia., 30 mm bore with (2) 7 mm pin holes (42 mm circle)
Requirements
	Electrical:	3-phase, 220V/20 Amp or 440V/10 Amp service
		*208V, 240V and 480V motors available
	Dust collection:	1000 cfm, 100 mm (x2) connections (second connection at bottom right corner of frame is optional and hose is not provided)
