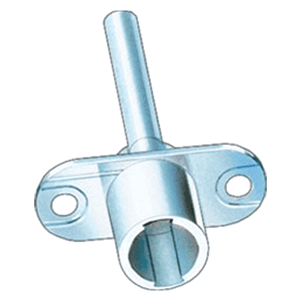

Type 100 Cam Body for Timberline Locks, Rail Mount
Item # TMBCB-100
•Mfr # CB-100
$3.54
/Each
25 items
$3.07/Each
200 items
$2.71/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Mounted in Fixed Rail
• Full 1/2" lock bar throw
• Fits within 1/2" drawer slide side clearance
• Minimal machining required
• Designed for mounting in 3/4" panels
• Mounted in Fixed Rail
• Full 1/2" lock bar throw
• Fits within 1/2" drawer slide side clearance
• Minimal machining required
• Designed for mounting in 3/4" panels
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | |

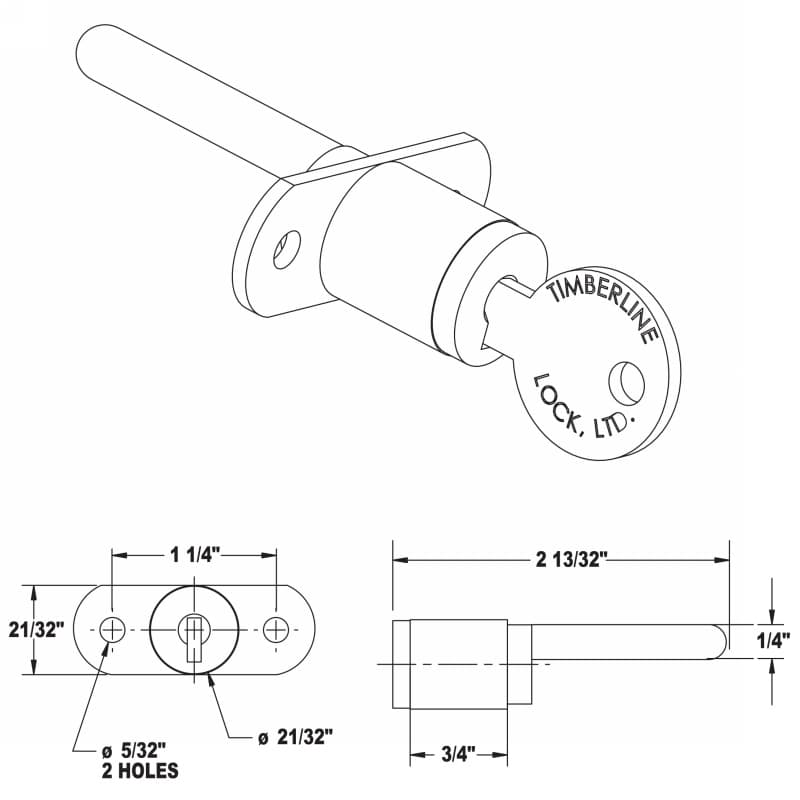

| Height | 21/32" |
| Cam Length | |
| Depth | 2-13/32" |
| Material | |
| Mounting Type | Rail |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
