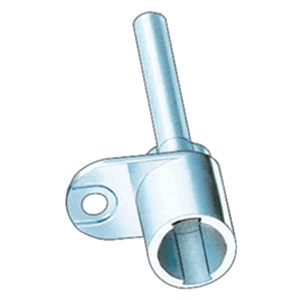

Type 101 Cam Body for Timberline Locks, Drawer Mount
Item # TMBCB-101
•Mfr # CB-101
$3.29
/Each
25 items
$2.85/Each
200 items
$2.51/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Mounted in Drawer Front
• Full 1/2" lock bar throw
• Fits within 1/2" drawer slide side clearance
• Minimal machining required
• Designed for mounting in 3/4" panels
• Mounted in Drawer Front
• Full 1/2" lock bar throw
• Fits within 1/2" drawer slide side clearance
• Minimal machining required
• Designed for mounting in 3/4" panels
Specifications
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | |
| Height | 21/32" |
| Cam Length | |
| Depth | 2-13/32" |
| Material | |
| Mounting Type | Drawer |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
