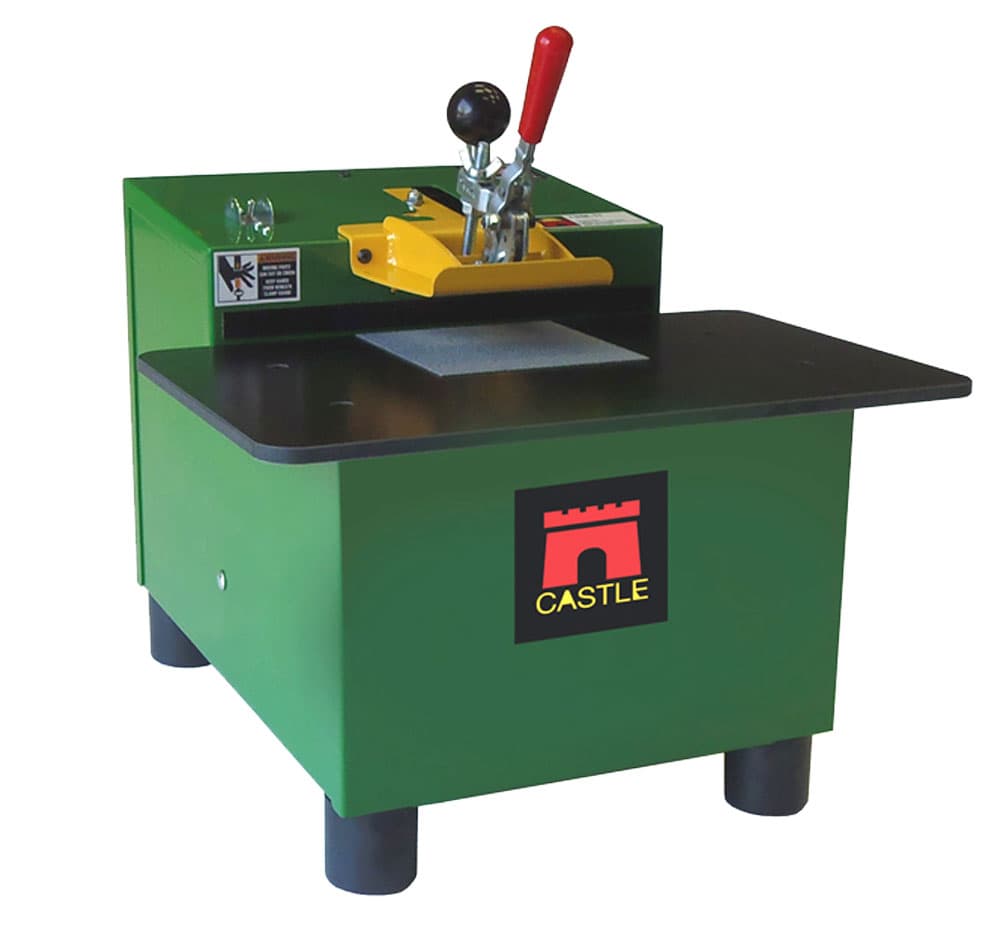

Castle TSM 12 Benchtop Pocket Cutter

The TSM-12 benchtop pocket cutter machine routs the 6 degree, low-angle Castle Pocket with no tear out in less than 2 seconds. The superior low screw angle minimizes joint shift while providing strong, stable joints. Because the TSM-12 uses standard 110V electric, and does not require any shop air, it’s ideal for jobsites, small shops, or the weekend woodworker.  Each TSM-12 is equipped with a Bosch 1617 Router with a 3/8” three-flute solid carbide router bit for cutting the pocket and a Bosch Colt Router with a 9/64” premium drill bit for drilling the pilot hole. The TSM-12 comes ready-to-go and delivers Castle quality with every pocket it cuts.

Features and Benefits include:

• Cuts the Castle low-angle pocket, for strong, stable, tight, and superior joints

• Equipped with:

• Bosch 1617 Router with a 3/8” three-flute solid carbide router bit for cutting the pocket

• Bosch Colt Router with a 9/64” premium drill bit for drilling the pilot hole

• Low-angle pockets minimize the need for clamping during assembly

• Wider throat opening for thicker stock – accommodates stock from 1/2"to 1-1/2" thick

• Adjustable web for handling various pocket screw lengths

• Integral work clamp and pocket cutting lever are ergonomically positioned for fast pocket cutting

• Integrated, 4” and Shop Vac dust ports for minimizing dust and debris

• Easy maintenance and bit changing

• Requires only basic, 110V power

• Durable, solid surface work top

• TSM-12 comes fully assembled, factory tested, and ready to work

Technical Specifications:

• Router: Bosch 2.0hp #1617 Router Motor

• Drill: Bosch Colt 1.0hp #PR20EVS

• Router Bit: Premium 3/8” Solid Carbide, Rough Mill

• Drill bit: 9/64” Brad and Spur Premium TiN-Coated Bit

• Power req: 110V, 15 amps

• Shipping weight: 65 lbs

• Footprint: 13.5W x 20L x 20H
