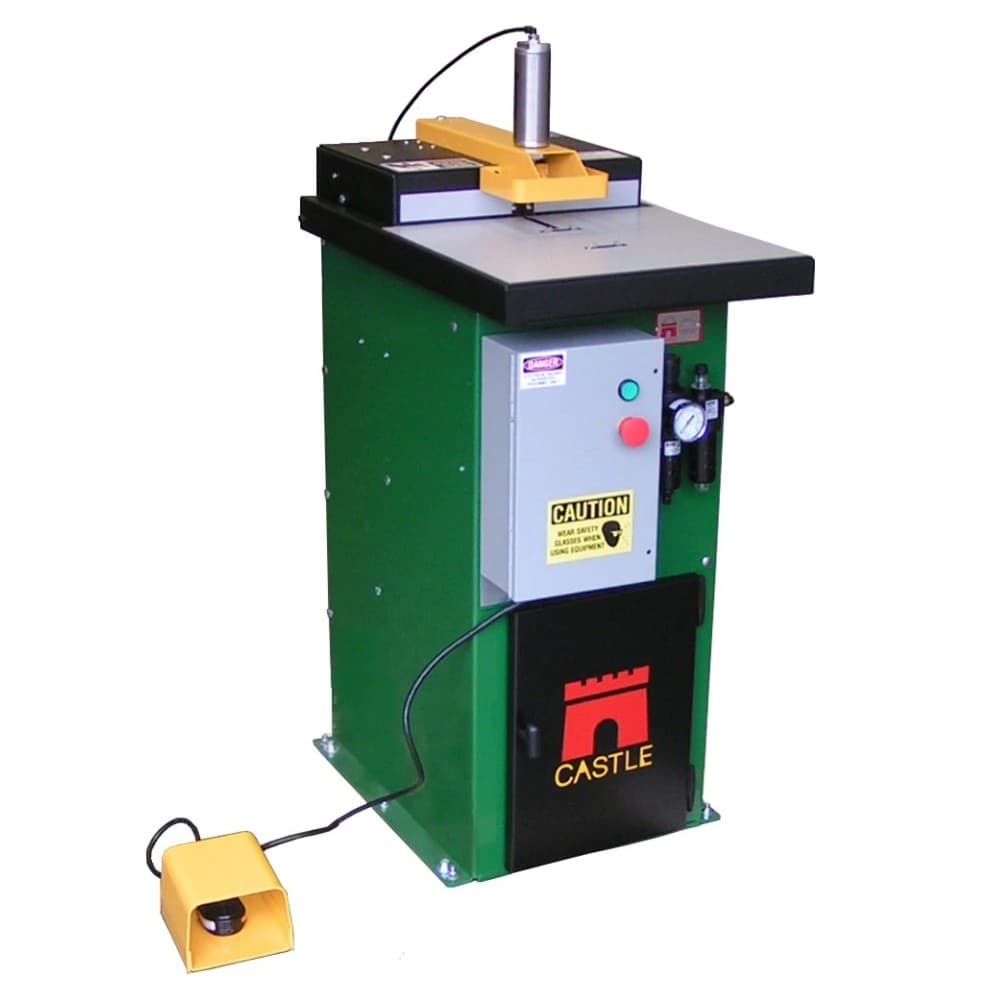

Castle TSM 35 Heavy Duty Pocket Cutter 3Ph
This item may incur additional shipping costs and lead times.
Product Details
The TSM-35, now with a Swing Front providing easy access for faster tooling changes and service, cuts the same patented 6 degree Castle Pocket as the TSM-21. This machine is designed for continuous production in furniture plants, mobile home factories, multi-shift cabinet production and so much more. A heavy duty, three-phase induction motor drives the pocket cutting spindle and is available in 208v, 230v or 460v. A specially designed, high torque, heavy duty air motor drives the pilot bit.
The TSM-35 features heavy duty construction throughout with easy, top-down access for quick router and drill bit changes and adjustable Indexing Stops built into the top for quick part transitions during high production shifts. The TSM-35 can produce more than a quarter million pockets per month for years on end with minimal maintenance.
Bits Included.
Tech Specs:
• Drill: Sioux SDG10S25FCT Air Motor
• Drill Bit: 9/64" Brad and Spur Premium TiN Coated Bit
• Power Req: Three-phase 208v, 230v, 460v
• Air Req: 85 psi - External Regulator, Filter and Lubricator included
• Basic footprint: 21" depth x 19" width
• Working height: 36.5"
• Worktop usable area: 16" depth x 18.5 width
• Machine height: 38
• Shipping weight: Approx 330 lbs
• Shipping dimensions: 28" x 24" x 48"
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Pocket Cutter |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 21" |
| Height | 38" |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | |
| Phase | |
| Range of Speeds | |
| Length | 19" |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
