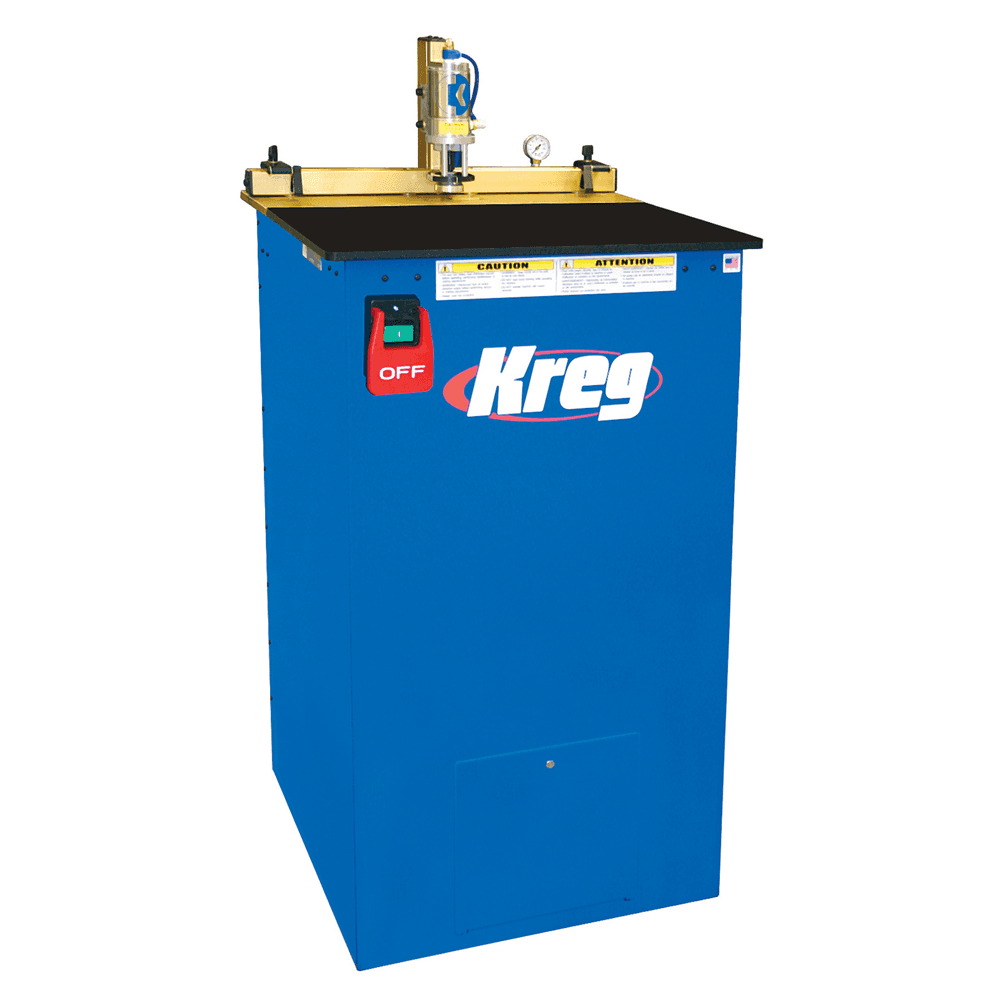

Kreg Multi Spindle Pocket Screw Machine DK3100

Kreg^® Multi-Spindle Pocket–Hole Machine, Model DK3100

If you're looking for the ultimate machine to build face–fames, this is it. The DK3100 contains three spindles that allow you to drill two pocket holes across rails of varying widths in just one machine cycle. Best of all, the DK3100 can also be quickly changed to drill a single pocket hole, like our DK1100 series, by simply removing a drill bit. If you're serious about face–frame production, the DK3100 is the machine that will deliver real performance to your shop and profits to your bottom line.

The DK3100 not only drills two pocket holes in one cycle, it also gives you options for spacing the holes. You can set the drill spindles at 3/4", 1", and 13/4" on center, perfect for today's most common rail widths.

Pocket Holes, Twice as Fast!
Multiple spindles give you the option of three different hole spacings to fit today's most common face–frame widths. If you would prefer to drill only one pocket hole, just remove a drill bit and you get the equivalent of our DK1100 single–spindle machine. Only Kreg offers you the option of one or two pocket holes at a time and your choice of three different on–center hole spacings in the same machine.

Easy Setup
The lift–off top gives you direct access to the drill bits. A simple turn of an Allen wrench in the drill bit collets is all it takes to change bits. In less than a minute, you can change to any of the three settings or set up the DK3100 for single–spindle drilling.

One–Second Cycle Times
Two pocket holes in one second• It's possible with the DK3100. The one–touch foot pedal fires the spindle to make two perfect pocket holes in just one second.

Durability
The DK3100 uses a hardened–steel drill guide that supports the drill bits all the way into the workpiece, prolonging drill bit life and improving the cut quality of the pocket hole.

Features:

• 3/4", 1", and 13/4" spindle spacings
• Hardened–steel drill guide maximizes drill bit life
• One–touch, foot pedal operation
• Swing Stops™ for optimized material positioning
• Dust collection chutes for efficient chip removal
• Description Specs Reviews

Your Multi–Spindle Electric Pocket-Hole Machine comes with:
• (1) DKDBLH•3/8" Left-Hand Stepped Drill Bit
••(1) DKDB•3/8" Right-Hand Stepped Drill Bit

Replacement Drill Bits:
KRDKDBLH Left Hand Step Drill Bit
KRDKDB Right Hand Step Drill Bit

Motor:	Electric
11/2"-HP
110-V single phase
Drill Bits:
DKDB Drill Bit
3/8" shank diameter
3/16" pilot
1/2"-long
CFM Rating:
1 CFM clamp cylinder
(90 PSI/minute)
Cycle Time:	1 second
Material Clamping Capacity:	4"
Hole-Centering Capability:	1/2"- to 11/2"-thick material
Weight	176 lbs.
Dimensions:
50"H x 24"W x 24"D
(40" table height)
On-Center Spindle Spacings:	3/4", 1", 13/4"
Warranty:	5 Years
Included:	(1) Multi-Spindle Pocket-Hole Machine and Complete Owner's Manual

See the "More Info" tab for a Users Manual for this product
