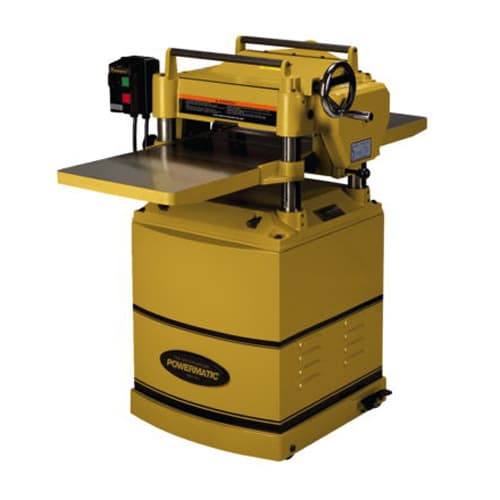

Powermatic 15HH Planer 3HP 1Ph 230V

Powermatic 15" Planer, with Byrd SHELIX Helical Cutterhead

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

• The helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Powerful 3HP TEFC motor controlled with a magnetic switch for safety
• Three V-belts transfer maximum power to the cutterhead
• Serrated steel infeed roller and smooth steel outfeed roller allow for 1/4" maximum depth of cut and trouble free operation
• Large cast iron handwheel positions table quickly and easily
• Large, precision ground cast iron table and extensions provide maximum workpiece support
• Two speed gearbox features automatic chain tensioner
• One-piece welded steel stand has built-in lockable casters
• Steel top-mounted return rollers speed repetitive cuts
• Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection

Motor Phase	1
Infeed Roller Diameter (In.)	2.07
Cutterhead Diameter (In.)	2-7/8
Recommended Circuit Size (Amps.)	30
Maximum Depth of Cut (In.)	1/4
Maximum Planing Width (In.)	14-7/8
Motor Voltage (V.)	230 only
Column Diameter (In.)	2-3/16
Maximum Full Width Depth of Cut (In.)	1/8
Feed Rate (FPM)	16/20
Dust Collection Minimum CFM Required (CFM)	800
Knife Size (L x W x T)	15 x 15 x 2.5
Table Size with Extensions (L x W) (In.)	15 x 48
Number of Knives	74
Segmented Infeed Roller Diameter (In.)	2.07
Bed Rollers Adjustable from Front	N.A.
Type of Cutterhead	Helical
Style (Type)	Planer
Outfeed Roller Diameter (In.)	2.07
Maximum Planing Thickness (In.)	6
Table Support	4 Column
Motor Power (HP)	3
Minimum Planing Length (In.)	8
Cutterhead Speed (RPM)	4,500
Dust Port Outside Diameter (In.)	4
