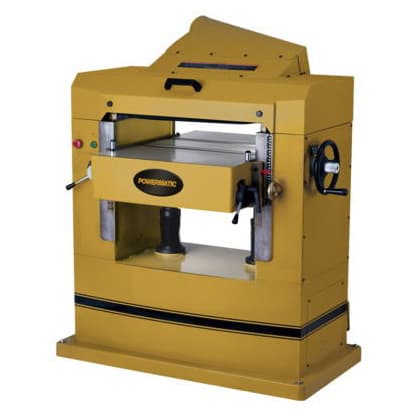

Powermatic 201 Planer 7.5HP 1Ph 230V
Item # JPW1791261
•Mfr # PM9-1791261
$8,199.99
/Each
Freight: $645.00
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
This 1,300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5" dust port for easy attachment to any dust collection system. The cutterhead is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute. The anti-kick back fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel. The model 201 is available with a 7-1 /2 horsepower, single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements.
• Straight knife cutterhead with 4 high speed steel knives gives a clean smooth cut.
• Segmented infeed roller with sectional chipbreaker for planing multiple height stock.
• All cast iron construction, the heavy cast iron table travels on two large lead scews..
• Roller bearing-mounted feed rollers for smooth operation and long life.
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces.
• 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work.
• Dust chute with 5" port for dust collection.
• Straight knife cutterhead with 4 high speed steel knives gives a clean smooth cut.
• Segmented infeed roller with sectional chipbreaker for planing multiple height stock.
• All cast iron construction, the heavy cast iron table travels on two large lead scews..
• Roller bearing-mounted feed rollers for smooth operation and long life.
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces.
• 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work.
• Dust chute with 5" port for dust collection.
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Cutter Head Diameter | |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | |
| Phase | |
| Length | |
| Drive Motor | |
| Voltage | |
| Width | |
| Cutter Head Type | |
| Motor Phase | 1 |
| Product Type | |
| Cutting Width | |
| Infeed Roller Diameter (In.) | 3 |
| Cutter Block Diameter | 3/1/2004 |
| Speed | |
| Recommended Circuit Size (Amps.) | 50 |
| Maximum Depth of Cut (In.) | 16-Mar |
| Number of Rollers | |
| Maximum Planing Width (In.) | 22 |
| Motor Voltage (V.) | 230 only |
| Column Diameter (In.) | 2/1/2002 |
| Cuts Per Minute | 19,200 |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | 16-Mar |
| Motor Current (Amps) | |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | 230 |
| Feed Rate | 20/30 |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | 32-1/4 x 24 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | 4 Straight High Speed Steel Knives |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | 2 |
| Digital Readout | Inch / Metric |
| Type of Cutterhead | Straight Knife |
| Style (Type) | Floor |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | 3 |
| Maximum Planing Thickness (In.) | 9/1/2004 |
| Table Support | 2 Column |
| Motor Power | 7/1/2002 |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | 10 |
| Cutter Block Speed | 4,800 |
| Dust Port Outside Diameter (In.) | 5 |
| Warranty | 5 Years |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
