Powermatic DS20 Disc Sander 20" 2HP 1Ph 230V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

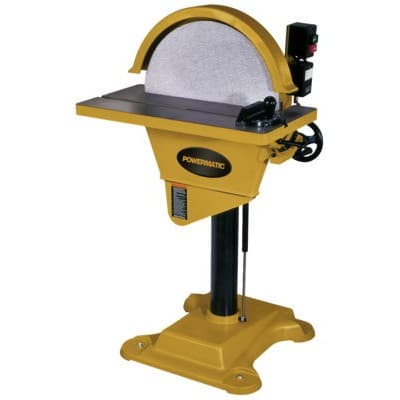

The Powermatic DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy. • 20" sanding disc for larger capacity. • The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency. • Direct drive from motor to disc for maximum efficiency. • Forward and reverse switch for additional usage. • Tilting table allows bevel sanding. • Miter gauge for angle sanding.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Disc Diameter (In.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Style (Type) | Disc |
| Dust Port Outside Diameter (In.) | 4 |
| Disc Table Size (L x W) (In.) | 10-1/2 x 27-1/2 |
| Motor Phase | 1 |
| Wiring Remarks | |
| Impeller Diameter (In.) | |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 only |
| Recommended Circuit Size (Amps.) | 30 |
| Motor Current (Amps) | 14 |
| Disc Speed (RPM) | 1720 |
| Prewired Voltage (V.) | 230 |
| Disc Table Tilt (Deg.) | 30 Up, 45 Down |
| Canister Filter (Microns) | |
| Warranty | 5 Years |
| Drive Motor | 1 |
| Product Type | Disc Sander |
