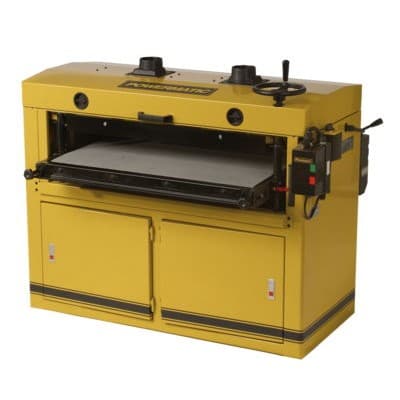

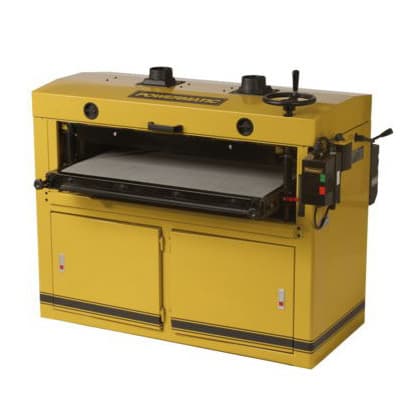

Powermatic DDS-237 Drum Sander 10HP 3Ph 230V
Item # JPW1791321
•Mfr # PM9-1791321
$9,099.99
/Each
Freight: $645.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
• Dual drum head for superior finish.
• Two-speed gearbox for wide range of sanding projects..
• Forward/reverse conveyor belt grips stock evenly.
• Independently adjustable rear drum for fine tuning.
• Hard durometer rubber coating on steel drums provides flat, smooth finish.
• Full size cast iron table for solid support.
• Dual dust ports with directional baffles for more efficient dust removal.
• Dual drum head for superior finish.
• Two-speed gearbox for wide range of sanding projects..
• Forward/reverse conveyor belt grips stock evenly.
• Independently adjustable rear drum for fine tuning.
• Hard durometer rubber coating on steel drums provides flat, smooth finish.
• Full size cast iron table for solid support.
• Dual dust ports with directional baffles for more efficient dust removal.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Style (Type) | Drum |
| Prewired Voltage (V.) | 230 Only |
| Drum Length (In.) | 37 |
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Bearing Diameter (In.) | |
| Motor Phase | 3 |
| Electrical Controls | |
| Drum Diameter (In.) | 6 |
| Maximum Board Thickness (In.) | 38108 |
| Motor Current (Amps) | |
| Motor Voltage (V.) | 230 |
| Minimum Board Thickness (In.) | 11689 |
| Number of Sanding Drums | 2 |
| Motor Power (HP) | 10 |
| Wiring Remarks | |
| Minimum Board Length (In.) | 9 |
| Conveyor Motor (HP) | 45295 |
| Dust Collection Minimum CFM Required (CFM) | 1200 |
| Dust Port Outside Diameter (In.) | Two @ 4" |
| Maximum Board Width (In.) | 37 |
| Recommended Circuit Size (Amps.) | 35/20 |
| Drum Speed (RPM) | 1700 |
| Warranty | 5 Years |
| Drive Motor | 3 |
| Drum Speed | |
| Product Type | Drum Sander |
| Maximum Width | |
| Voltage | 230/460V |
