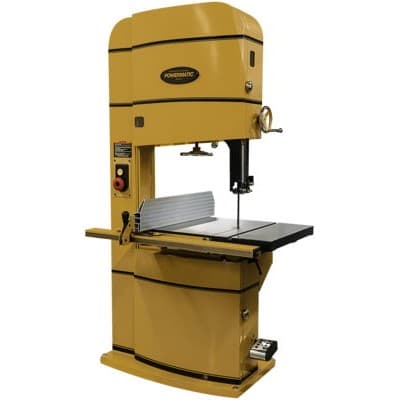

Powermatic PM2415B 24" Bandsaw 5HP 1Ph 230V

Item # JPW1791259B
Mfr # PM9-1791259B

Drop Ship Item

This item ships directly from the vendor. Additional freight charges may apply.

This item may incur additional shipping costs and lead times.

Product Details

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

• Spacious, heavy duty cast iron table with more room in the front of the blade.
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw.
• Foot brake with magnetic switch interrupt provides user with hands free stopping.
• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety.
• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned.
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces.
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table.
• Heavy duty upper wheel support and tracking mechanism for smooth operation.
• Oversized side plate can be used in the horizontal or vertical position.
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy.

Specifications

Product TypeDrum Sander
Width
Maximum Tilt45°
Length
Motor Power
Table Size24" x 34"
Height
Voltage230V
Horsepower5 HP
Blade Speed2500/4800 SFPM
Prewired Voltage (V.)230
Motor Current (Amps)22
Motor Power (HP)5
Blade Length (in)183
Maximum Saw Blade Width (in)37257
Table Height from Floor (In.)35
Stand TypeFloor
Blade Width (in)
Dust Port Outside Diameter (in)4
Table Tilt (Deg.)10 Left, 45 Right
Blade Speed (SFPM)2500/4800
Band Saw Size & Wheel Diameter (in)
Minimum Saw Blade Width (in)45295
Table Size (L x W) (In.)24 x 34
Dust Collection Minimum CFM Required (CFM)600
Miter Gauge Positive Stops45, 90
Motor Voltage (V.)230 only
Motor Phase1
Cutting Capacity Height (In.)15
Cutting Capacity Width (In.)24
Maximum Saw Blade Width (In.)37257
Minimum Saw Blade Width (In.)45295
Warranty5 years
