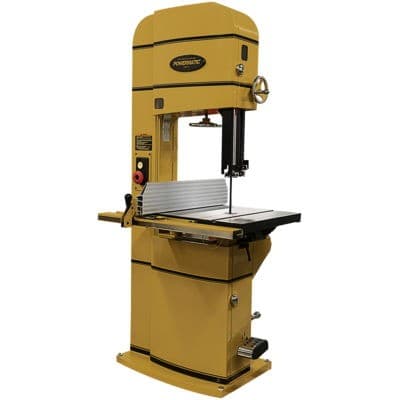

Powermatic PM1800B 18" Bandsaw 5HP 1Ph 230V

Item # JPW1791800B
Mfr # PM9-1791800B
Powermatic PM1800B 18" Bandsaw 5HP 1Ph 230V

This item may incur additional shipping costs and lead times.

Product Details

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

• Computer balanced cast iron wheels reduce vibration and noise.
• Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction.
• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety.
• Special grooved thrust bearing stabilizes smaller blades.
• Blade tension lever has full tension, partial tensionand release settings for easy blade changes and tracking.
• Foot brake with magnetic switch interrupt provides user with hands-free stopping option.
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces.
• Oversized side plate can be used in the horizontal or vertical position.
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table.
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw.

Specifications

Box Quantity1
Product TypeDrum Sander
Maximum Tilt45°
Table Size24" x 27"
Voltage230V
Horsepower5 HP
Blade Speed2300/4400 SFPM
Prewired Voltage (V.)230
Motor Current (Amps)22
Motor Power (HP)5
Blade Length (in)160
Maximum Saw Blade Width (in)37257
Table Height from Floor (In.)38
Stand TypeFloor
Dust Port Outside Diameter (in)4
Table Tilt (Deg.)10 Left, 45 Right
Blade Speed (SFPM)2300/4400
Minimum Saw Blade Width (in)45299
Table Size (L x W) (In.)24 x 27
Dust Collection Minimum CFM Required (CFM)600
Miter Gauge Positive Stops45, 90
Motor Voltage (V.)230 only
Motor Phase1
Cutting Capacity Height (In.)18
Cutting Capacity Width (In.)18
Maximum Saw Blade Width (In.)37257
Minimum Saw Blade Width (In.)45299
Warranty5 years
