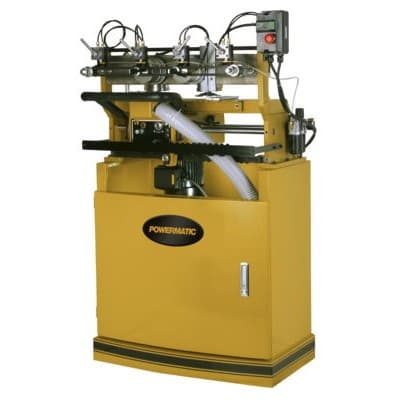

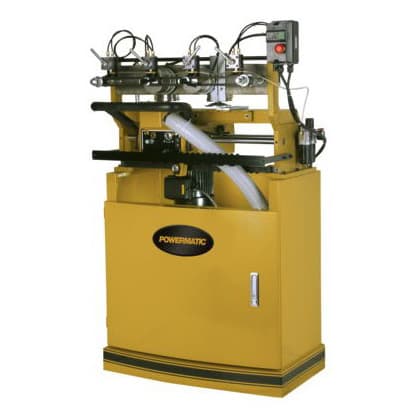

Powermatic DT65 Single Spindle Dovetailer 1HP 1Ph 230V
Item # JPW1791305
•Mfr # PM9-1791305
$7,999.99
/Each
Freight: $645.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The POWERMATIC DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.
• Pneumatic clamping provides quick locking and unlocking of the work piece.
• Four dovetail centerlines at 1", 1-1/2", 2" and 2-1/2" create a custom appearance.
• Eccentric spindle collet for re-sharpened cutters.
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup.
• Visual stylus and template aid in guiding the carriage.
• Spring loaded carriage makes for smooth, effortless dovetail cutting.
• Material stops provide convenient positioning of the workpiece.
• Cast iron and steel construction for added stability and durability.
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses.
• Extra large soft grip handle provides positive control and comfort.
• Pneumatic clamping provides quick locking and unlocking of the work piece.
• Four dovetail centerlines at 1", 1-1/2", 2" and 2-1/2" create a custom appearance.
• Eccentric spindle collet for re-sharpened cutters.
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup.
• Visual stylus and template aid in guiding the carriage.
• Spring loaded carriage makes for smooth, effortless dovetail cutting.
• Material stops provide convenient positioning of the workpiece.
• Cast iron and steel construction for added stability and durability.
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses.
• Extra large soft grip handle provides positive control and comfort.
Specifications
| Box Quantity | 1 |
| Number of Spindles | 1 |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 59 x 16-1/2 |
| Minimum Dovetail Height (In.) | 45367 |
| Maximum Side Thickness (In.) | 42372 |
| Minimum Front Thickness (In.) | 11933 |
| Center to Center Dovetail Spacing (In.) | 1, 1-1/2, 2, 2-1/2 |
| Motor Power (HP) | 1 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Prewired Voltage (V.) | 230 |
| Maximum Front Thickness (In.) | 39481 |
| Motor Voltage (V.) | 230 only |
| Maximum Dovetail Height (In.) | 45355 |
| Number of Dovetail Center Lines | 4 |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 7-7/8 x 2-3/8 |
| Spindle Speed (RPM) | 18500 |
| Motor Phase | 1 |
| Minimum Side Thickness (In.) | 45359 |
| Dust Port Outside Diameter (In.) | 37288 |
| Motor Current (Amps) | |
| Style (Type) | Pneumatic |
| Table Height From Floor (In.) | 45 |
| Warranty | 5 Years |
| Horsepower | 1 HP |
| Phase | 1 |
| Product Type | Dovetailer |
