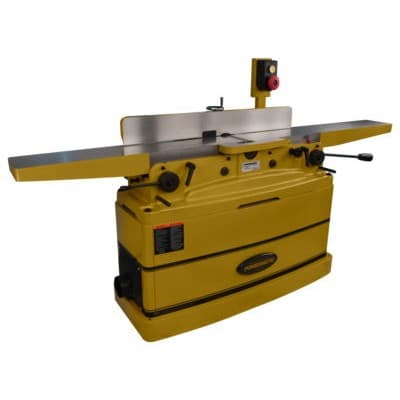

Powermatic PJ882 8" Jointer 2HP 1Ph 230V
Item # JPW1610079
•Mfr # PM9-1610079
$3,899.99
/Each
Freight: $350.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP motor is totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.
• Straight knife cutterhead with 3 high speed steel knives create a clean cut.
• Large 8" x 82" precision ground cast iron table surface for heavy-duty work.
• Patented handwheel with worm gear system for precise fence tilting.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• High-mount switch for operator convenience.
• Parallelogram design allows for easy and accurate adjustment of tables.
• Straight knife cutterhead with 3 high speed steel knives create a clean cut.
• Large 8" x 82" precision ground cast iron table surface for heavy-duty work.
• Patented handwheel with worm gear system for precise fence tilting.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• High-mount switch for operator convenience.
• Parallelogram design allows for easy and accurate adjustment of tables.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 7000 RPM |
| Phase | |
| Length | |
| Horsepower | 2 HP |
| Drive Motor | 1 |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | 45293 |
| Table Size (L x W) (In.) | 82 x 8 |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power | 2 |
| Cutter Block Speed | 7000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutter Block Diameter | 42430 |
| Outfeed Table Length (In.) | 38 |
| Motor Voltage (V.) | 230 only |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Number of Knives | 3 Straight High Speed Steel Knives |
| Cuts Per Minute | 21000 |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | 20 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (amps) | 9 |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | Straight |
| Fence Size (L x H) (In.) | 38-3/16 x 4-3/4 |
| Table Height from Floor (In.) | 31-5/16 |
| Infeed Table Length (In.) | 44 |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | 5 Years |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
