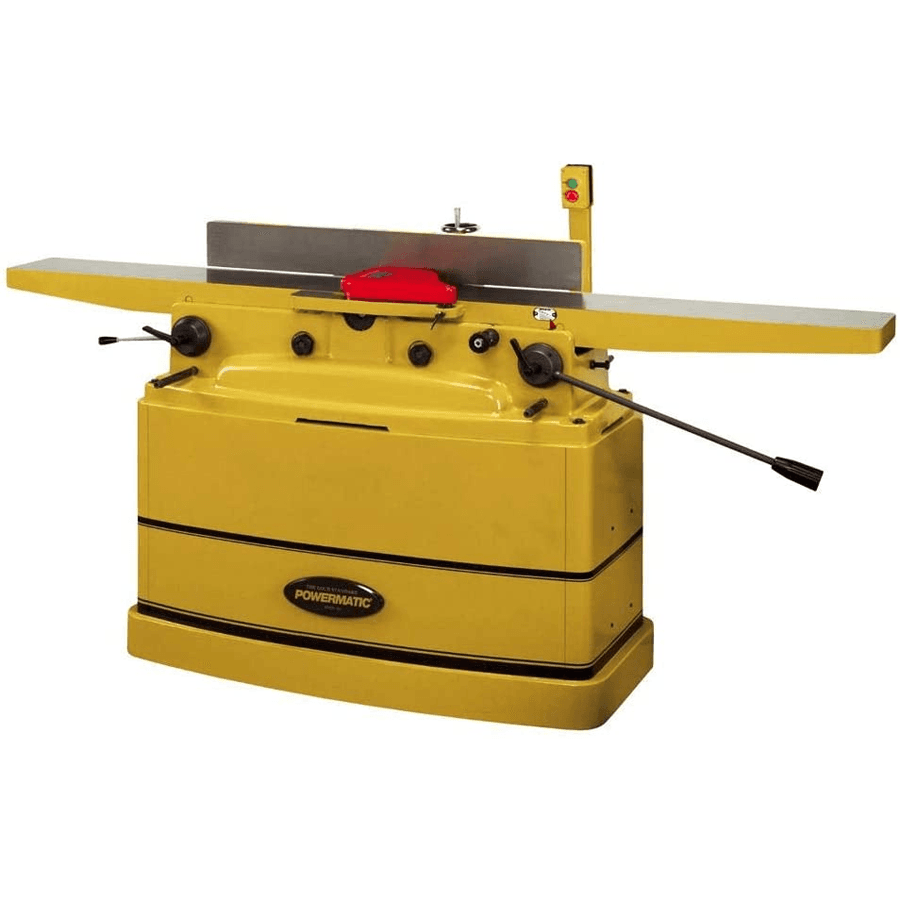

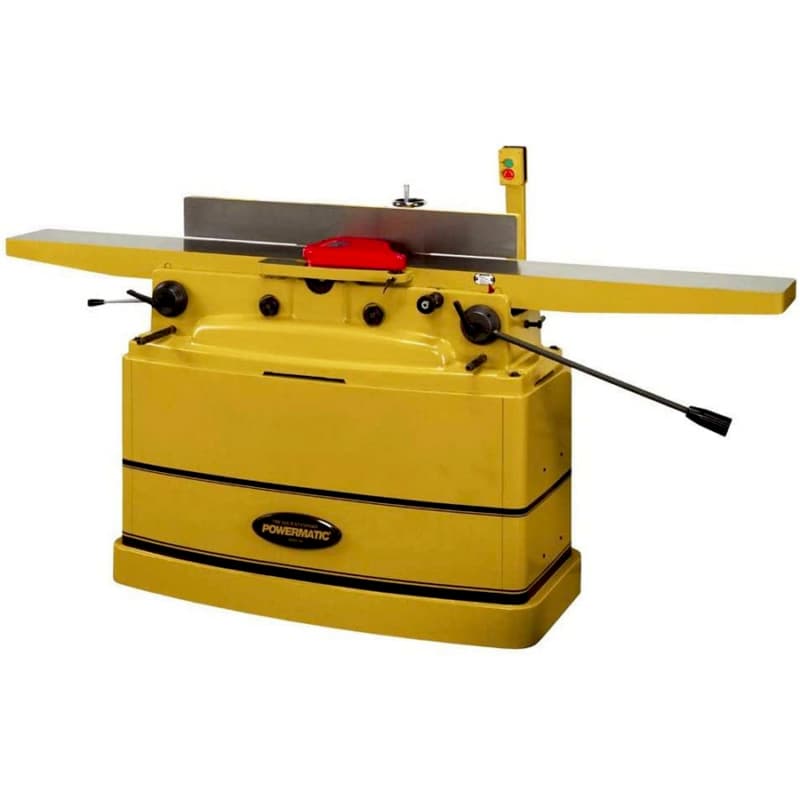

Powermatic PJ-882HH Jointer 2HP 1Ph 230V
Item # JPW1610082
•Mfr # PM9-1610082
$4,499.99
/Each
Freight: $350.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four sided knife inserts. These produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82" bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
• Helical cutterhead with54 four sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems.
• Large 8" x 82" precision ground cast iron table surface for heavy-duty work.
• Patented handwheel with worm gear system for precise fence tilting.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• High-mount switch for operator convenience.
• Parallelogram design allows for easy and accurate adjustment of tables.
• Helical cutterhead with54 four sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems.
• Large 8" x 82" precision ground cast iron table surface for heavy-duty work.
• Patented handwheel with worm gear system for precise fence tilting.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• High-mount switch for operator convenience.
• Parallelogram design allows for easy and accurate adjustment of tables.
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | |
| Phase | 1 |
| Length | |
| Horsepower | 2 HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | NA |
| Table Size (L x W) (In.) | 82 x 8 |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power | 2 |
| Cutter Block Speed | 7000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutter Block Diameter | 42430 |
| Outfeed Table Length (In.) | 38 |
| Motor Voltage (V.) | 230 only |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Number of Knives | 54 Four-Sided Carbide Helical Inserts |
| Cuts Per Minute | NA |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | 20 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (amps) | 9 |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | Helical |
| Fence Size (L x H) (In.) | 44-3/4 x 38-3/16 |
| Table Height from Floor (In.) | 31-5/16 |
| Infeed Table Length (In.) | 44 |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | 5 Years |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter | 3-1/16 " |
