Powermatic 60C 8" Jointer 2HP 1Ph 230V
Item # JPW1610084K
•Mfr # PM9-1610084K
$3343.00
/Each
Freight: $300.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details

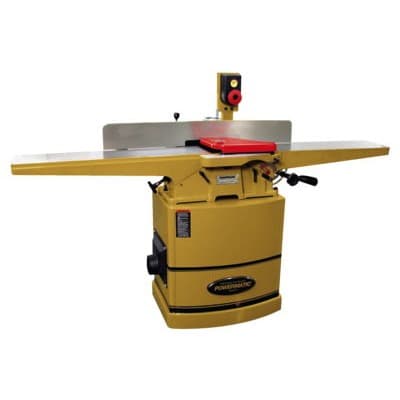

This 8" jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73" long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
• Three straight high-speed steel knives give a clean cut.
• Extra long tables are mounted on dovetailed ways for extended workpiece support.
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth.
• High mount switch for operator convenience.
• Handwheel operated worm gear system for smooth fence tilting.
• Magnetic push blocks can be stored on the machine within constant reach.
• Non-mar fence insert protects table surface.
• Three straight high-speed steel knives give a clean cut.
• Extra long tables are mounted on dovetailed ways for extended workpiece support.
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth.
• High mount switch for operator convenience.
• Handwheel operated worm gear system for smooth fence tilting.
• Magnetic push blocks can be stored on the machine within constant reach.
• Non-mar fence insert protects table surface.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 7000 RPM |
| Phase | |
| Length | |
| Horsepower | 2 HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | 45293 |
| Table Size (L x W) (In.) | 73 x 8-1/2 |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power | 2 |
| Cutter Block Speed | 7000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutter Block Diameter | 3 |
| Outfeed Table Length (In.) | 35-1/2 |
| Motor Voltage (V.) | 230 only |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Number of Knives | 3 High Speed Steel Straight Knives |
| Cuts Per Minute | 21000 |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | 20 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (amps) | 9 |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | Straight |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Table Height from Floor (In.) | 32 |
| Infeed Table Length (In.) | 35-1/4 |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | 5 Years |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
