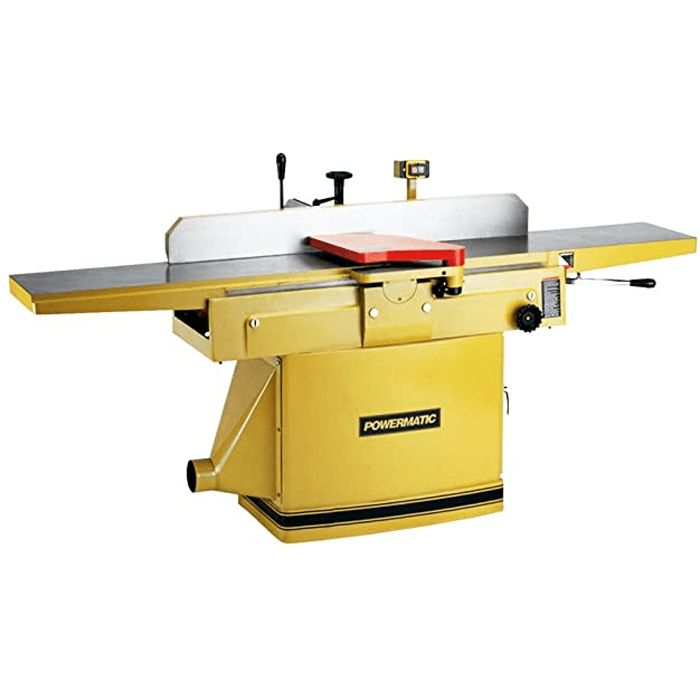

Powermatic 1285 12" Jointer 3HP 1Ph 230V Straight Knife Cutterhead
Item # JPW1791241
•Mfr # PM9-1791241
$7,299.99
/Each
Freight: $520.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.
• Straight knife cutterhead with 3 high speed steel knives create a clean cut.
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play.
• Large 12" x 84" precision ground cast iron table surface for heavy-duty work.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• Table "lips" on both sides of cutterhead aid in noise reduction.
• Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep.
• Straight knife cutterhead with 3 high speed steel knives create a clean cut.
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play.
• Large 12" x 84" precision ground cast iron table surface for heavy-duty work.
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments.
• Table "lips" on both sides of cutterhead aid in noise reduction.
• Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep.
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5000 RPM |
| Phase | 1 |
| Length | |
| Horsepower | 3 HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | 45355 |
| Table Size (L x W) (In.) | 84 x 12 |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power | 3 |
| Cutter Block Speed | 5000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | 230 only |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Prewired Voltage (V.) | |
| Motor Phase | 1 |
| Number of Knives | 3 High Speed Steel Straight Knives |
| Cuts Per Minute | 15000 |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | 30 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | Straight |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Table Height from Floor (In.) | 31-5/8 |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | 5 Years |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
