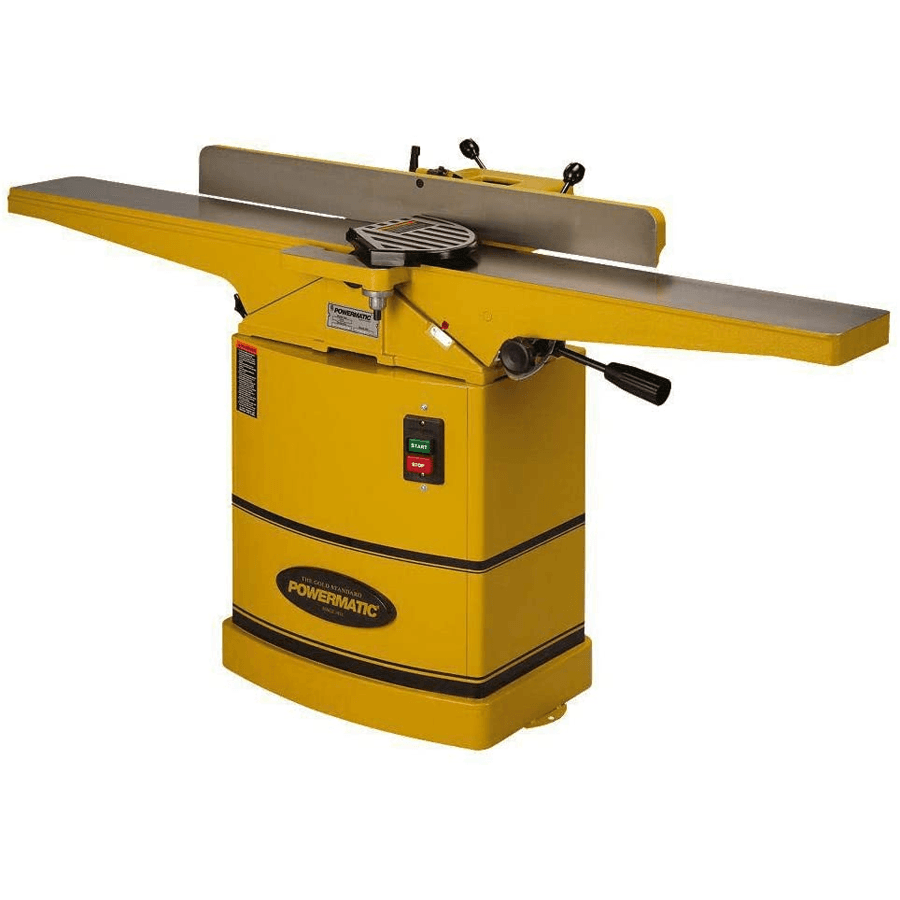

Powermatic 54HH 6" Jointer 1HP 1Ph 115/230V
Item # JPW1791317K
•Mfr # PM9-1791317K
$2364.00
/Each
Product Details
This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts • this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
• Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems.
• 66" long adjustable infeed and outfeed tables provide more working surface.
• Fine/quick adjustment lever on infeed table for precision cuts.
• Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts.
• Enlarged sheet metal stand provides a sturdy base.
• Fence controls are center-mounted for convenience.
• Push button switch is lockable to prevent accidental starting.
• Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems.
• 66" long adjustable infeed and outfeed tables provide more working surface.
• Fine/quick adjustment lever on infeed table for precision cuts.
• Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts.
• Enlarged sheet metal stand provides a sturdy base.
• Fence controls are center-mounted for convenience.
• Push button switch is lockable to prevent accidental starting.
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 6000 RPM |
| Phase | 1 |
| Length | |
| Horsepower | 1 HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 115/230V |
| Width | |
| Rabbeting Capacity (In.) | NA |
| Table Size (L x W) (In.) | 66 x 7-1/4 |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power | 1 |
| Cutter Block Speed | 6000 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutter Block Diameter | 37288 |
| Outfeed Table Length (In.) | 32-1/2 |
| Motor Voltage (V.) | 115/230 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Cutting Capacity (W x D) (In.) | 6 x 1/2 |
| Prewired Voltage (V.) | 115 |
| Motor Phase | 1 |
| Number of Knives | 40 Four-Sided Carbide Helical Inserts |
| Cuts Per Minute | NA |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | 20/10 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Motor Current (amps) | 13/6.5 |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | Helical |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Table Height from Floor (In.) | 31-1/2 |
| Infeed Table Length (In.) | 32-1/2 |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | 5 Years |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
