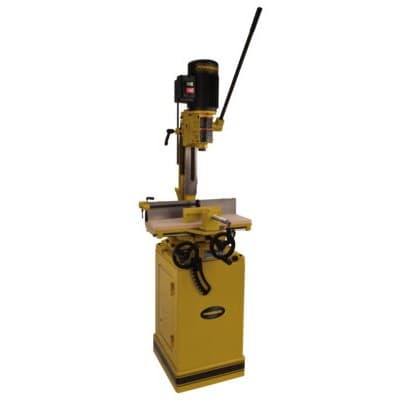

Powermatic 717T Mortiser 1HP 1Ph 115/230V
Item # JPW1791264K
•Mfr # PM9-1791264K
$1,699.99
/Each
Freight: $170.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The 719T Tilt Table Mortiser features heavy-duty cast iron construction and a powerful 1HP motor for the most demanding jobs. The head is mounted using adjustable gibs to assure years of trouble-free service. The heavy rack and pinion gear system utilizes a spring-loaded six position adjustable handle for movement. A handy depth stop gives a uniform depth of mortise. A large 20-1/4" x 7" table gives plenty of work support and will adjust to any angle between 0 and 35°. The table can also move left to right and forward and back on dovetail ways with the large handwheel controls. Adjustable linear stops and flip down stop allow for precision repeatability. The quick adjust clamp provides plenty of work-holding force and will swivel to accommodate angled workpieces. The heavy enclosed steel cabinet provides plenty of storage inside for chisels and accessories.
• Sturdy cast iron construction with precision-machined column and table.
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering.
• Feed lever features size positions allowing for quick adjustments.
• Table and fence tilt from 0 to 35° for angled mortises.
• Quick position table mounted swiveling vise clamp accommodates angled work pieces.
• Handwheels control smooth linear and cross table motions.
• Quick adjust depth stop for uniform mortise depths.
• Hinged chuck door allows easy access for quick bit changes.
• Adjustable work stop for repeat cuts.
• Sturdy cast iron construction with precision-machined column and table.
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering.
• Feed lever features size positions allowing for quick adjustments.
• Table and fence tilt from 0 to 35° for angled mortises.
• Quick position table mounted swiveling vise clamp accommodates angled work pieces.
• Handwheels control smooth linear and cross table motions.
• Quick adjust depth stop for uniform mortise depths.
• Hinged chuck door allows easy access for quick bit changes.
• Adjustable work stop for repeat cuts.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Wiring Remarks | |
| Spindle Travel (In.) | |
| Chisel Center to Fence (In.) | 4 |
| Bushing Size (In.) | 5/8, 3/4, 1-1/8 |
| Prewired Voltage (V.) | 115 |
| Chuck Distance to Base (In.) | |
| Maximum Work Piece Height (In.) | |
| Chuck Distance to Table (In.) | |
| Motor Current (Amps) | 11/5.5 |
| Motor Power (HP) | 1 |
| Table Size Fully Extended (L x W) (In.) | |
| Stand Height (In.) | |
| Motor Phase | 1 |
| Chuck Size (In.) | 45293 |
| Spindle Speed (RPM) | 1725 |
| Chisel Stroke (In.) | |
| Fence Size (L x H) (In.) | 4-1/2 x 20-1/4 |
| Chisel Stroke Maximum (In.) | 38263 |
| Chisel Shank Capacity (In.) | 5/8, 3/4, 1-1/8 |
| Swing (In.) | |
| Recommended Circuit Size (Amps.) | |
| Motor Voltage (V.) | 115/230 |
| Table Tilt (Deg.) | 0 - 35 |
| Head Travel (Front to Back) (In.) | |
| Table Size (L x W) (In.) | 7 x 20-1/4 |
| Style (Type) | Tilt Table |
| Spindle Taper | |
| Spindle Distance to Base (In.) | |
| Column Diameter (In.) | |
| Base Size (In.) | 14 x 16 |
| Under Hold-Down (In.) | |
| Table Travel - Longitudinal (In.) | 15-1/2 |
| Table Travel - Cross (In.) | 4 |
| Drilling Capacity (In.) | |
| Chisel Capacity (In.) | 36895 |
| Head Travel (Left to Right) (In.) | |
| Spindle Distance to Table (Max.) (In.) | |
| Warranty | 5 Years |
| Horsepower | 1 HP |
| Phase | 1 |
| Product Type | Chisel Mortiser |
