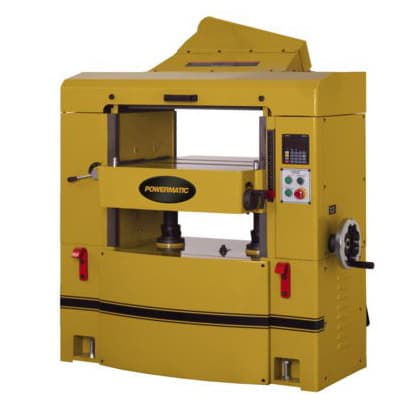

Powermatic WP2510 Planer 15HP 3Ph 230/460V Helical Head
Item # JPW1791303
•Mfr # PM9-1791303
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The POWERMATIC• WP2510 Planer has a solid steel helical cutterhead with 174 four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05".
• Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels.
• Digital readout and simple PC controller make quick and easy table height set ups.
• Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock.
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers.
• 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life.
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch.
• Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment.
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding.
• 3 speed feed selector allows you to quickly change feed rates.
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock.
• Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels.
• Digital readout and simple PC controller make quick and easy table height set ups.
• Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock.
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers.
• 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life.
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch.
• Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment.
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding.
• 3 speed feed selector allows you to quickly change feed rates.
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock.
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Cutter Head Diameter | |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | 15 HP |
| Phase | |
| Length | |
| Drive Motor | 3 |
| Voltage | 230/460V |
| Width | |
| Cutter Head Type | Helical |
| Motor Phase | 3 |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | 3 |
| Cutter Block Diameter | 39510 |
| Speed | |
| Recommended Circuit Size (Amps.) | 50/25 |
| Maximum Depth of Cut (In.) | 45295 |
| Number of Rollers | |
| Maximum Planing Width (In.) | 25 |
| Motor Voltage (V.) | 230/460 |
| Column Diameter (In.) | 37288 |
| Cuts Per Minute | 30000 |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | 45299 |
| Motor Current (Amps) | 37/18.5 |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | 230 |
| Feed Rate | 20/25/30 |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | 32-3/16 x 26 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | 174 Four-Sided Carbide Inserts |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | 0 - 0.05 |
| Digital Readout | Inch / Metric |
| Type of Cutterhead | Helical |
| Style (Type) | Floor |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | 3 |
| Maximum Planing Thickness (In.) | auto 9/manual 10 |
| Table Support | 2 Column |
| Motor Power | 15 |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | 10 |
| Cutter Block Speed | 5000 |
| Dust Port Outside Diameter (In.) | 5 |
| Warranty | 5 Years |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
