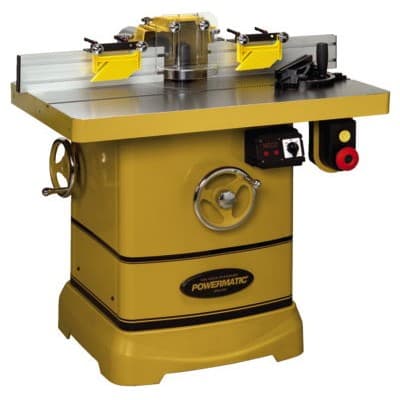

Powermatic PM2700 Shaper 3HP 1Ph 230V Includes 3/4" & 1-1/4" Spindle
Item # JPW1280100C
•Mfr # PM9-1280100C
This item may incur additional shipping costs and lead times.
Product Details
This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
• Digital readout gives the use exact spindle height and allows for .001" adjustments.
• Micro adjust control knobs allow for precision adjustment for the fence.
• Integrated casters can be raised and lowered to mobilize shaper.
• Heavy duty cast iron base.
• Two speed reversible spindle speeds.
• Independently adjustable fence sides.
• Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding.
• Superior clear cutter guard promotes safety, allows observation of the entire cut.
• Table predrilled and tapped for feeder mounting in two locations.
• Includes 3/4" and 1-1/4" spindles.
• Digital readout gives the use exact spindle height and allows for .001" adjustments.
• Micro adjust control knobs allow for precision adjustment for the fence.
• Integrated casters can be raised and lowered to mobilize shaper.
• Heavy duty cast iron base.
• Two speed reversible spindle speeds.
• Independently adjustable fence sides.
• Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding.
• Superior clear cutter guard promotes safety, allows observation of the entire cut.
• Table predrilled and tapped for feeder mounting in two locations.
• Includes 3/4" and 1-1/4" spindles.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Shaper |
| Power | 230V |
| Phase | |
| Length | |
| Width | |
| Height | |
| Horsepower | 3 HP |
| Rangeof Speeds | |
| Electrical Controls | Yes |
| Table Inserts (In.) | 2-1/2 x 4-1/8 x 5-3/4 |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4" Spindle (3-1/2), 1" Spindle (4-7/8), 1-1/4" Spindle (5-1/8) |
| Recommended Circuit Size (Amps.) | 30 |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | 7.33 |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | 1 |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | 7,500, 10,000 |
| Motor Voltage (V.) | 230 only |
| Table Size (In.) | 40 x 30 |
| Fence Size (L x H) (In.) | 18-3/4 x 4-7/8 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Current (Amps) | 14 |
| Maximum Spindle Diameter (In.) | 37987 |
| Style (Type) | Shaper |
| Spindle Pivot | |
| Spindle Travel (In.) | 4 |
| Digital Readouts | Spindle Height |
| Prewired Voltage (V.) | 230 |
| Table T-Slot (In.) | |
| Spindles Included | 3/4, 1-1/4 |
| Sliding Table Size (In.) | |
| Motor Power | 3 |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | 35-1/2 |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
