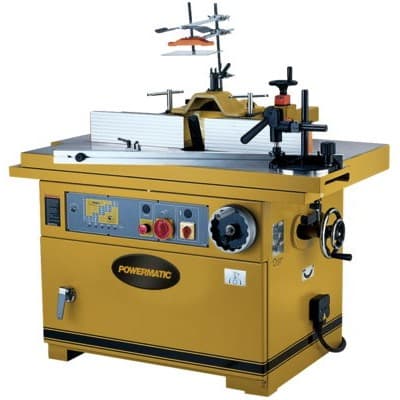

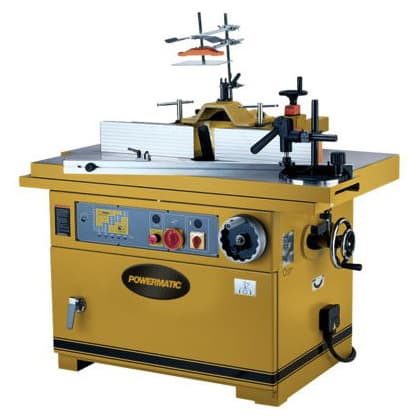

Powermatic TS29 Interchangeable Tilting Spindle with Sliding Table 7.5HP 3Ph 230/460V
Item # JPW1791284
•Mfr # PM9-1791284
This item may incur additional shipping costs and lead times.
Product Details
The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
• Sliding table travels a full 49-1/4 inches.
• Fully adjustable fence has dual digital readout positioning with micrometer adjustments.
• Tilting spindle for additional angles.
• Large table with built-in slider with room for stock feeder.
• Full coverage guard with workpiece hold downs.
• Five spindle speeds in forward and reverse with lighted indicator.
• Large diameter multiple table inserts accommodate virtually any size cutter.
• Includes 3/4", 1" and 1-1/4" spindles.
• Sliding table travels a full 49-1/4 inches.
• Fully adjustable fence has dual digital readout positioning with micrometer adjustments.
• Tilting spindle for additional angles.
• Large table with built-in slider with room for stock feeder.
• Full coverage guard with workpiece hold downs.
• Five spindle speeds in forward and reverse with lighted indicator.
• Large diameter multiple table inserts accommodate virtually any size cutter.
• Includes 3/4", 1" and 1-1/4" spindles.
Specifications
| Box Quantity | 1 |
| Product Type | Shaper |
| Power | |
| Phase | 3 |
| Length | |
| Width | |
| Height | |
| Horsepower | 7.5 HP |
| Rangeof Speeds | |
| Electrical Controls | 24 volt |
| Table Inserts (In.) | 2-1/5, 5-1/2, Oval (Tilting) |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4" Spindle (3-1/2), 1" Spindle (6-1/4), 1-1/4" Spindle (6-1/4) |
| Recommended Circuit Size (Amps.) | 30/15 |
| Table Travel (In.) | 49-1/4 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Motor Phase | 3 |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Fence Travel (Major and Minor) (In.) | 5-3/8, 3-5/8 |
| Spindle Stroke | 3,000, 4,000, 6,000, 8,000, 10,000 |
| Motor Voltage (V.) | 230/460 |
| Table Size (In.) | 51-1/2 x 33-1/2 |
| Fence Size (L x H) (In.) | 46 x 5 |
| Dust Port Outside Diameter (In.) | Two @ 5" |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | 37987 |
| Style (Type) | Shaper |
| Spindle Pivot | 45 Forward, 5 Back |
| Spindle Travel (In.) | 7 |
| Digital Readouts | |
| Prewired Voltage (V.) | 230 |
| Table T-Slot (In.) | |
| Spindles Included | 3/4, 1, 1-1/4 |
| Sliding Table Size (In.) | 11-1/4 x 51-1/4 |
| Motor Power | 37438 |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | 49-1/4 |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
