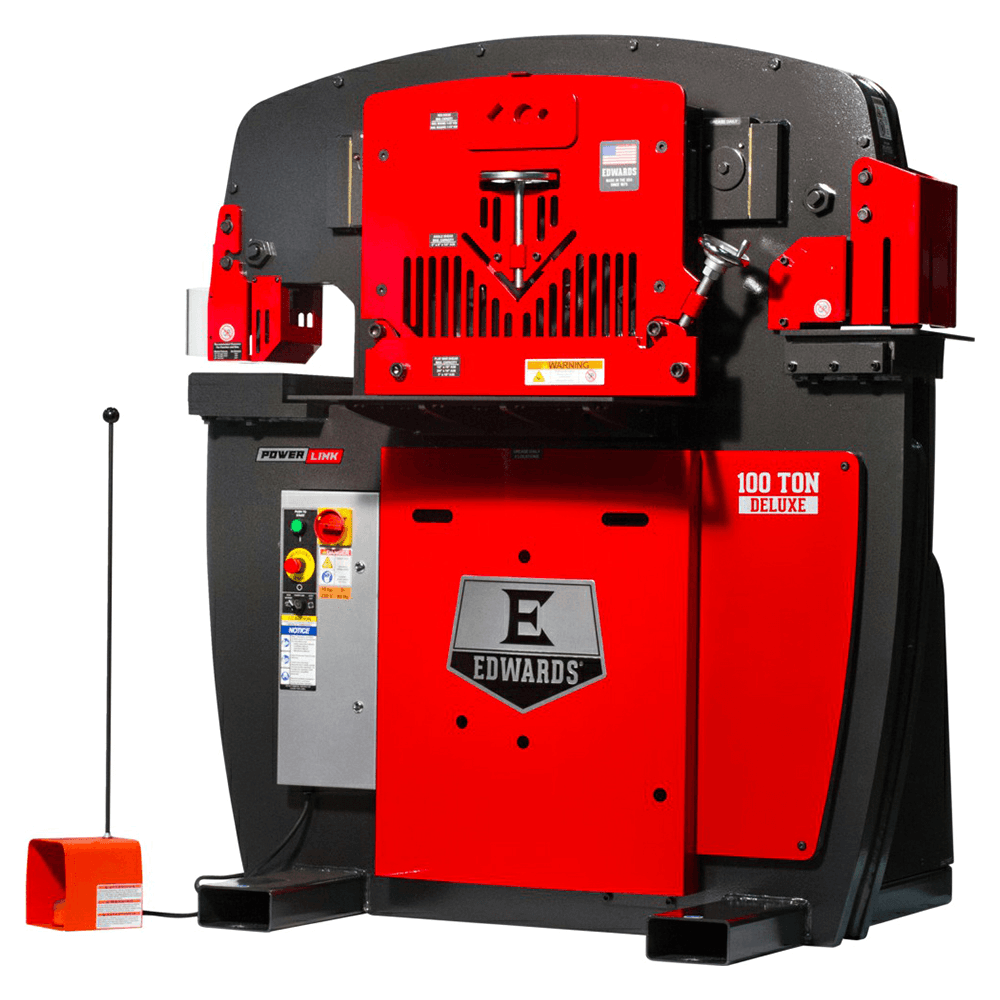

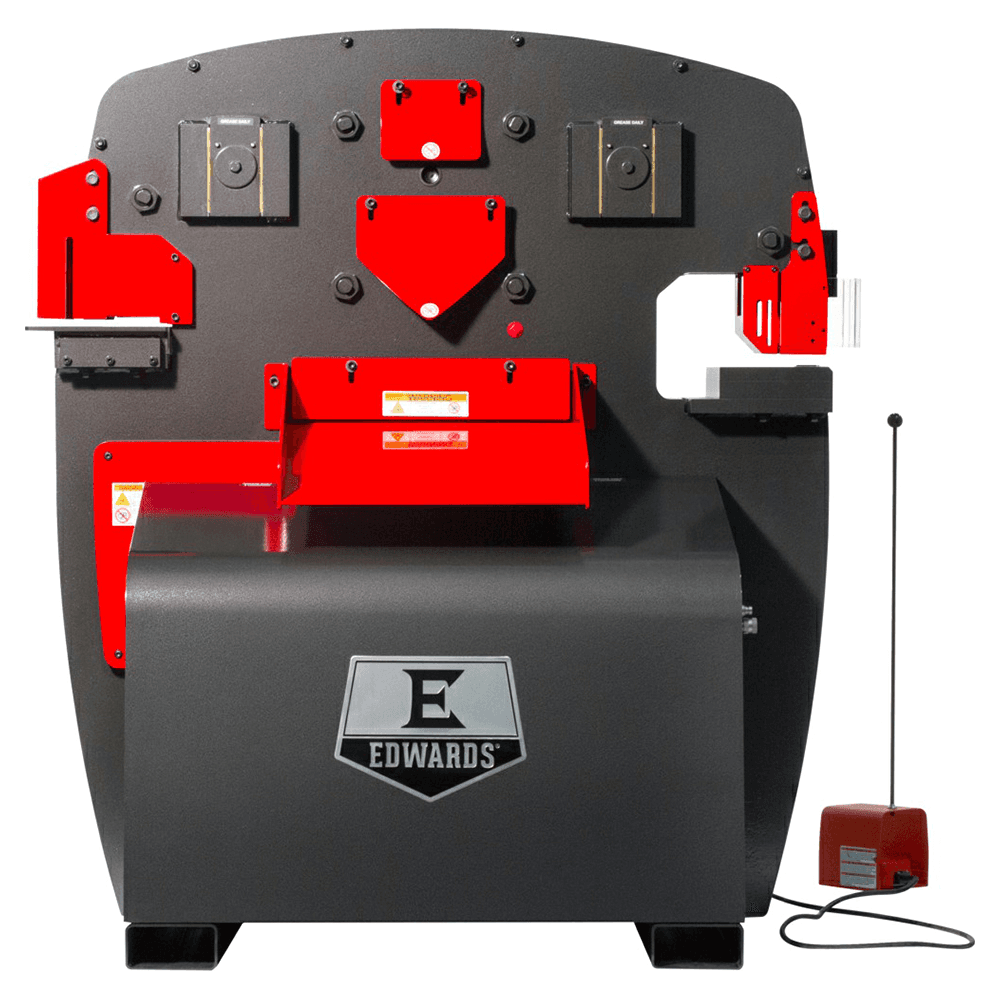

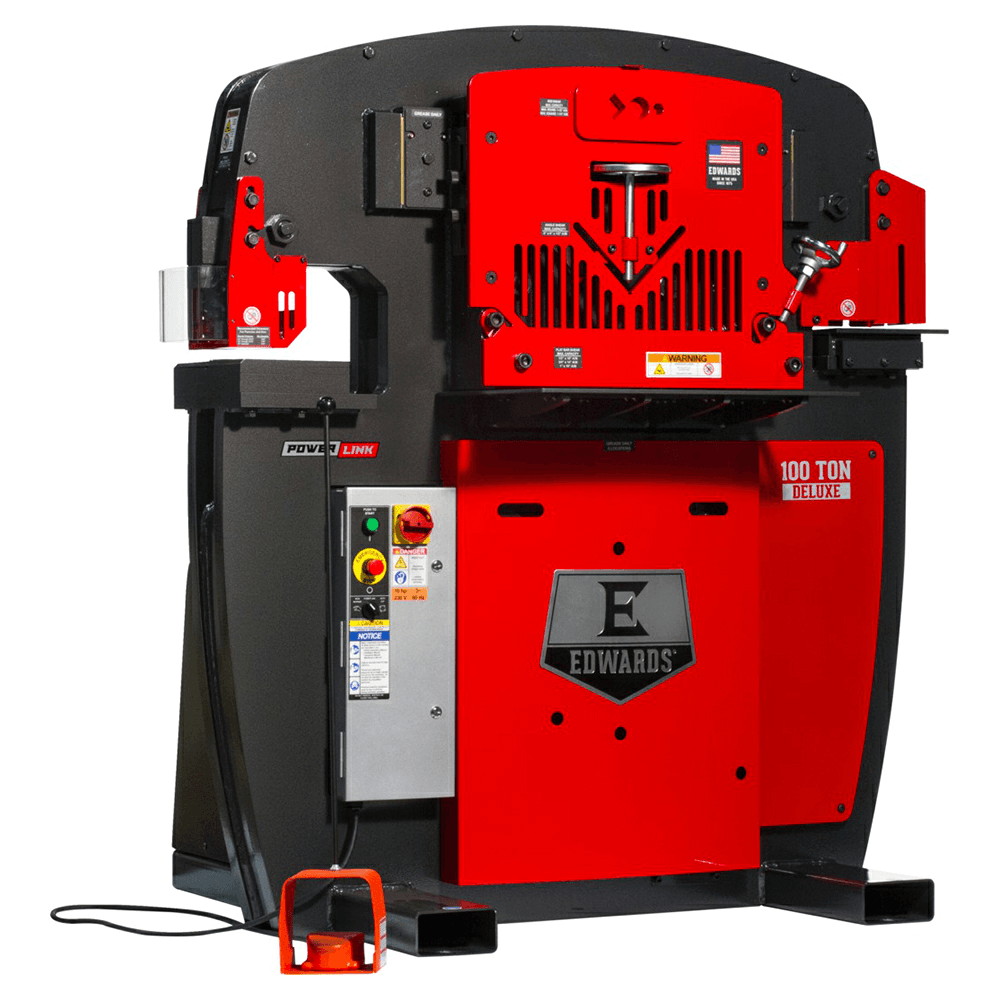

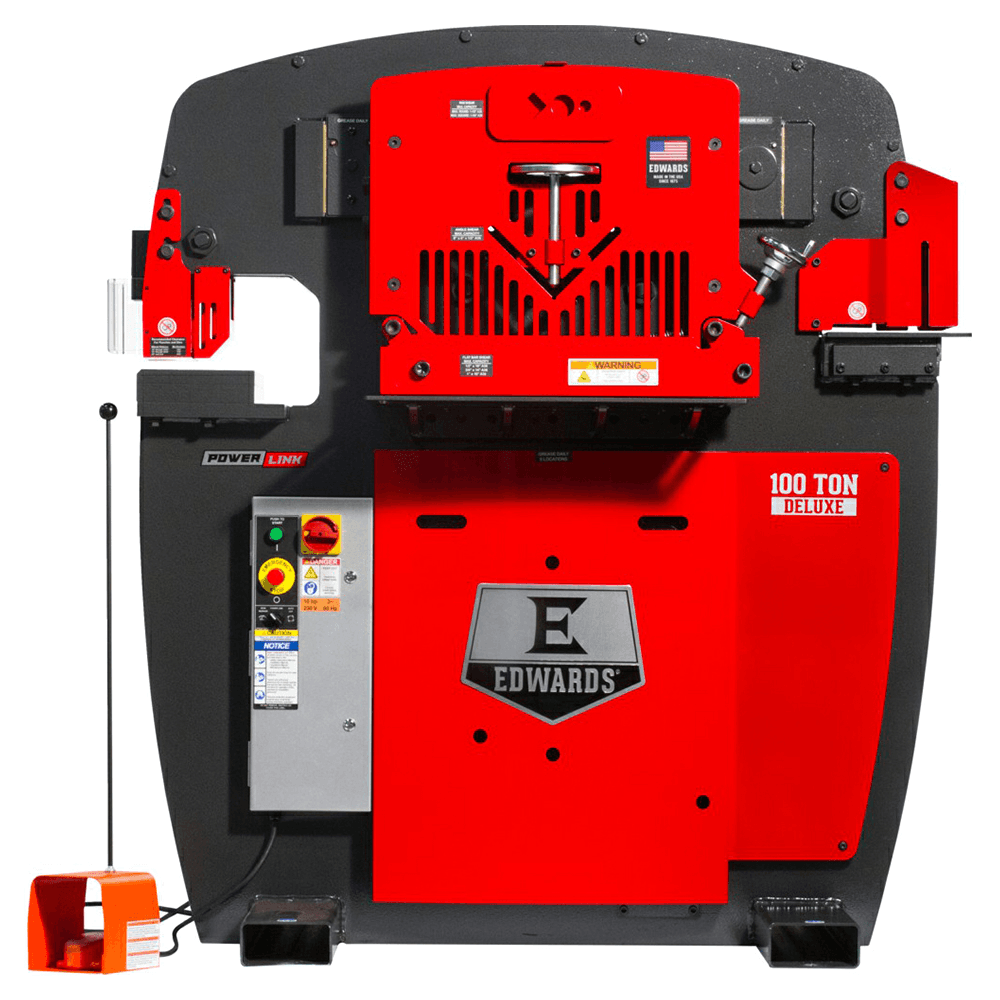

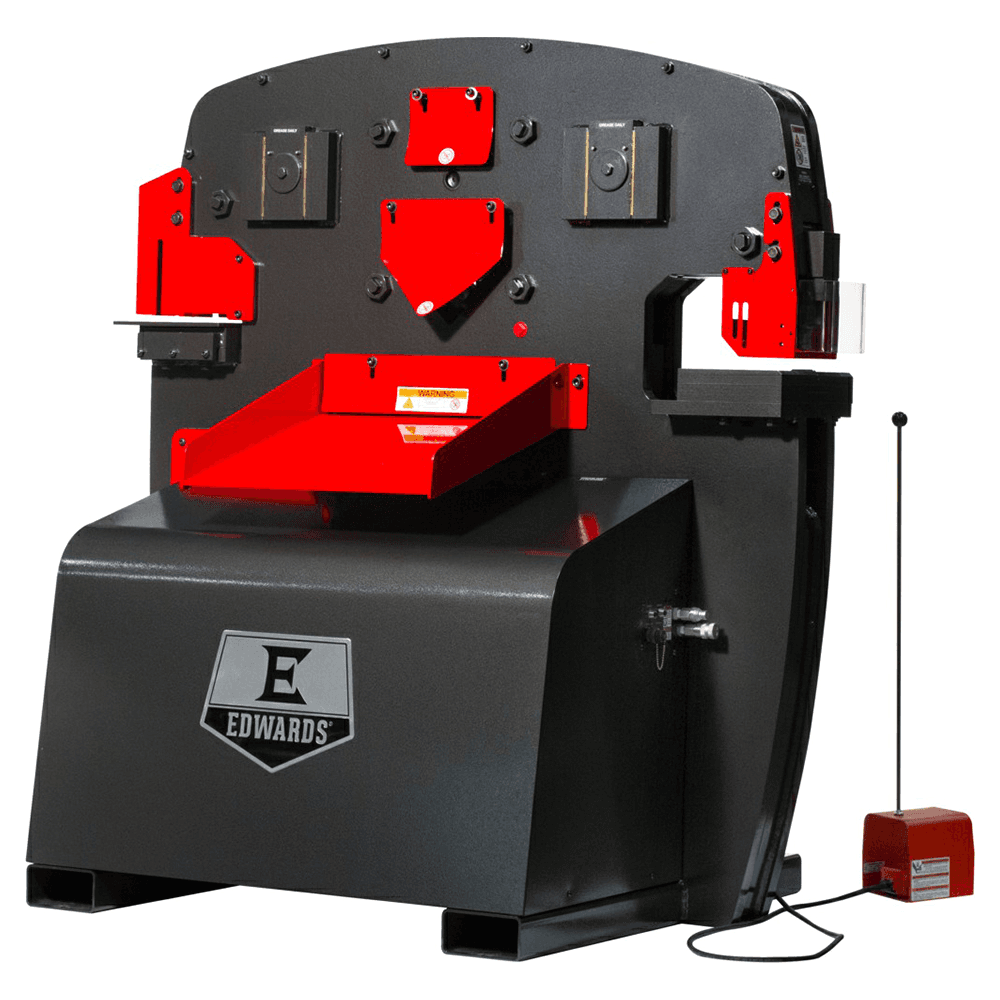

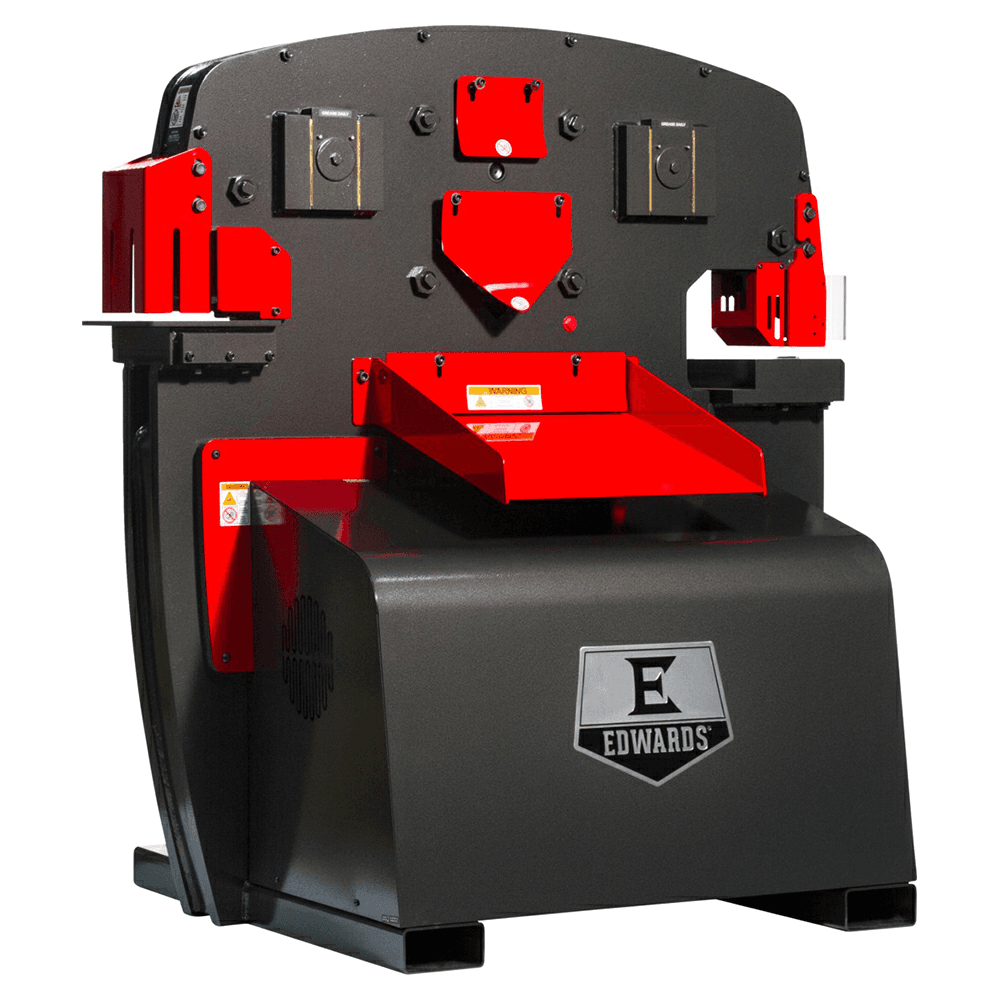

Edwards IW100DX-3P460-AC 7.5 HP 100 Ton Deluxe Ironworker with Powerlink, 3 Phase/460V
This item may incur additional shipping costs and lead times.
Product Details
Our 100 Ton Deluxe Ironworker produces greater cycle times and increased operation speed with its 10 HP motor. The five workstations include an 18"-wide flat bar shear and integrated rod shear, while accepting 10 additional attachments and 15 accessories to adapt the Ironworker to your needs. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Extremely powerful and designed for heavy-duty use, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Features: • Adjustable electric stoke control • ANSI B11.5-1988(02) Compliant Guarding • Bright LED lights increases visibility • Durable, heavy-duty Made in USA steel construction • Electric foot pedal with integrated jog control • ETL Certified Controls • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal and control panel) for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 3800 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 460V |
| Motor Speed (RPM) | 1765 |
| Overall Dimensions (L x W x H) | 56" x 45-1/2" x 63-1/8" |
| Overall Height | |
| Product Type | 100 Ton Deluxe Ironworker |
| Throat Depth | 11" |
| Rod Shear Work Height | 54-1/2" |
| Rod Shear Max Square | 1-1/4" |
| Rod Shear Max Round | 1-1/2" |
| Reservoir (Gal.) | 17 |
| Rating (Tons) | 100 |
| Punch Work Height | 39-3/8" |
| Punch Throat Depth | |
| Punch Stroke | 1-15/16" |
| Punch Shut Height | 6-13/16" |
| Punch Rating (Tons) | 100 |
| Punch Open Height | 8-3/4" |
| Punch Max Capacity | 1-1/16 diam. in 1 mild steel |
| Motor Phase | 3 |
| Motor Amps | 11 |
| Motor (HP) | 7.5 HP |
| Flat Bar Shear Max Capacity 1" | 10" |
| Flat Bar Shear Max Capacity | 1/2" x 18, 3/4" x 14", 1" x 10""" |
| Cylinder | |
| Coper Notcher Work Height | 42"" |
| Coper Notcher Max Capacity | 3" x 6" x 1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 43-15/16" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | 6" x 6" |
| Angle Shear Max Capacity | 6" x 6" x 1/2" |
| Flat Bar Shear Max Capacity 1/2" | 18" |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | 14" |
| Input Power | |
| Hydraulics (PSI) | 3800 PSI |
| Hydraulics (GPM) | 24 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulic Pump (GPM) | 24 GPM |
| Flat Bar Shear Work Height | 37" |
| Flat Bar Shear Rating (Tons) | 100 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1" |
| Flat Bar Shear Max Round Capacity | 1" |
| Flat Bar Shear Max Round | 1" |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps | 12 |
