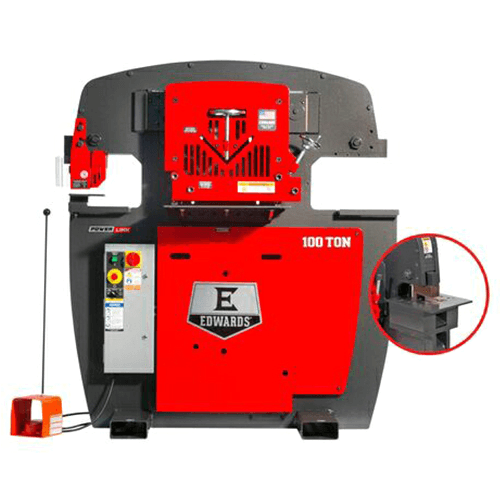

Edwards 10231012 5 HP 100 Ton Ironworker with Coper Notcher, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 workstations including a factory-installed 10" brake. Compatible with 12 interchangeable attachments and 17 accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials. Features: • Adjustable electric stoke control • ANSI B11.5-1988(02) Compliant Guarding • Bright LED lights increases visibility • Durable, heavy-duty Made in USA steel construction • ETL Certified Controls • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal and control panel) for added safety • Optimized workstation heights for improved efficiency
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 3500 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 230V |
| Motor Speed (RPM) | 1725 |
| Overall Dimensions (L x W x H) | |
| Overall Height | |
| Product Type | 100 Ton Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 7 |
| Rating (Tons) | 100 |
| Punch Work Height | 39-1/16" |
| Punch Throat Depth | 11" |
| Punch Stroke | 1-13/16" |
| Punch Shut Height | 6-15/16" |
| Punch Rating (Tons) | |
| Punch Open Height | 8-3/4" |
| Punch Max Capacity | 1-1/16 dia in 1" A36" |
| Motor Phase | 1 |
| Motor Amps | 23 |
| Motor (HP) | 5 HP |
| Flat Bar Shear Max Capacity 1" | 14" |
| Flat Bar Shear Max Capacity | |
| Cylinder | |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | |
| Flat Bar Shear Max Capacity 1/2" | |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | 230V/1 Phase |
| Hydraulics (PSI) | |
| Hydraulics (GPM) | |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | |
| Hydraulic Pump (GPM) | 10-1/2 GPM |
| Flat Bar Shear Work Height | 37" |
| Flat Bar Shear Rating (Tons) | |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1-1/4" |
| Flat Bar Shear Max Round Capacity | |
| Flat Bar Shear Max Round | 1-1/4" |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps |
