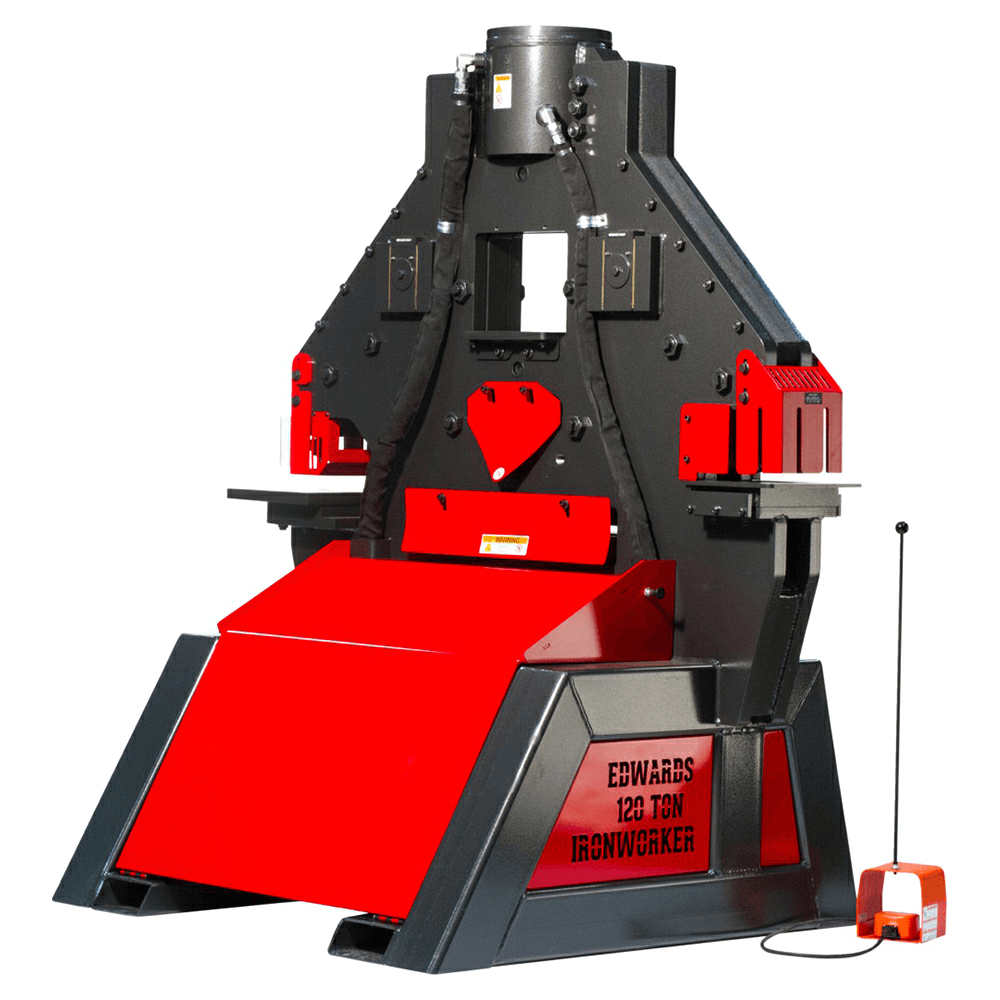

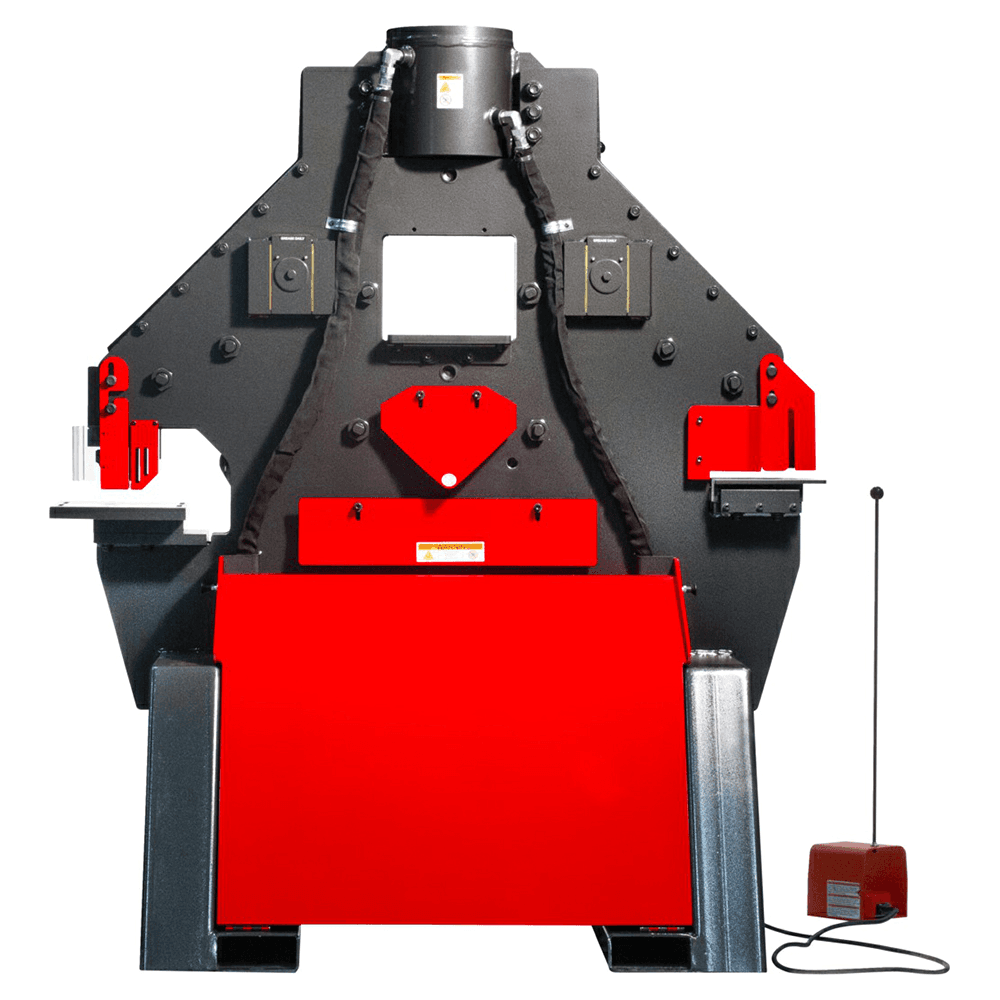

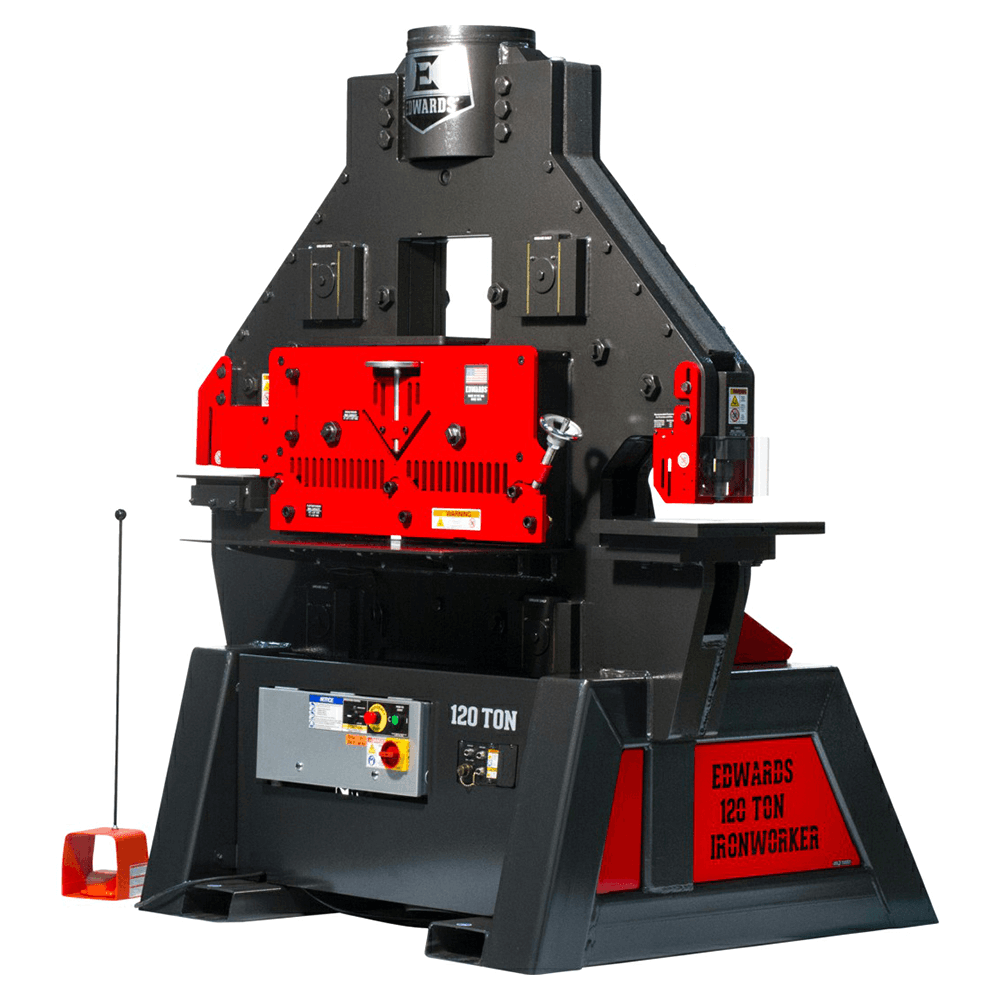

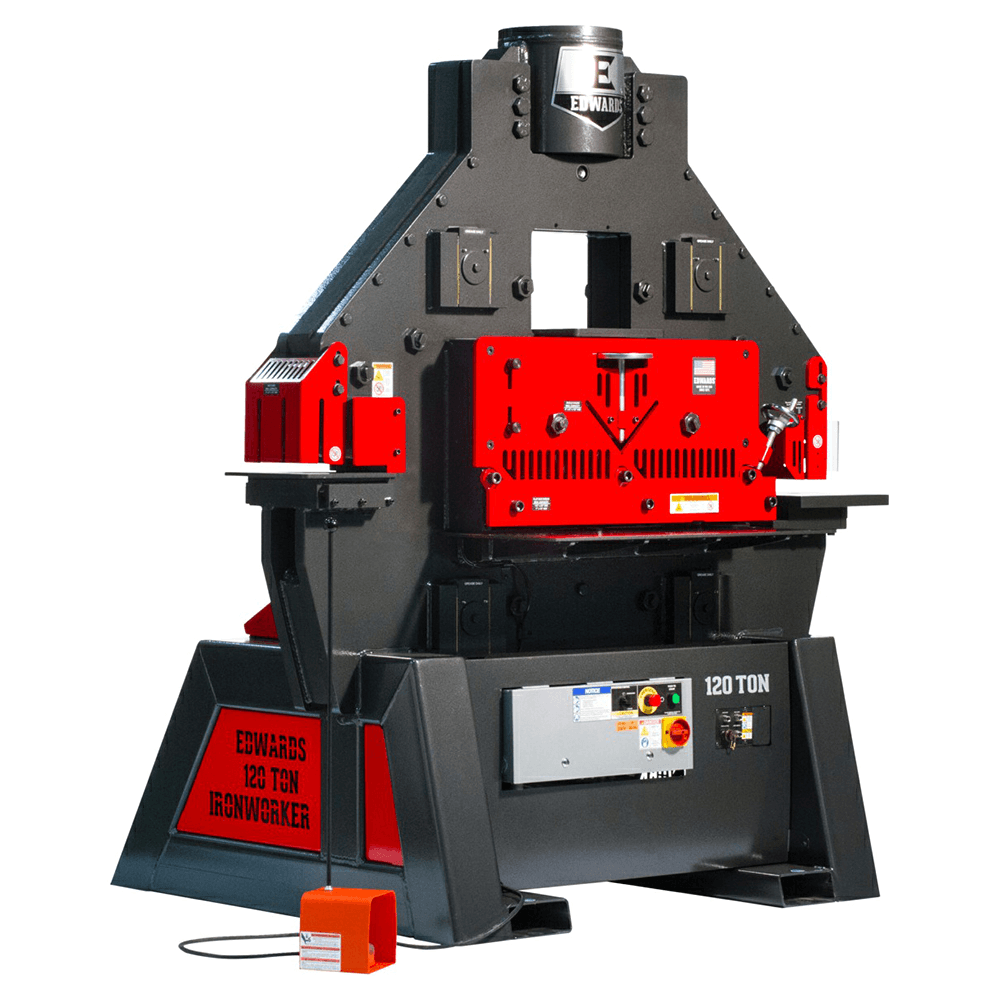

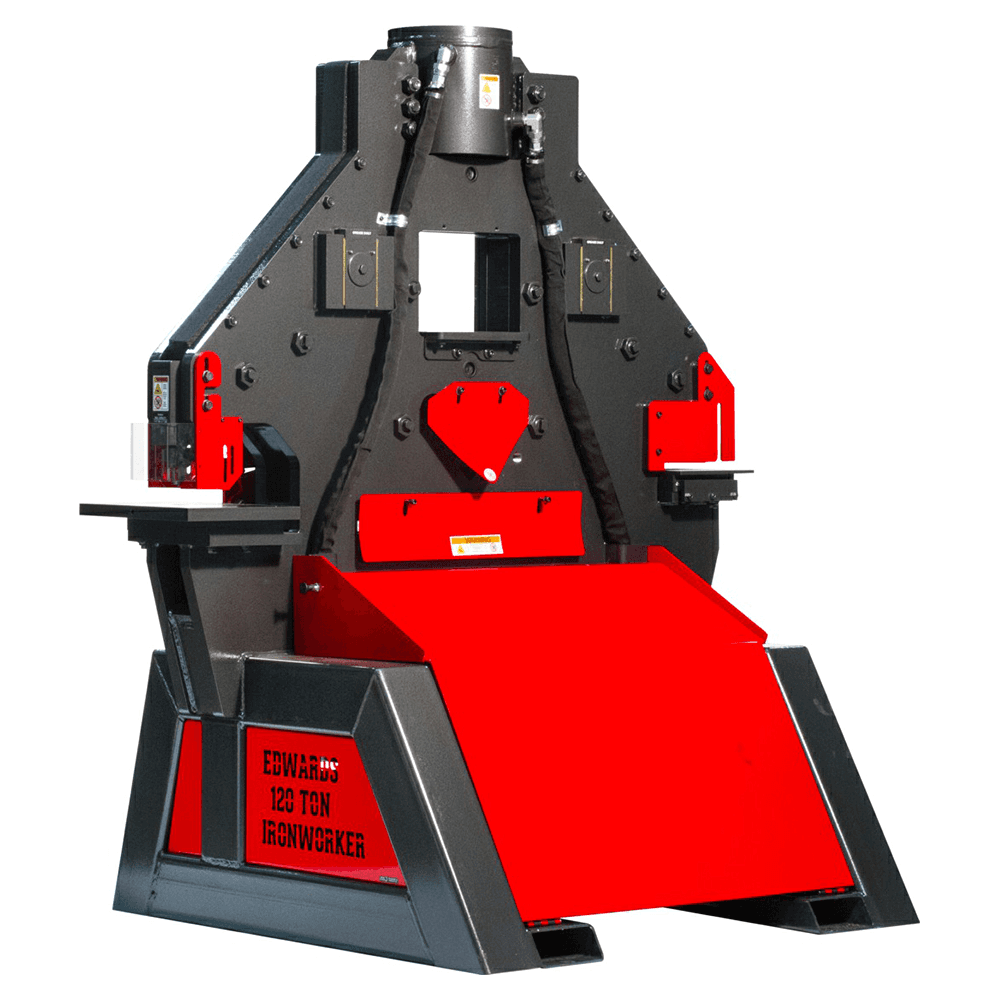

Edwards IW120-3P460 10 HP 120 Ton Ironworker, 3 Phase/460V
This item may incur additional shipping costs and lead times.
Product Details
Our most powerful Ironworker, the 120 Ton offers the largest capacity and most flexibility for a durable and heavy-duty design made in the USA. The 5 Workstations include a Punch, Flat Bar Shear, Angle Shear, Coper Notcher, and Open Cavity that accepts 4 Attachments. This compact machine allows for fast and easy transitions between fabrication operations. Further customize the Ironworker to your projects with 12 interchangeable Attachments and 15 optional Accessories. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects. Features: • Adjustable electric stoke control • ANSI B11.5-1988(02) Compliant Guarding • Bright LED lights increases visibility • Electric foot pedal with integrated jog control • ETL Certified Controls • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal and control panel) for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 3800 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 460V |
| Motor Speed (RPM) | 1770 |
| Overall Dimensions (L x W x H) | 60" x 60" x 84" |
| Overall Height | |
| Product Type | 120 Ton Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 17 |
| Rating (Tons) | 120 |
| Punch Work Height | 36-5/8" |
| Punch Throat Depth | |
| Punch Stroke | 2 |
| Punch Shut Height | 7-1/8" |
| Punch Rating (Tons) | 120 |
| Punch Open Height | 9-1/8" |
| Punch Max Capacity | 1-1/2" diam. in 1 mild steel |
| Motor Phase | 3 |
| Motor Amps | 12 |
| Motor (HP) | 10 HP |
| Flat Bar Shear Max Capacity 1" | 12" |
| Flat Bar Shear Max Capacity | 1/2" x 24", 1" x 12" |
| Cylinder | |
| Coper Notcher Work Height | 40" |
| Coper Notcher Max Capacity | 3" x 6" x 1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 52-1/2" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | 6" x 6" |
| Angle Shear Max Capacity | 6" x 6" x 1/2" |
| Flat Bar Shear Max Capacity 1/2" | 24" |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | 460V/3 Phase |
| Hydraulics (PSI) | 3800 PSI |
| Hydraulics (GPM) | 24 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulic Pump (GPM) | 24 GPM |
| Flat Bar Shear Work Height | 33-1/4" |
| Flat Bar Shear Rating (Tons) | 120 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1-1/4" |
| Flat Bar Shear Max Round Capacity | 1"-1/4" |
| Flat Bar Shear Max Round | 1-1/4" |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps | 12 |
