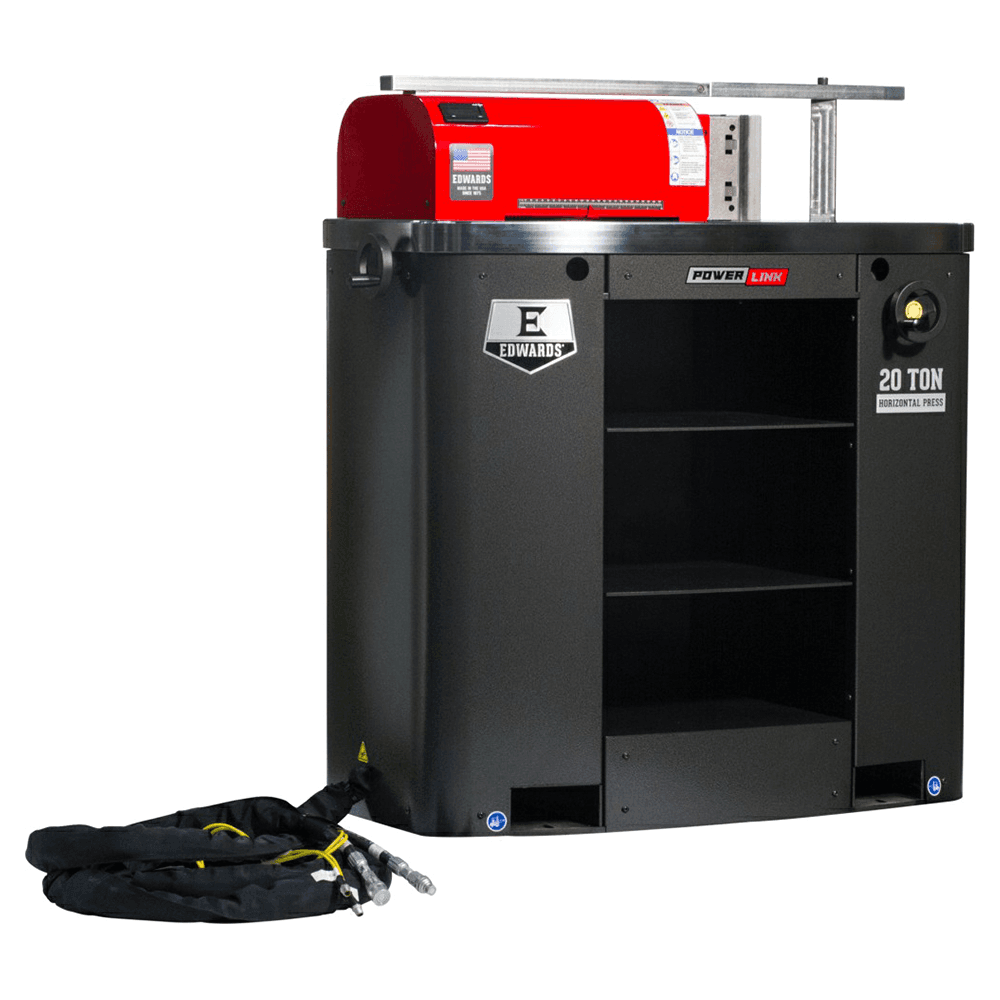

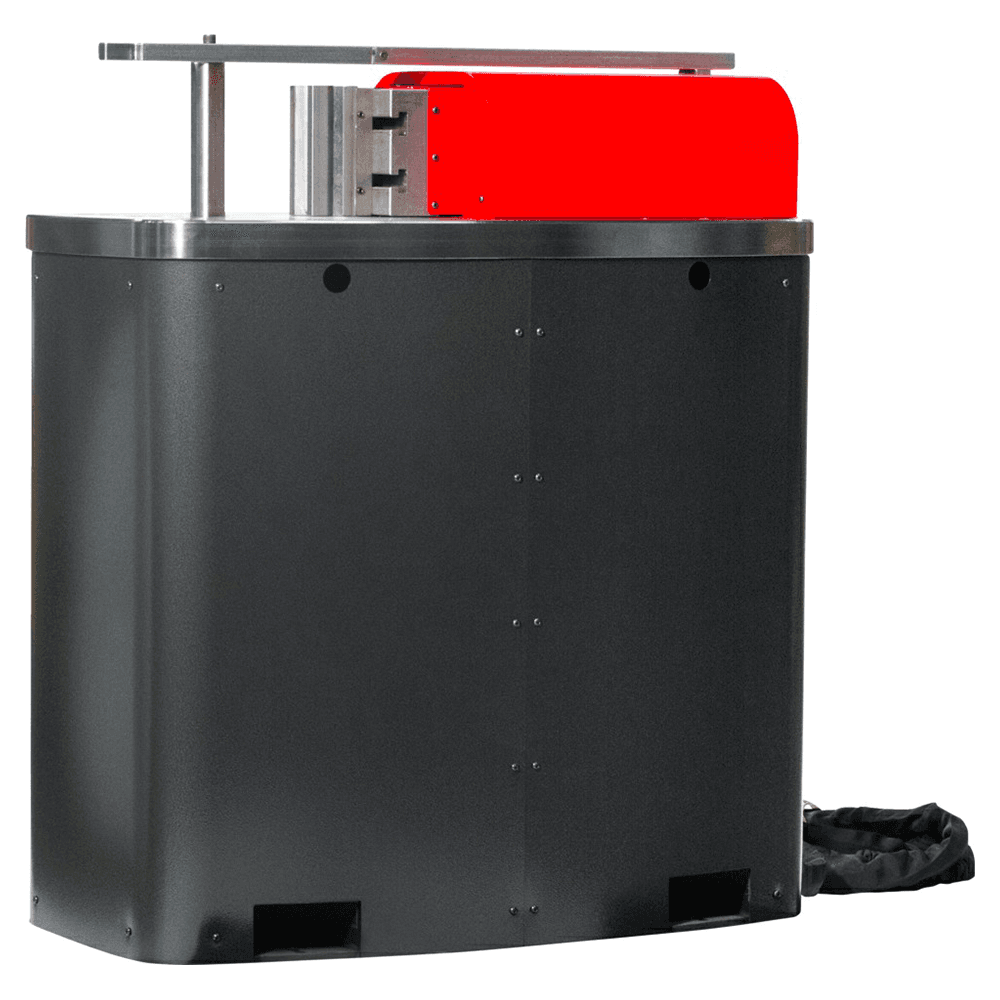

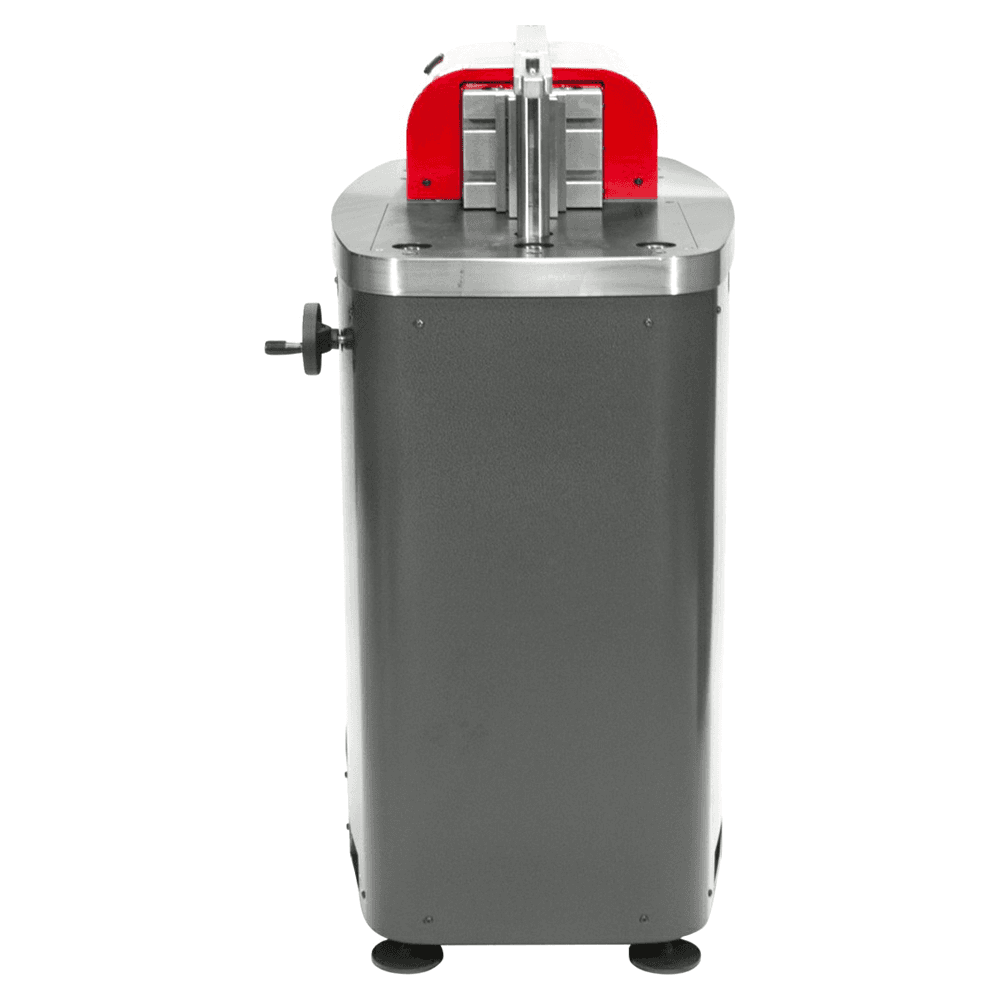

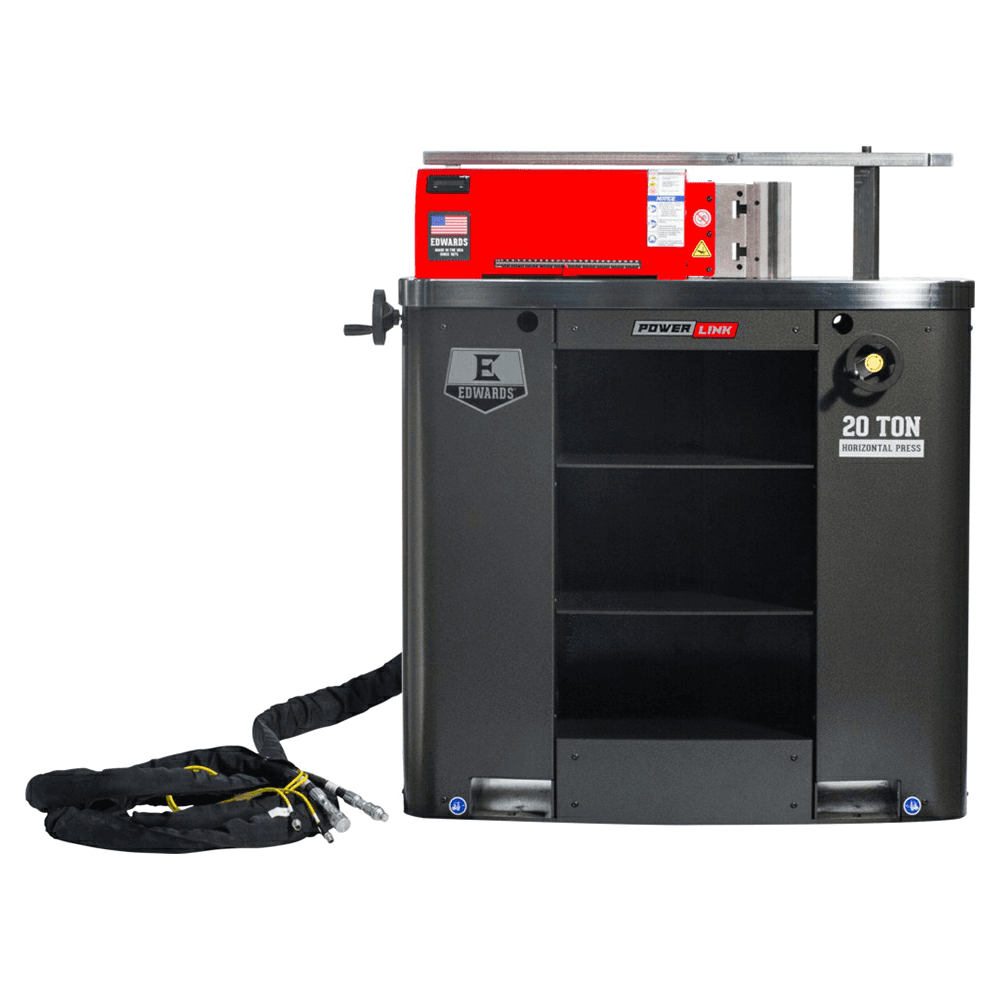

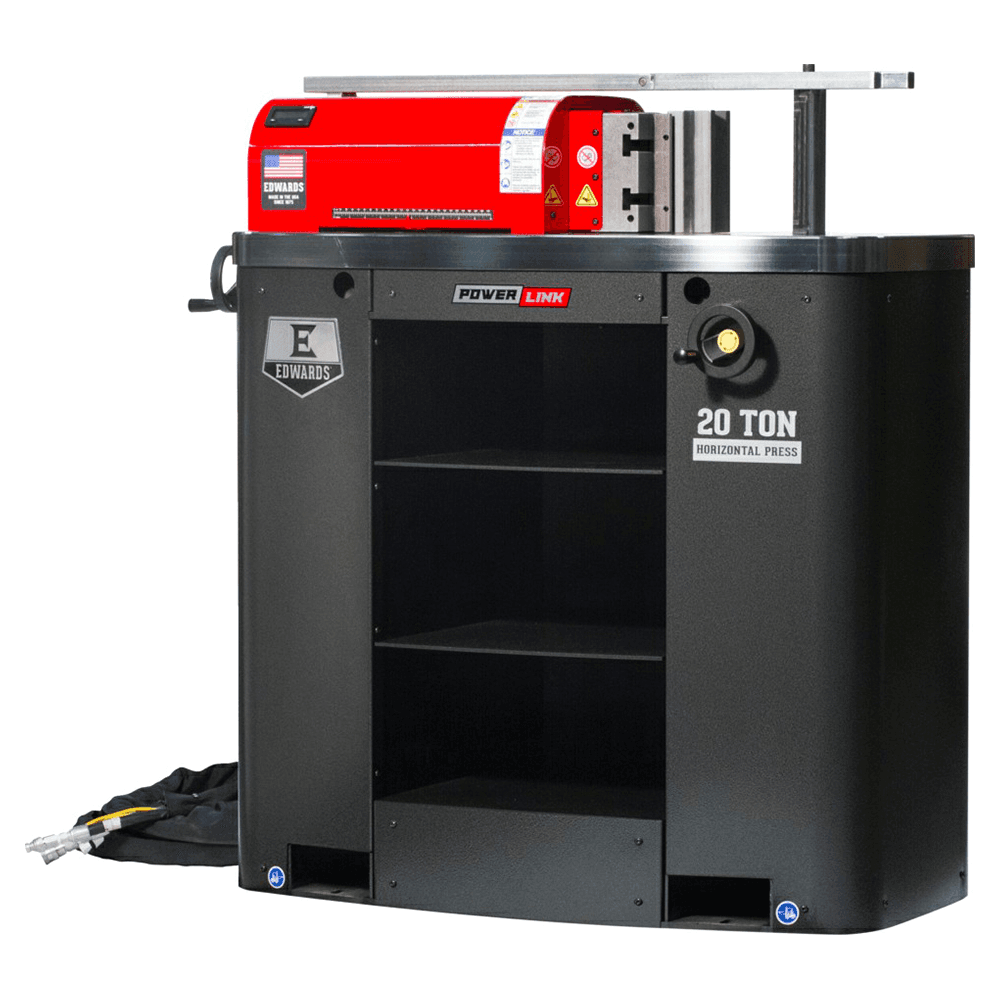

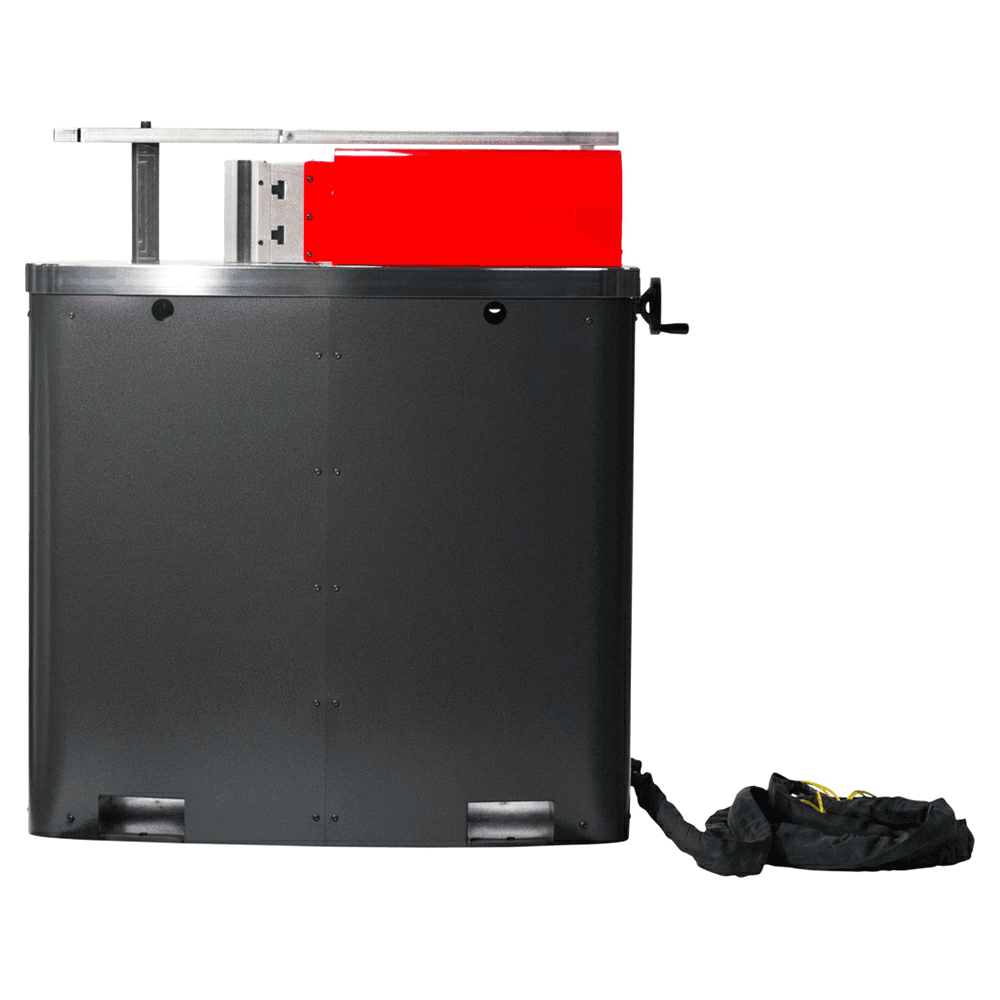

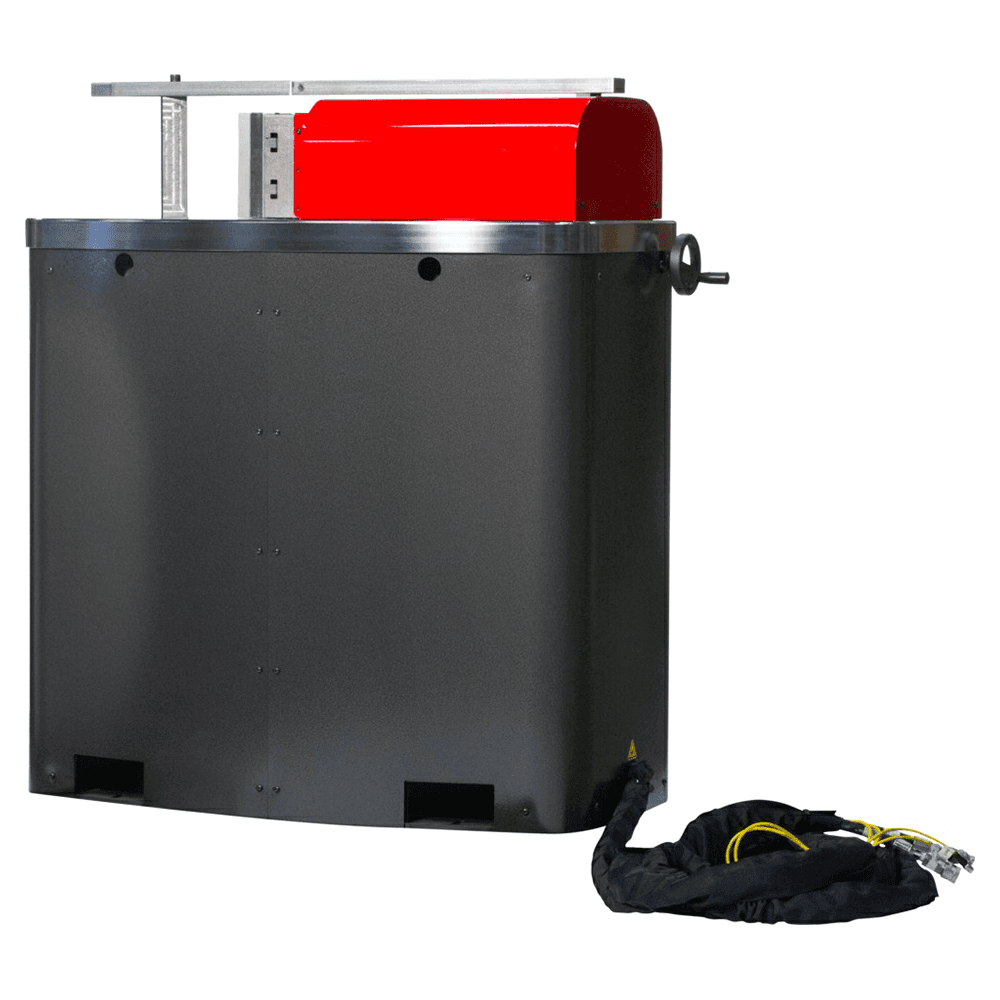

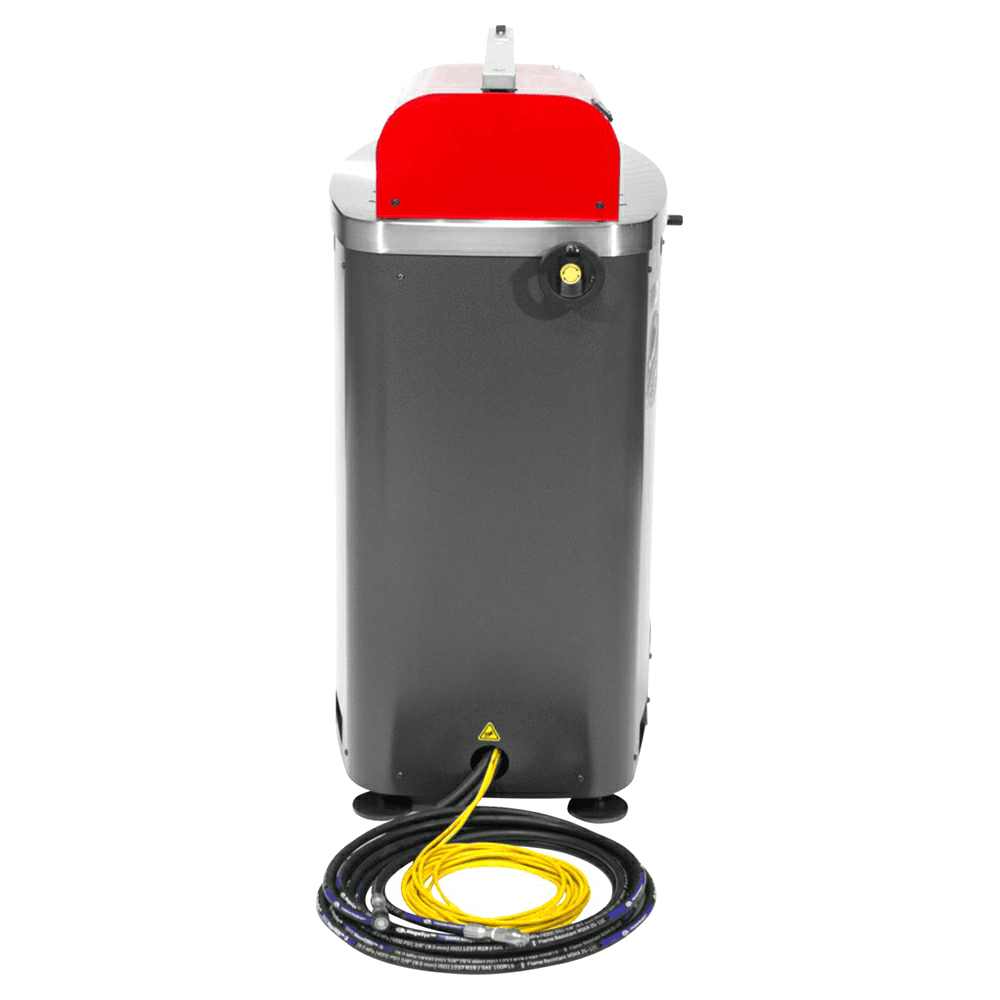

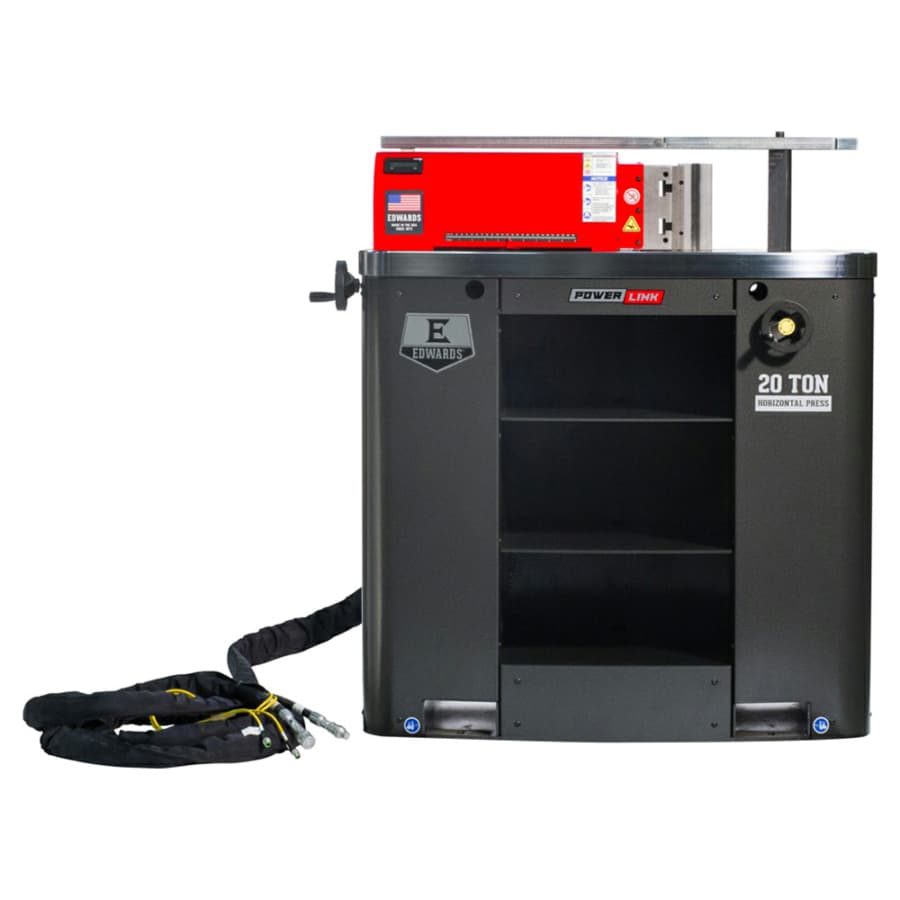

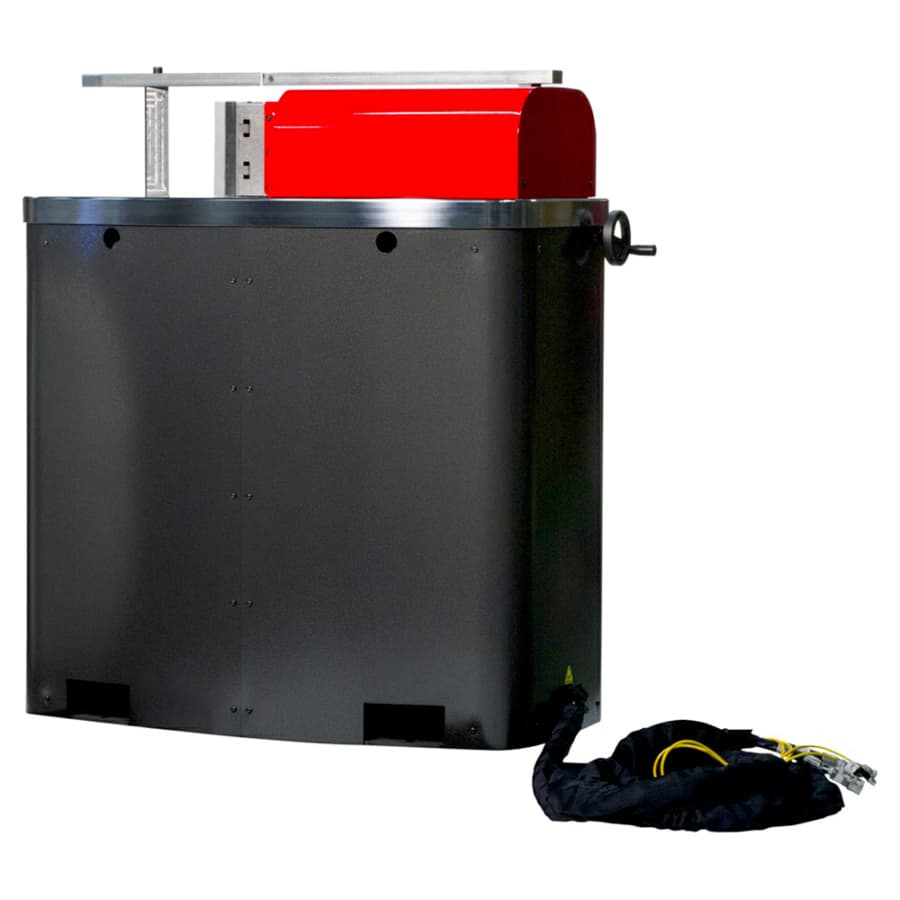

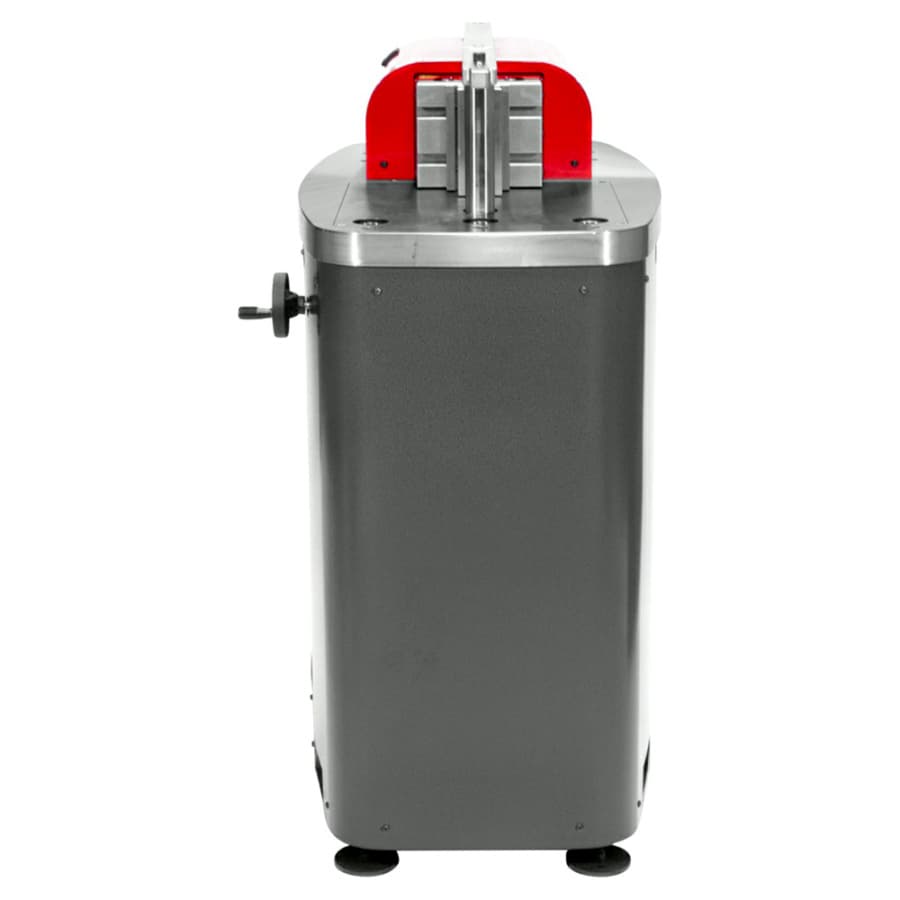

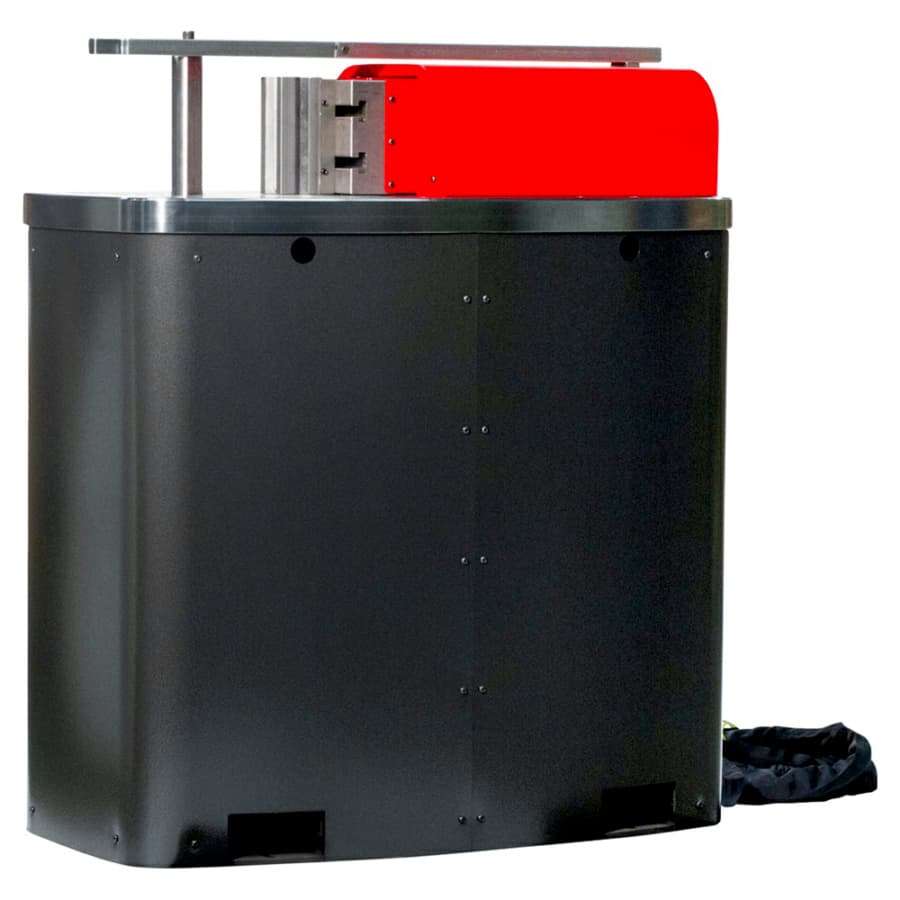

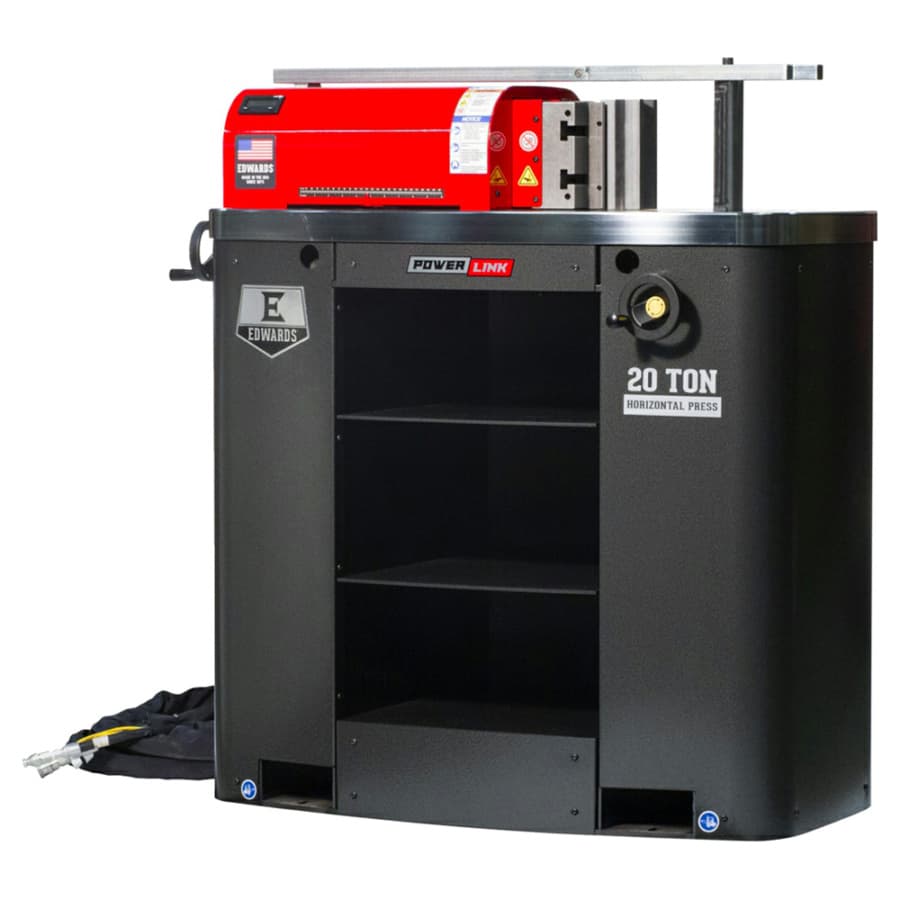

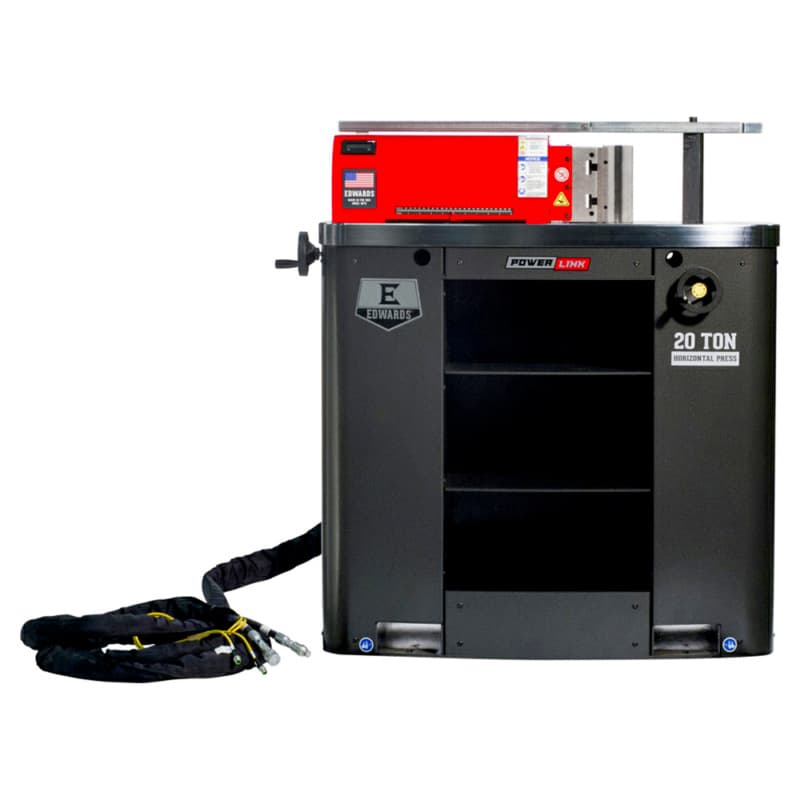

Edwards HAT6000 20 Ton Horizontal Press
This item may incur additional shipping costs and lead times.
Product Details
The 20 Ton horizontal press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. Must be run off an Edwards ironworker with PowerLink™ system or portable power unit. Features: • 20' quick-connect hoses for simple “plug and play” operation • Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling • Digital encoder provides enhanced accuracy for precise repeatability • Easy-to-use hand/jog controls with integrated E-Stop • Robust construction with 2" machine heavy-duty table • Ships with a standard 6" brake with 4-way die able to create clips, brackets, hangers and more • Storage shelves perfect for holding additional tooling
Specifications
| Box Quantity | 1 |
| Configurable Base Item | No |
| Configurator Option Type | |
| Cylinder | 2-1/4" Ram |
| Overall Dimensions (L x W x H) | 30" x 48" x 60" |
| Product Type | 20 Ton Horizontal Press |
| Rating (Tons) | 20 Ton |
| Stroke | 10" |
| Table Dimensions | 24" x 42" |
| Work Height | 38" |
