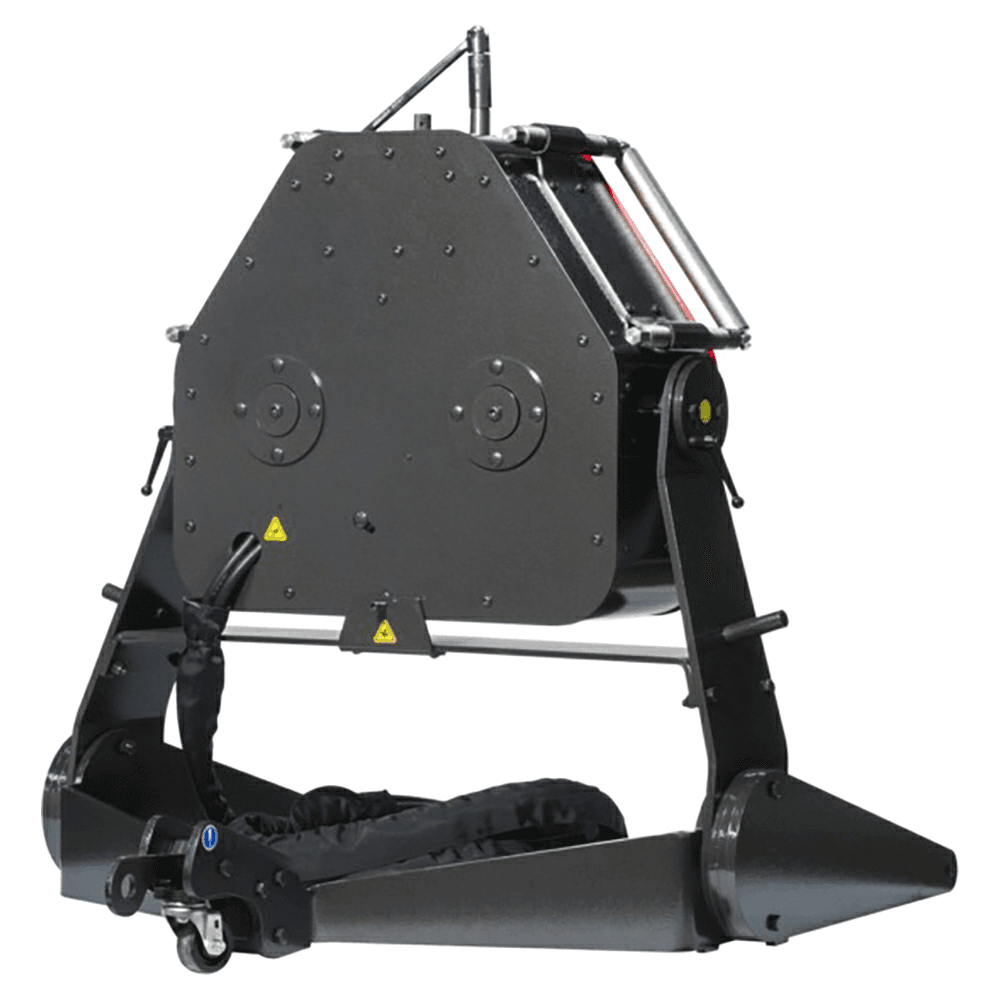

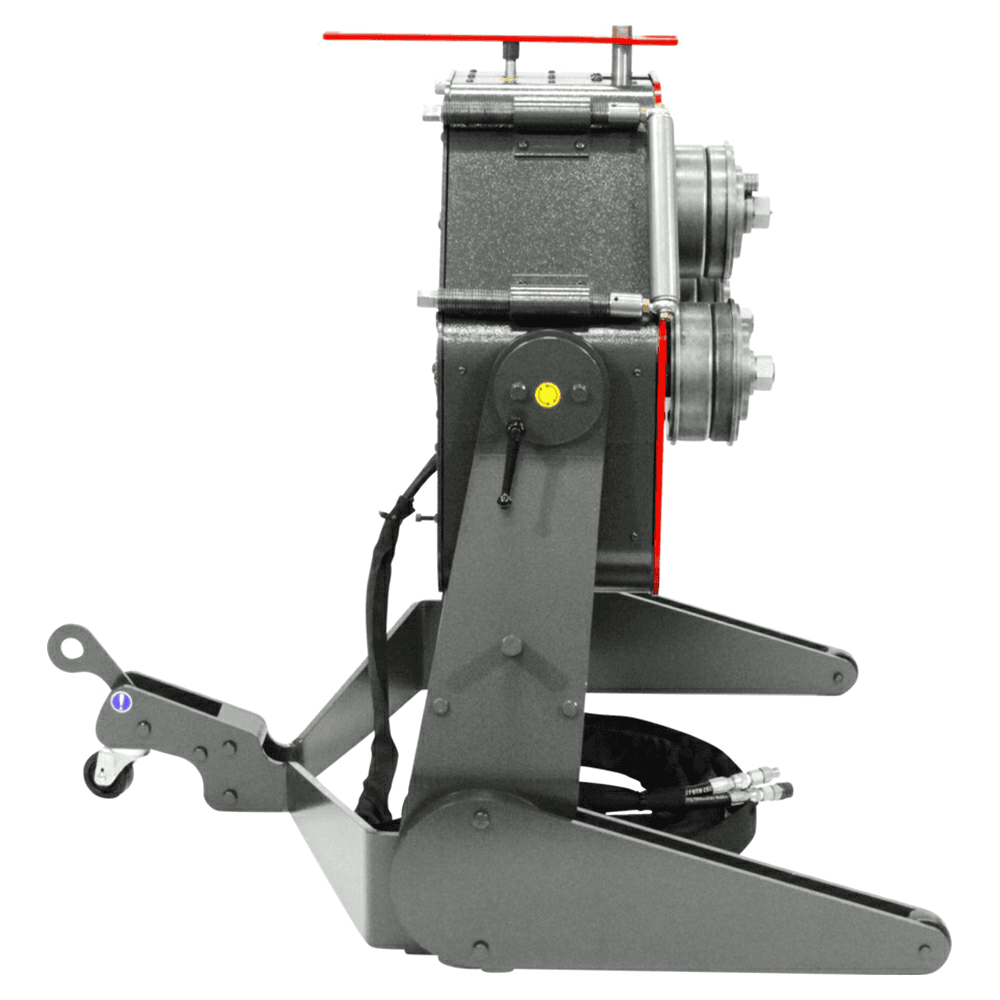

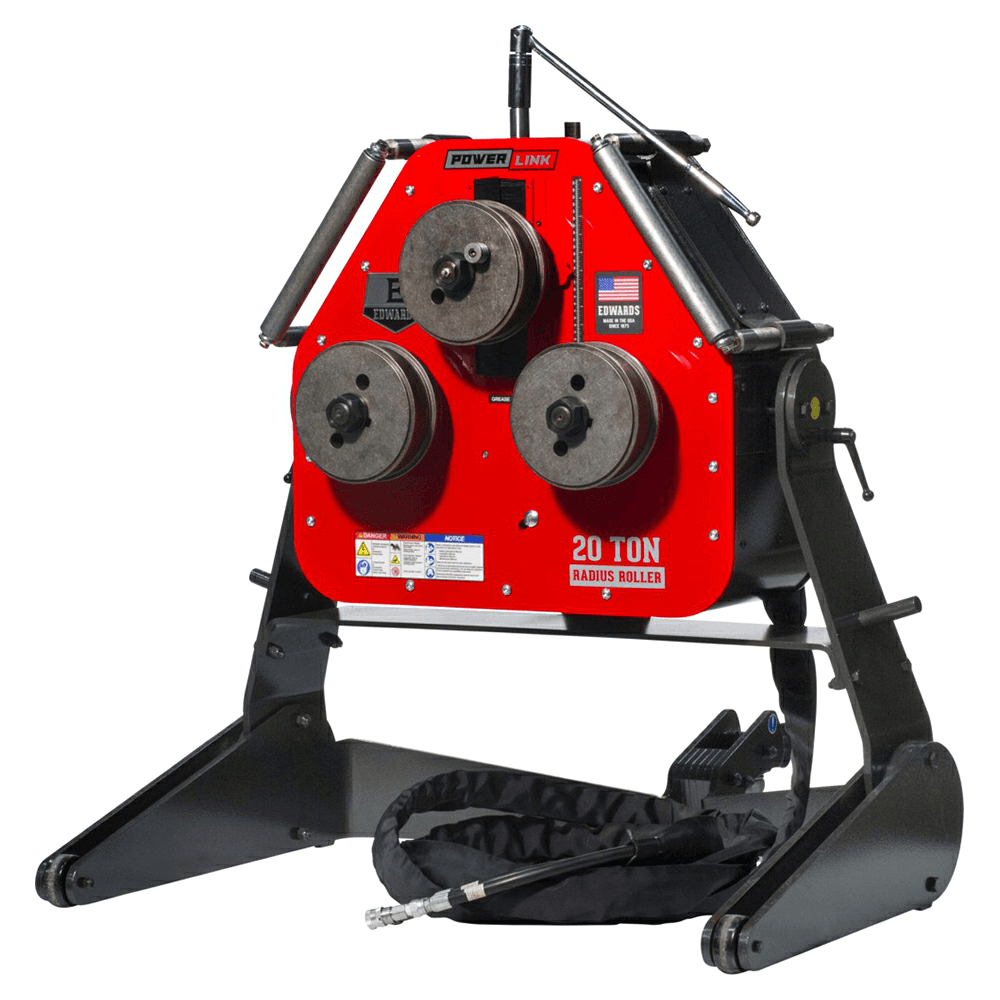

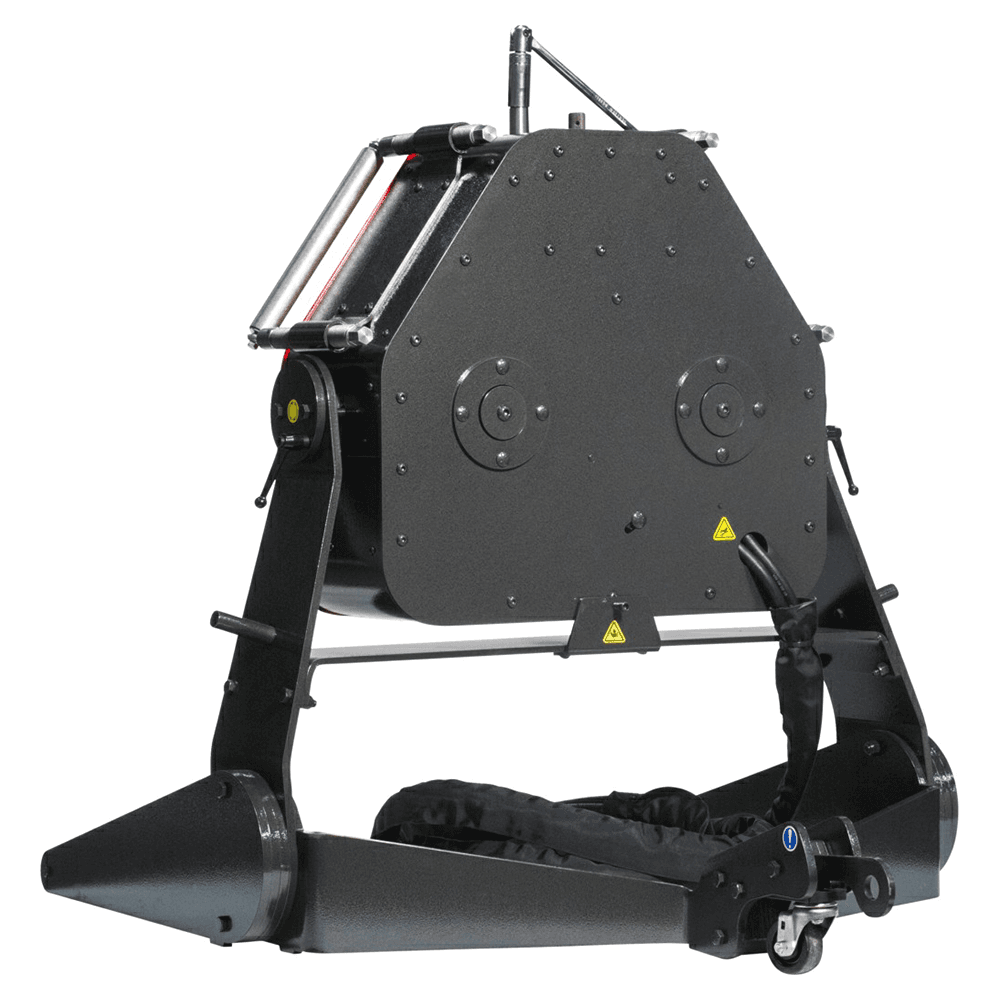

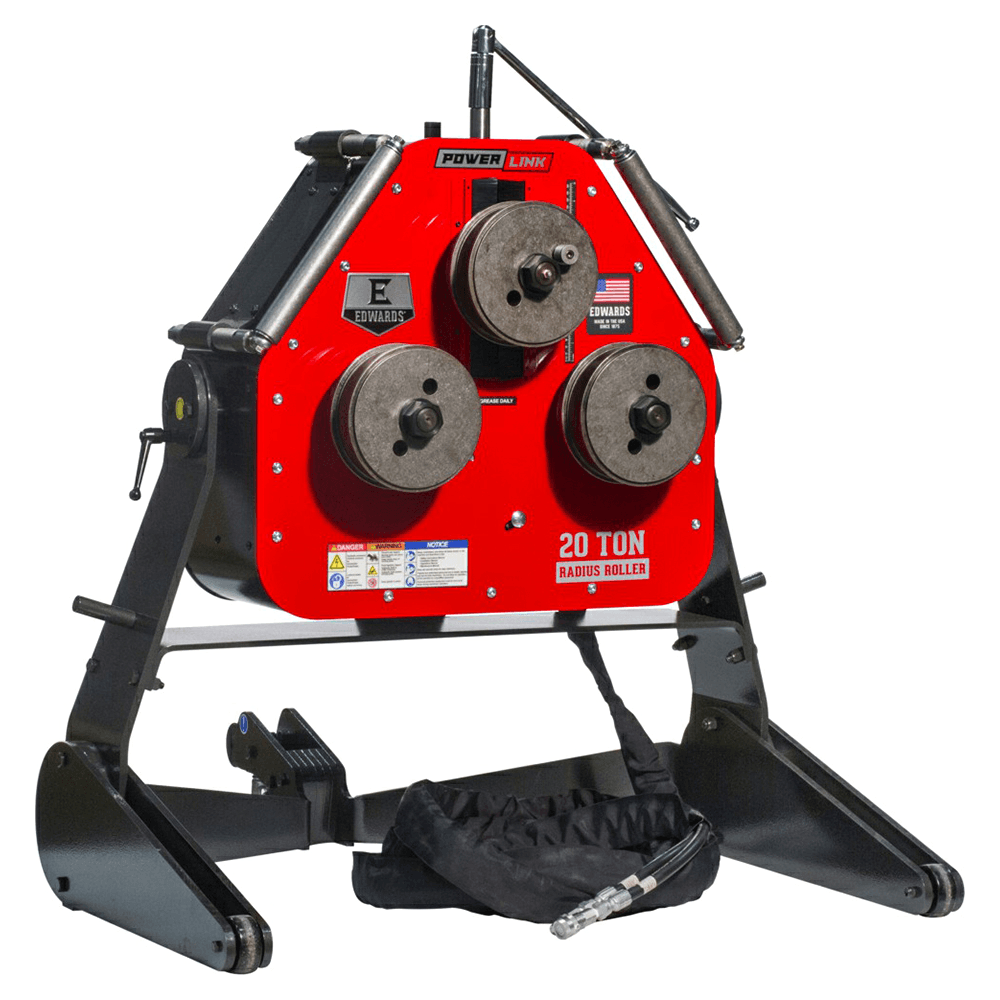

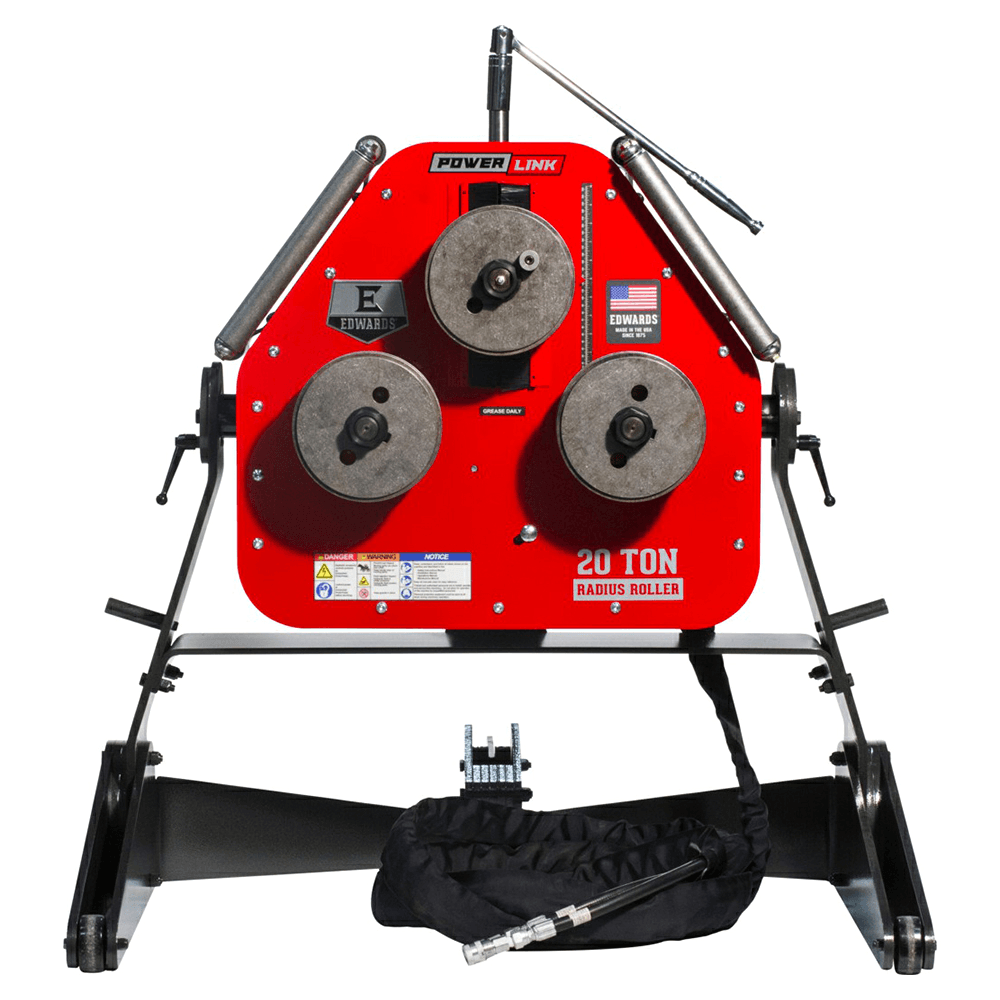

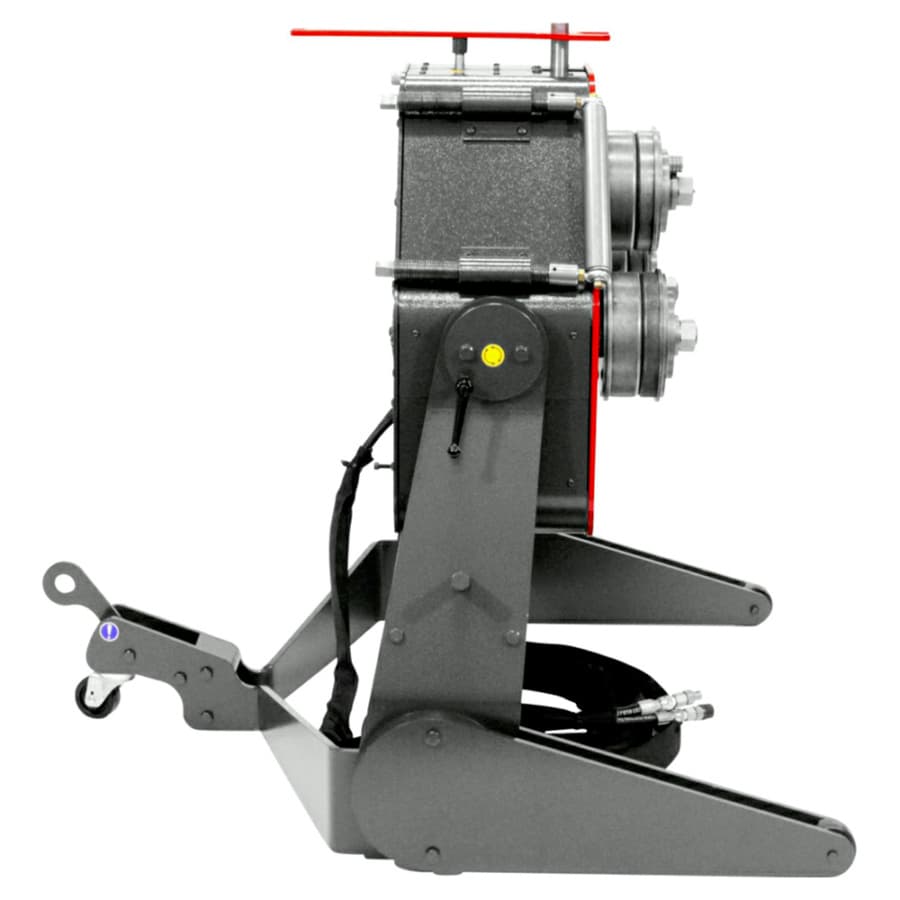

Edwards HAT5000 20 Ton Radius Roller
This item may incur additional shipping costs and lead times.
Product Details
The Edwards 20 Ton radius roller is designed to roll medium to heavy flat bar, angle, pipe, tube and channel in smooth, long diameter bends. Able to operate either horizontally or vertically depending on your project and with a heavy-duty rolling base, you can move the radius roller out of the way when your project is complete. Must be run off an Edwards ironworker with PowerLink™ system or portable power unit. Features: • 20' quick-connect hoses for simple “plug and play” operation • Bends a smooth, long diameter curve for a wide variety of materials including pipe, tube, square tube, solid round, flat bar, angle iron, and channel • Built-in storage on the frame keeps your Dies conveniently close • Easy-to-use hand/jog controls with integrated E-Stop • Heavy-duty rolling base for easy movement • Horizontal or Vertical operation provides the user flexibility • Includes a 6 Universal Piece Die Set that accepts square tube, flat bar, angle iron, and channel • Optional dies available for round pipe, tube or solid round • Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials
Specifications
| Box Quantity | 1 |
| Angle Iron Capacity | 2" (0.250) |
| Solid Round Capacity | 1-3/8" |
| Round Tube Capacity | 2-1/2" |
| Round Pipe Sch. 40 Capacity | 2" |
| Rating (Tons) | 20 Ton |
| Product Type | 20 Ton Radius Roller |
| Overall Dimensions (L x W x H) | 45" x 51" x 52" |
| Flat Bar (Hard Way) Capacity | 2.25" |
| Flat Bar (Easy Way) Capacity | 3" (0.375) |
| Configurator Option Type | |
| Configurable Base Item | No |
| Square Tube Capacity | 2" (0.120) |
