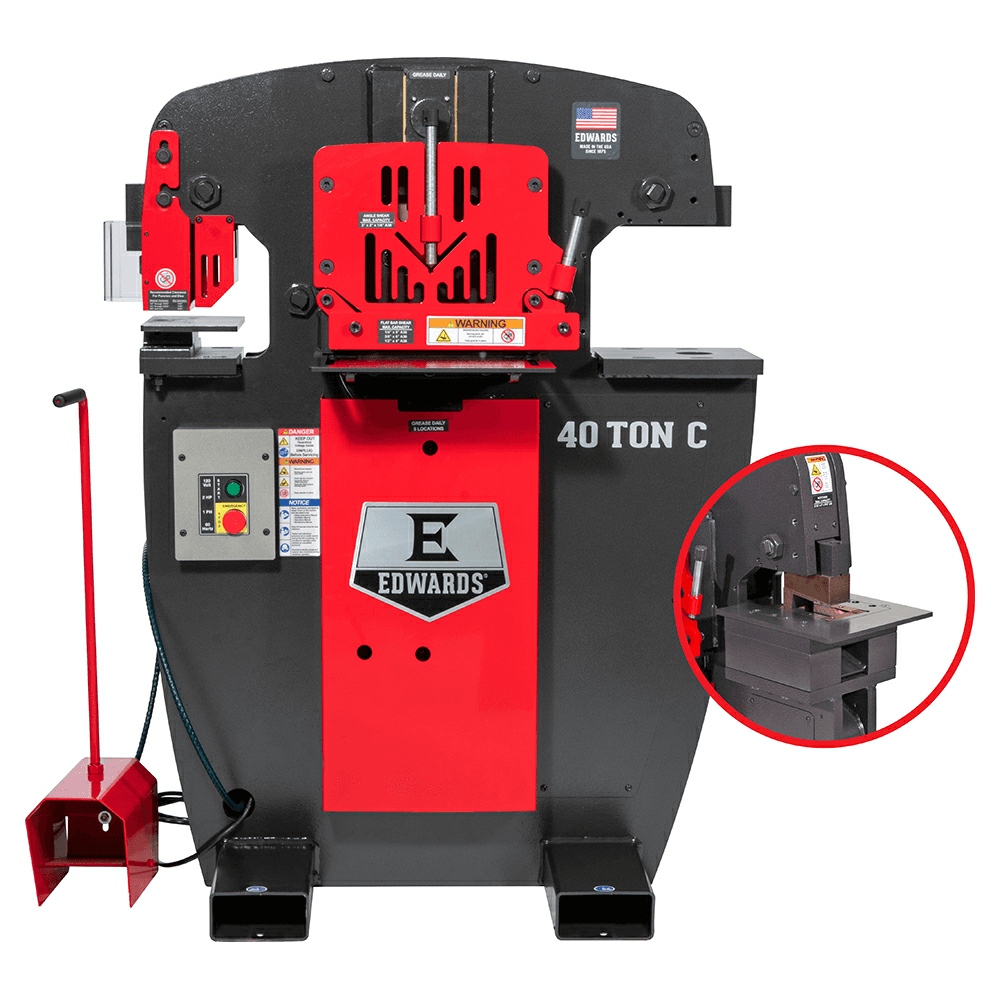

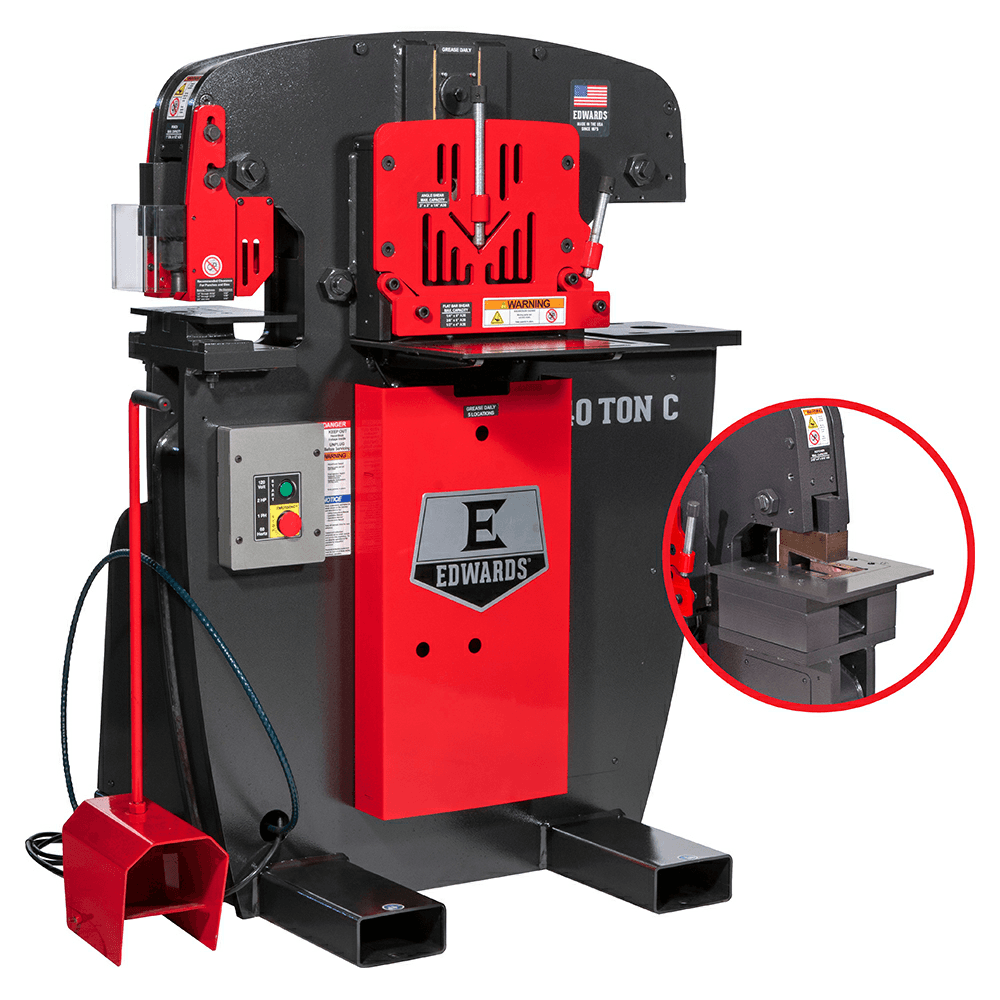

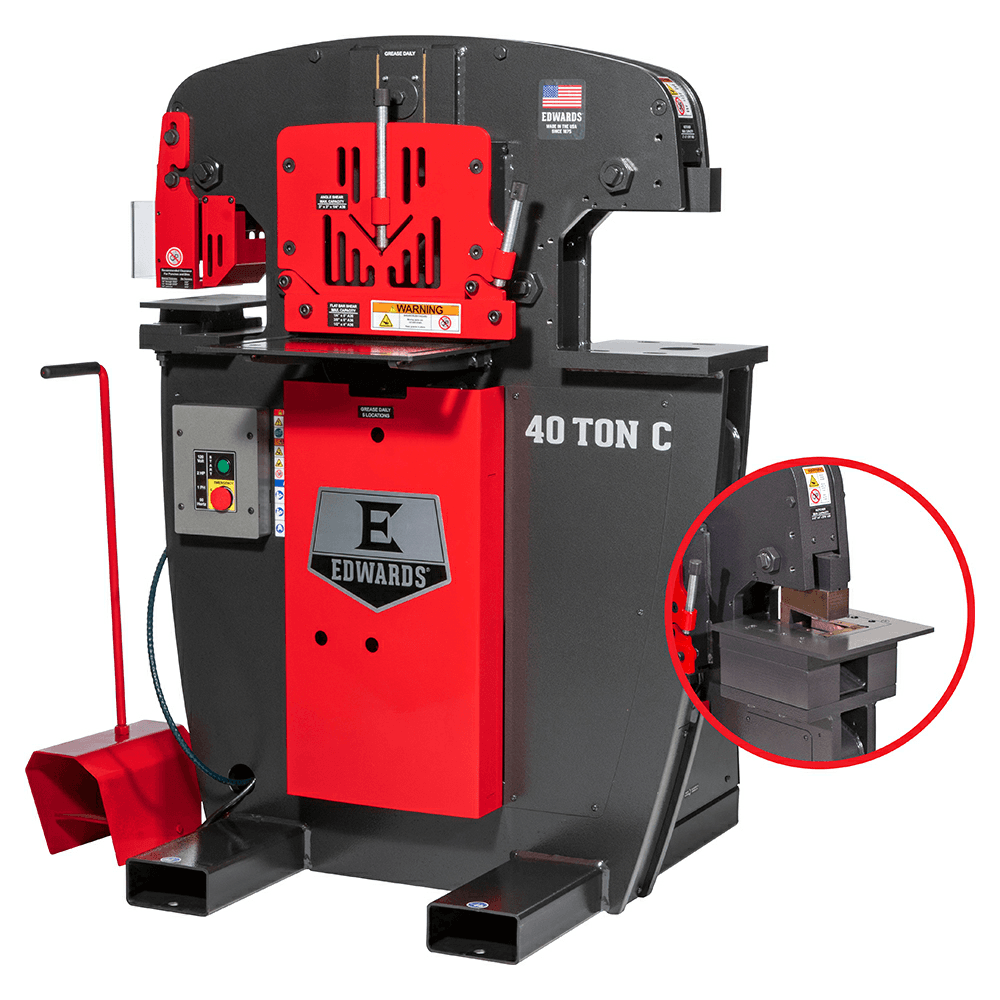

Edwards 40151012 2 HP 40 Ton C Ironworker with Coper Notcher, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details
The 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop with 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and Open with a factory installed 8' Brake. Running off 115V power, you can plug this Ironworker in almost anywhere and start fabricating. You can customize the Ironworker with 11 interchangeable Attachments and 16 optional Accessories, this machine can be modified to your specific project. Features: • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life • ANSI B11.5-1988(02) Compliant Guarding • ETL Certified Controls • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life • Includes a Coper Notcher which removes anything from a small nibble to a large notch out of Flat Bar or Angle Iron • Integrated Lock-out/Tag-out system with E-Stop for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 2750 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | 2" x 3" x 5/16" |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | 10-1/2" |
| Open Station Work Height | 34-1/2" |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | |
| Motor Speed (RPM) | |
| Overall Dimensions (L x W x H) | |
| Overall Height | |
| Product Type | 40 Ton C Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 7 |
| Rating (Tons) | 40 |
| Punch Work Height | 36-1/2" |
| Punch Throat Depth | 7" |
| Punch Stroke | 1-5/8" |
| Punch Shut Height | |
| Punch Rating (Tons) | |
| Punch Open Height | |
| Punch Max Capacity | 1 diam. In. 1/2" mild steel |
| Motor Phase | |
| Motor Amps | |
| Motor (HP) | 2 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | |
| Cylinder | |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 40" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | 3" x 3" |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 3" x 3" x 1/4" |
| Flat Bar Shear Max Capacity 1/2" | |
| Flat Bar Shear Max Capacity 1/4" | 8" |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | |
| Hydraulics (PSI) | |
| Hydraulics (GPM) | |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | |
| Hydraulic Pump (GPM) | 5 GPM |
| Flat Bar Shear Work Height | 34-3/4" |
| Flat Bar Shear Rating (Tons) | 40 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1/2" |
| Flat Bar Shear Max Round Capacity | |
| Flat Bar Shear Max Round | 1/2" |
| Flat Bar Shear Max Capacity 3/8" | 6" |
| Amps |
