Edwards 40151022 2 HP 40 Ton C Ironworker with 8" Brake, 1 Phase/115V

Item # JPWED9-40151022
Mfr # ED9-40151022

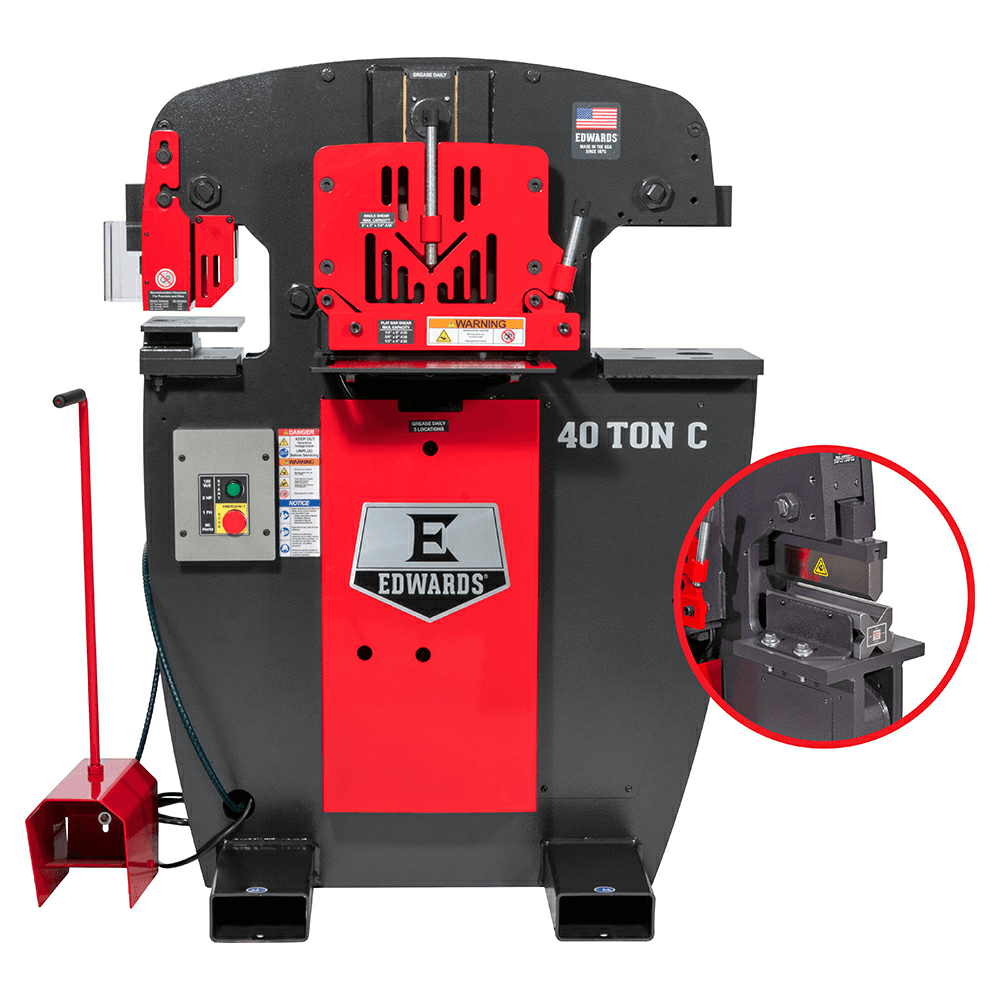

Edwards 40151022 2 HP 40 Ton C Ironworker with 8" Brake, 1 Phase/115V Main - Image

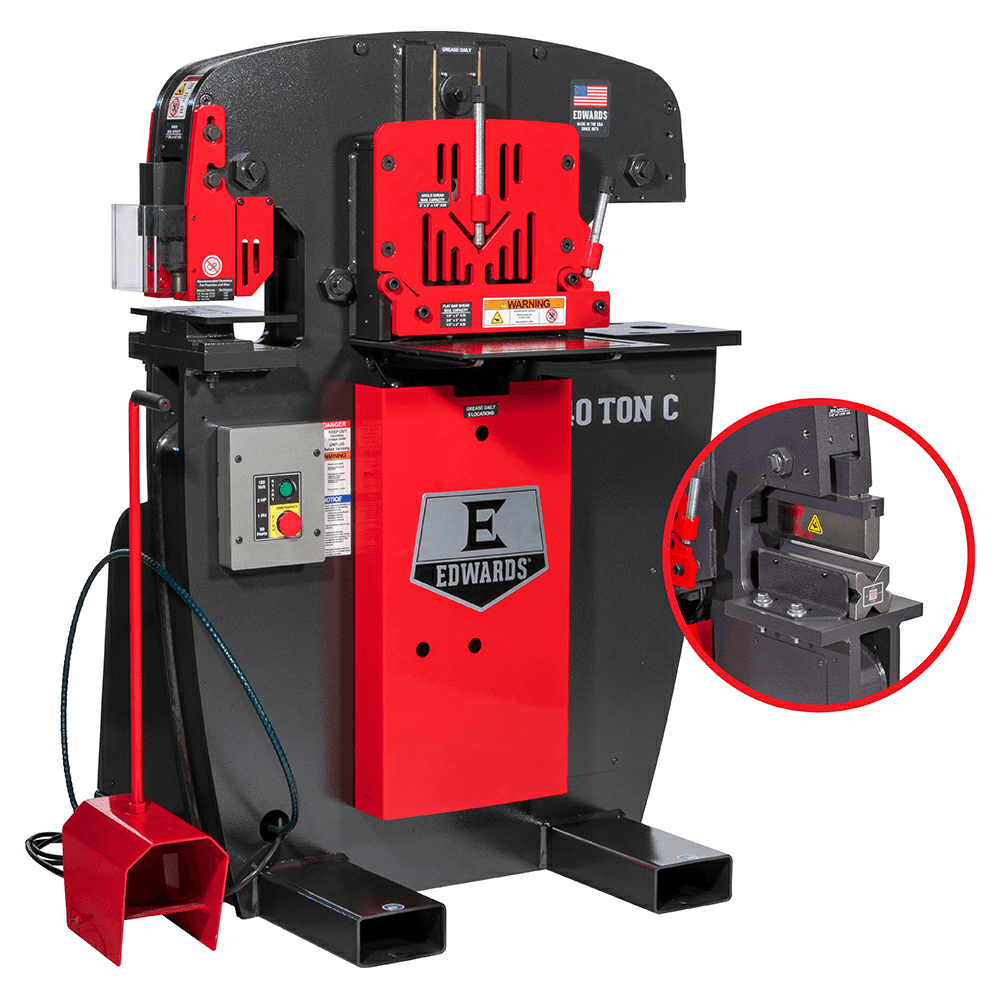

Edwards 40151022 2 HP 40 Ton C Ironworker with 8" Brake, 1 Phase/115V Alt 1 - Image

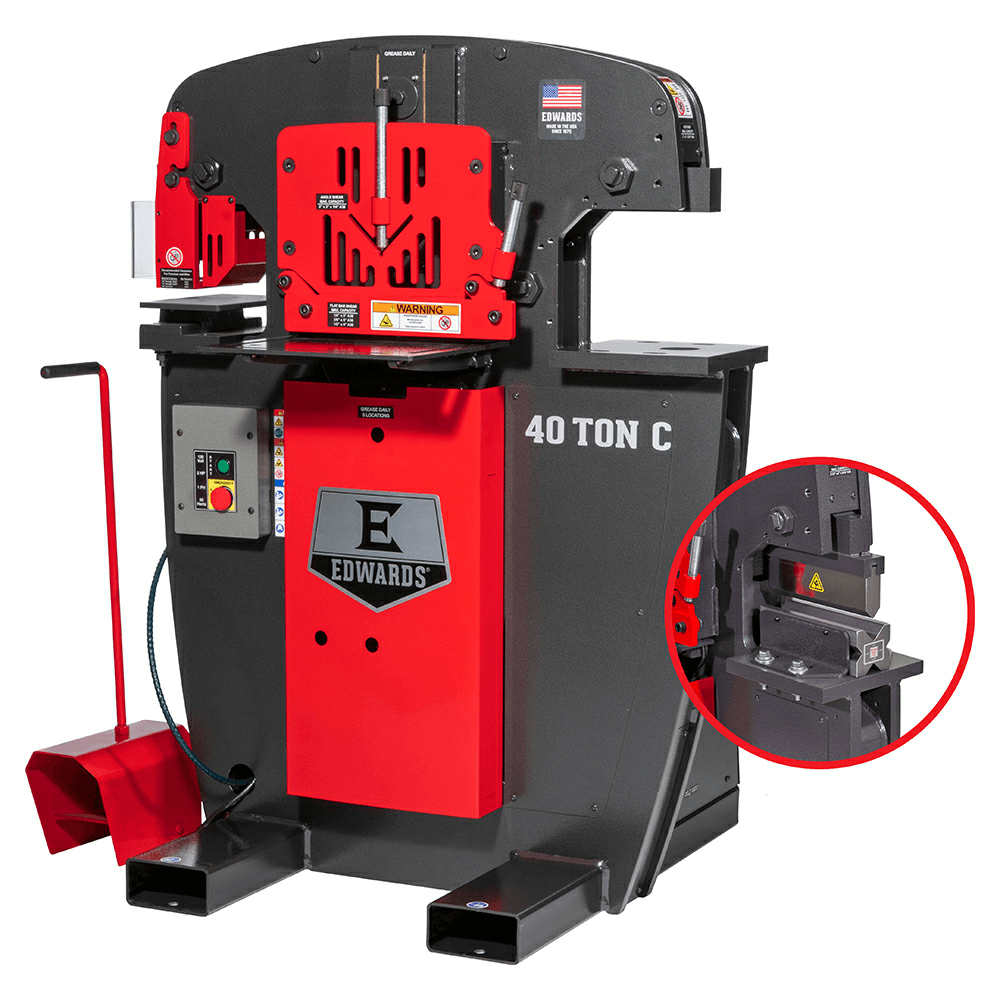

Edwards 40151022 2 HP 40 Ton C Ironworker with 8" Brake, 1 Phase/115V Alt 2 - Image

This item may incur additional shipping costs and lead times.

Product Details

The 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop including an 8" Brake with 4-Way Die allowing 1/16', 1/8', 3/16', and ¼' material to be formed to a 90° angle. Running off 115V power, you can plug this Ironworker in almost anywhere and start fabricating. With 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and a dedicated factory-installed Coper Notcher and the ability to customize with 11 interchangeable Attachments and 16 optional Accessories, this machine can be modified to your specific project.

Features:

• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Integrated Lock-out/Tag-out system with E-Stop for added safety
• Operates off 115V power, convenient for all shop locations
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life

Specifications

Box Quantity1
Valve Pressure (PSI)2750 PSI
Optional Coper Notcher Work Height
Optional Coper Notcher Max Capacity
Opt. Coper Notcher Work Height
Opt. Coper Notcher Max Capacity2" x 3" x 5/16"
Open Workstation Work Height
Open Workstation Throat Depth
Open Station Work Height34-1/2"
Open Station Throat Depth10-1/2"
Open Station Stroke
Open Station Shut Height
Open Station Open Height
Motor Voltage (V.)
Motor Speed (RPM)
Overall Dimensions (L x W x H)
Overall Height
Product Type40 Ton C Ironworker
Throat Depth
Rod Shear Work Height
Rod Shear Max Square
Rod Shear Max Round
Reservoir (Gal.)7
Rating (Tons)40
Punch Work Height36-1/2"
Punch Throat Depth7"
Punch Stroke1-5/8"
Punch Shut Height
Punch Rating (Tons)
Punch Open Height
Punch Max Capacity1 diam. In. 1/2" mild steel
Motor Phase
Motor Amps17
Motor (HP)2 HP
Flat Bar Shear Max Capacity 1"
Flat Bar Shear Max Capacity
Cylinder
Coper Notcher Work Height
Coper Notcher Max Capacity
Configurator Option Type
Configurable Base ItemNo
Blade Length
Angle Shear Work Height40"
Angle Shear Max Capacity 3/8"
Angle Shear Max Capacity 1/4"3" x 3"
Angle Shear Max Capacity 1/2"
Angle Shear Max Capacity
Flat Bar Shear Max Capacity 1/2"
Flat Bar Shear Max Capacity 1/4"8"
Flat Bar Shear Max Capacity 3/4"
Input Power
Hydraulics (PSI)
Hydraulics (GPM)
Hydraulics
Hydraulic Reservoir (Gal.)
Hydraulic Pump (GPM)5 GPM
Flat Bar Shear Work Height34-3/4"
Flat Bar Shear Rating (Tons)40
Flat Bar Shear Max Square Capacity
Flat Bar Shear Max Square1/2"
Flat Bar Shear Max Round Capacity
Flat Bar Shear Max Round1/2"
Flat Bar Shear Max Capacity 3/8"6"
