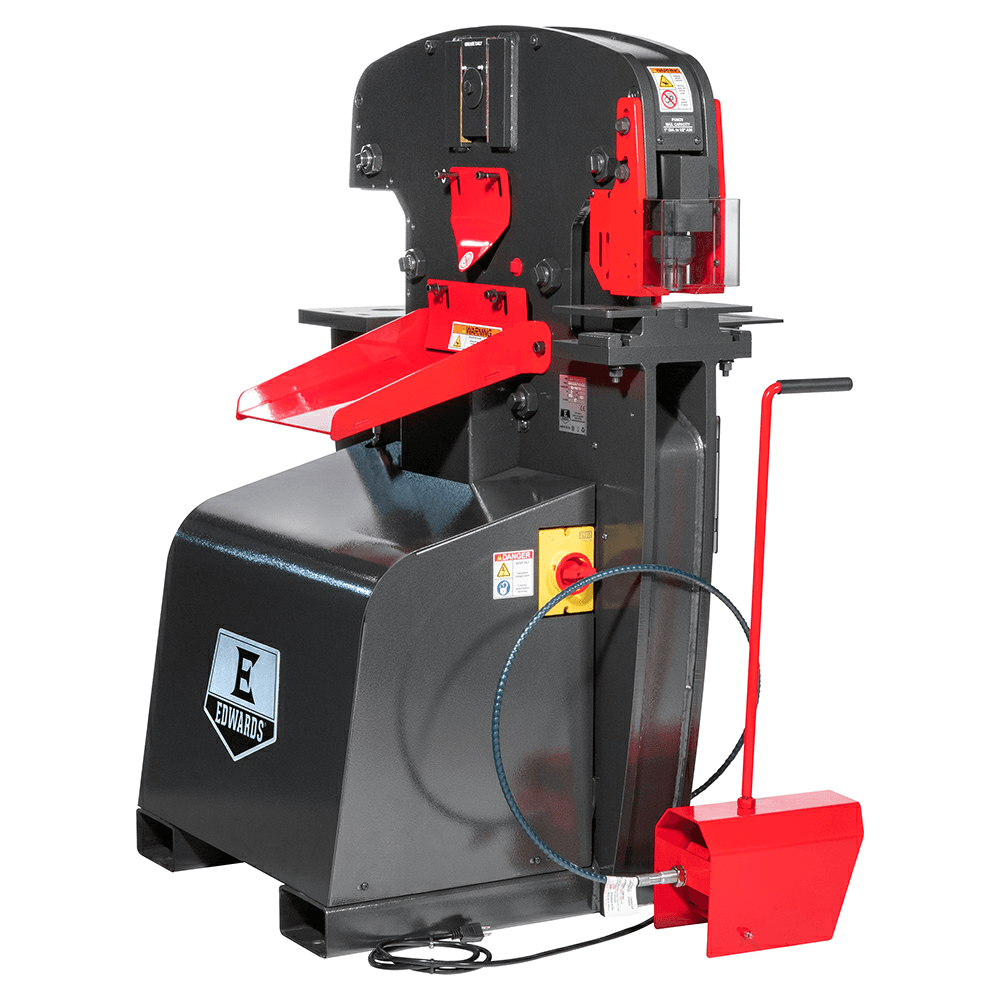

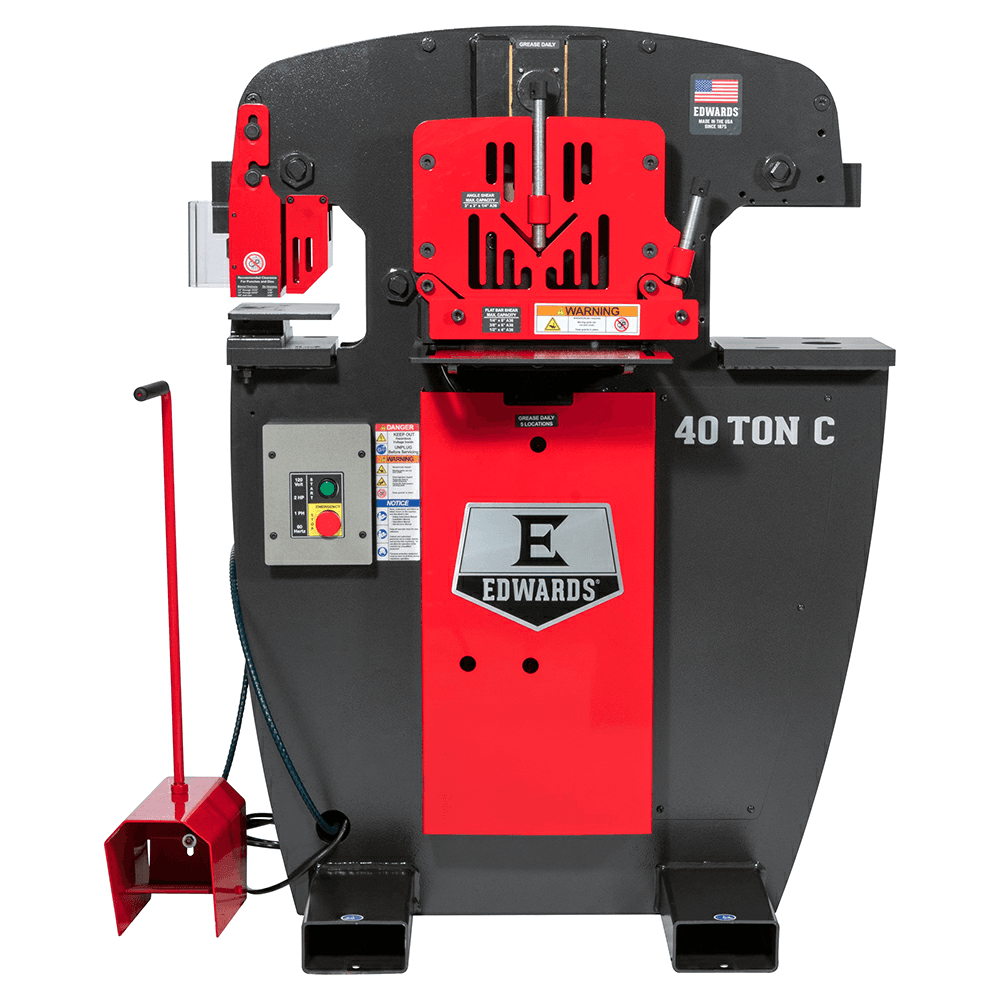

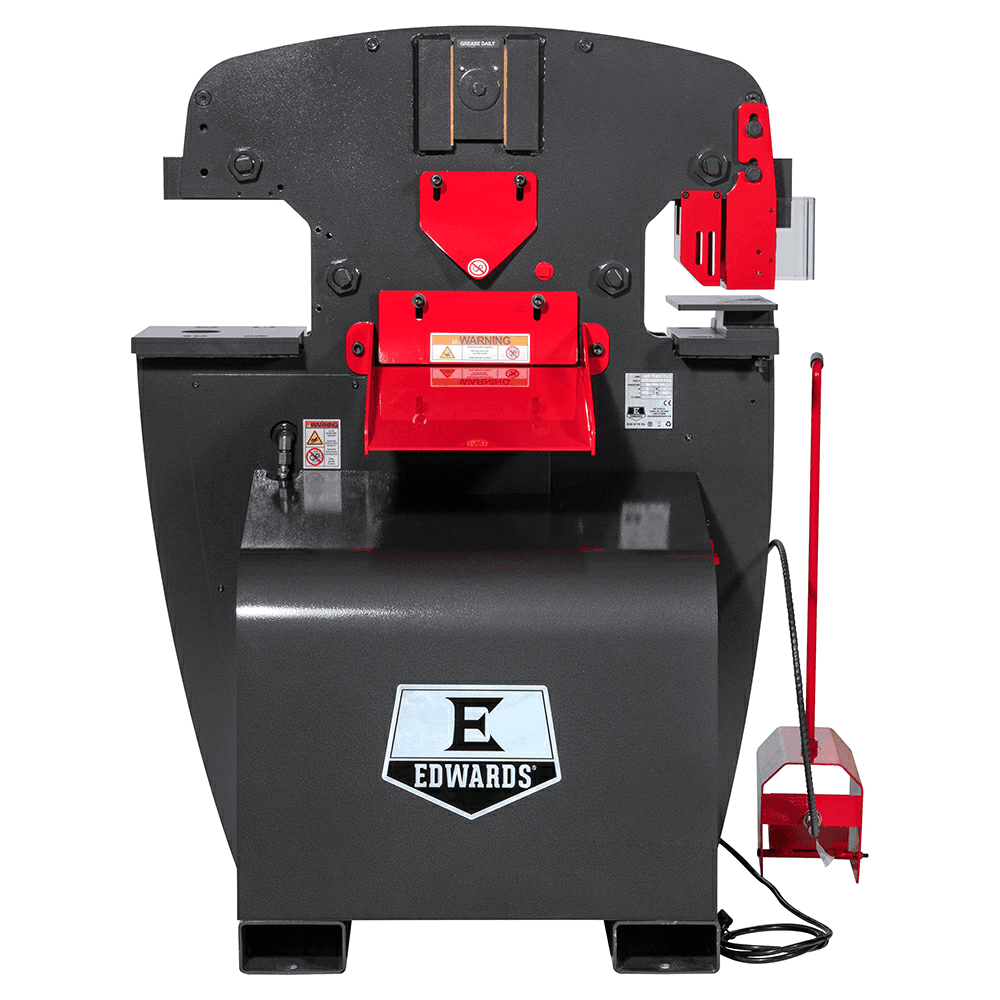

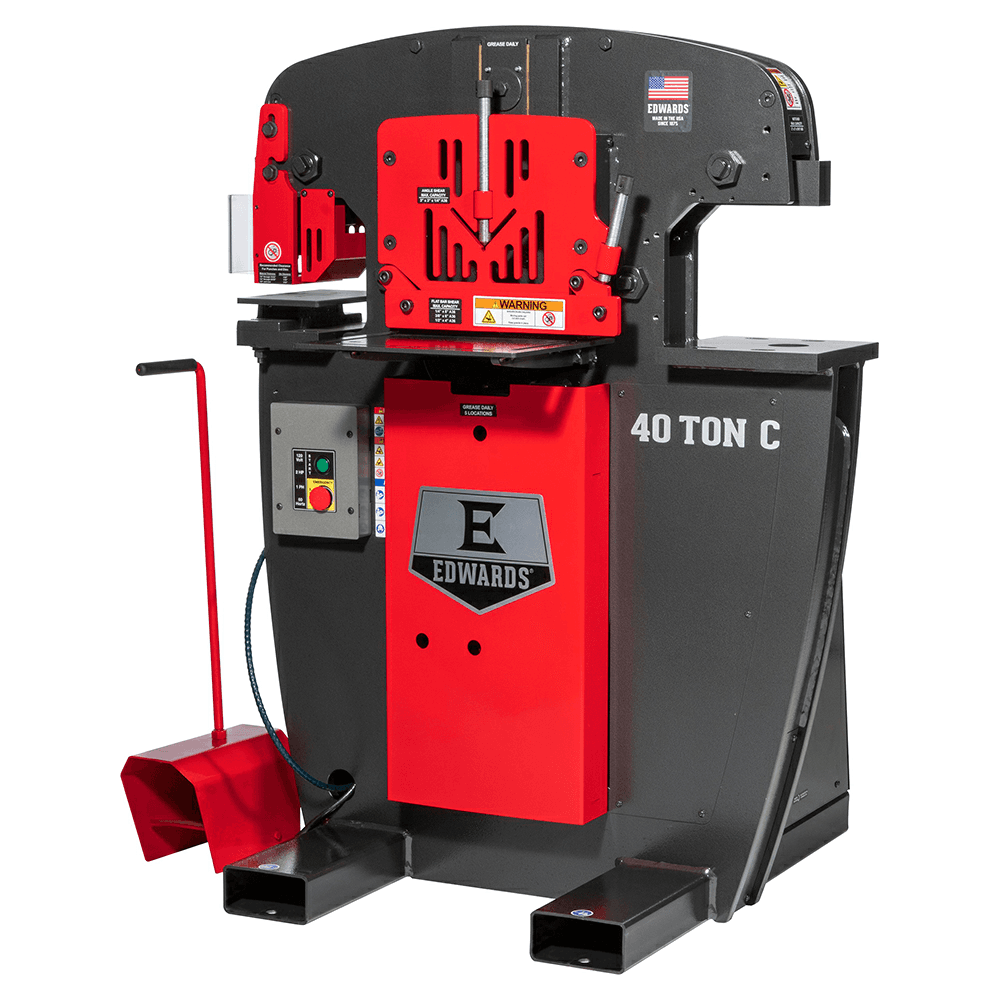

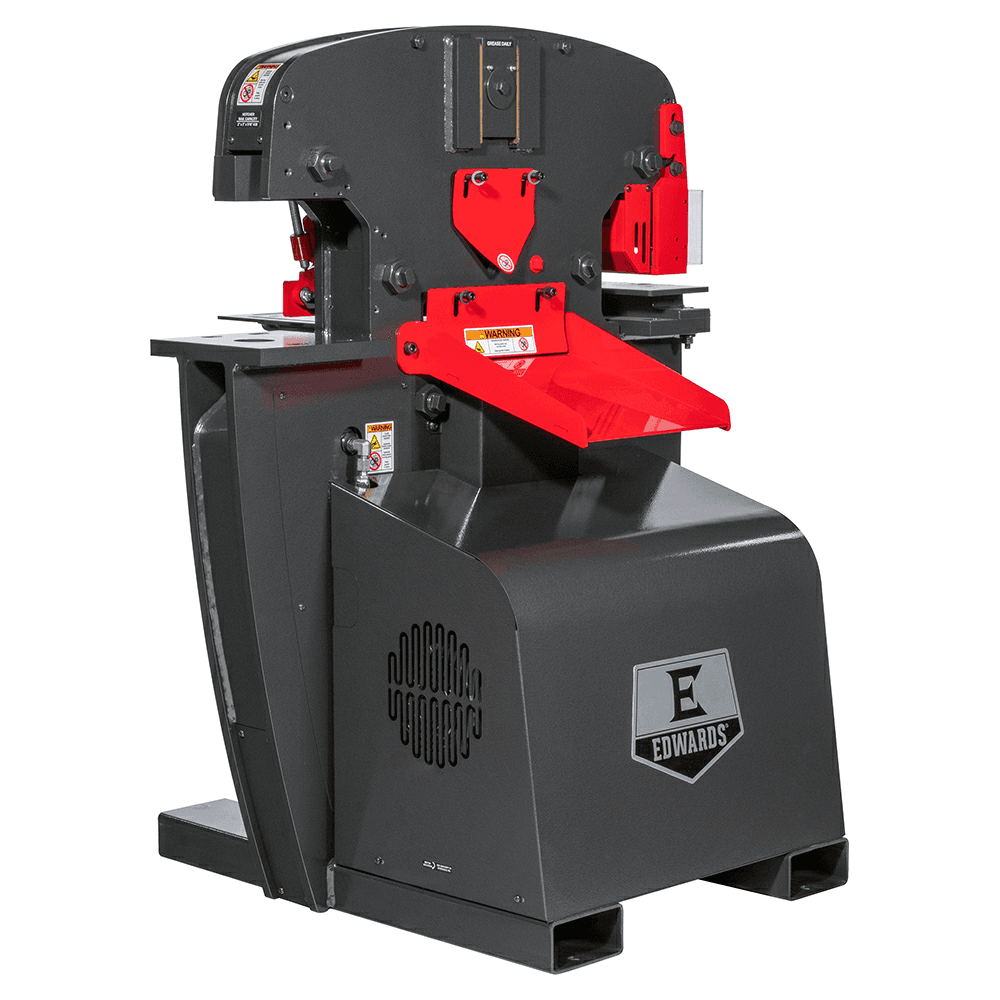

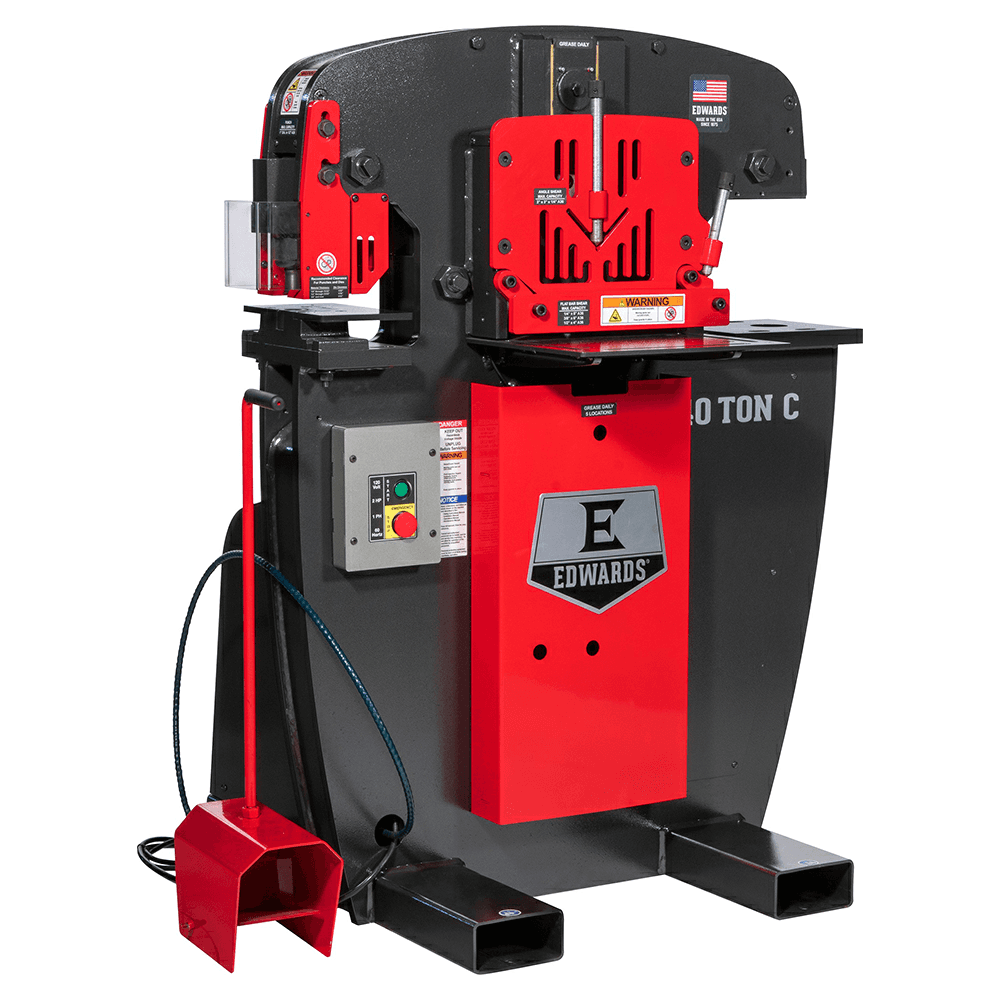

Edwards IW40C-1P120 2 HP 40 Ton C Ironworker, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details
The 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop. Running off 115V power, you can plug this Ironworker in almost anywhere and start fabricating. With 4 Workstations and able to be customized with 11 Attachments and 16 Accessories available, it can be modified to your specific project. Features: • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life • ANSI B11.5-1988(02) Compliant Guarding • ETL Certified Controls • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life • Four Workstations: Standard (3) - Punch, Flat Bar Shear, and Angle Shear; Open (1) Customize your Ironworker with 11 optional Attachments • Integrated Lock-out/Tag-out system with E-Stop for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | |
| Motor Speed (RPM) | |
| Overall Dimensions (L x W x H) | |
| Overall Height | |
| Product Type | 40 Ton C Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | |
| Rating (Tons) | 40 |
| Punch Work Height | 34-1/2" |
| Punch Throat Depth | 7" |
| Punch Stroke | 1-5/8" |
| Punch Shut Height | |
| Punch Rating (Tons) | 40 |
| Punch Open Height | |
| Punch Max Capacity | 1 diam. In. 1/2" mild steel |
| Motor Phase | |
| Motor Amps | |
| Motor (HP) | 2 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | 1/4" x 8", 3/8" x 6, 2" x 4" |
| Cylinder | |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 3" x 3" x 1/4" |
| Flat Bar Shear Max Capacity 1/2" | |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | 115V/1 Phase |
| Hydraulics (PSI) | 2750 PSI |
| Hydraulics (GPM) | 5 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | |
| Hydraulic Pump (GPM) | |
| Flat Bar Shear Work Height | 34-3/4" |
| Flat Bar Shear Rating (Tons) | |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | |
| Flat Bar Shear Max Round Capacity | |
| Flat Bar Shear Max Round | |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps | 17 |
