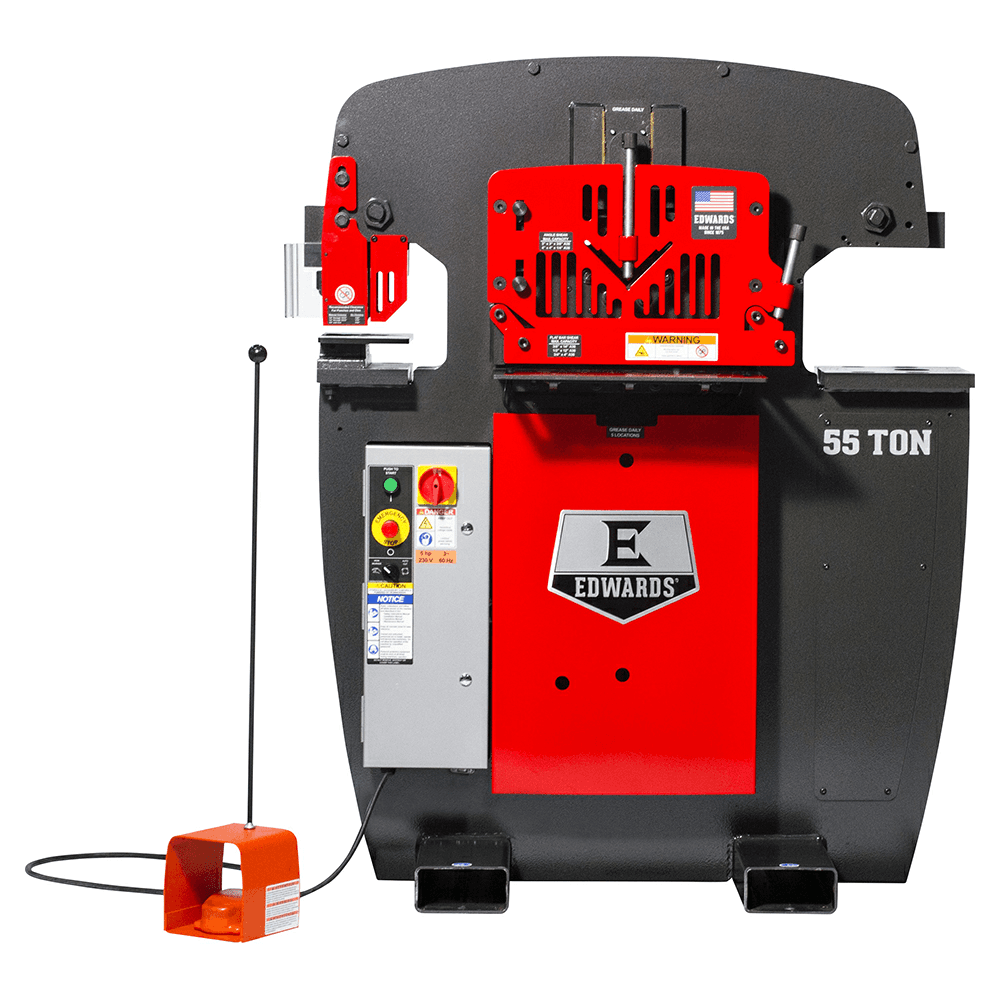

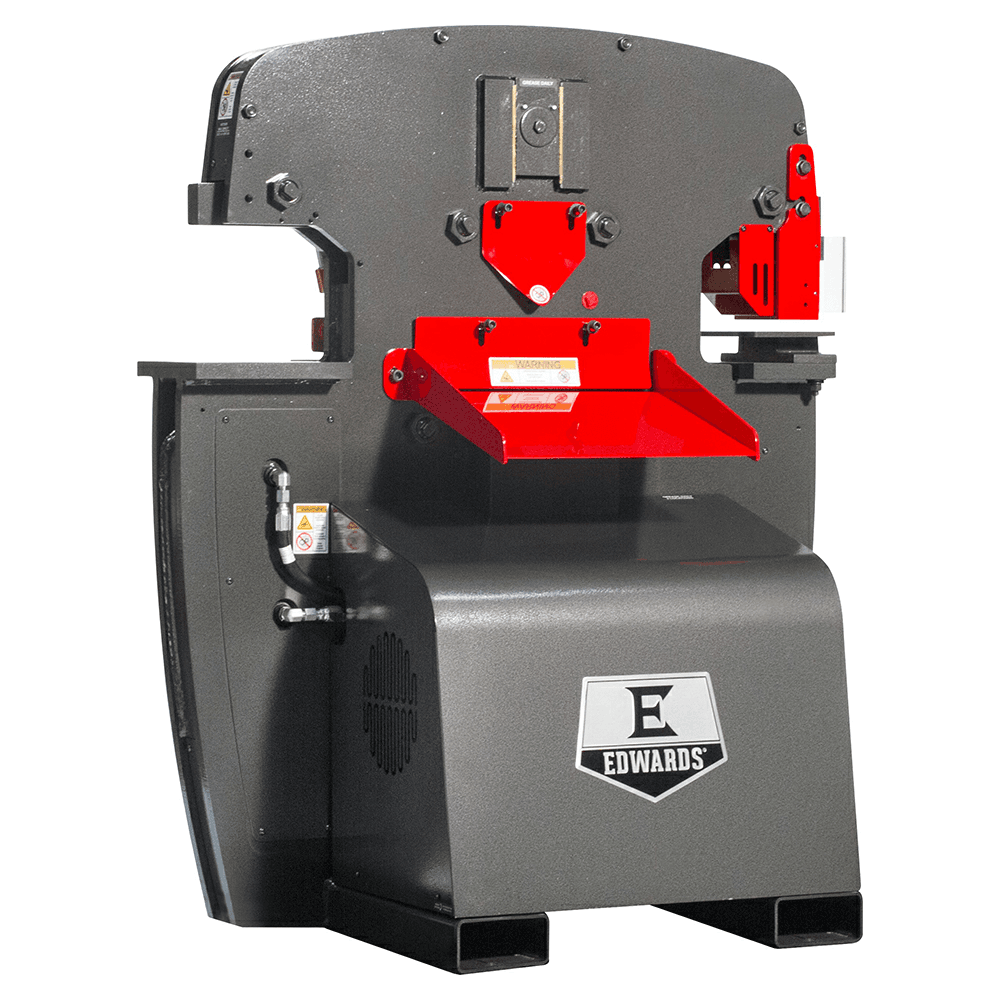

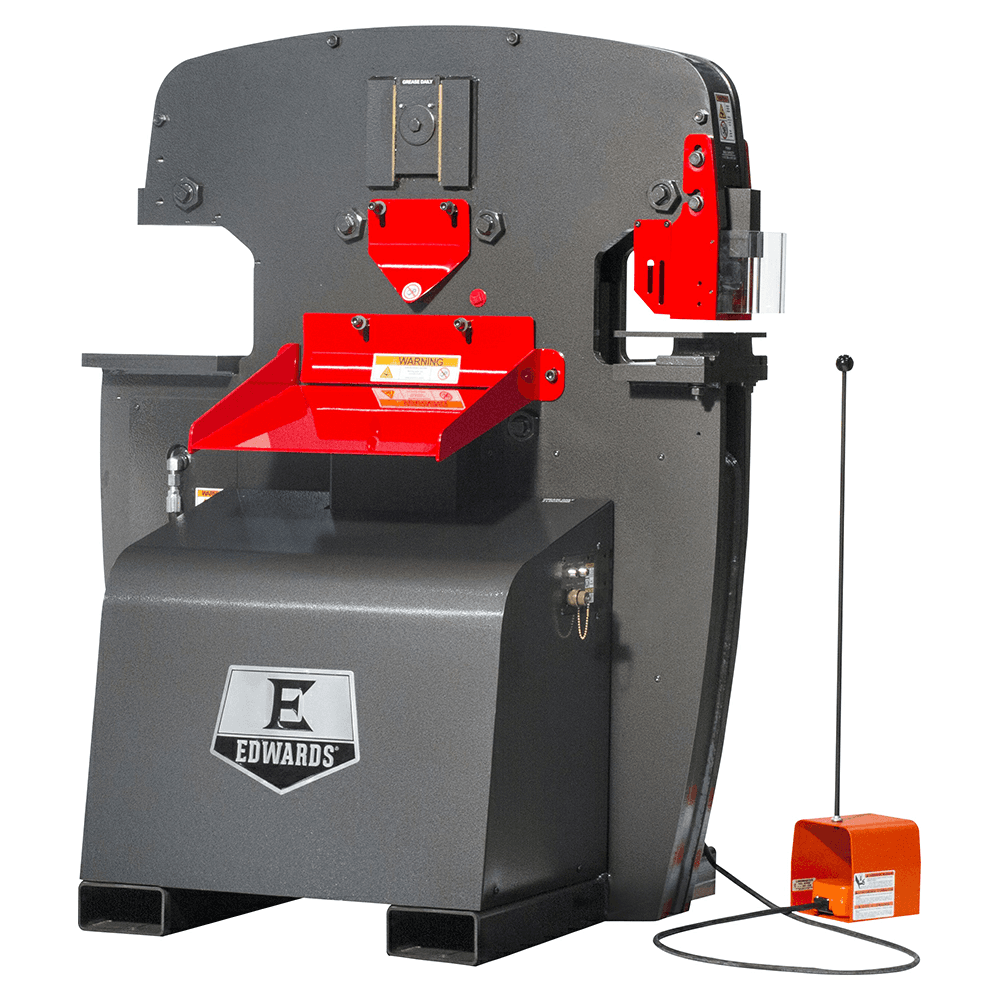

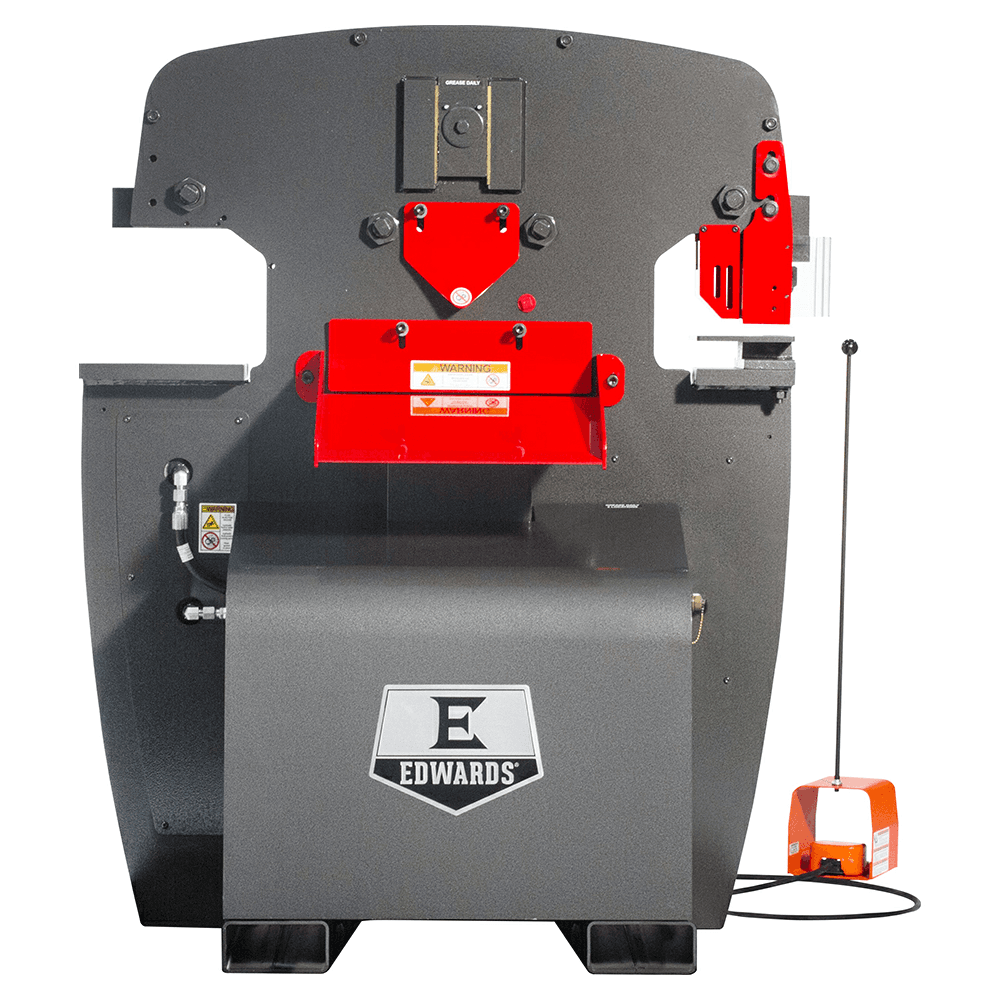

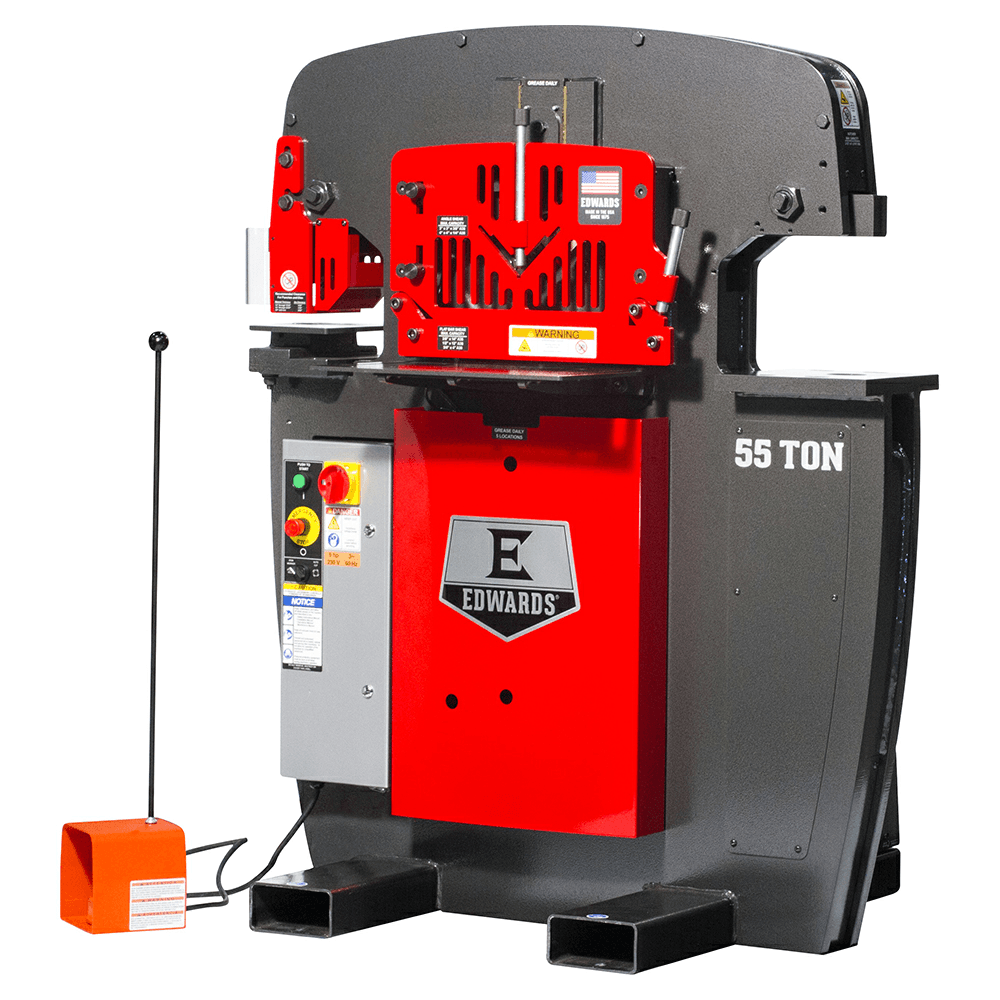

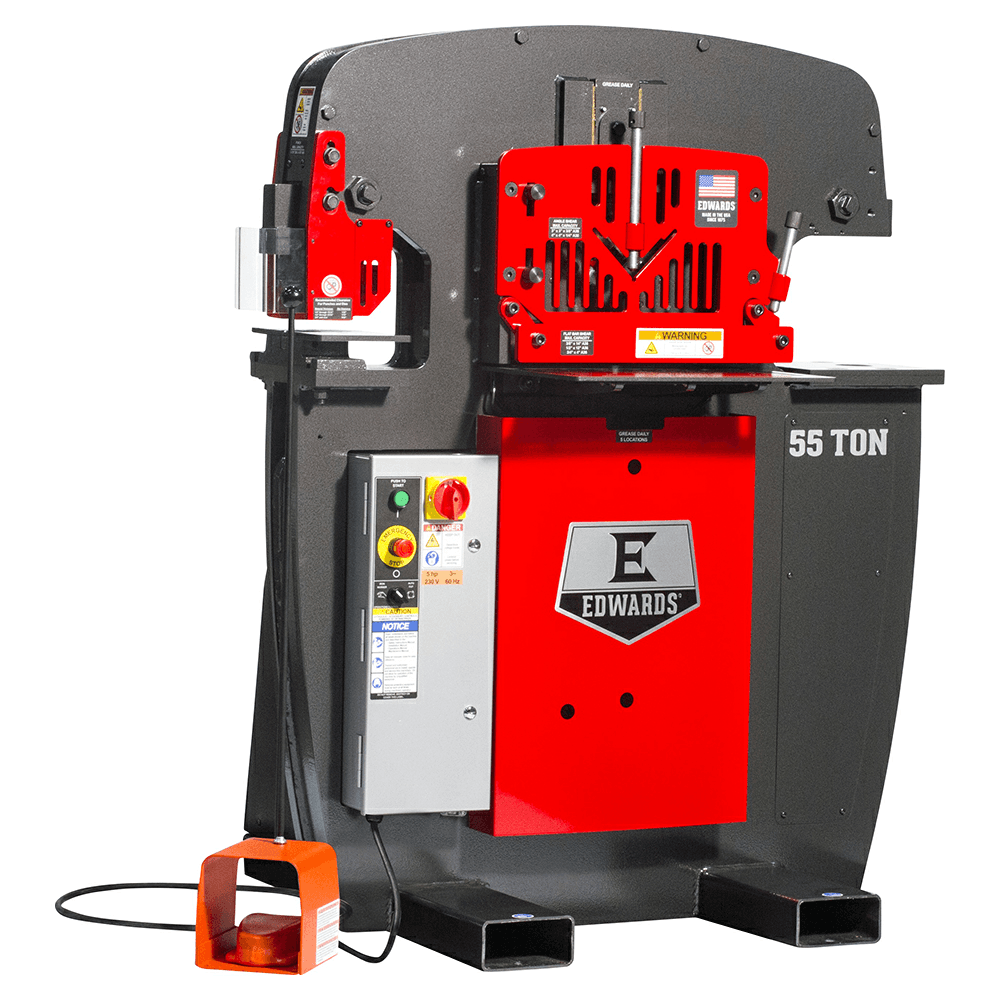

Edwards IW55-3P208 5 HP 55 Ton Ironworker, 3 Phase/208V
This item may incur additional shipping costs and lead times.
Product Details
The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. ETL/UL Approved Controls. Features: • Adjustable electric stoke control • ANSI B11.5- 1988(02) Compliant Guarding • Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine • Integrated E-Stop, Lock-out/Tag-out • Optimized workstation heights for improved efficiency • Optional Accessories available to increase precision and efficiency
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 2750 PSI |
| Optional Coper Notcher Work Height | 39-1/2" |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | 34-1/2" |
| Open Workstation Throat Depth | 11-3/16" |
| Open Station Work Height | 34-1/2" |
| Open Station Throat Depth | 11-3/16" |
| Open Station Stroke | 1-1/4" |
| Open Station Shut Height | 6-7/8" |
| Open Station Open Height | 8-1/8" |
| Motor Voltage (V.) | 208V |
| Motor Speed (RPM) | 1725 |
| Overall Dimensions (L x W x H) | 36-1/8" x 44-3/8" x 55-1/4" |
| Overall Height | |
| Product Type | 55 Ton Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 7 |
| Rating (Tons) | 55 |
| Punch Work Height | 36-9/16" |
| Punch Throat Depth | 7-1/2" |
| Punch Stroke | 1-1/4" |
| Punch Shut Height | 6-7/8" |
| Punch Rating (Tons) | 55 |
| Punch Open Height | 8-1/8" |
| Punch Max Capacity | 1-1/16 diam. in 5/8 mild steel |
| Motor Phase | 3 |
| Motor Amps | 14 |
| Motor (HP) | 5 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | 3/8" x 14", 1/2" x 12", 3/4" x 4" |
| Cylinder | |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 39-7/8" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | 4" x 4" |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 3" x 3" x 3/8" 4 x 4 x 1/4 |
| Flat Bar Shear Max Capacity 1/2" | 12" |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | 4" |
| Input Power | 208V/3 Phase |
| Hydraulics (PSI) | 2500 PSI |
| Hydraulics (GPM) | 3-1/2 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | |
| Hydraulic Pump (GPM) | 3-1/2 GPM |
| Flat Bar Shear Work Height | 34-1/2" |
| Flat Bar Shear Rating (Tons) | 55 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 7/8" |
| Flat Bar Shear Max Round Capacity | |
| Flat Bar Shear Max Round | 7/8" |
| Flat Bar Shear Max Capacity 3/8" | 14" |
| Amps | 14 |
