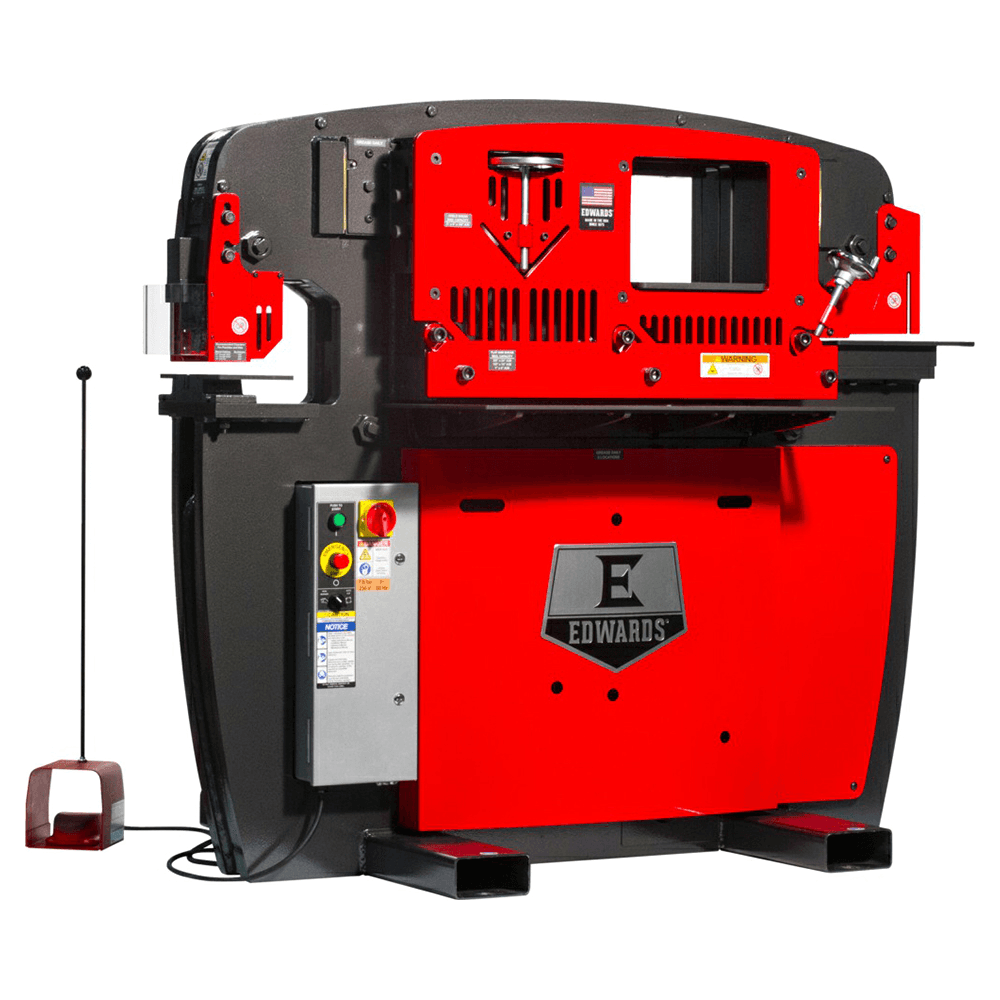

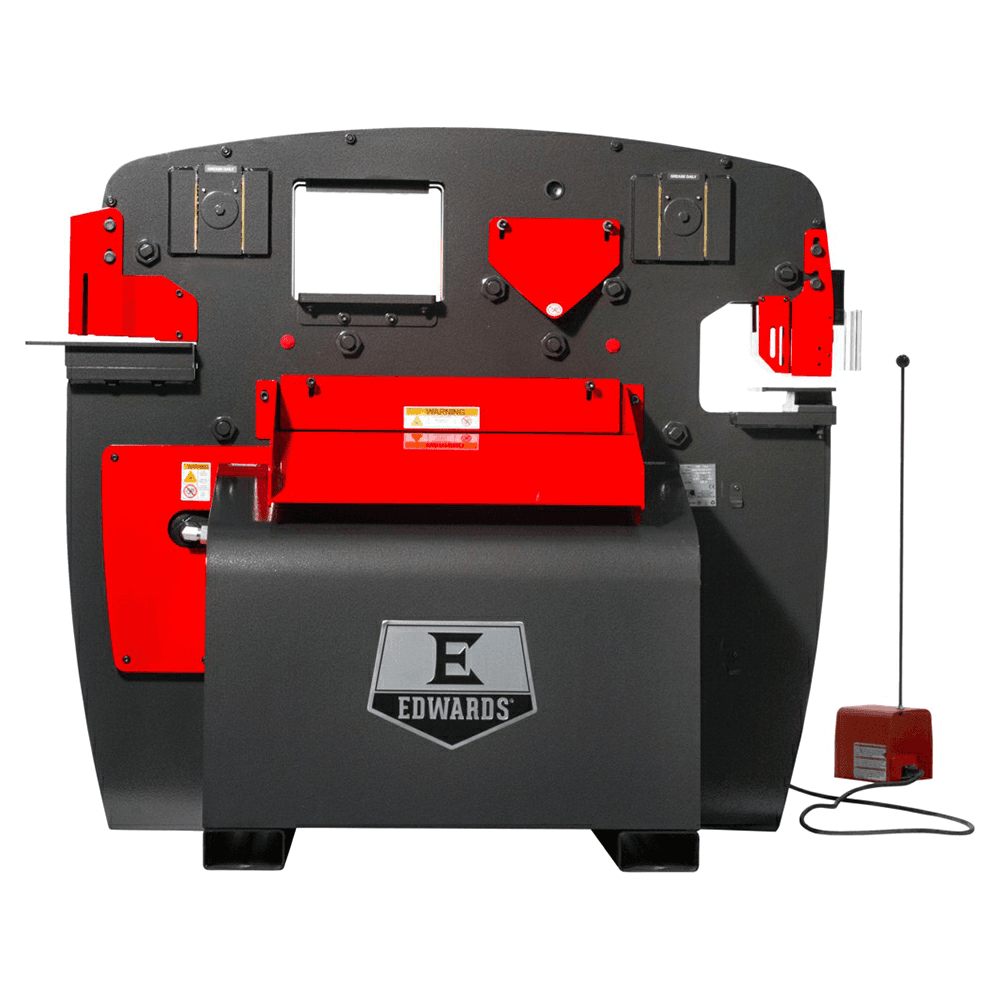

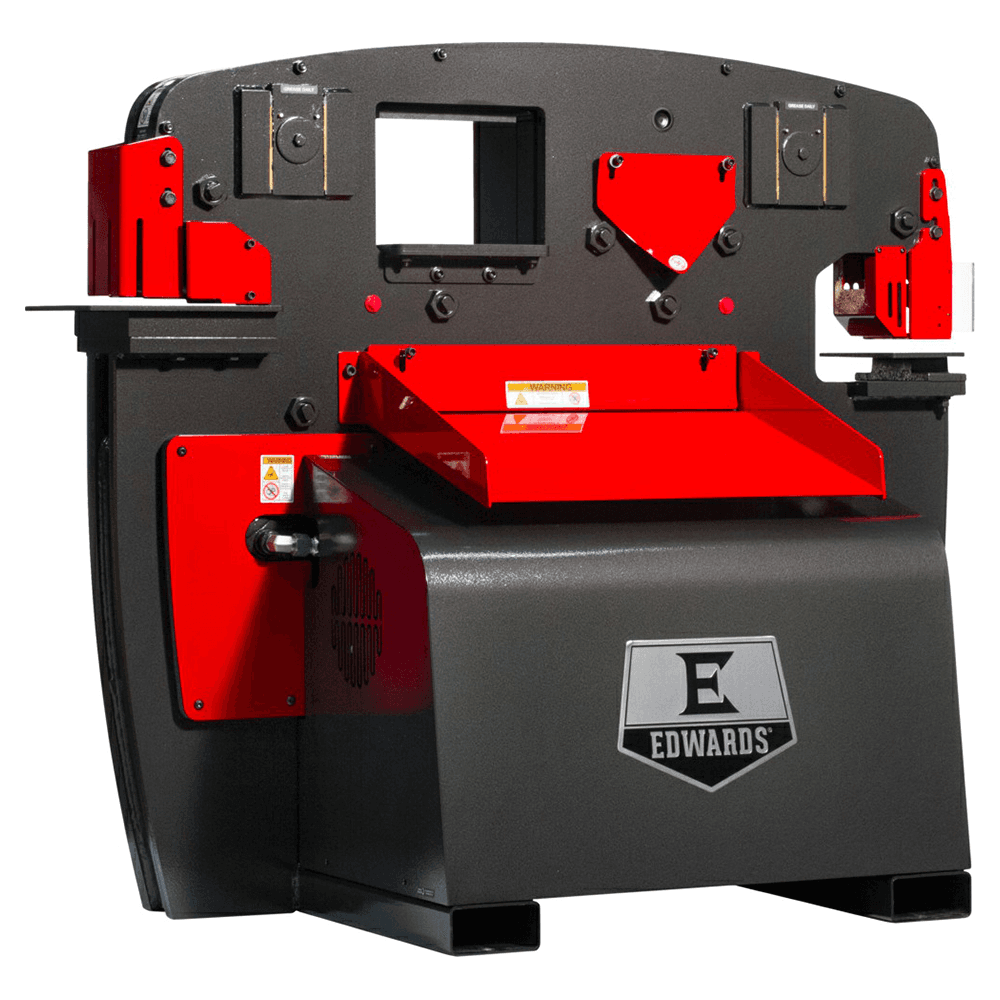

Edwards IW65-3P230 7.5 HP 65 Ton Ironworker, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy. Features: • Adjustable electric stoke control • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life • ANSI B11.5-1988(02) Compliant Guarding • ETL Certified Controls • Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal and control panel) for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 3500 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 230V |
| Motor Speed (RPM) | 1765 |
| Overall Dimensions (L x W x H) | 45" x 62-1/8" x 57" |
| Overall Height | |
| Product Type | 65 Ton Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 17 |
| Rating (Tons) | 65 |
| Punch Work Height | 36-9/16" |
| Punch Throat Depth | |
| Punch Stroke | 1-13/16" |
| Punch Shut Height | 6-15/16" |
| Punch Rating (Tons) | 65 |
| Punch Open Height | 8-3/4" |
| Punch Max Capacity | 1-1/16 diam. in 3/4" mild steel |
| Motor Phase | 3 |
| Motor Amps | 22 |
| Motor (HP) | 7.5 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | 3/8" x 24, 1/2" x 14", 1" x 4" |
| Cylinder | |
| Coper Notcher Work Height | 39-1/2" |
| Coper Notcher Max Capacity | 2-1/2" x 5" x 3/8" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 43-1/2" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 5" x 5" x 3/8" |
| Flat Bar Shear Max Capacity 1/2" | 14" |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | 230V/3 Phase |
| Hydraulics (PSI) | 3500 PSI |
| Hydraulics (GPM) | 10-1/2 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulic Pump (GPM) | 10-1/2 GPM |
| Flat Bar Shear Work Height | 34-1/2" |
| Flat Bar Shear Rating (Tons) | 65 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1" |
| Flat Bar Shear Max Round Capacity | 1" |
| Flat Bar Shear Max Round | 1" |
| Flat Bar Shear Max Capacity 3/8" | 24" |
| Amps | 22 |
