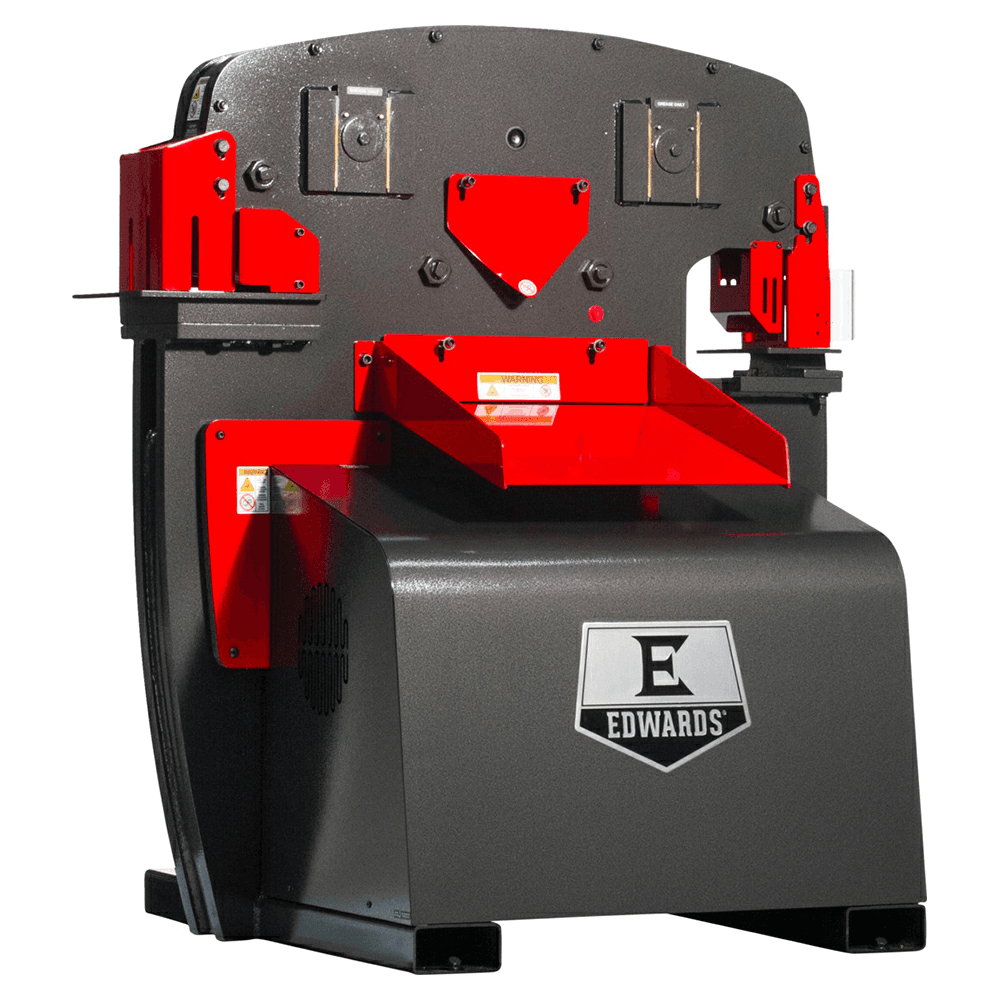

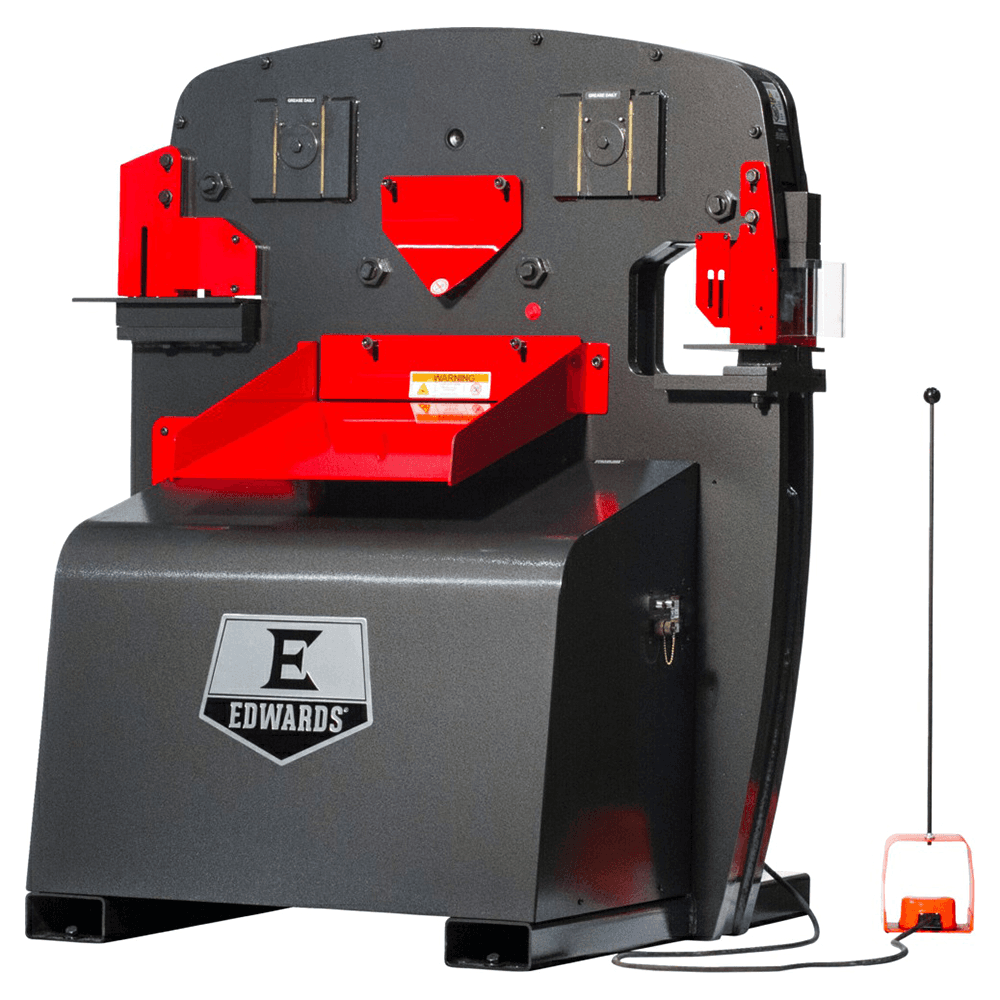

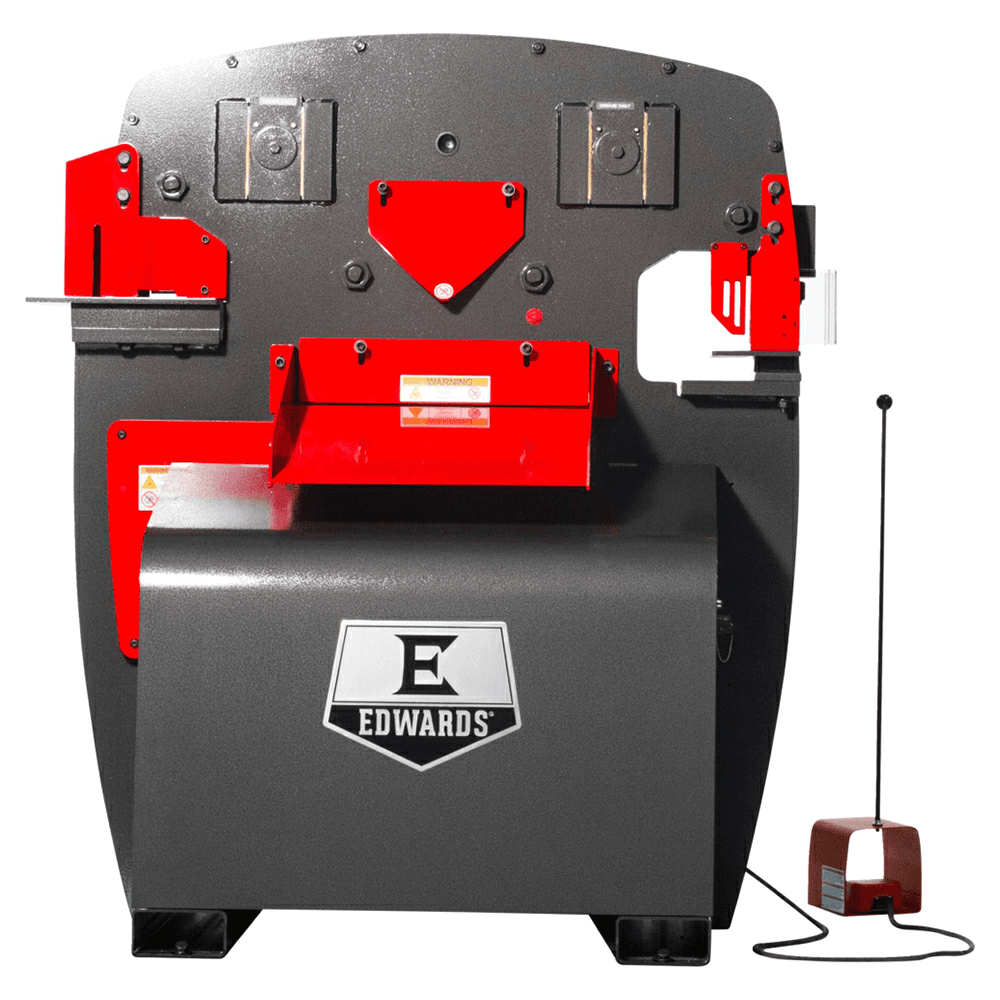

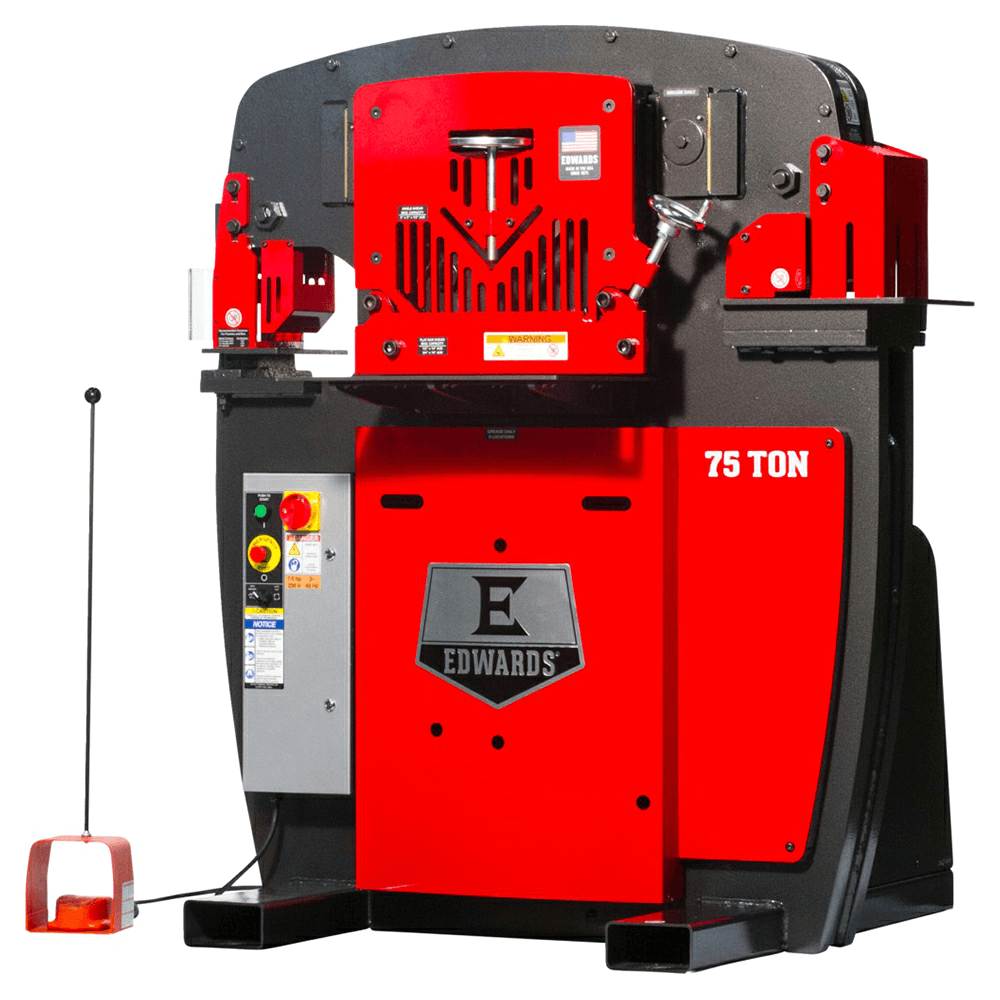

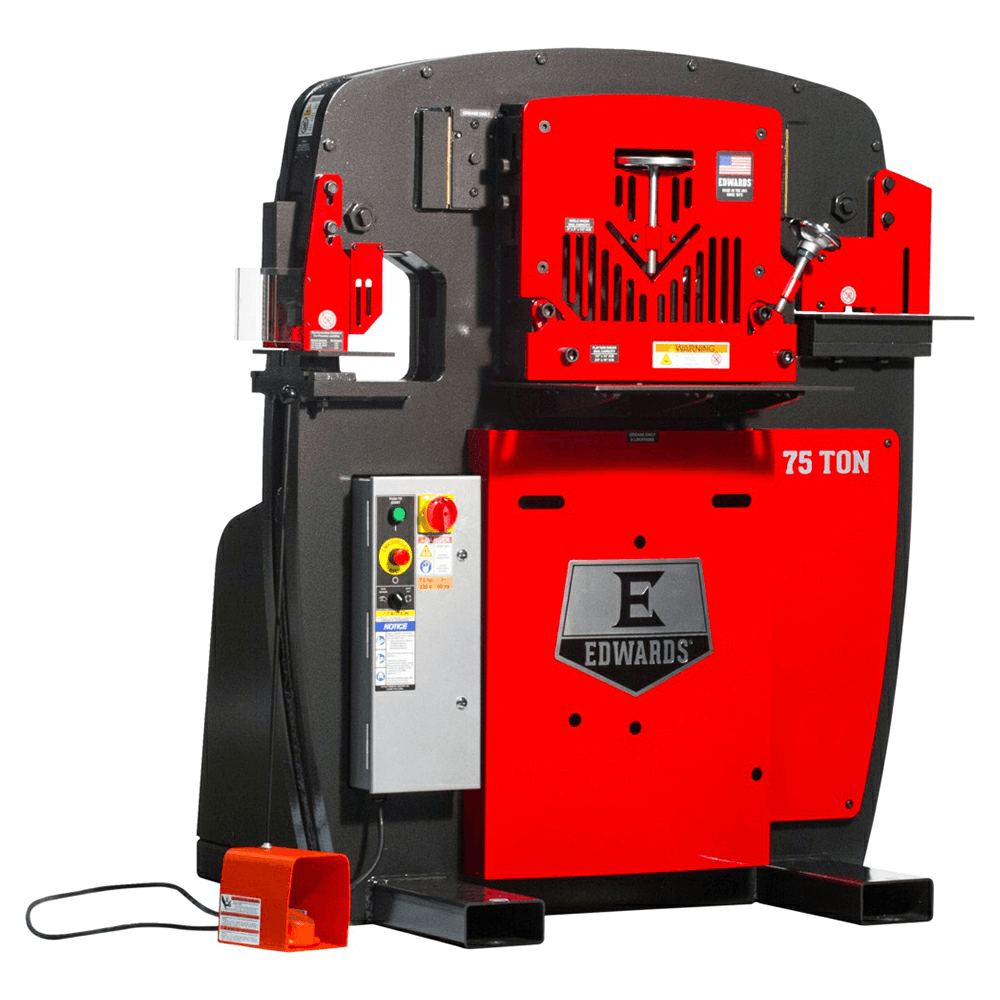

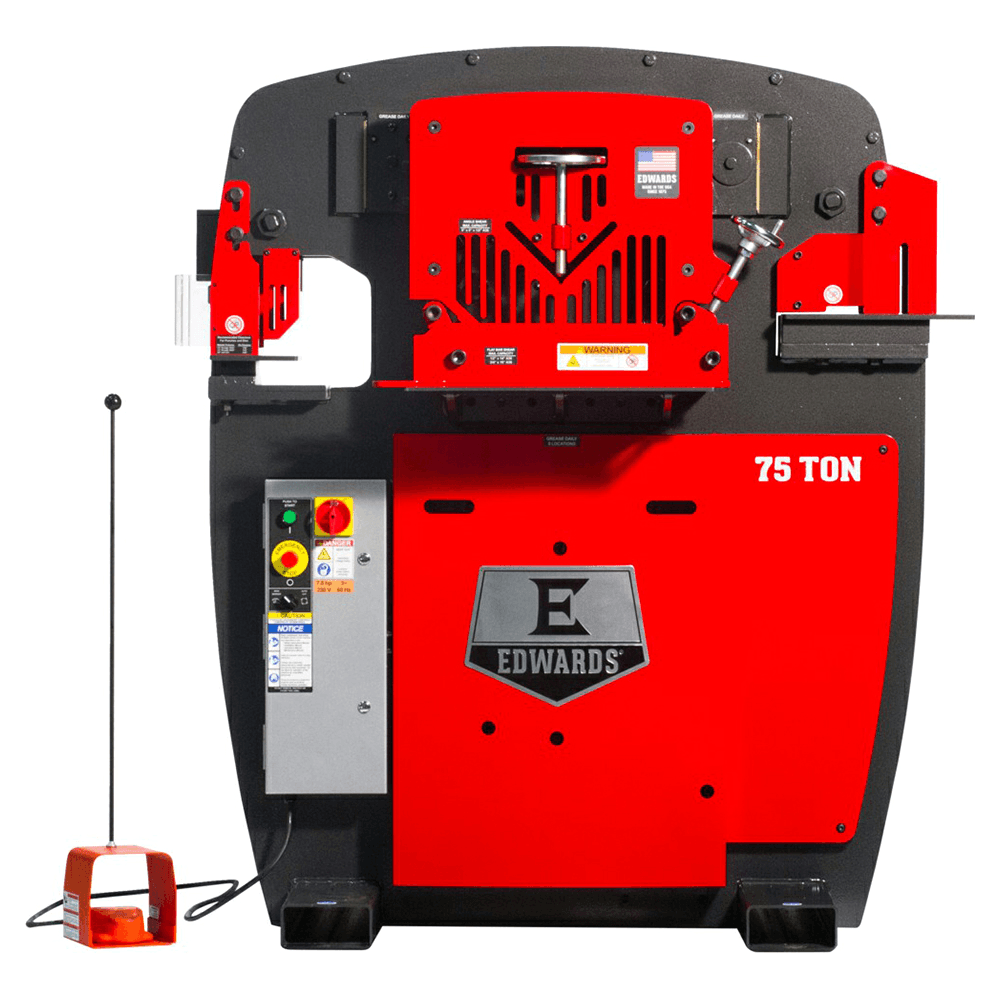

Edwards IW75-3P460 7.5 HP 75 Ton Ironworker, 3 Phase/460V
This item may incur additional shipping costs and lead times.
Product Details
The 75 Ton Ironworker makes quick work of heavier jobs with increased capacity on the punch, flat bar and angle shear, allowing for fast and easy transitions between fabrications. This 4 workstation Ironworker has a Coper Notcher installed and also accepts 12 interchangeable attachments and 17 accessories so you can modify as needed. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. Perfect for those projects that just need a little more capacity. Features: • Adjustable electric stoke control • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life • ANSI B11.5-1988(02) Compliant Guarding • Durable, heavy-duty Made in USA steel construction • ETL Certified Controls • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal and control panel) for added safety • Optimized workstation heights for improved efficiency • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 3500 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 460V |
| Motor Speed (RPM) | 1765 |
| Overall Dimensions (L x W x H) | 45" x 50" x 60-1/4" |
| Overall Height | |
| Product Type | 75 Ton Ironworker |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | 17 |
| Rating (Tons) | 75 |
| Punch Work Height | 36-9/16" |
| Punch Throat Depth | |
| Punch Stroke | 1-13/16" |
| Punch Shut Height | 6-15/16" |
| Punch Rating (Tons) | 75 |
| Punch Open Height | 8-3/4" |
| Punch Max Capacity | 1-1/6 diam. in 7/8" mild steel |
| Motor Phase | 3 |
| Motor Amps | 11 |
| Motor (HP) | 7.5 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | 1/2" x 14", 3/4" x 10" |
| Cylinder | |
| Coper Notcher Work Height | 42" |
| Coper Notcher Max Capacity | 2-1/2" x 5 x 1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | 43-15/16" |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 5 x 5 x 1/2" |
| Flat Bar Shear Max Capacity 1/2" | 14" |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | 10" |
| Input Power | 460V/3 Phase |
| Hydraulics (PSI) | 3500 PSI |
| Hydraulics (GPM) | 10-1/2 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulic Pump (GPM) | 10-1/2 GPM |
| Flat Bar Shear Work Height | 37" |
| Flat Bar Shear Rating (Tons) | 75 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | 1" |
| Flat Bar Shear Max Round Capacity | 1" |
| Flat Bar Shear Max Round | 1" |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps | 11 |
