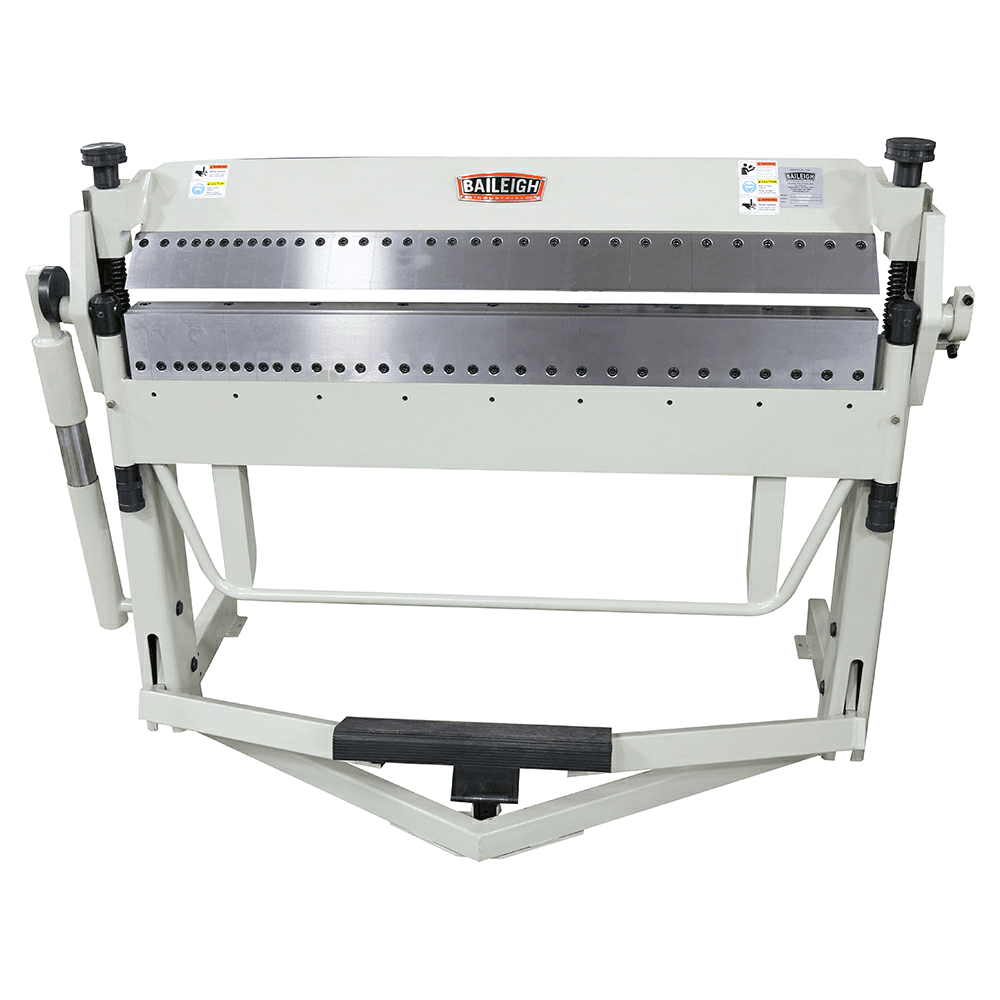

Baileigh BB-5016F-DS Reversible Finger Brake
This item may incur additional shipping costs and lead times.
Product Details

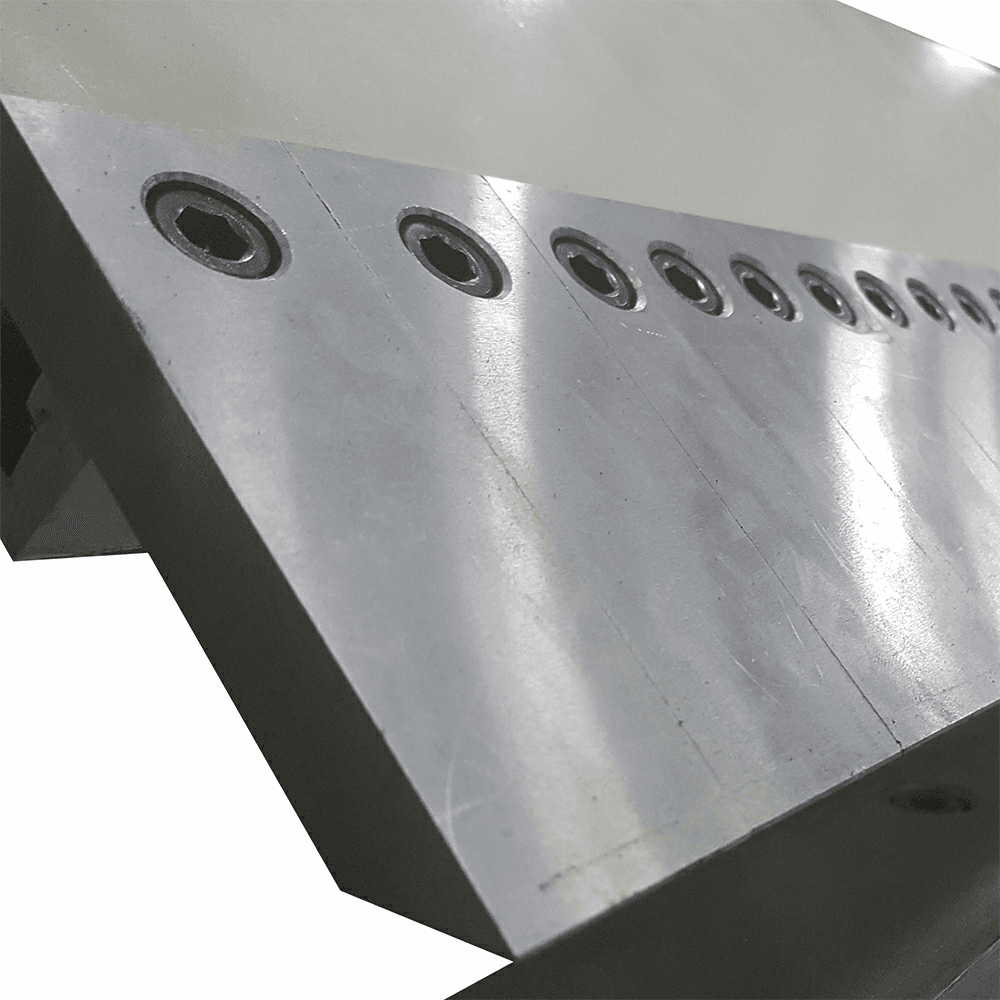

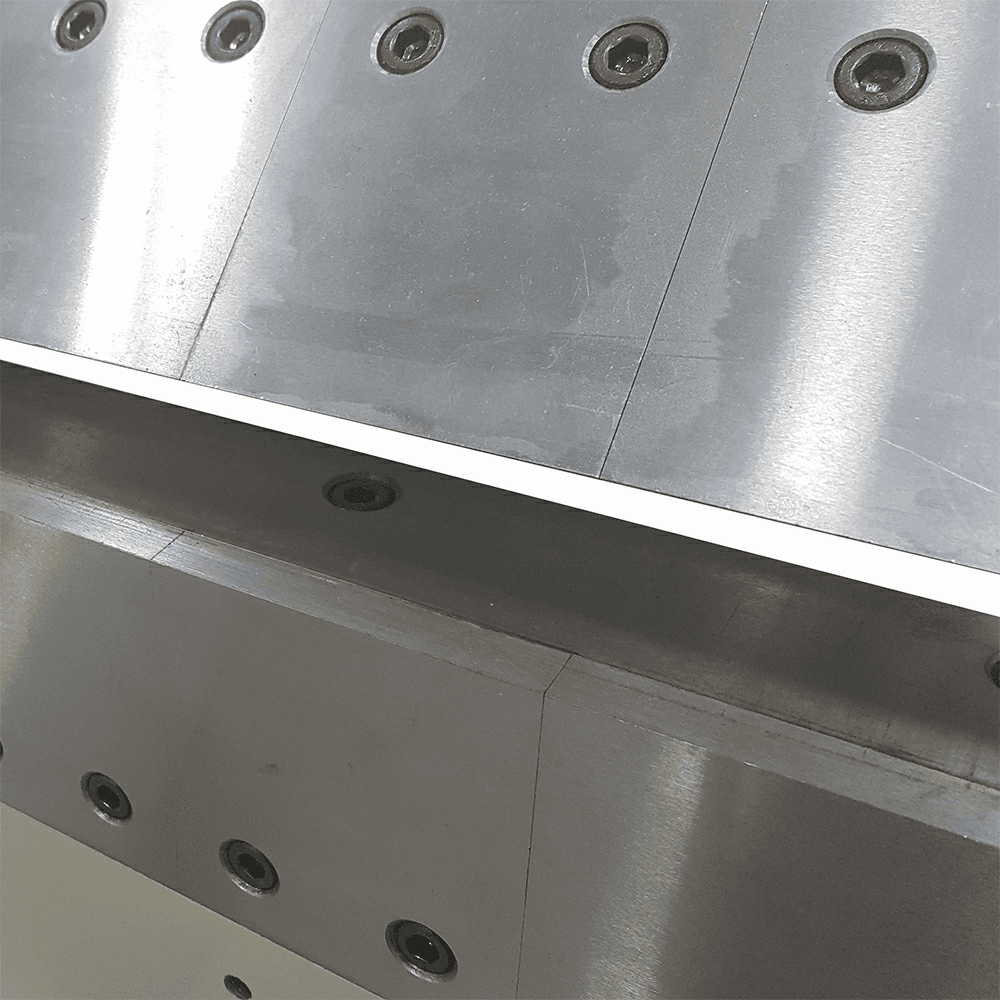

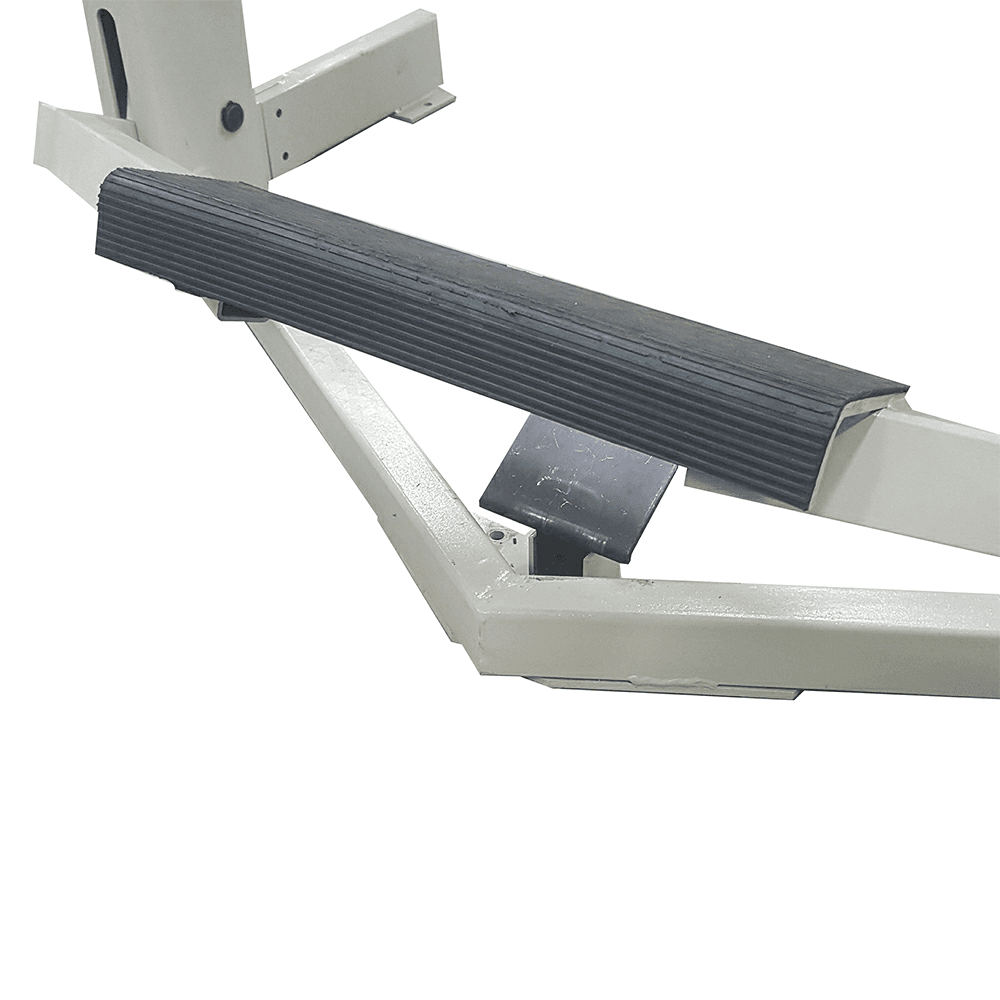

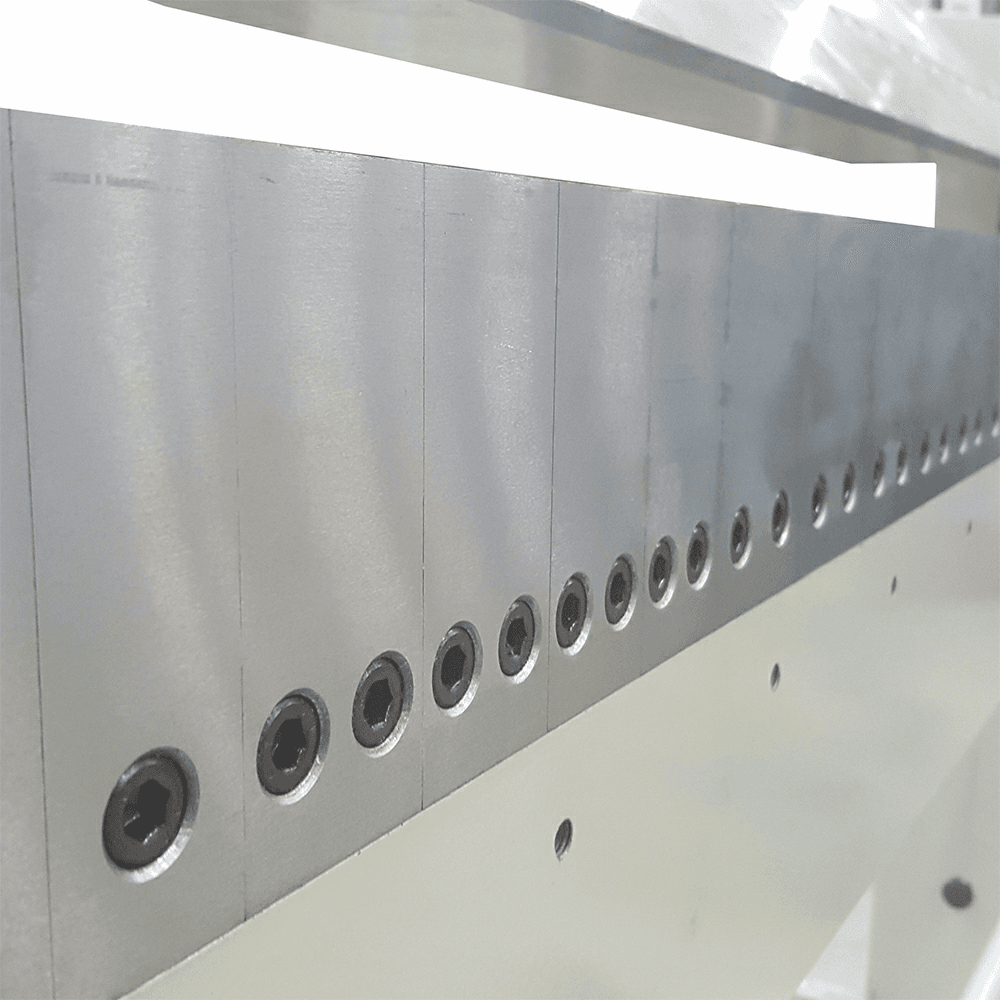

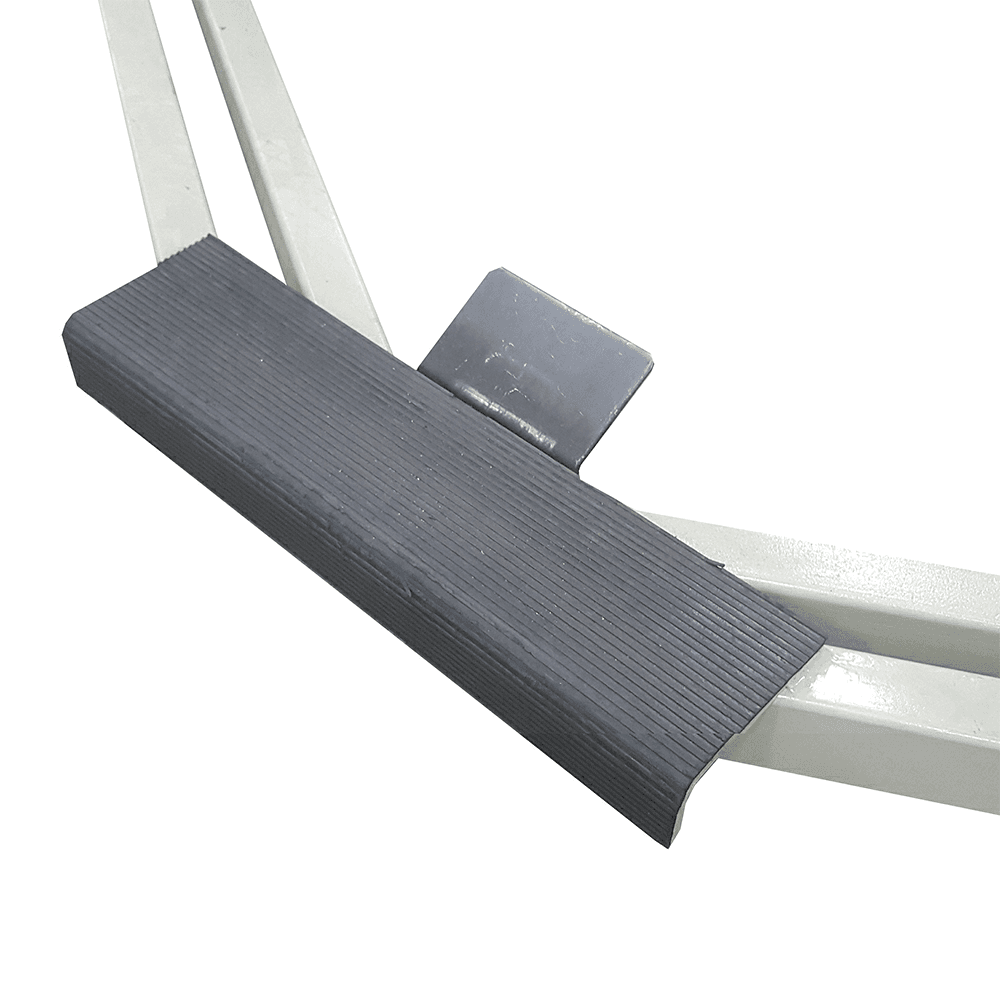

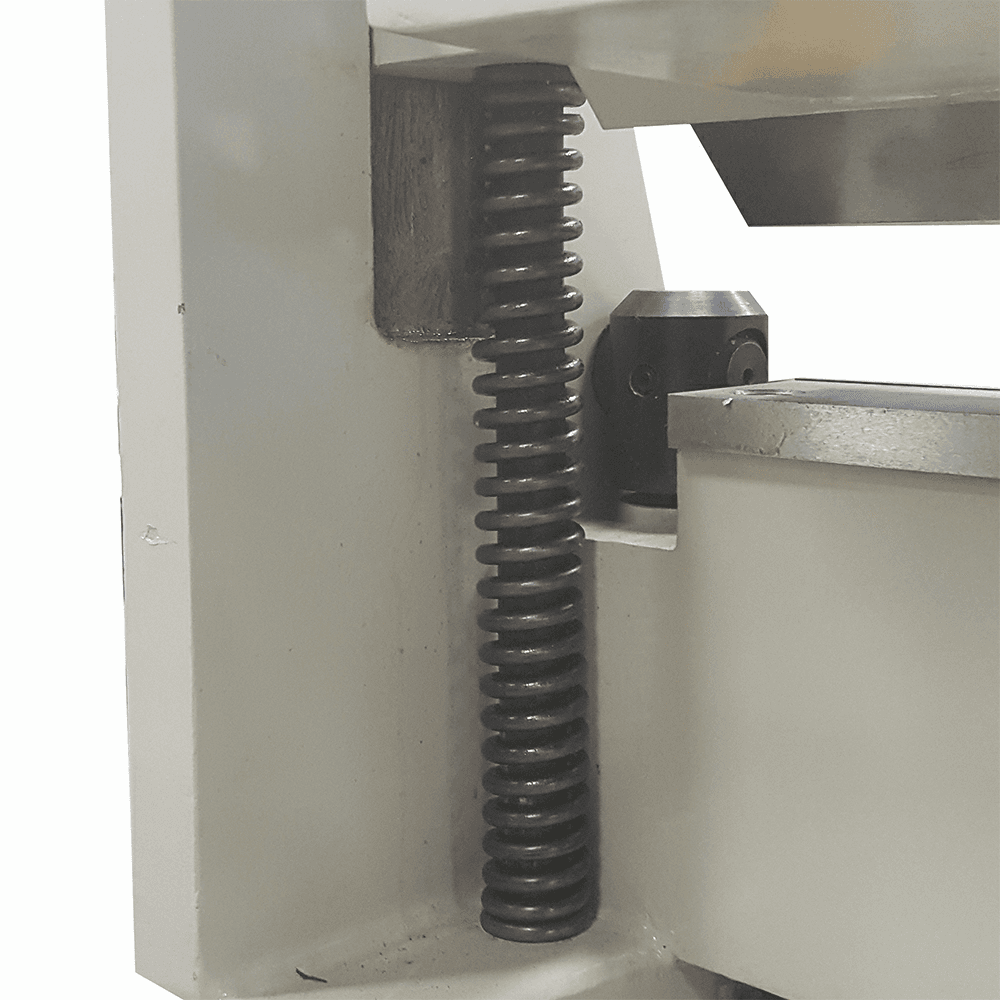

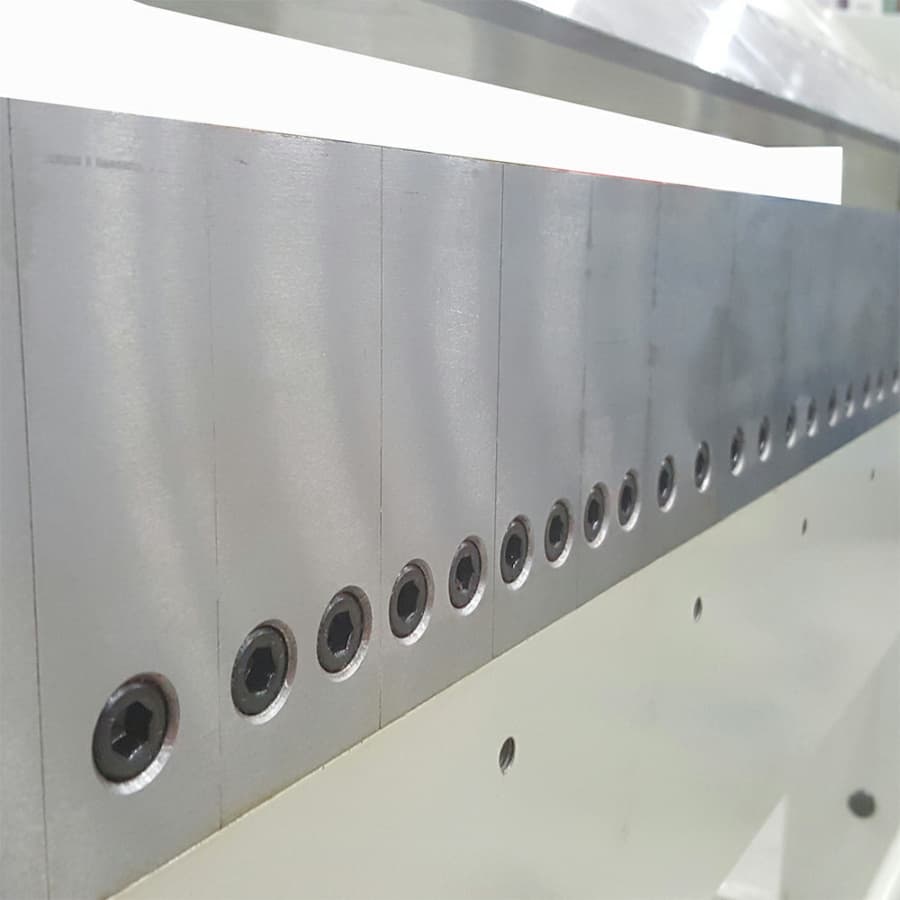

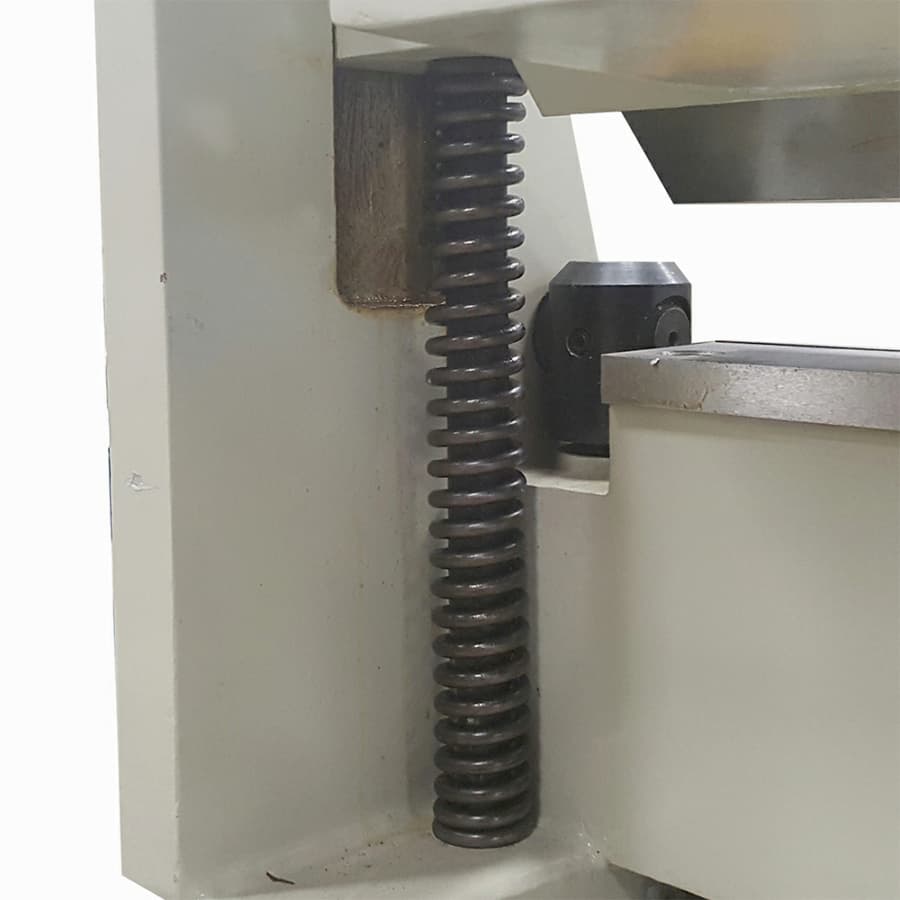

The BB-5016F-DS sheet metal bending brake incorporates segmented fingers on the top and lower lifting beams to make unusual bends that a standard Box brake can't do. Features: • 50" length • 16-gauge mild steel maximum capacity box and pan brake • You can clamp the material with the foot pedal, so that both hands are free for positioning the sheet metal • Segmented fingers on the lower lifting beam let flanges and flaps hang down while still allowing you to get close to the bend line • Adjustable stop rod helps you make repeatable parts for production runs without difficulty • Simple blade gap adjustment lets you work on various gauges of sheet metal • Spring-loaded cylinder assists in lifting the apron, saving effort for the operator • Hardened fingers and bending die will last through years for productive use • Baileigh covers this sheet metal finger brake with a 1-year parts warranty as well as lifetime technical support by phone
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 50" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box brake *16-gauge mild steel capacity *50" length *Segmented fingers for unusual bends |
| Maximum Lift of Beam | |
| Maximum Box Depth | 2.5" |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | 50" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
