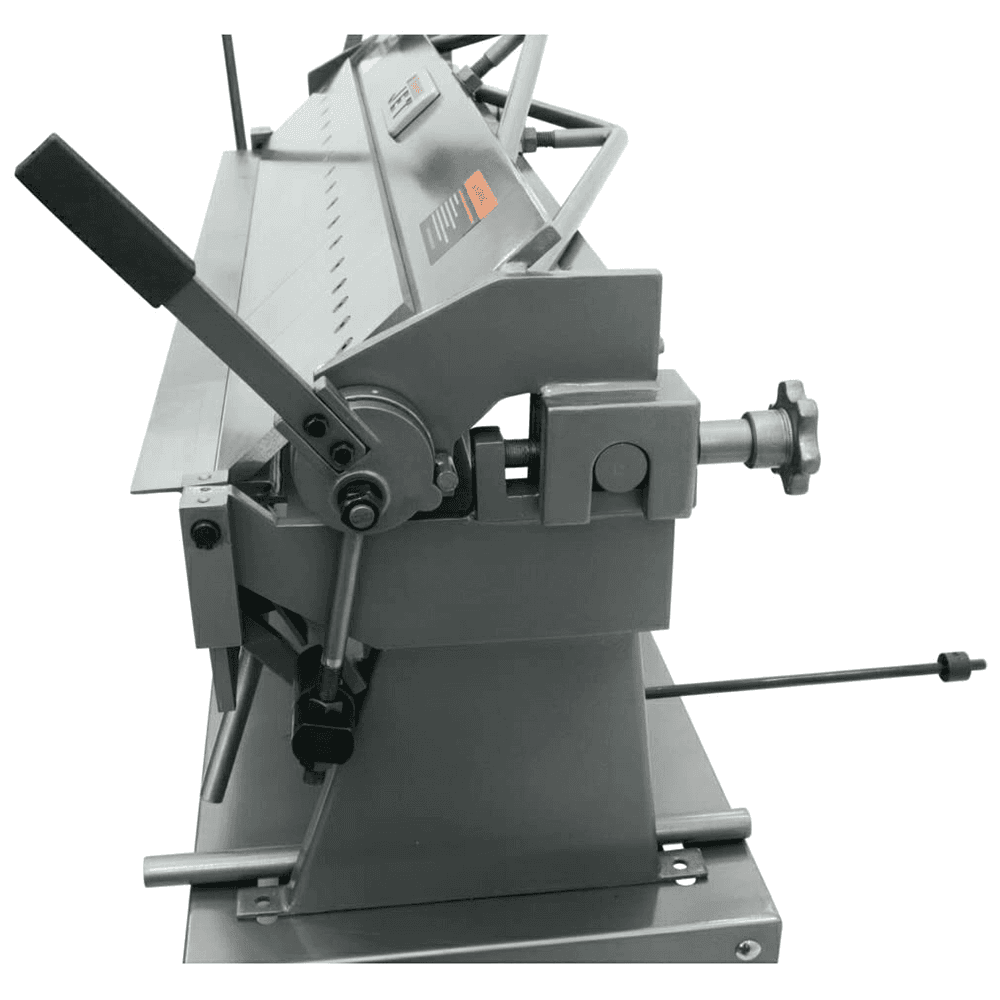

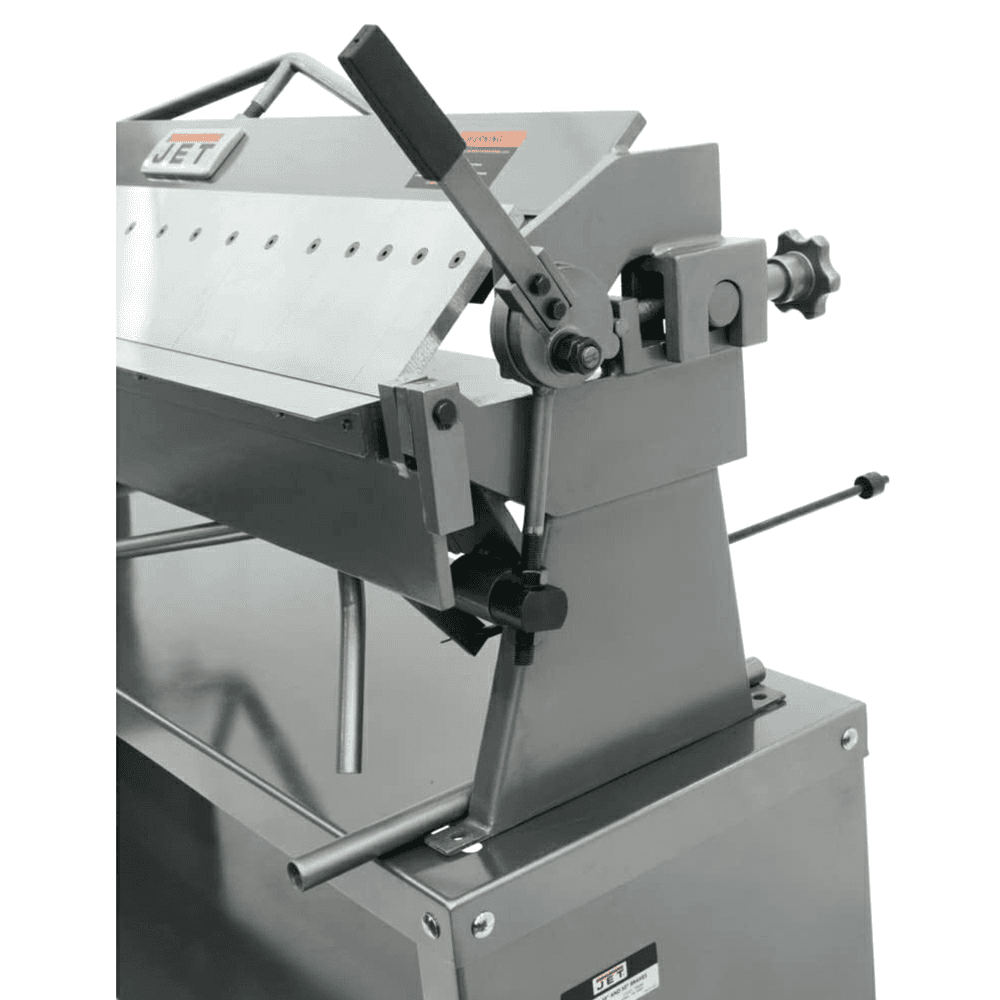

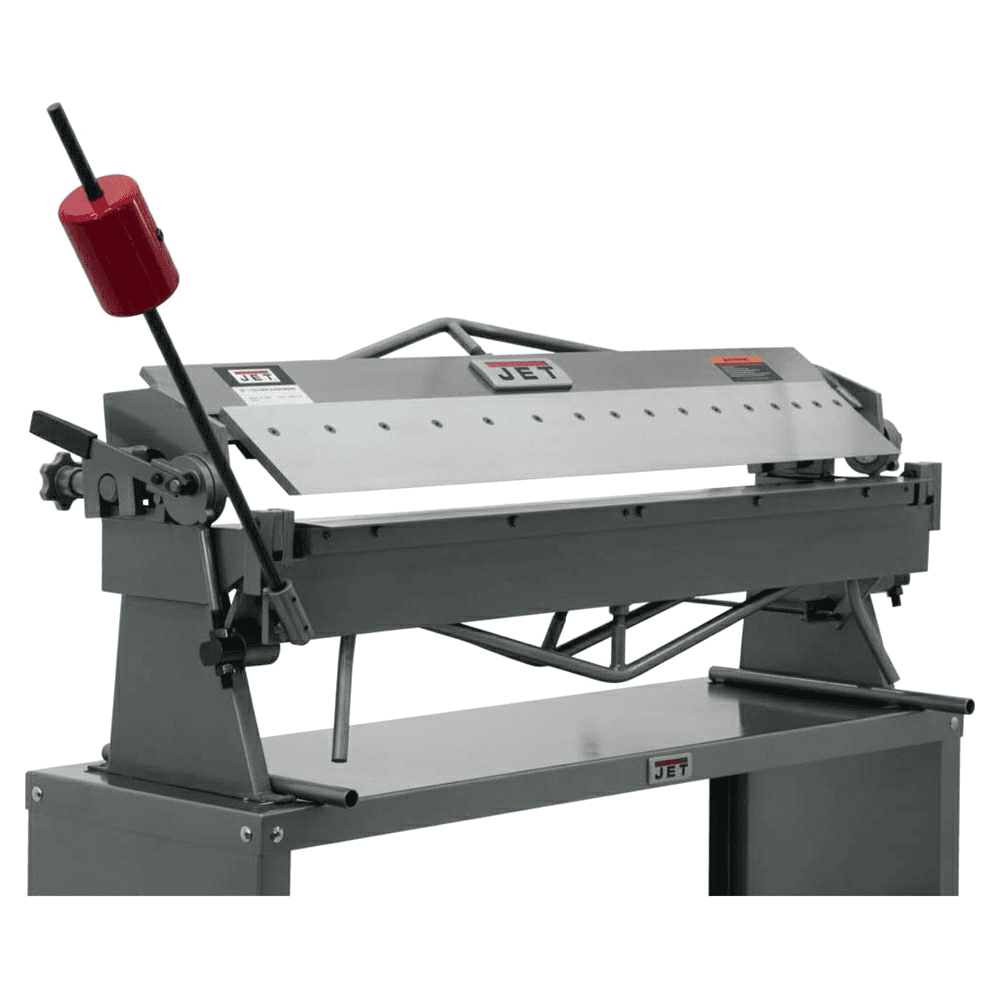

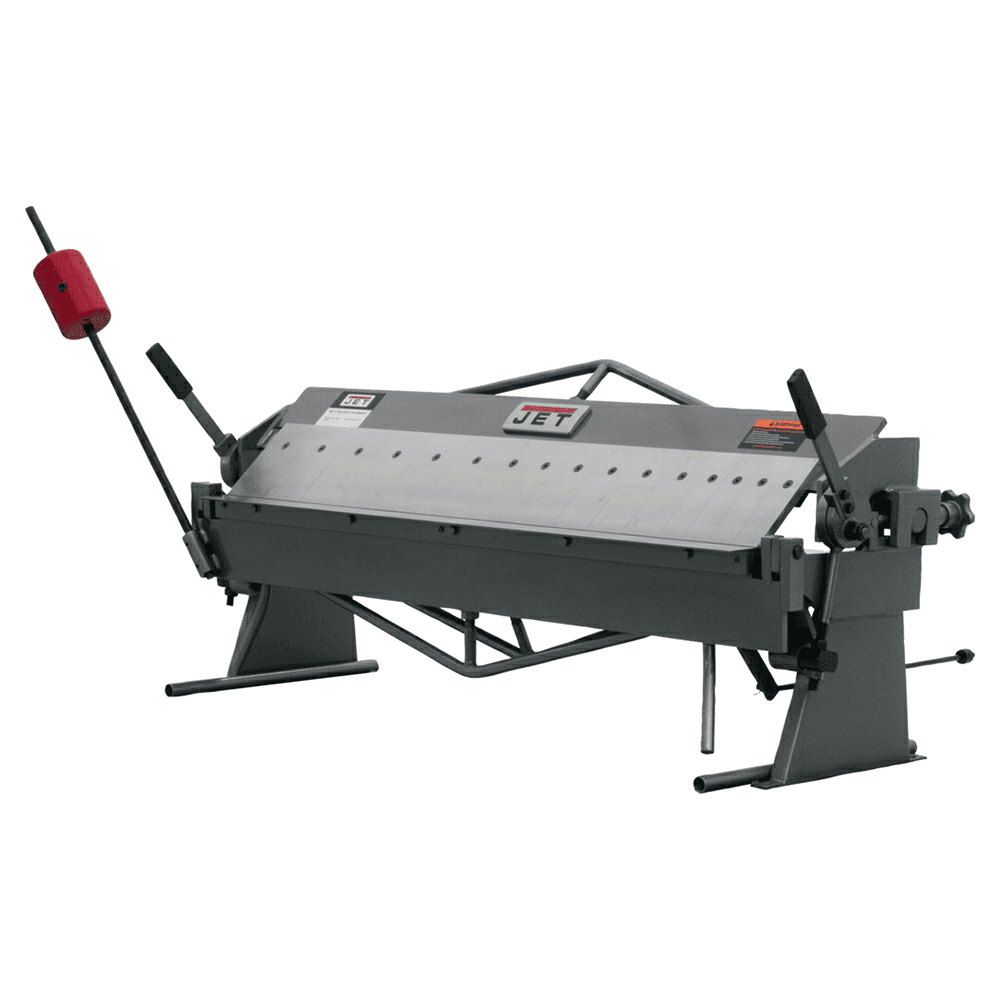

Jet Tools BPB-1650 50" x 16 Gauge Bench Model Box/Pan Brake
This item may incur additional shipping costs and lead times.
Product Details

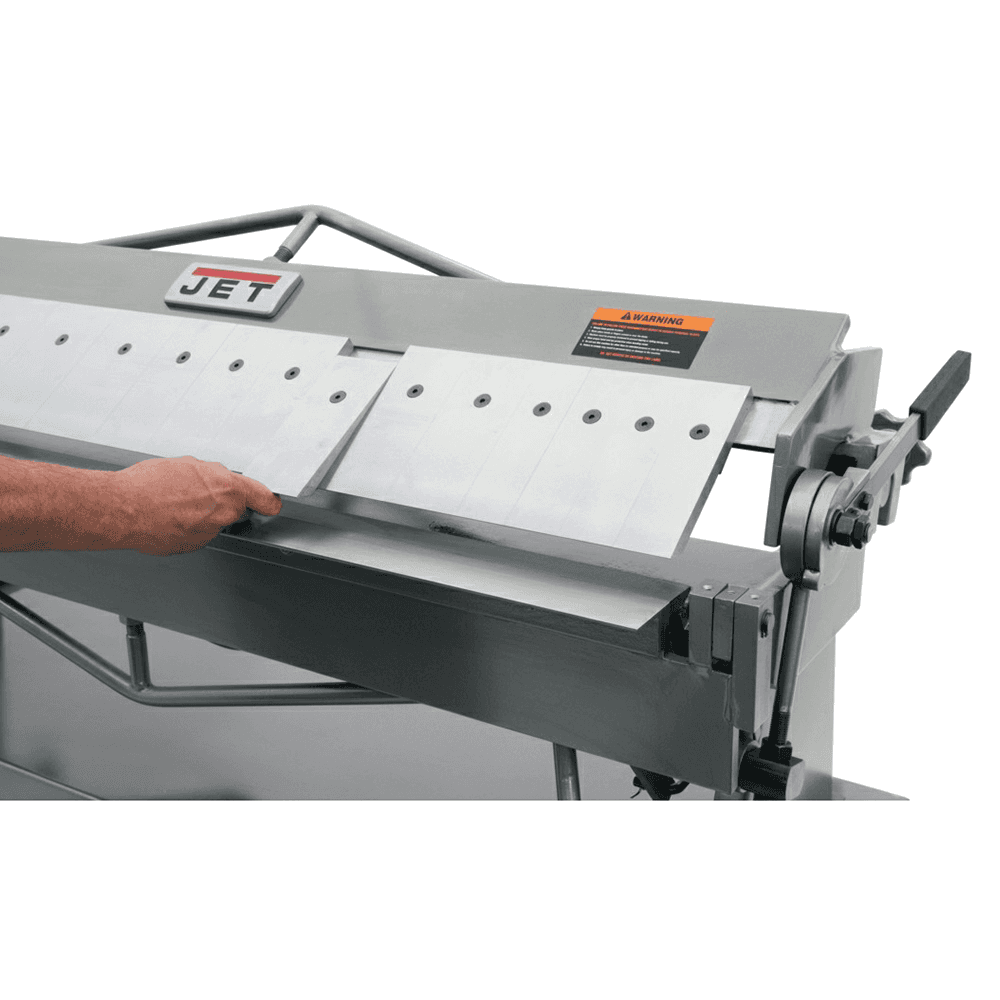

Box and pan brakes from Jet are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision Features: • Incorporates all the features of our standard hand brakes but with greater range of applications • Sectioned fingers are easily removed for box bending and special forming operations • Stop rod for repeat bending • Total of 16 assorted size section fingers • With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | 1/32" |
| Number and Width of Fingers | 16 (4@2in, 6@3in, 6@4in) |
| Overall Dimensions (L x W x H) | 66" x 23-1/4" x 32-1/4" |
| Overall Length | |
| Product Type | Brakes |
| Short Description | *Incorporates all the features of our standard hand brakes but with greater range of applications *Sectioned fingers are easily removed for box bending and special forming operations *Stop rod for repeat bending *Total of 16 assorted size section fingers *With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake |
| Maximum Lift of Beam | 1-1/4" |
| Maximum Box Depth | 4" |
| Beam Adjustment (Front to Rear) | 5/8" |
| Bending Length Capacity | 50" |
| Configurable Base Item | No |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | 45° |
| Input Power | |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
