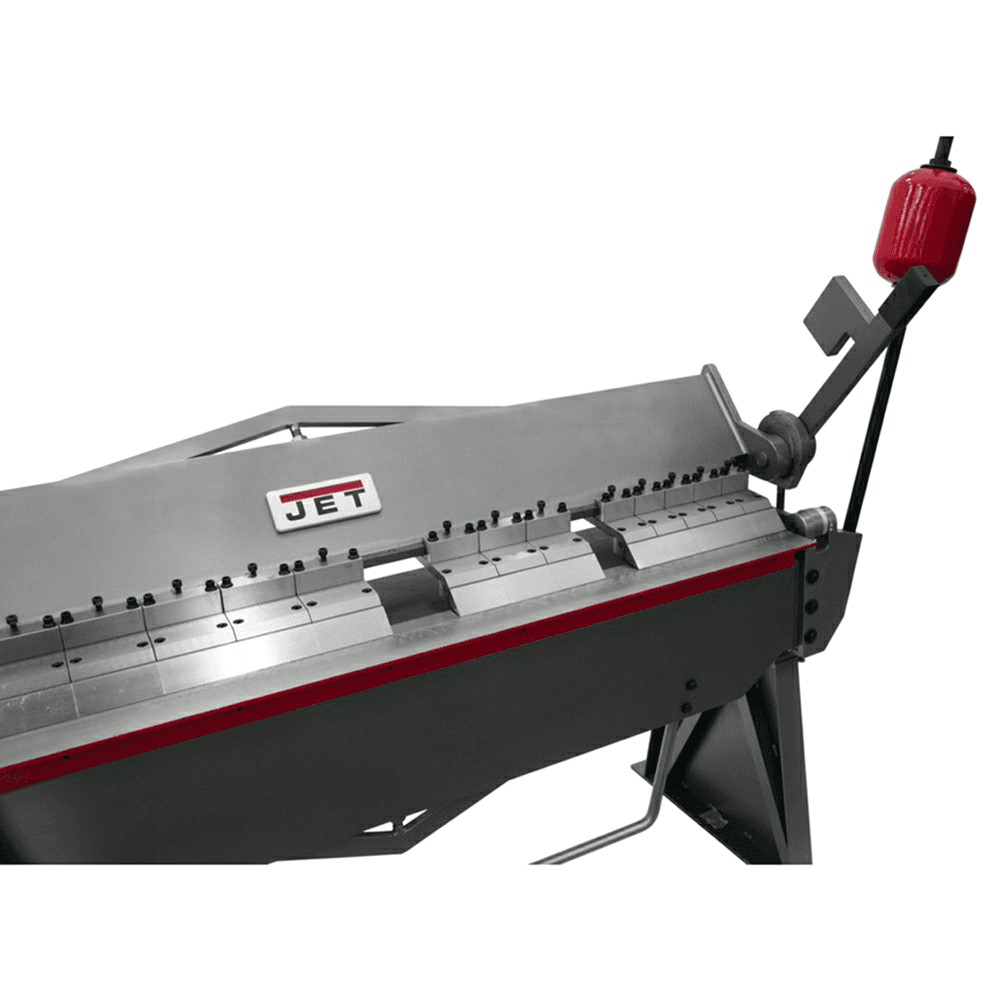

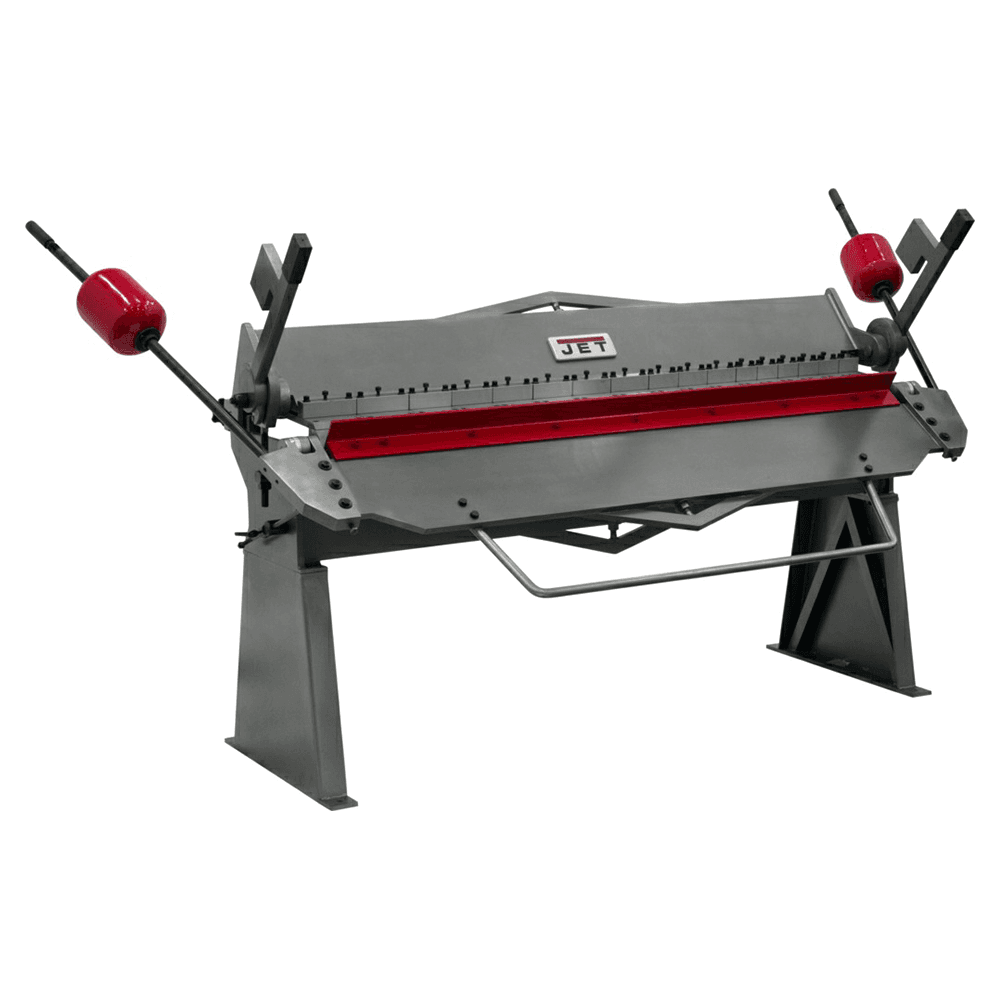

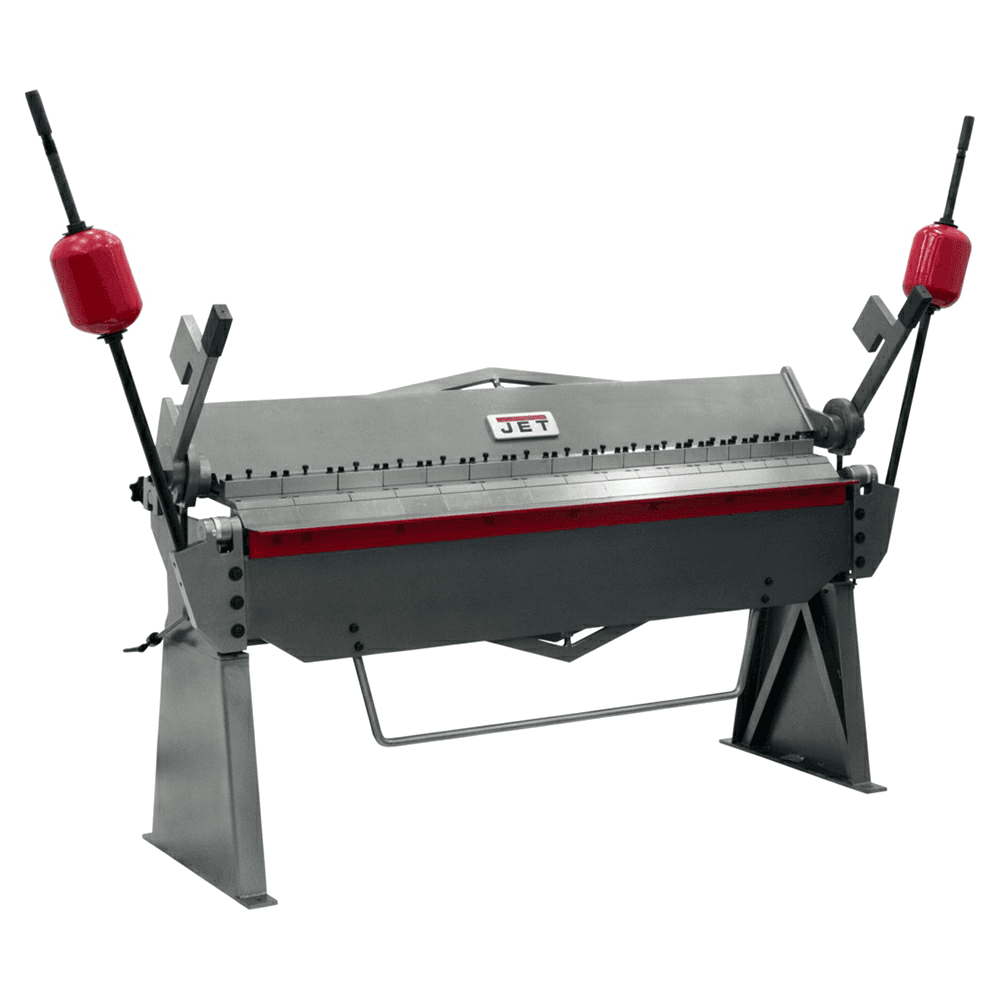

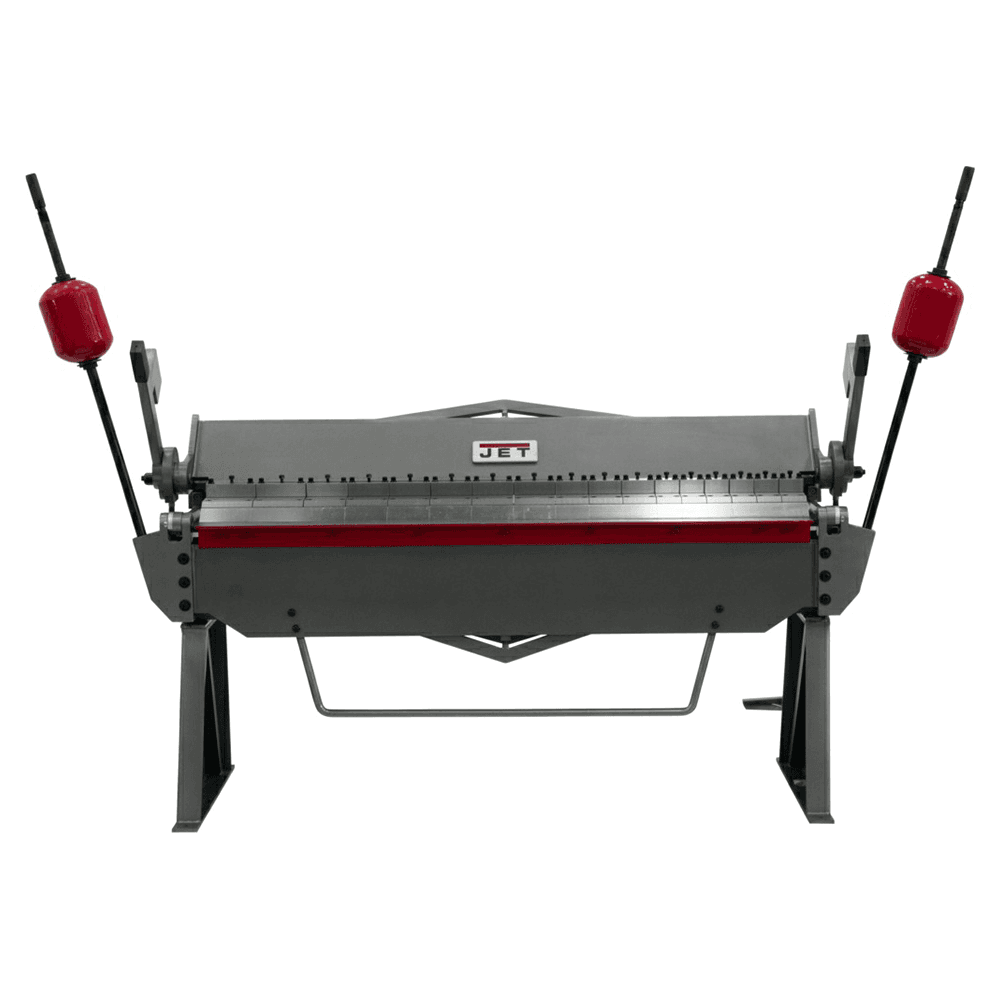

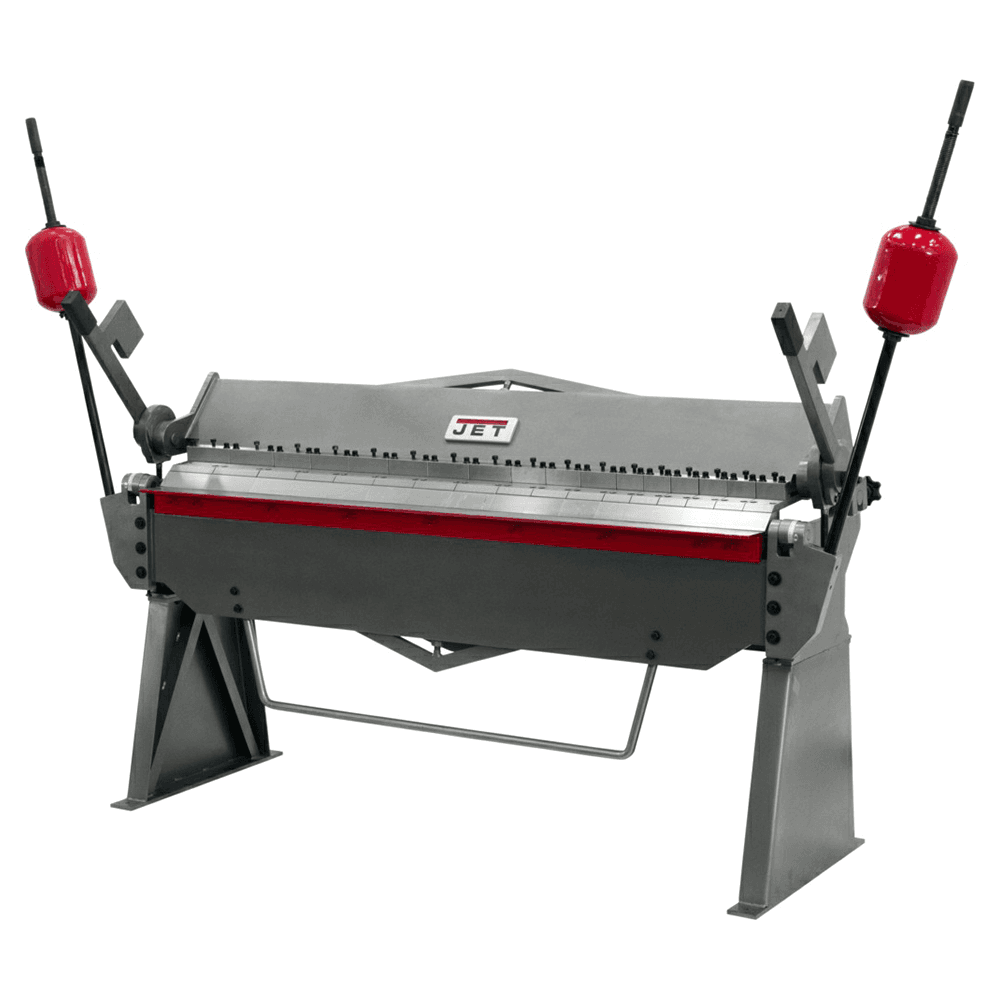

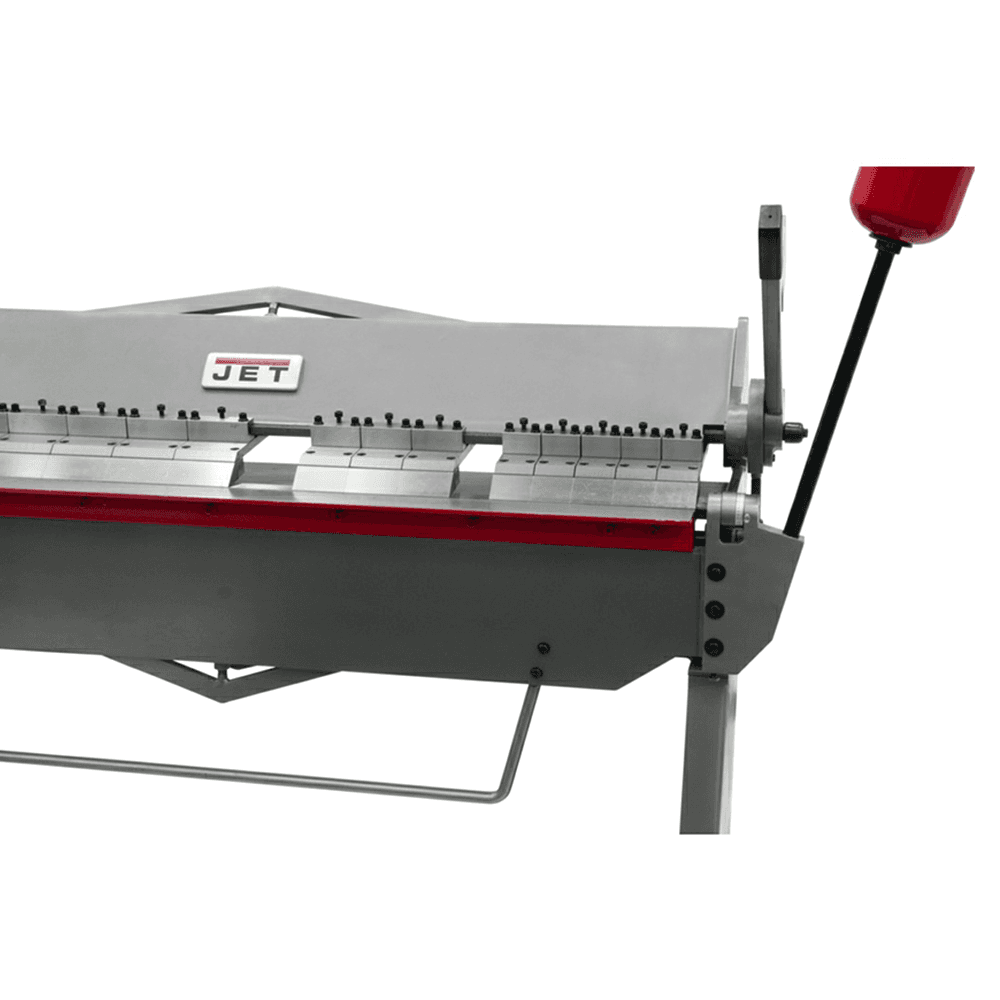

Jet Tools BP-1272 12 Gauge Floor Box/Pan Brake
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

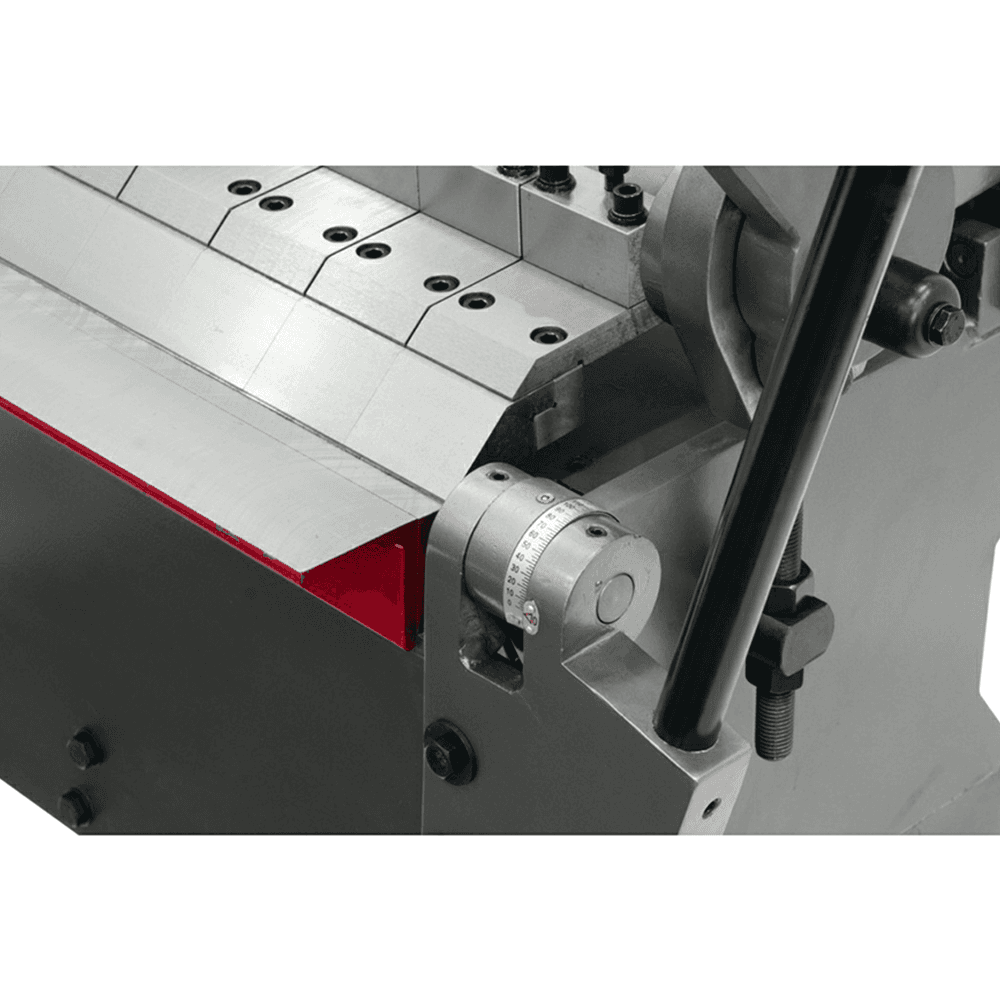

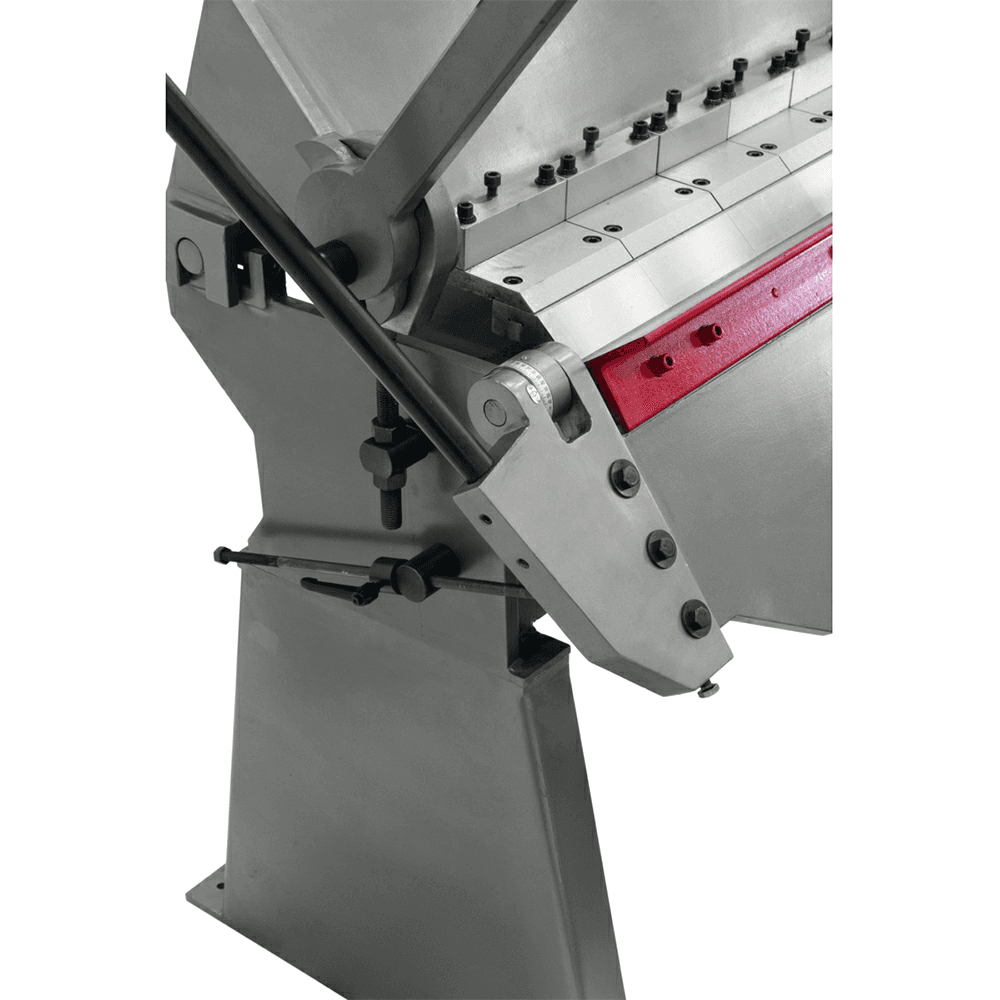

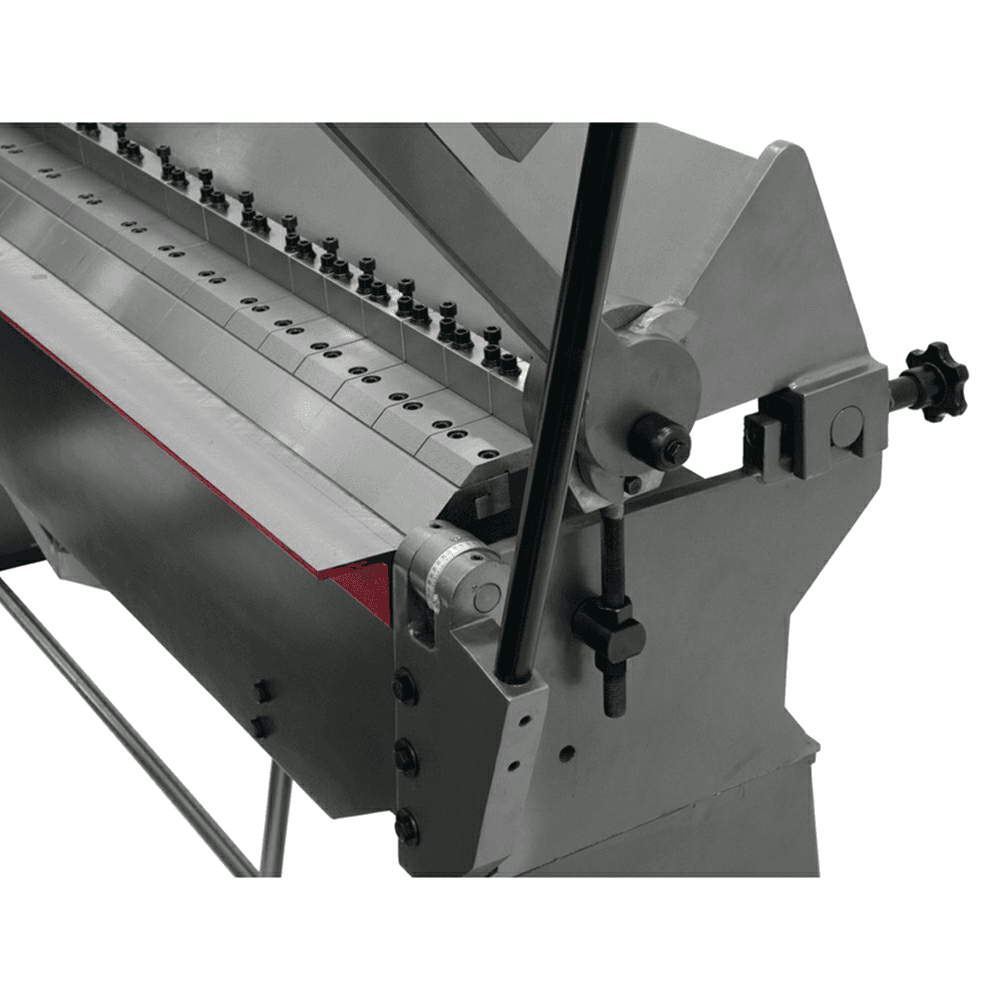

The Jet 72" box and pan brake is designed for durable use and precise results. Innovative ergonomic features promote operator comfort and help prevent injury and fatigue. Welded steel plate body sections and heavy truss rods and braces contribute to strength. Features: • All body sections are welded steel plate • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability • Both the bed and apron are bored in line to assure the utmost accuracy • Counter weights can be moved up or down to provide leverage • Repeat bends are easy with a quick turn of the stop collar on the stop rod • Soft grips on top of counter weight bar to prevent damaging the operator's hands • Soft touch handle grips • With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | |
| Nose Radius | 1/32" |
| Number and Width of Fingers | 6@3, 3@4, 6@5, 2@6 |
| Overall Dimensions (L x W x H) | 100" x 30" x 41" |
| Overall Length | |
| Product Type | Brakes |
| Short Description | |
| Maximum Lift of Beam | 2.2" |
| Maximum Box Depth | 4" |
| Beam Adjustment (Front to Rear) | 2 |
| Bending Length Capacity | 72" |
| Configurable Base Item | No |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | 45° |
| Input Power | |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
