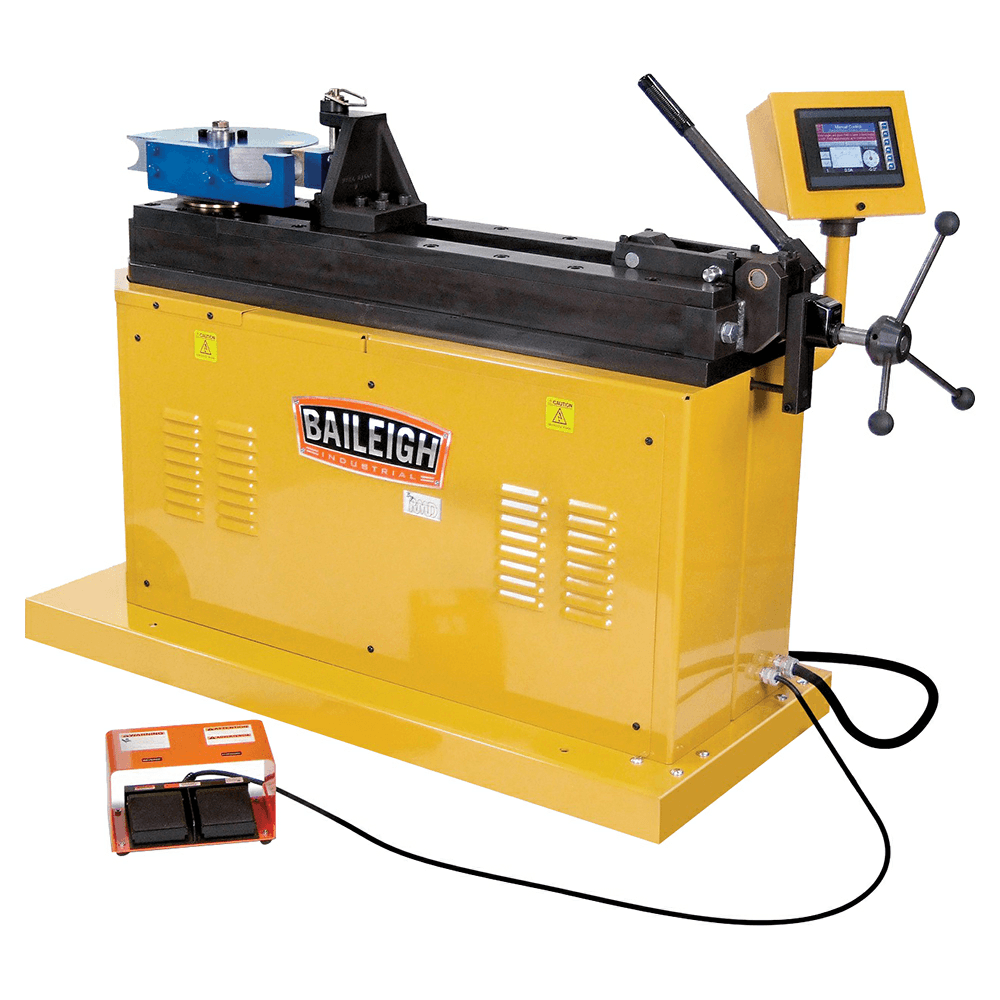

Baileigh RDB-350-TS Programmable Tube Bender, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

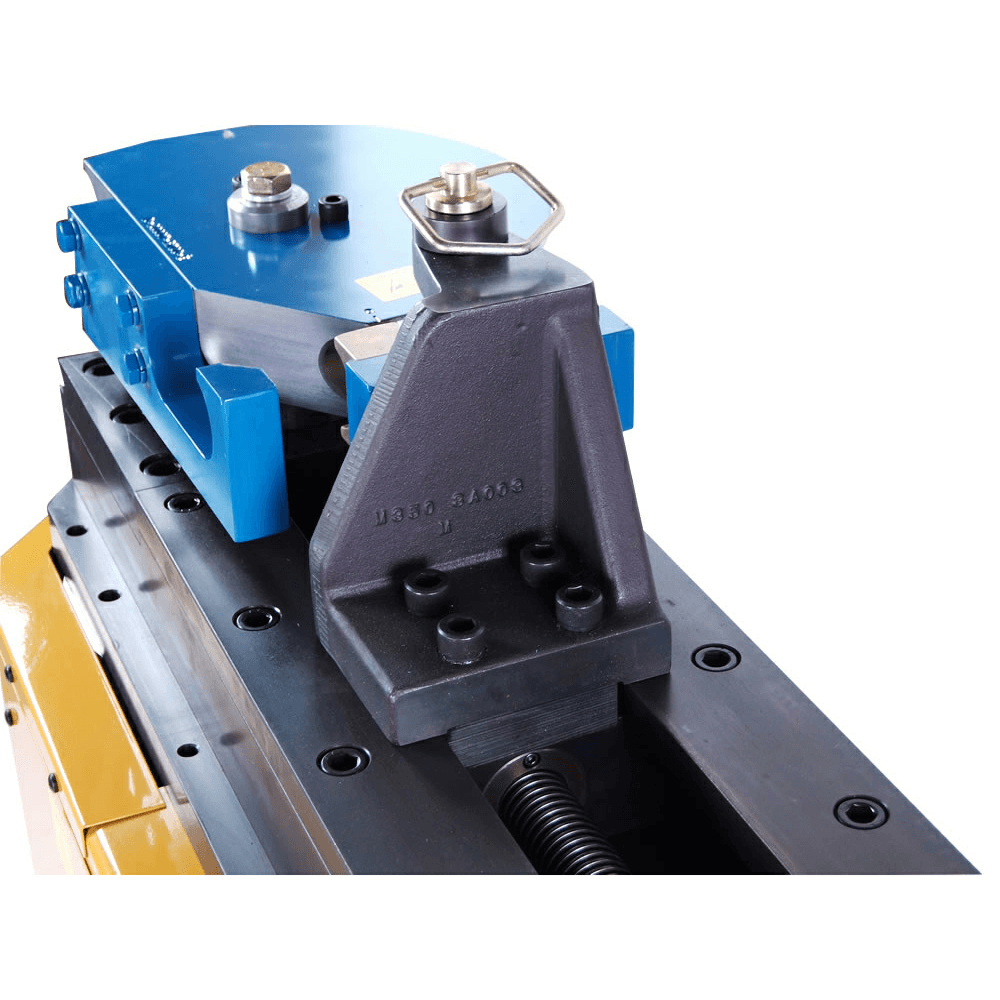

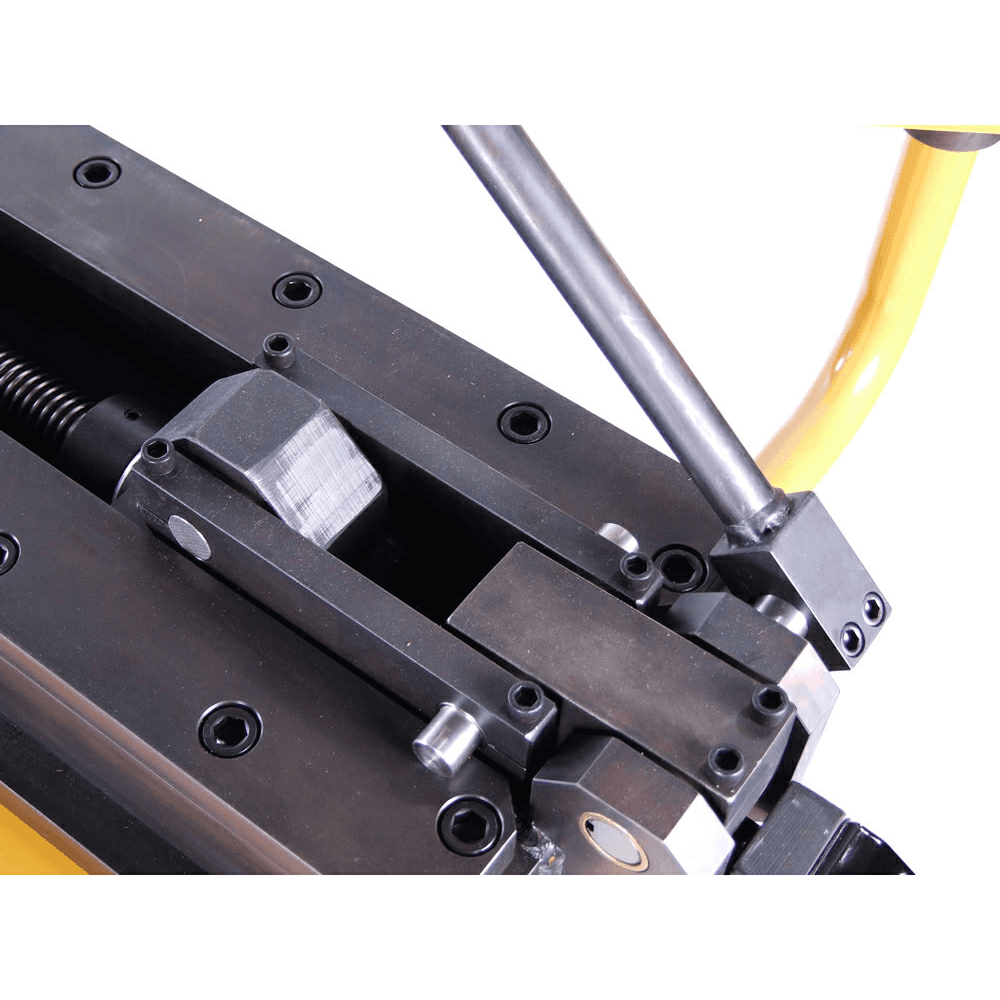

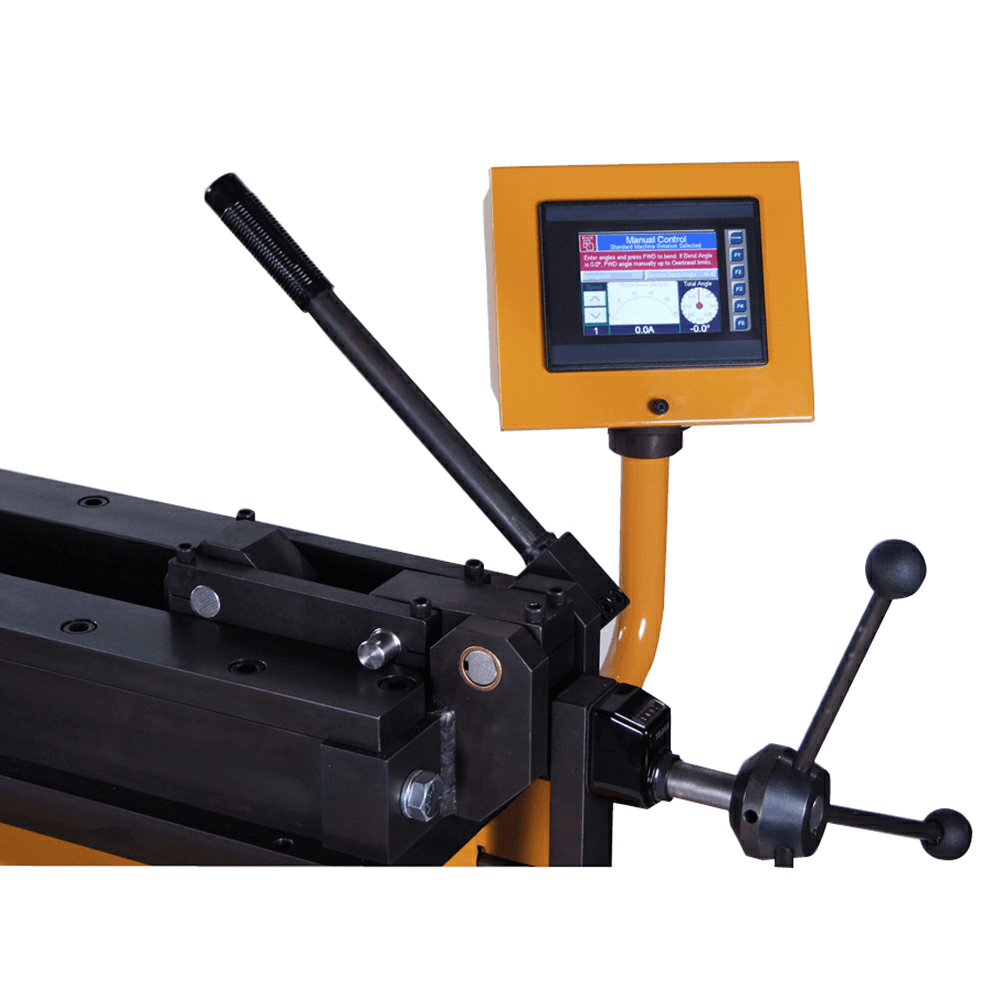

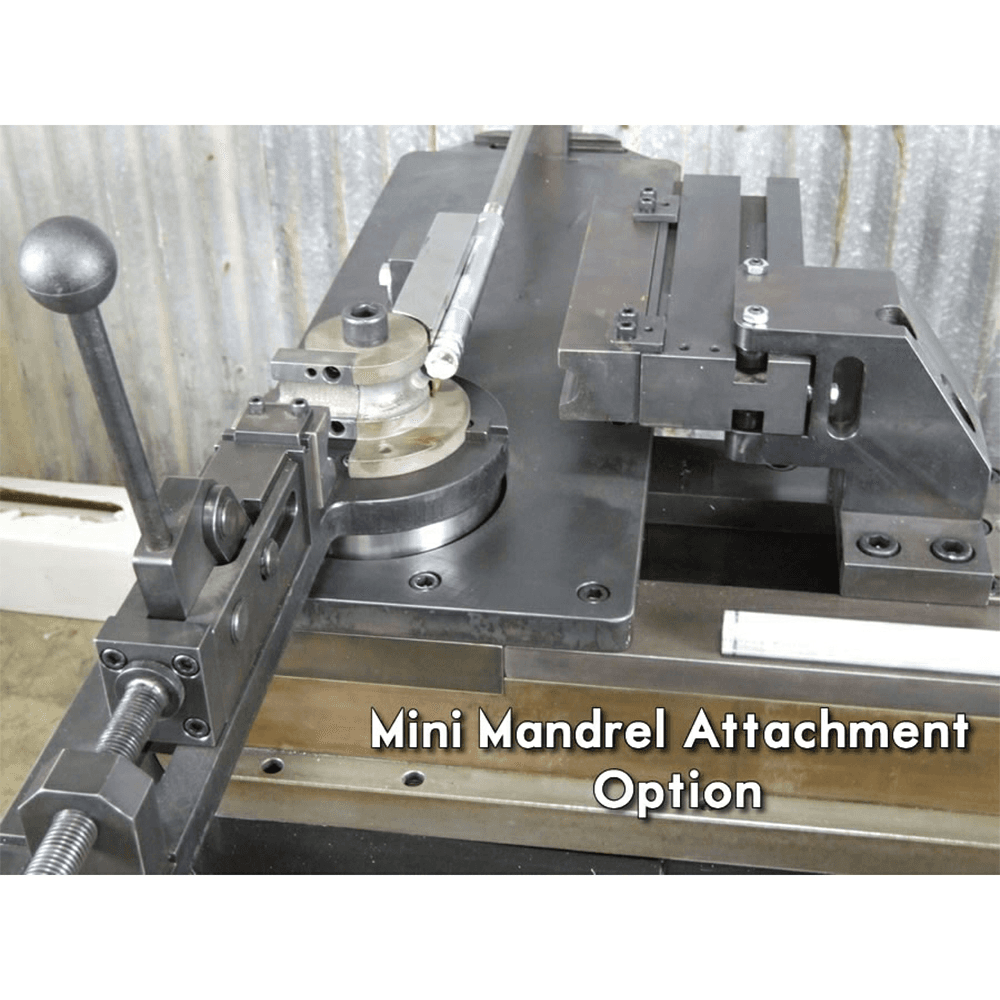

This Tubing Bender for sale will stand up to the rigors of any shop-and save you time. The RDB-350-TS Industrial Tubing Bender bends 180° in 16 seconds. Its quick-release die system speeds up production. Mini mandrel attachment for the RDB-350 tube bender (optional). Features: • Capacity of 2.5" schedule 40 pipe and 3" tube with .187" wall thickness • 24" centerline radius maximum and bends to 360° in one shot, both left and right • You can program the desired angle, material spring back, and bend speed for easy repeatability • Programmer can also keep track of rotational orientation • Touchscreen controller designed for user-friendly programming • 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine • Internal memory can store up to 170 programs of 10 bends per program • Unlimited program storage/backup via the micro-SD port (standard 2CB SD card) • Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs • Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes
Specifications
| Box Quantity | 1 |
| Aluminum Pipe Schedule 40 | |
| Short Description | *220V 3-phase rotary-draw bender *2.5” schedule 40 pipe capacity *24” CLR maximum *Stores 170 bend programs |
| Round Tube Capacity | 3" (0.187) |
| Round Stock Capacity (Max.) | |
| Round Pipe Sch. 40 Capacity | 2.5" |
| Round Capacity (Mild Steel) | |
| Product Type | Computer Programmable Rotary Draw Benders |
| Minimum OD | 0.24 |
| Mild Steel Pipe Schedule 80 | |
| Max Bend (Degrees) | |
| Input Power | 220V / 3-phase |
| Chromoly Round Tube Wall | 2.5" (0.125) |
| Bend Direction | |
| Square Tube Capacity | 3" (0.125) |
