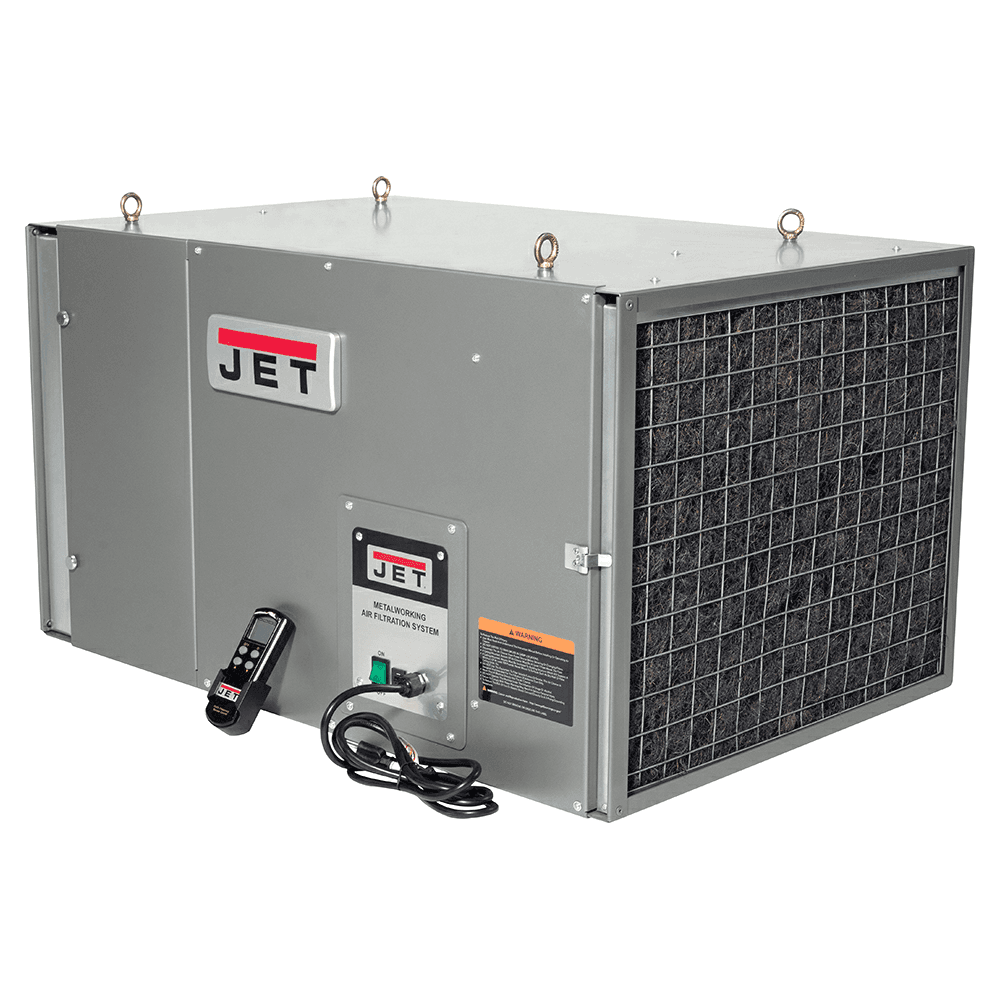

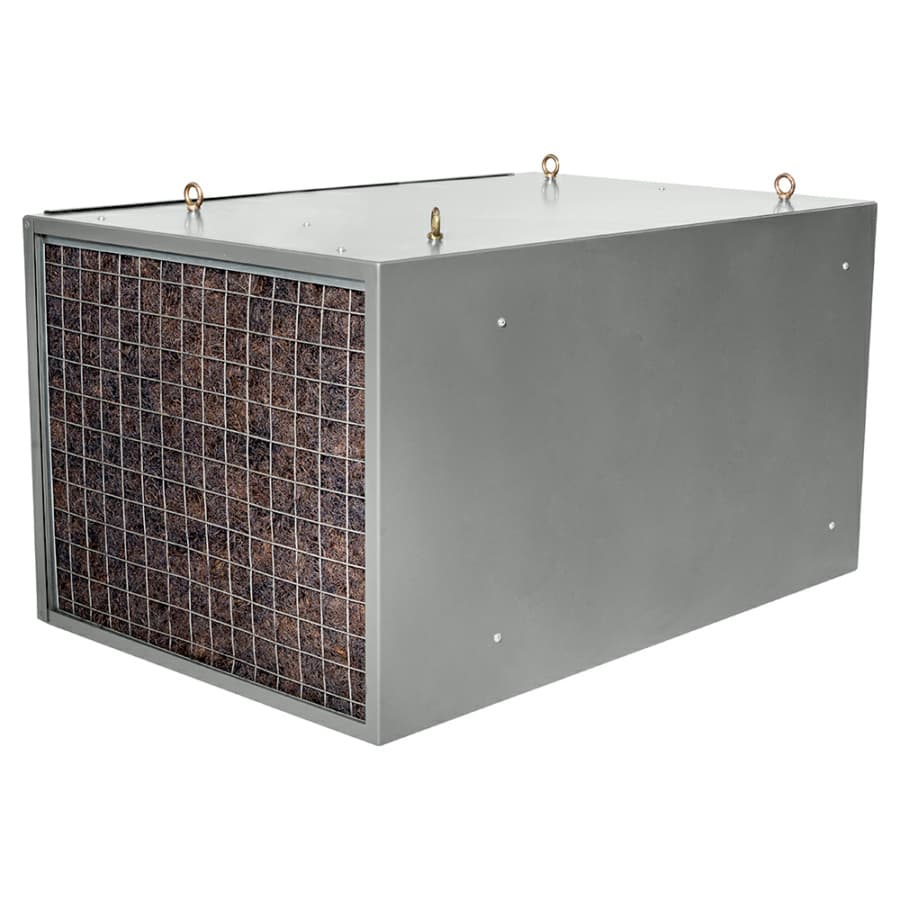

Jet Tools IAFS-2400 3/4 HP 2400 CFM Industrial Air Filtration System, 1 Phase/115V
Item # JPWJT9-415125
•Mfr # JT9-415125
This item may incur additional shipping costs and lead times.
Product Details
Metalworking specific air filters attract oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist. JET's units keep your shop cleaner and safer and allow you to spend more time on the job, and give you peace of mind while you are working in your shop. The optional charcoal filters help to eliminate odors as well.
Constructed of metal for years of use
Helps to extended the service life of the air conditioning equipment in the shop
Filters dust, smoke and oil mist in a closed or air conditioned workshop

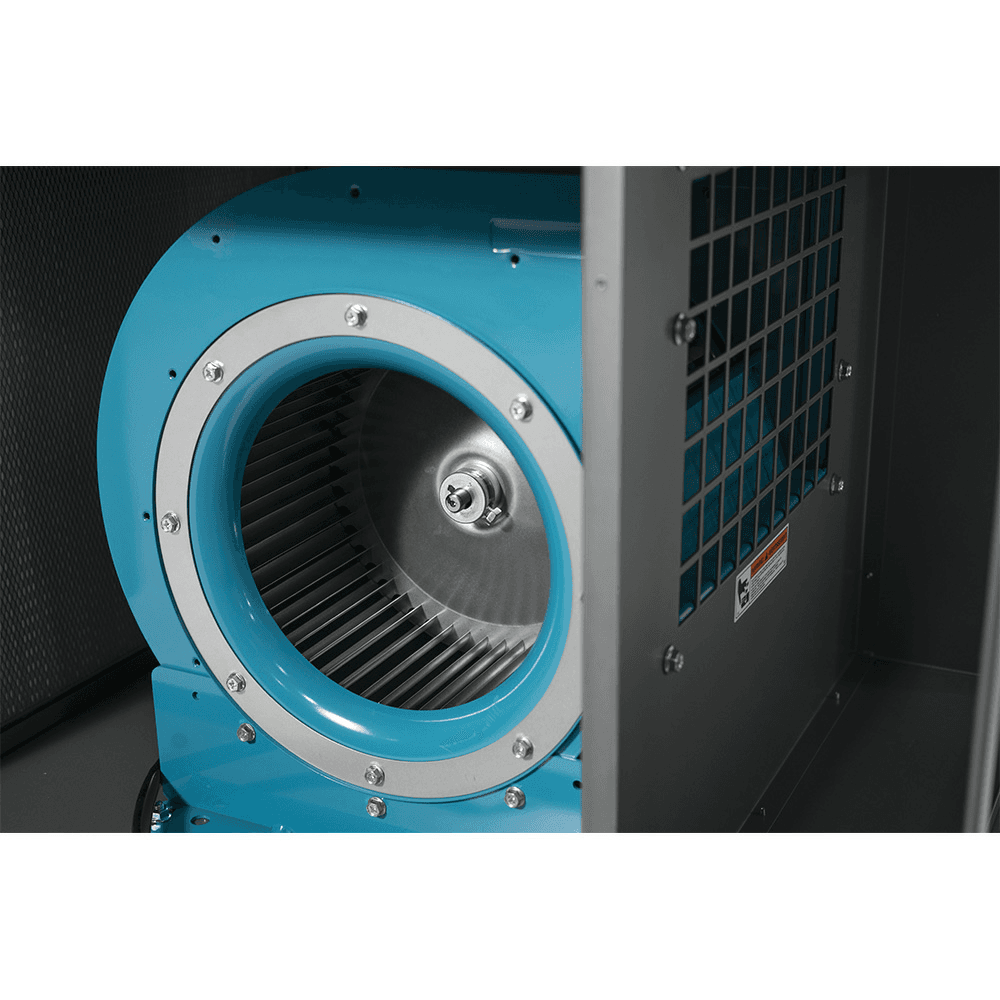

Fully enclosed ball bearing motor with overload protection for long, dependable service
Adjustable Exhaust directs the air where you want it for optimal circulation

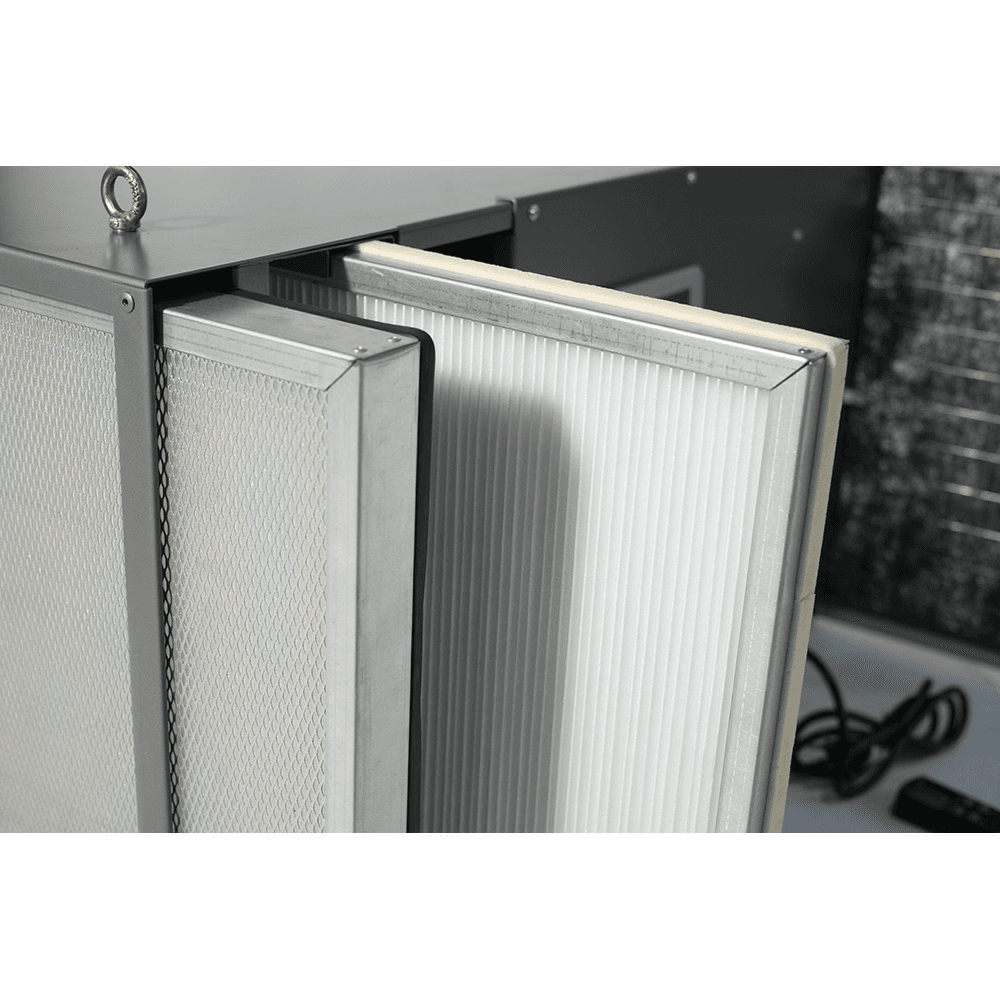

Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air

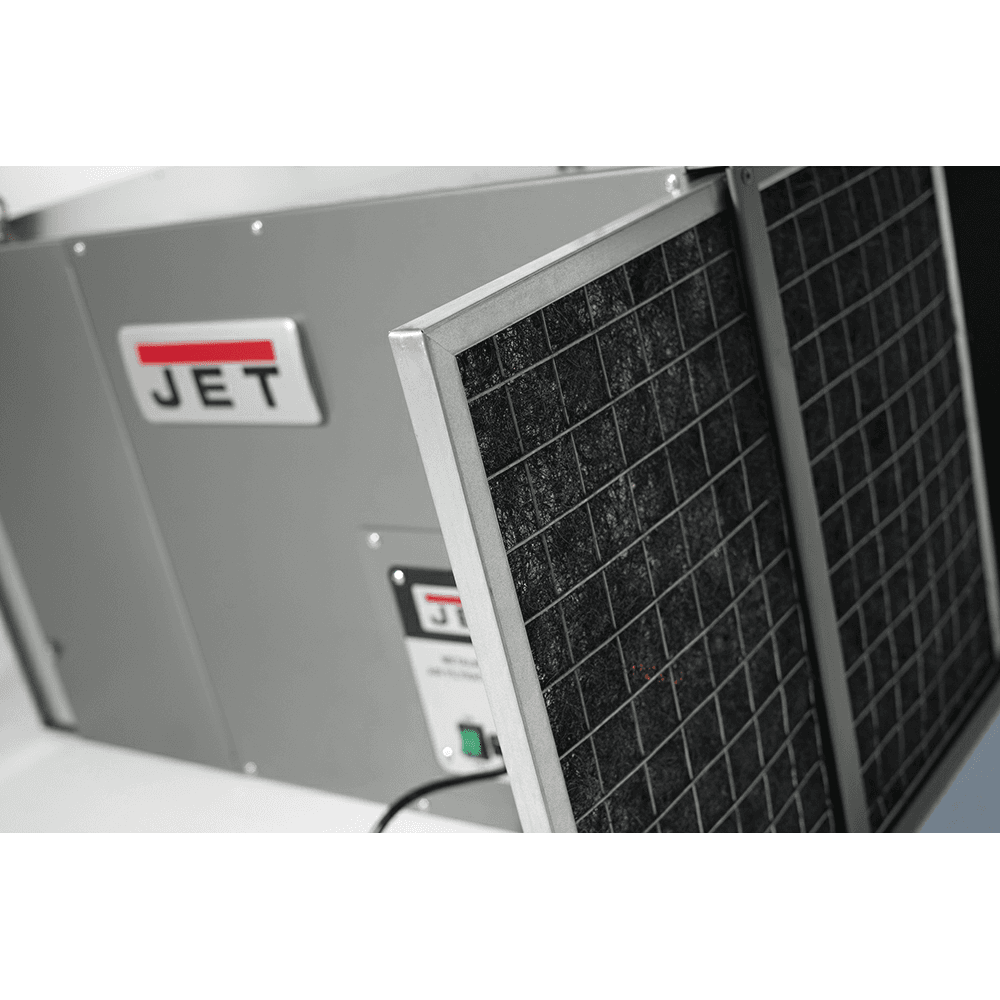

Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern
Constructed of metal for years of use
Helps to extended the service life of the air conditioning equipment in the shop
Filters dust, smoke and oil mist in a closed or air conditioned workshop
Fully enclosed ball bearing motor with overload protection for long, dependable service
Adjustable Exhaust directs the air where you want it for optimal circulation
Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air
Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern
Specifications
| Box Quantity | 1 |
| Air Flow (CFM) (High) | 1400 CFM |
| Outer Filter Efficiency (MERV) | 8 MERV |
| Outer Filter Expanded Area (ft2) | 3.12 ft |
| Outer Filter Material | Resin Fiber |
| Outer Filter Overall Size (L x W x Thickness/in.) | 23-15/32" x 19-3/8" x 1-3/4" |
| Overall Dimensions (L x W x H) | 36-11/16" x 24" x 20-9/32" |
| Product Type | Dust Collectors |
| Sound Rating (Db.) | 71/69/66 Db |

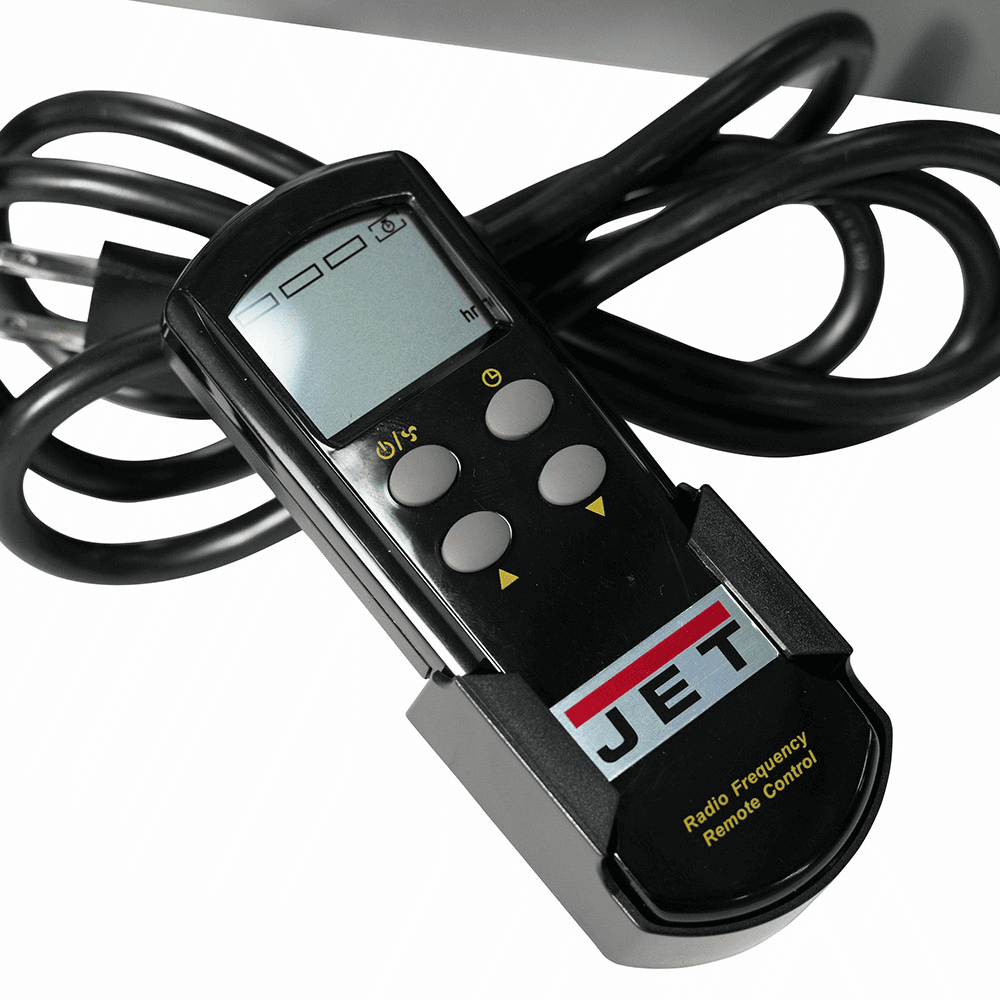

| Speed Control | RF Remote Control |
| Speeds (CFM - Filtered Air) | 1400/1300/100 CFM |
| Speeds (CFM) | 2097/1524/1168 CFM |
| Speeds (CFM) High/Medium/Low | 2097/1524/1168 CFM |
| Timer Settings (hrs) | 1 - 9 hrs |
| Total Pressure (in of mercury) | 3.34" |
| Noise Level @ 3ft (Decibel dB) High/Medium/Low | 71/69/66 Db |
| Motor Voltage (V.) | 115V |
| Motor Power (HP) | 3/4 HP |
| Cycles Per Hour | 26 hour |
| Dust Port Size | 3" |
| Electrics | 3/4HP, 115V, 1Ph |
| Filter Type | Resin Fiber |
| Inner Filter Efficiency | 12 MERV |
| Inner Filter Efficiency (MERV) | 12 MERV |
| Inner Filter Expanded Area (ft2) | 37-11/16 ft |
| Inner Filter Material | REEMAY®WHT (Polyester) |
| Motor Amps | 8.5 Amps |
| Motor Phase | 1 |
| Total Pressure Efficiency (η ,t %) (Medium Speed) | 0.43 η |
