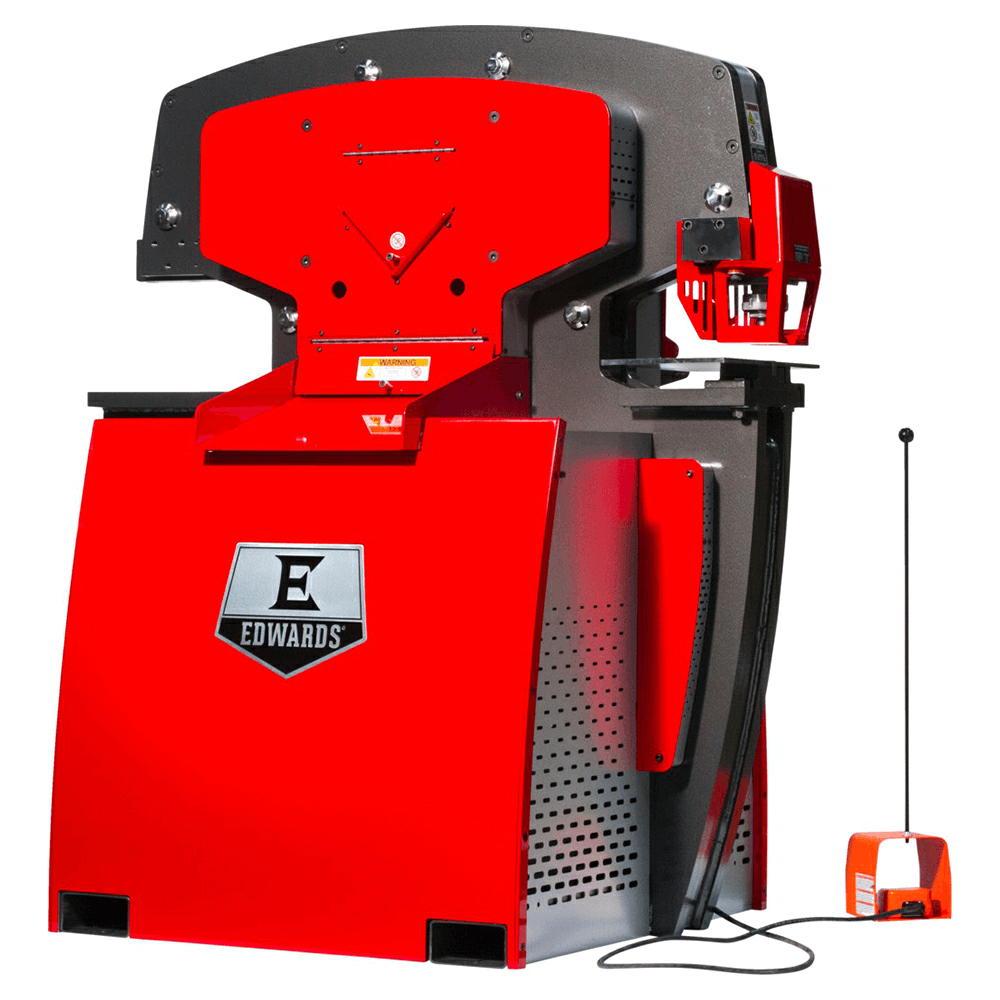

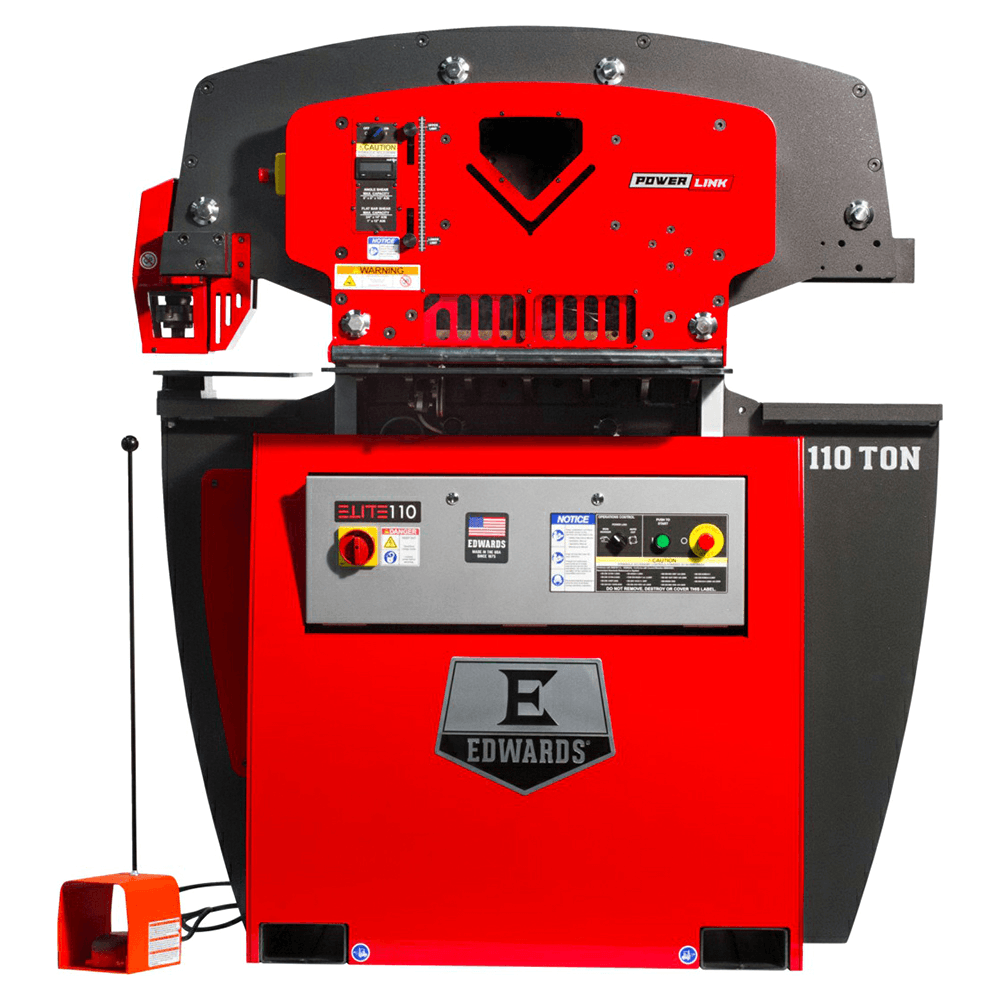

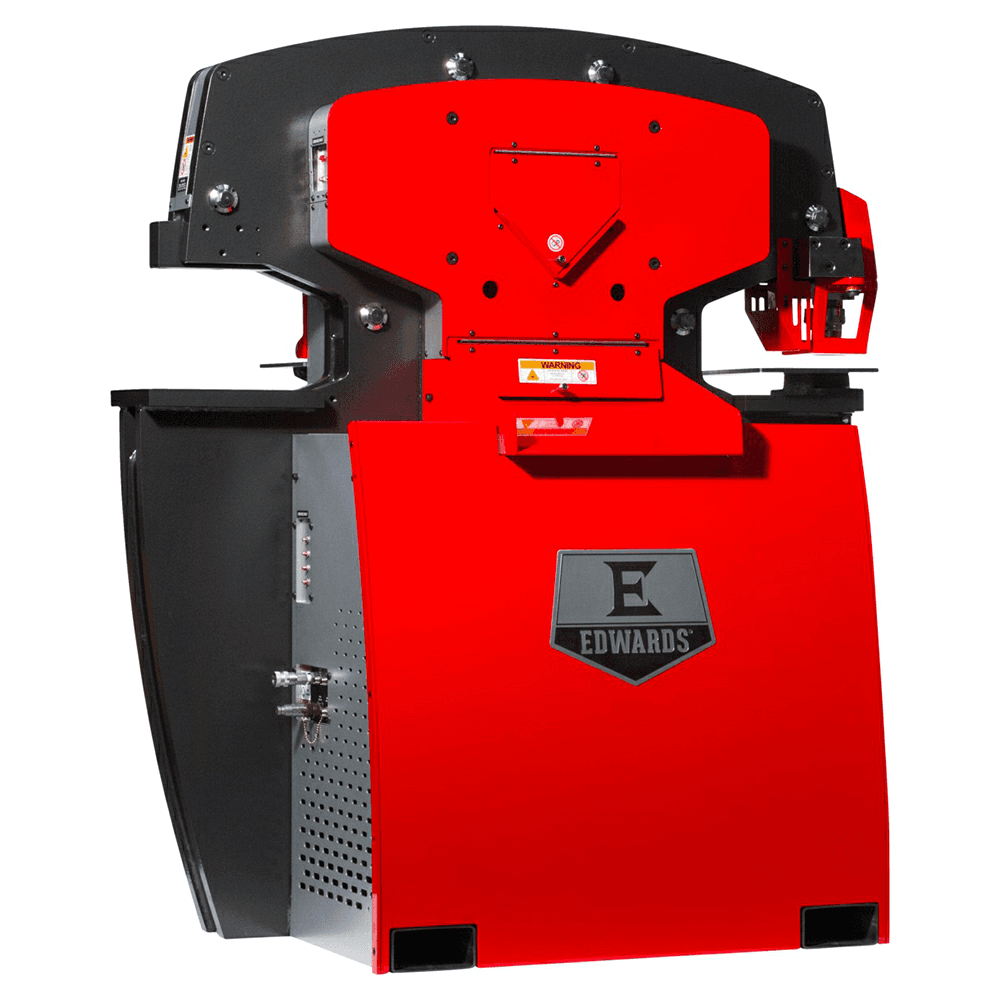

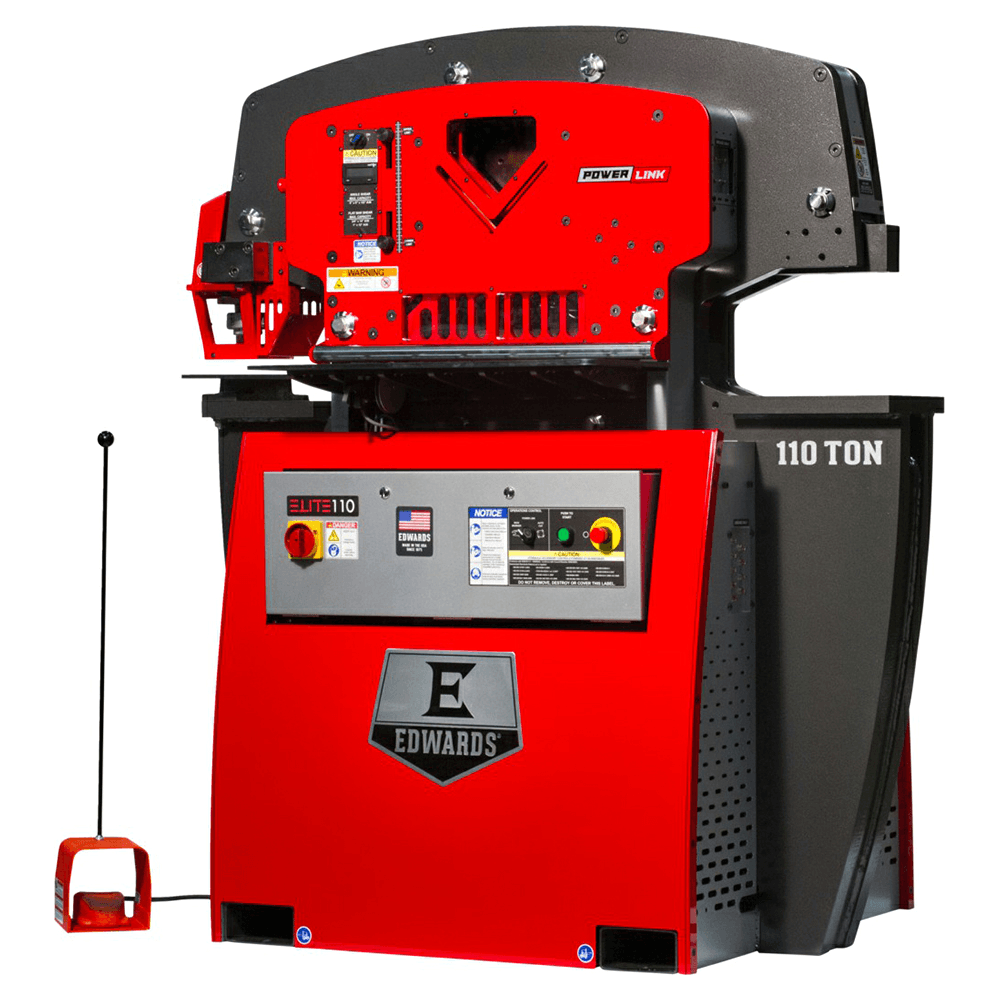

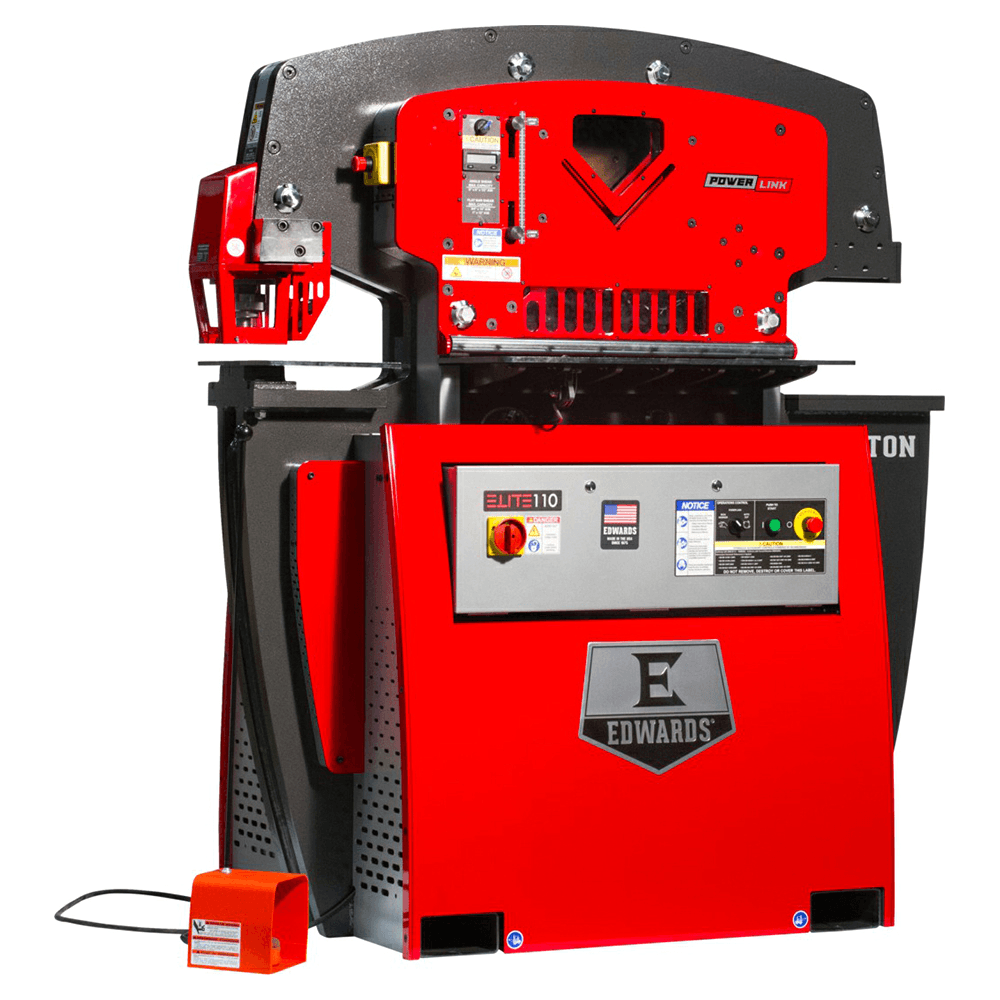

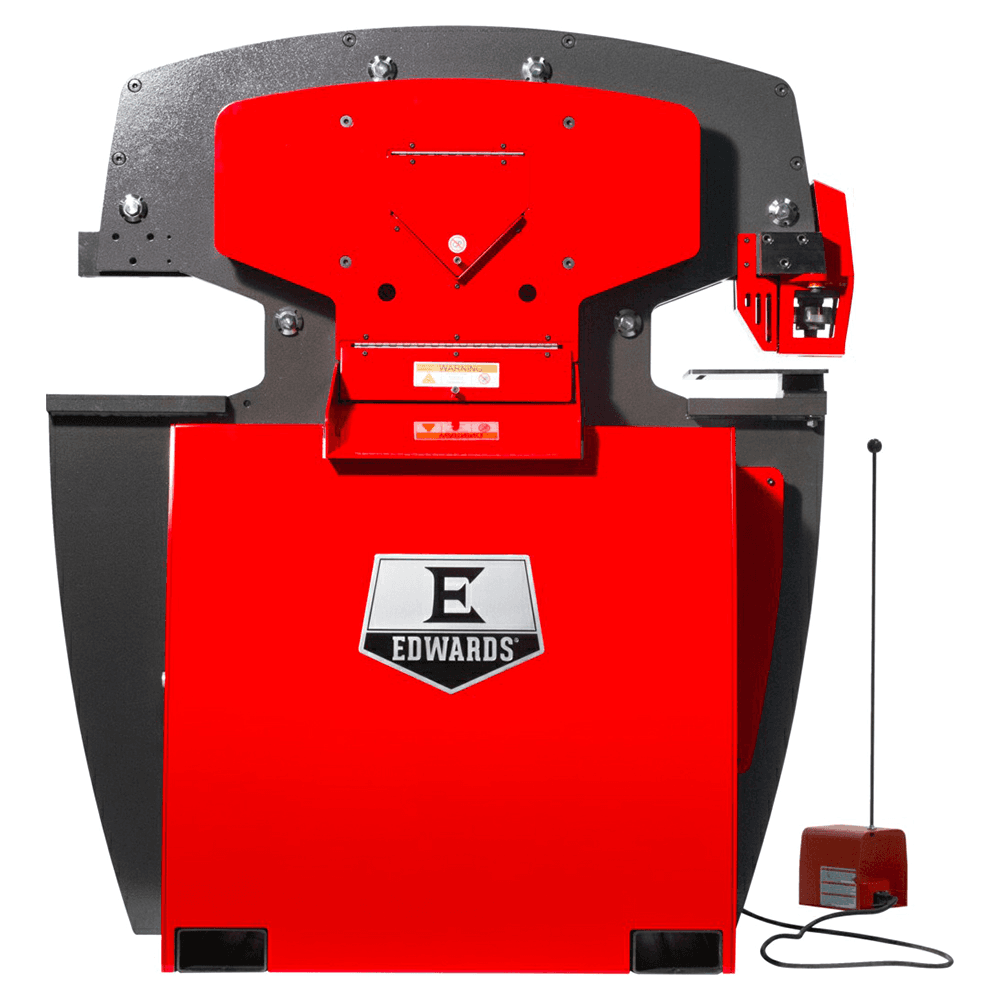

Edwards ELT110-3P230 Elite 110 Ton Ironworker with Powerlink, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
The ELITE 110 Ton offers four workstations and affords the ability to customize the open workstation with one of 13 attachments, and 14 additional accessories available to further improve productivity. This compact machine has premium features that maximize efficiency and allow for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly, and Quick Change Punch Assembly are designed to increase accuracy and save production time. Punches are easily changeable, long-lasting, and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The exclusive PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Features: • Adjustable electric stoke control • ANSI B11.5-1988(02) Compliant Guarding • Bright LED lights increases visibility • Central Lubrication System simplifies Ironworker maintenance • Durable, heavy-duty Made in USA steel construction • ETL Certified Controls • Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel and Punch workstation) for added safety • The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | 39-3/16" |
| Open Workstation Throat Depth | 15-1/2" |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | |
| Motor Speed (RPM) | |
| Overall Dimensions (L x W x H) | |
| Overall Height | |
| Product Type | Elite 110 |
| Throat Depth | |
| Rod Shear Work Height | |
| Rod Shear Max Square | |
| Rod Shear Max Round | |
| Reservoir (Gal.) | |
| Rating (Tons) | |
| Punch Work Height | |
| Punch Throat Depth | |
| Punch Stroke | |
| Punch Shut Height | |
| Punch Rating (Tons) | |
| Punch Open Height | |
| Punch Max Capacity | |
| Motor Phase | |
| Motor Amps | |
| Motor (HP) | |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | |
| Cylinder | |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Blade Length | |
| Angle Shear Work Height | |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 6" x 6" x 1/2" |
| Flat Bar Shear Max Capacity 1/2" | |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | 230V/3 Phase |
| Hydraulics (PSI) | 3000 PSI |
| Hydraulics (GPM) | 10-1/2 GPM |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulic Pump (GPM) | |
| Flat Bar Shear Work Height | |
| Flat Bar Shear Rating (Tons) | |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | |
| Flat Bar Shear Max Round Capacity | 1"-1/4" |
| Flat Bar Shear Max Round | |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps | 22 |
