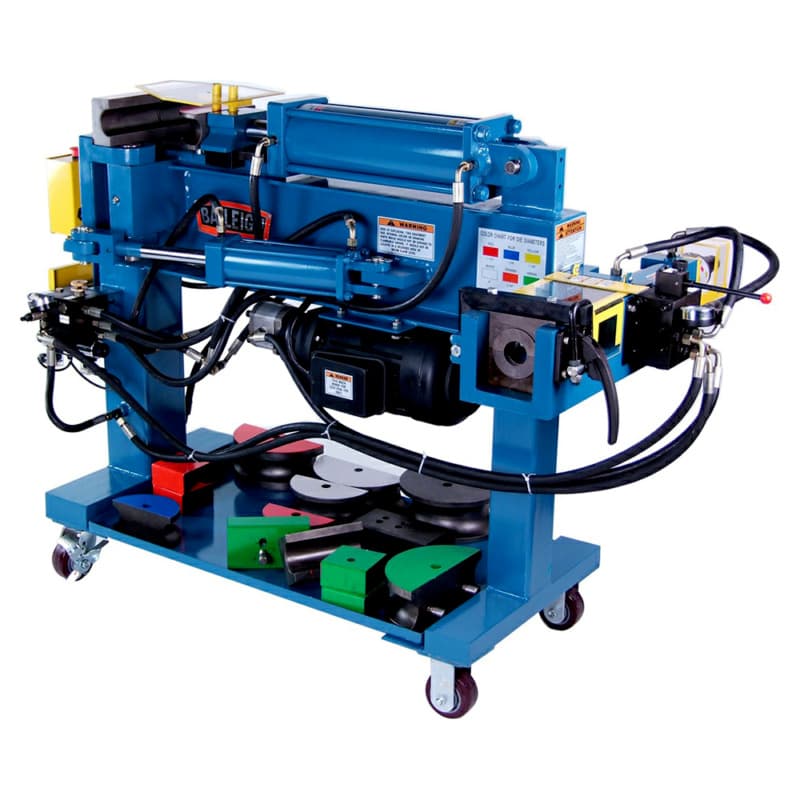

Baileigh EB-300 Exhaust Bender, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

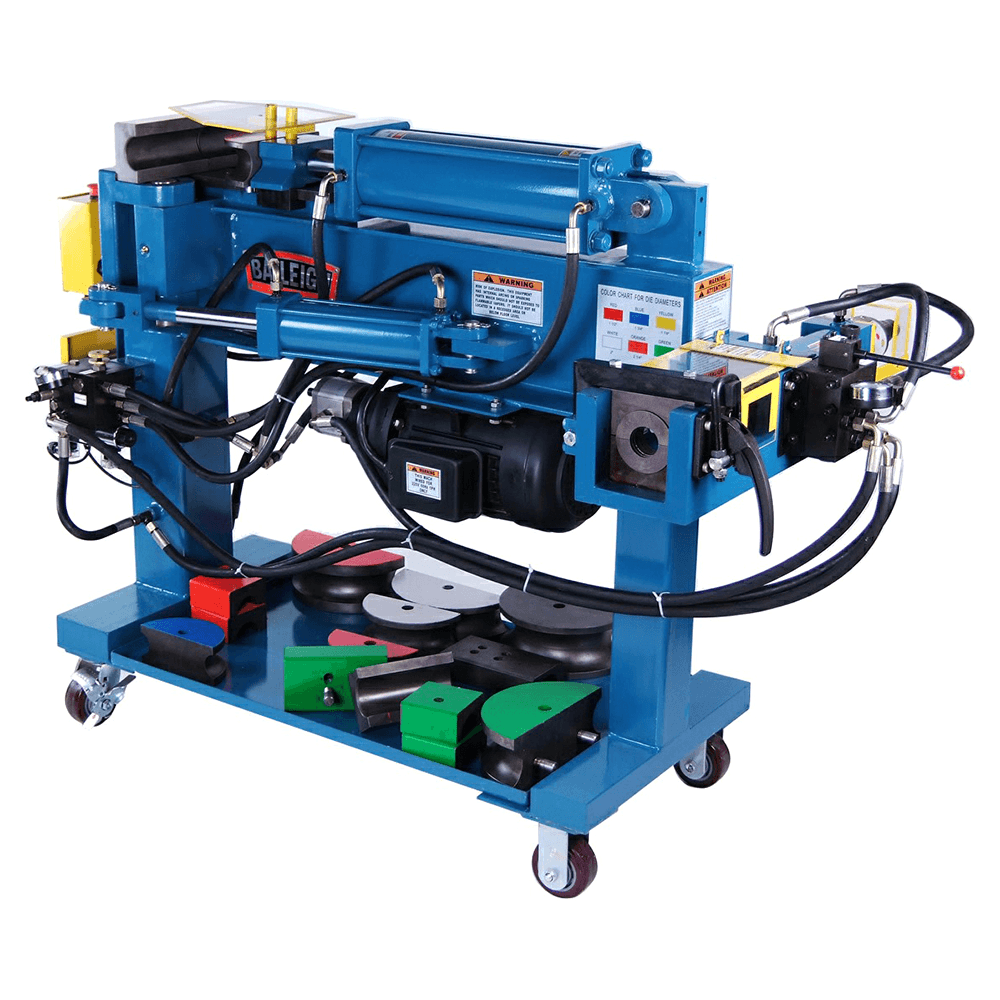

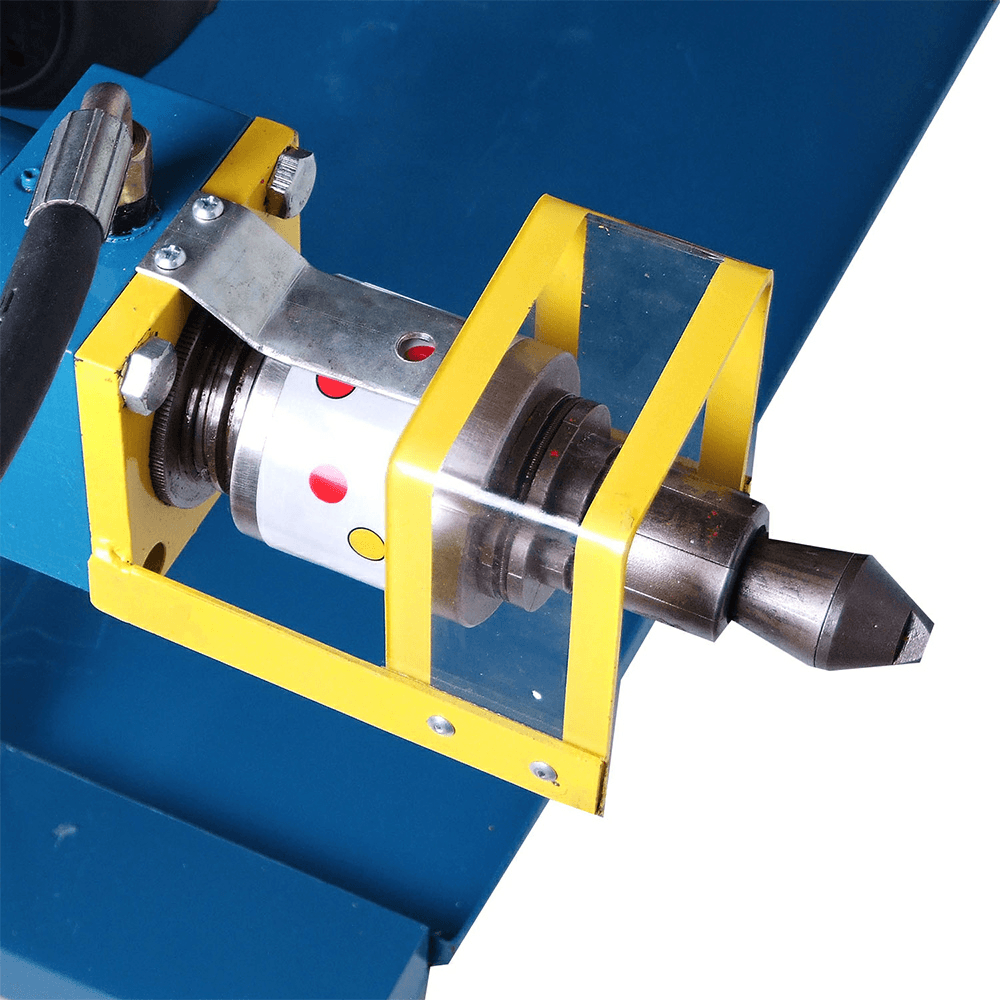

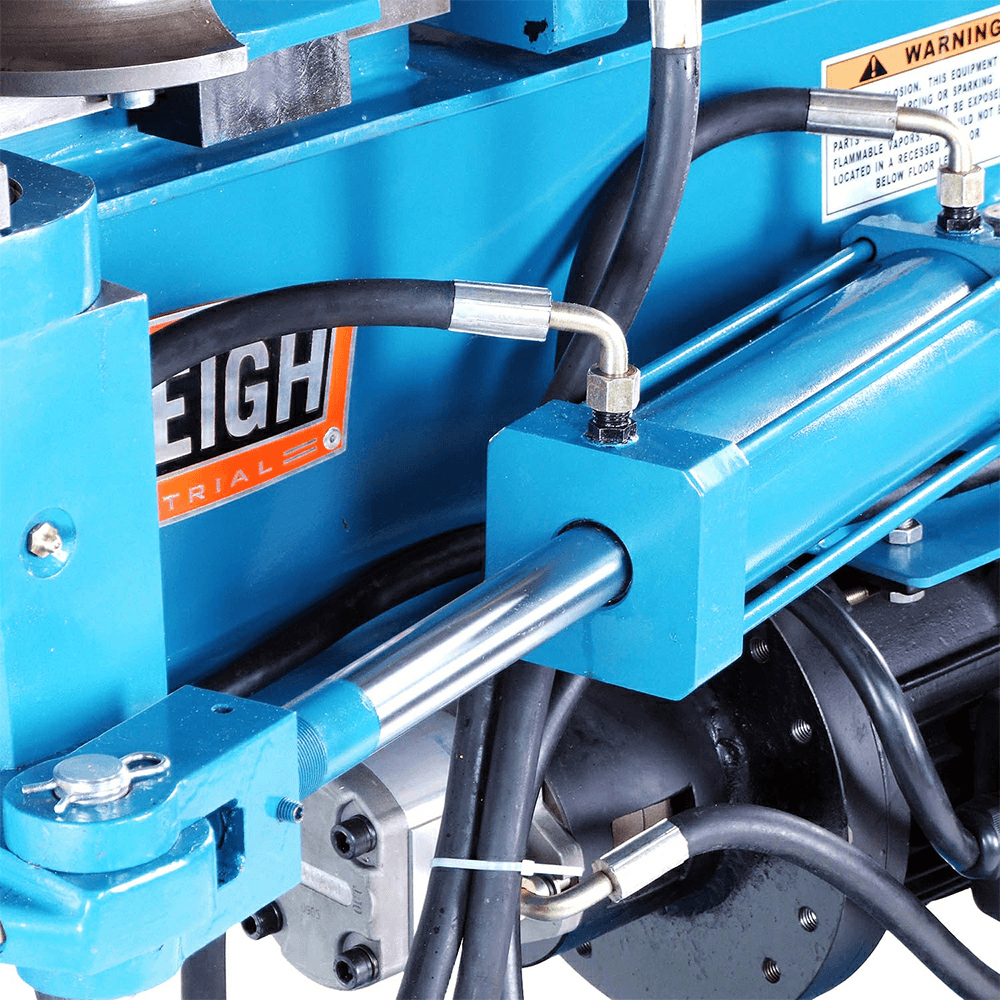

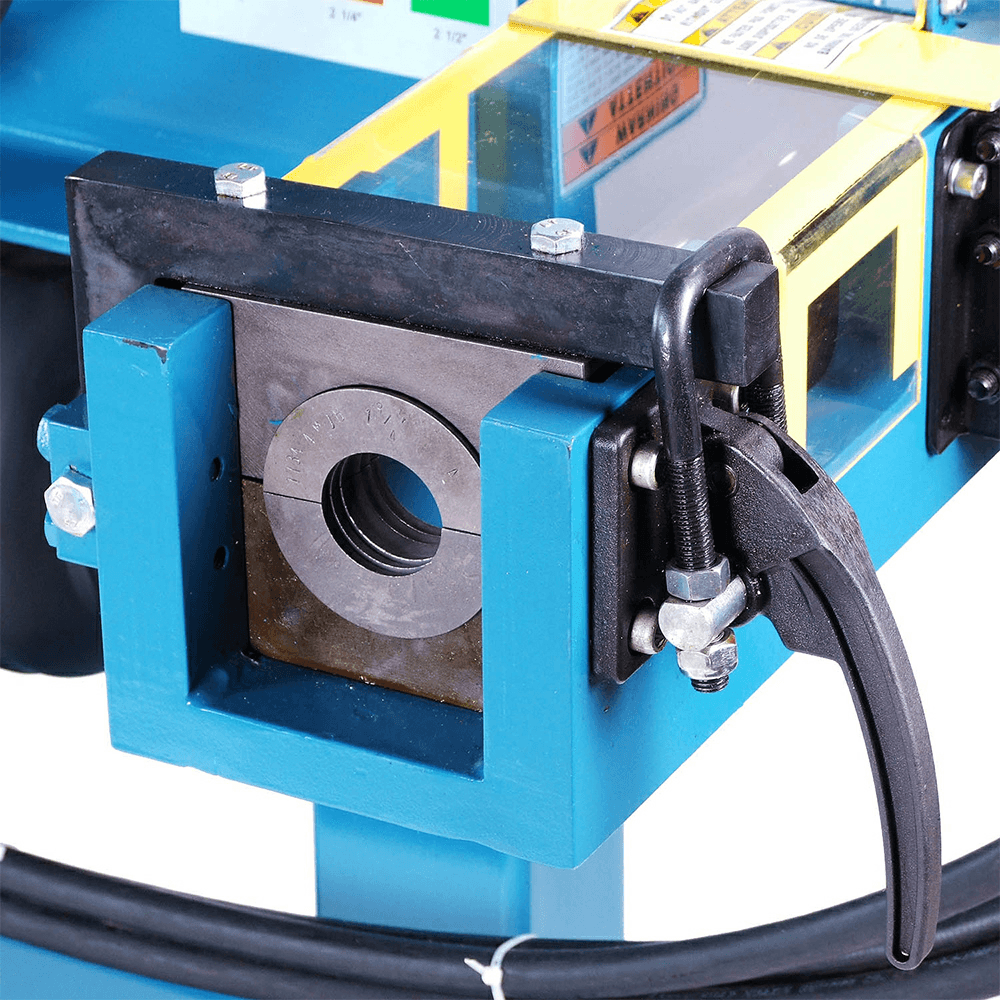

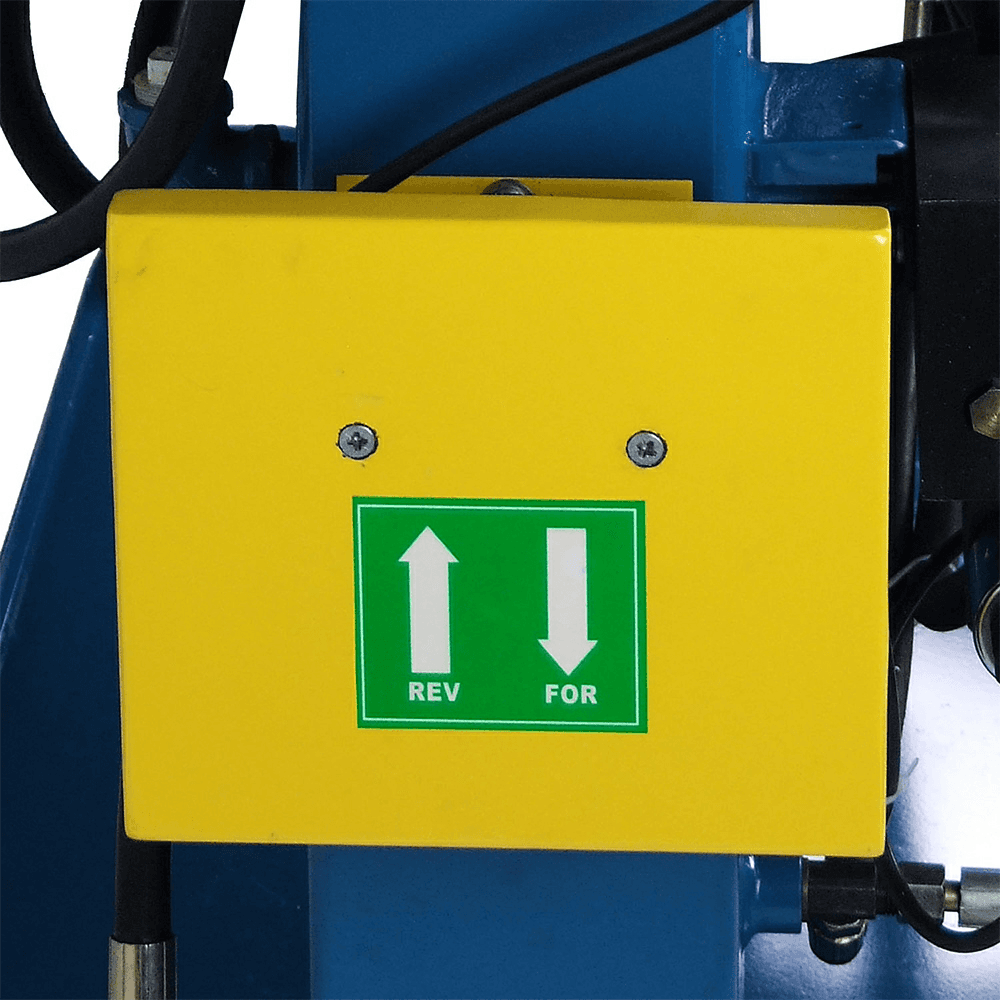

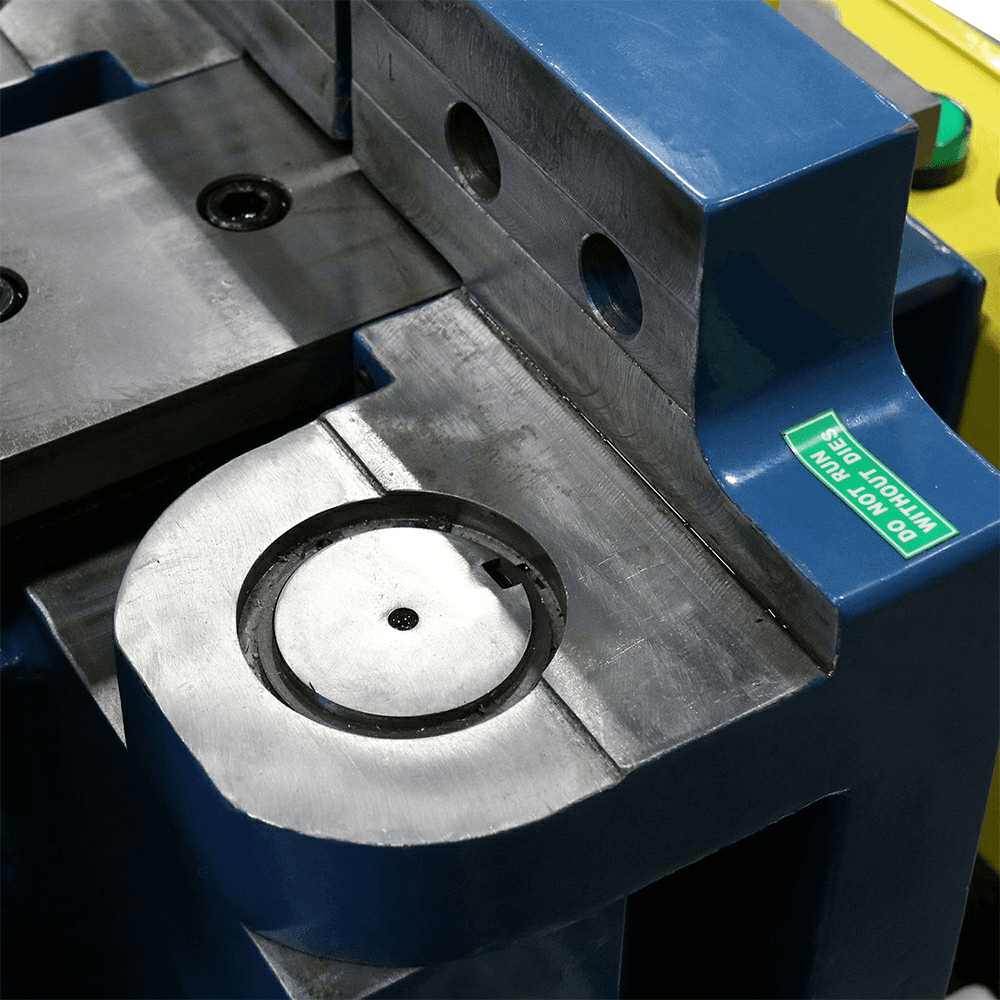

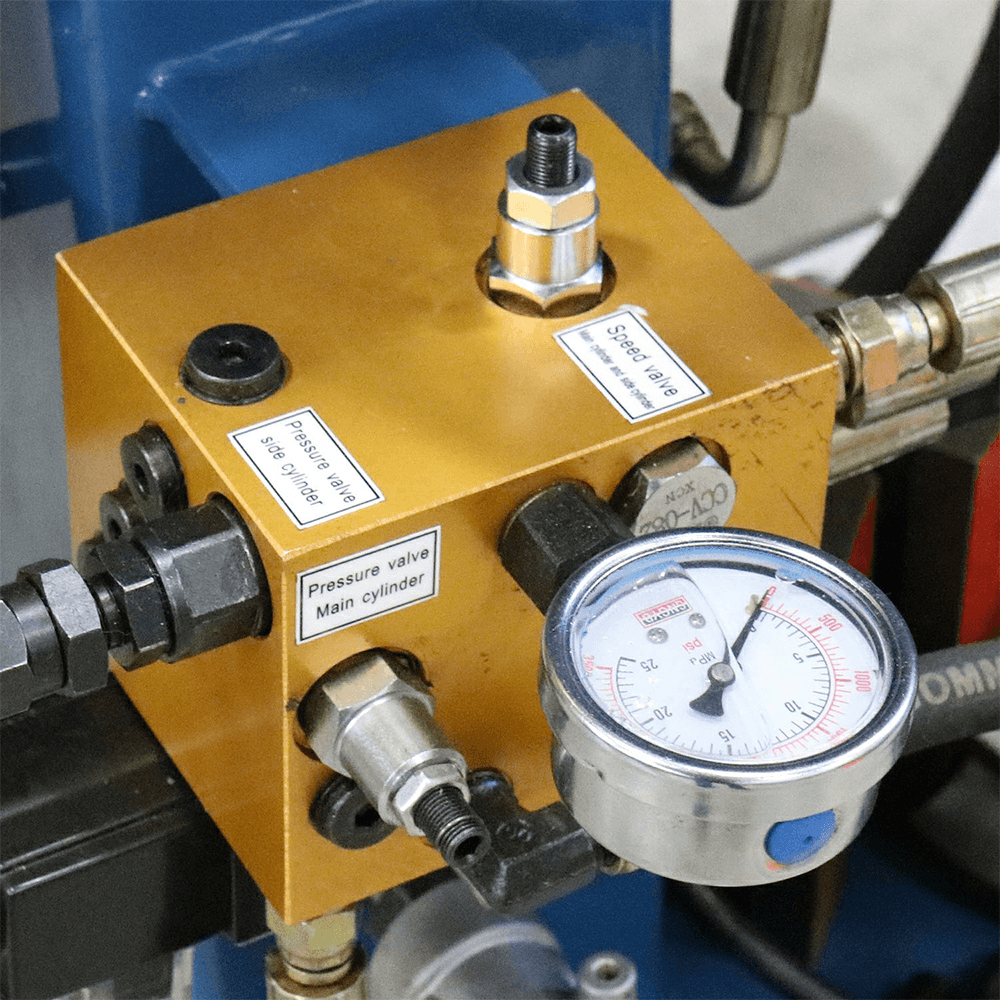

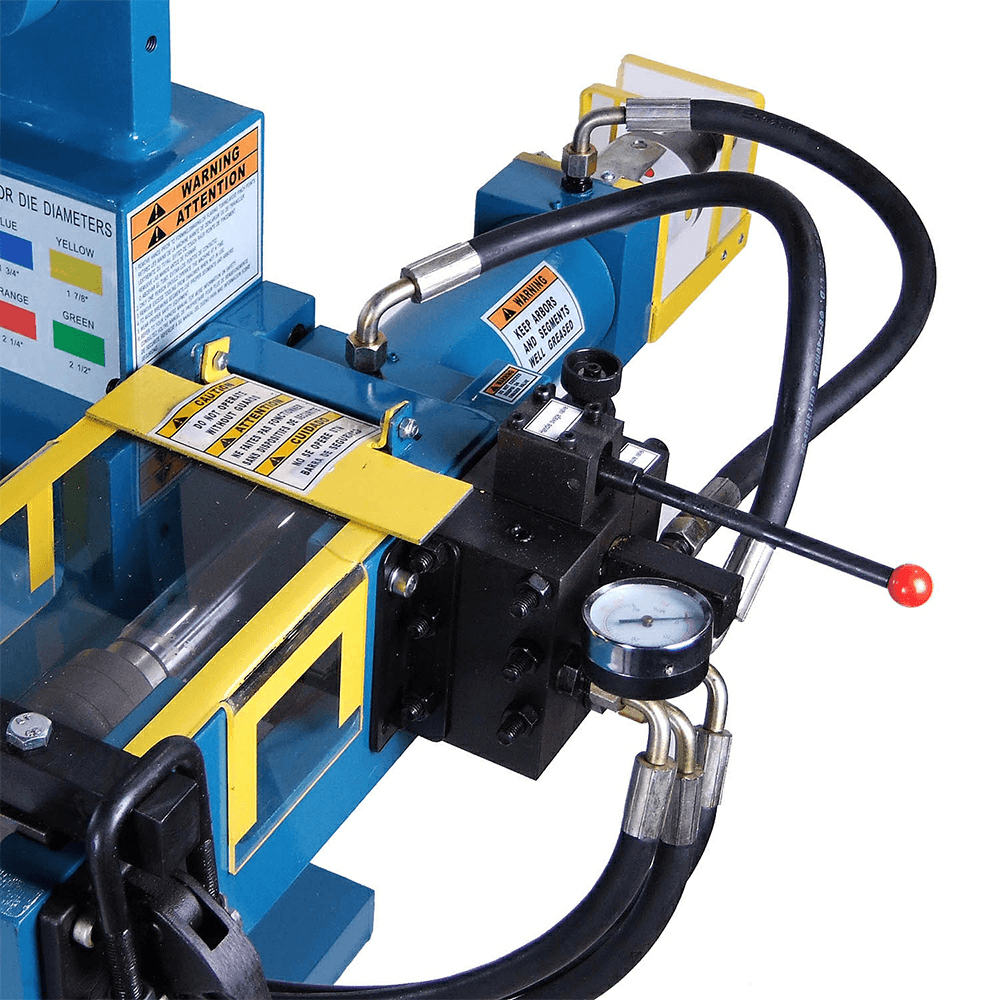

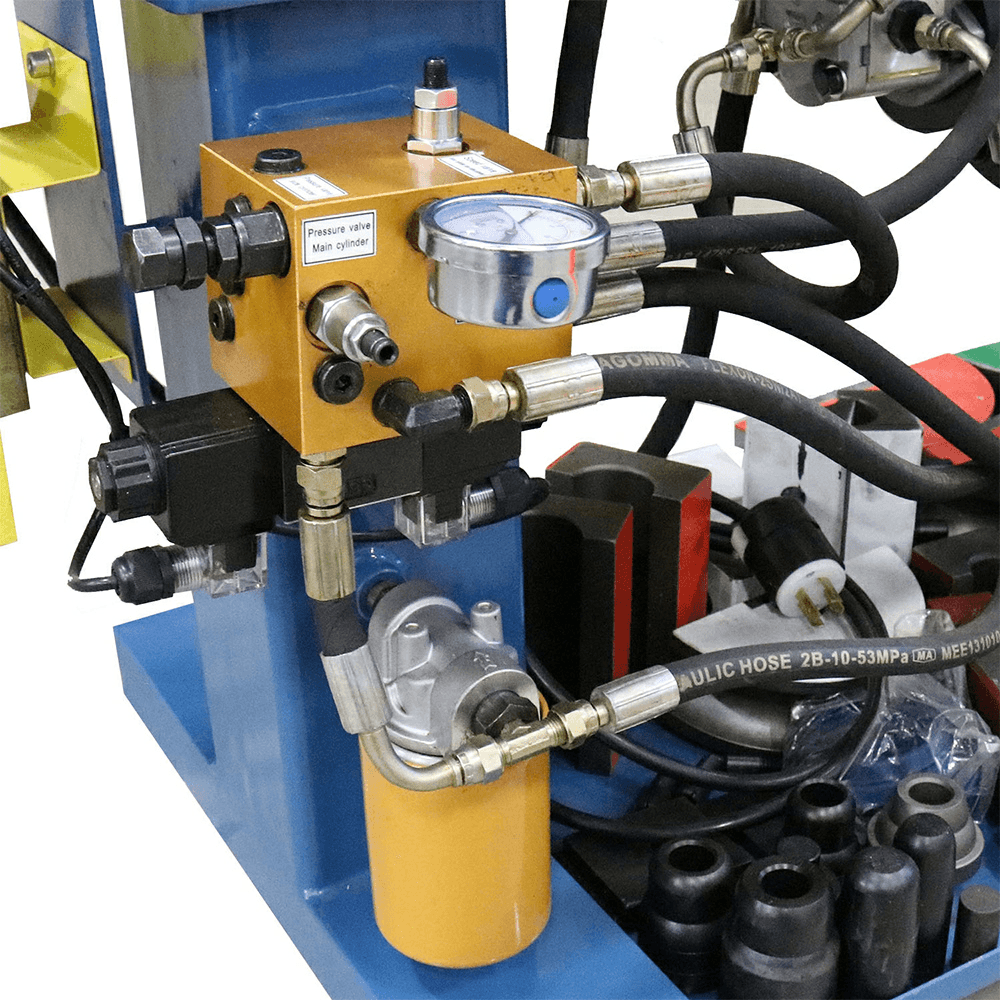

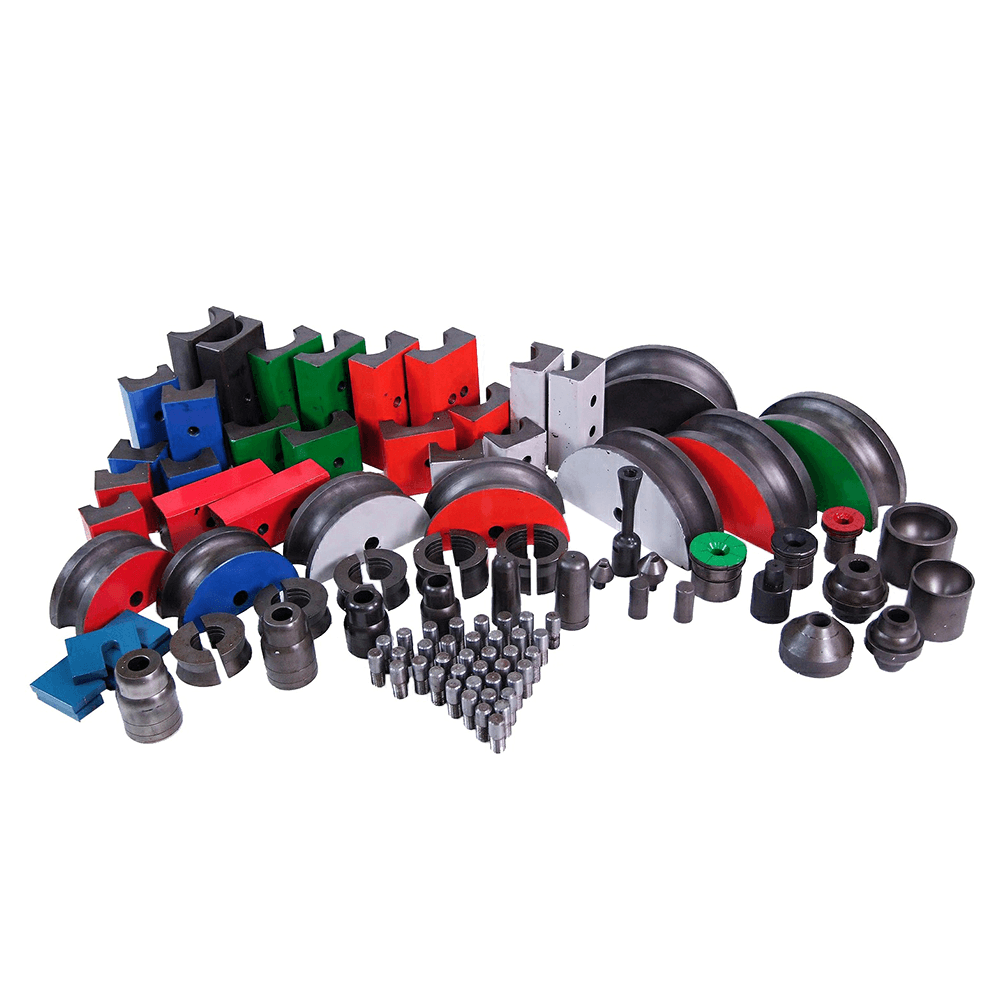

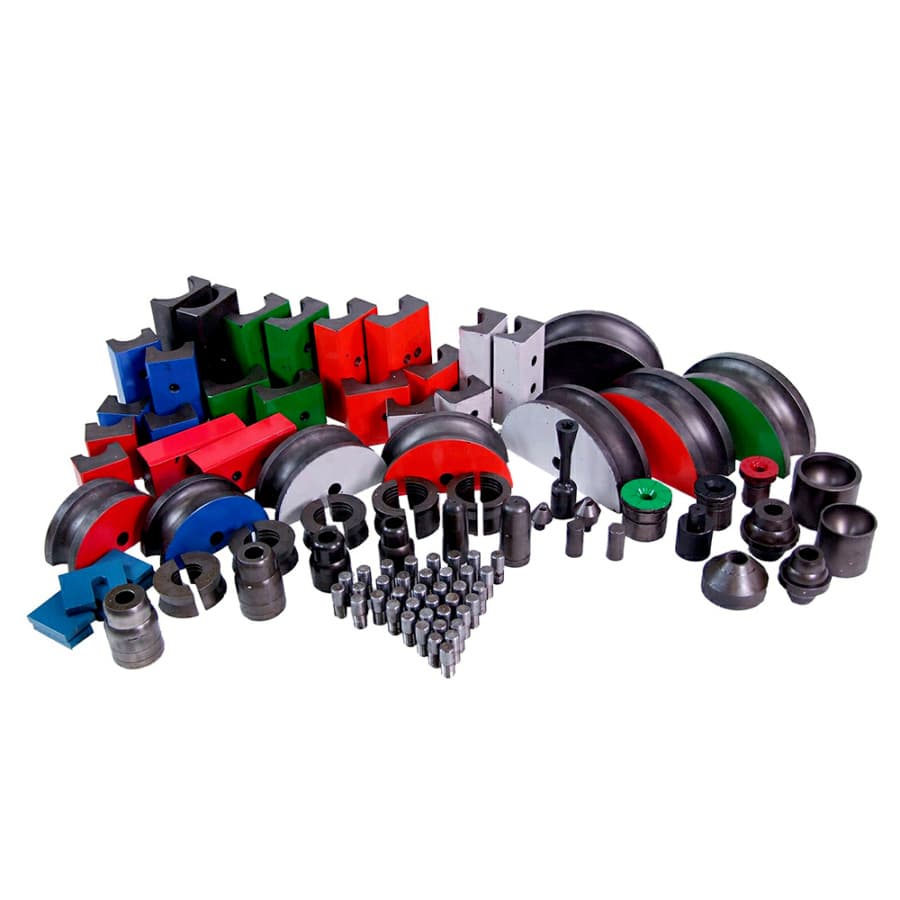

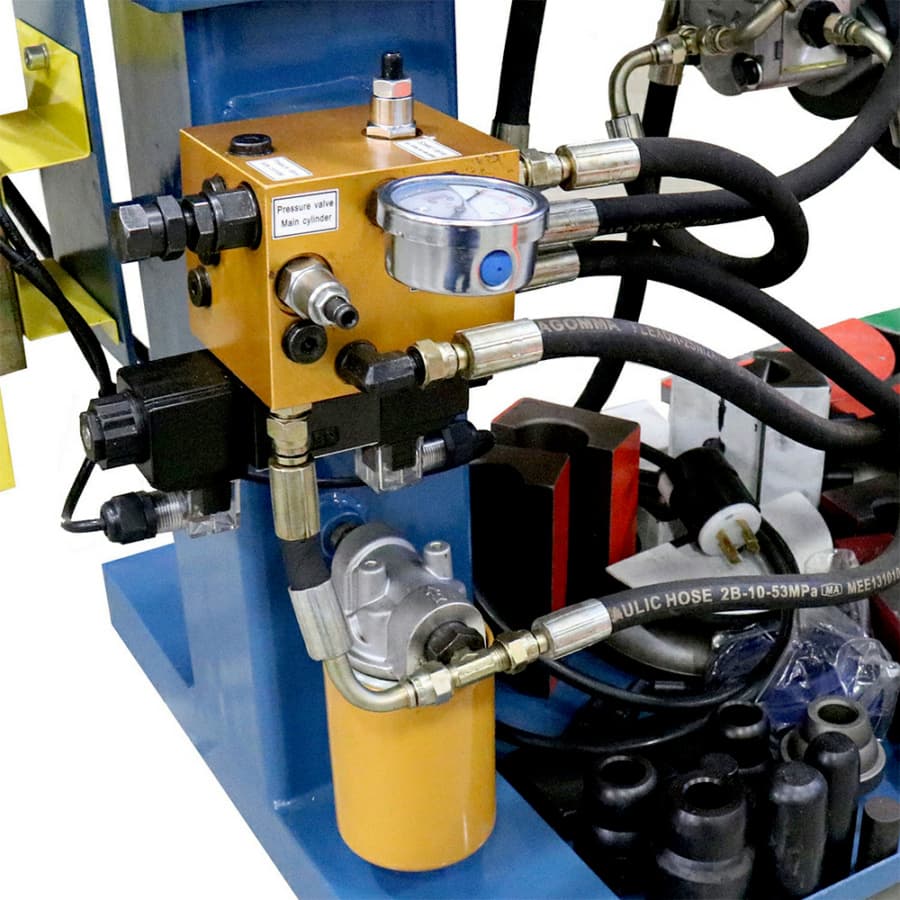

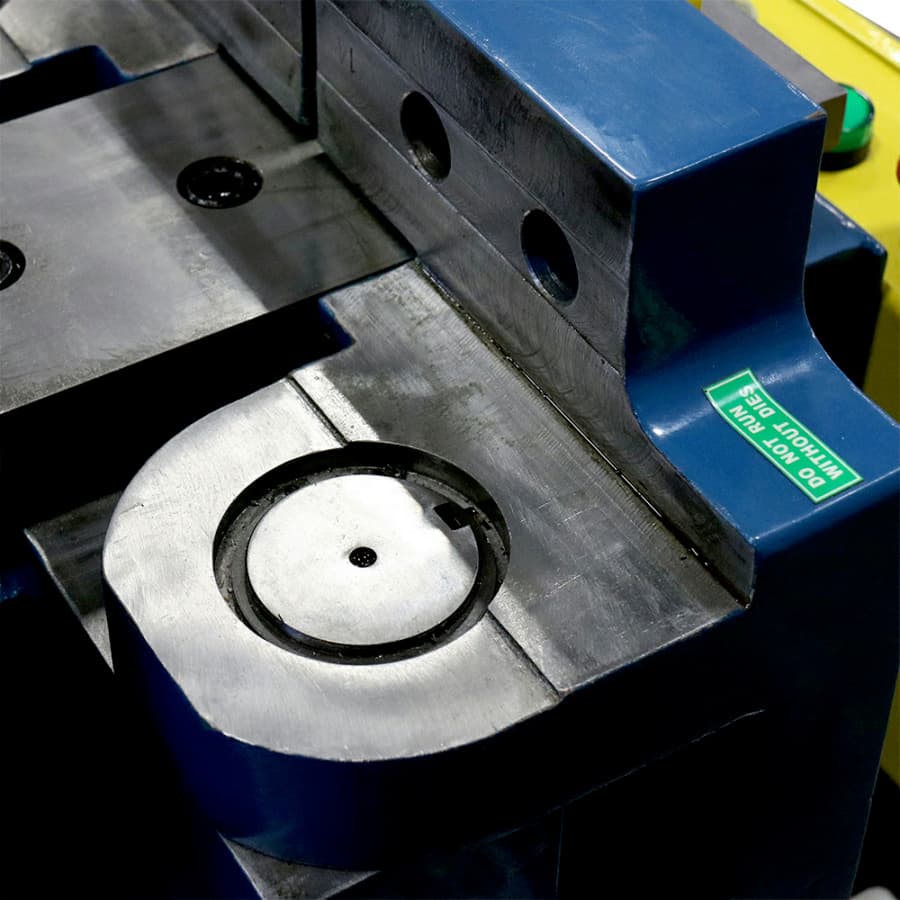

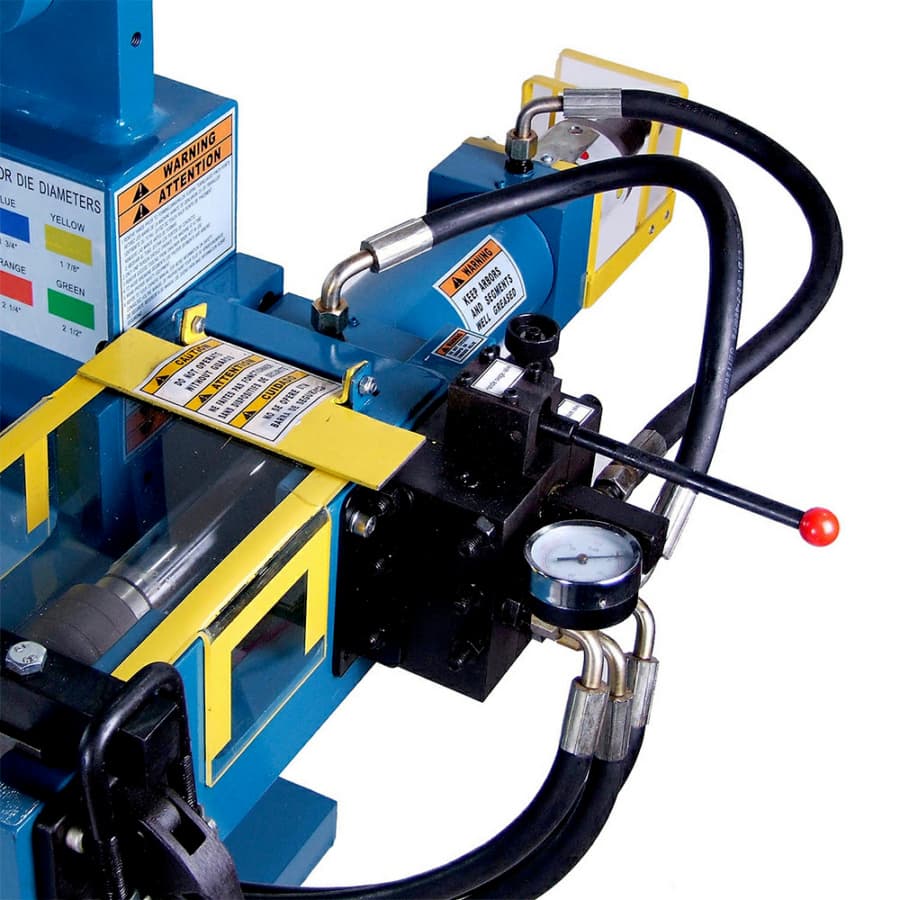

The EB-300 exhaust bender comes with standard radius tooling from 1-1/2" up to 3" OD (for 2-1/4 to 3" OD tubing 12 gauge mild steel wall thickness is required). The EB-300 exhaust pipe bender is considered a compression bender as it uses one large hydraulic ram to push the inside radius die into the compression assisted outside counter dies. The outside dies have two hydraulic cylinders that applies pressure at the point of bend on the inside radius die. The end result is that the machine can bend light gauge tubing without folding the material in half. The EB-300 exhaust pipe bender requires 220 volts of single phase power is operated using knee controls, allowing hands to be kept free for material control. Features: • 220V Single Phase Hydraulic Compression Exhaust Bender/Swager • This exhaust bender also comes equipped with tube end forming station • This station includes tooling to expand, flare and swage the tubing that also allows the operator to create ball joints and flanges • The EB-300 exhaust tube bender comes filled with hydraulic fluid and has an oil sight glass to ensure the proper level is always maintained • A useful tooling tray is standard as well so the tooling stays with the machine instead of getting lost in a busy auto shop
Specifications
| Box Quantity | 1 |
| Aluminum Pipe Schedule 40 | |
| Short Description | 220V Single Phase Hydraulic Compression Exhaust Bender/Swager **INCLUDES TOOLING** |
| Round Tube Capacity | |
| Round Stock Capacity (Max.) | |
| Round Pipe Sch. 40 Capacity | |
| Round Capacity (Mild Steel) | 1-1/2"" up to 3" OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required) |
| Product Type | Exhaust Benders |
| Minimum OD | |
| Mild Steel Pipe Schedule 80 | |

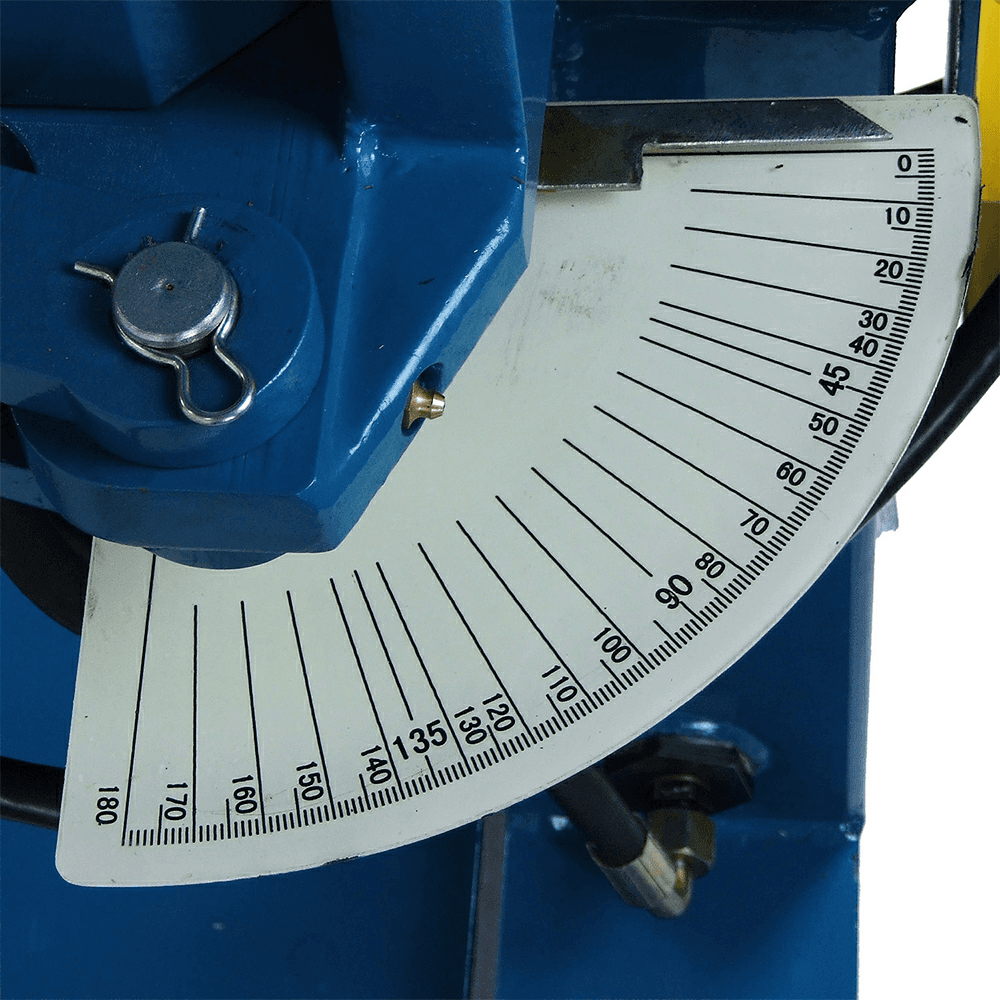

| Max Bend (Degrees) | 180 |

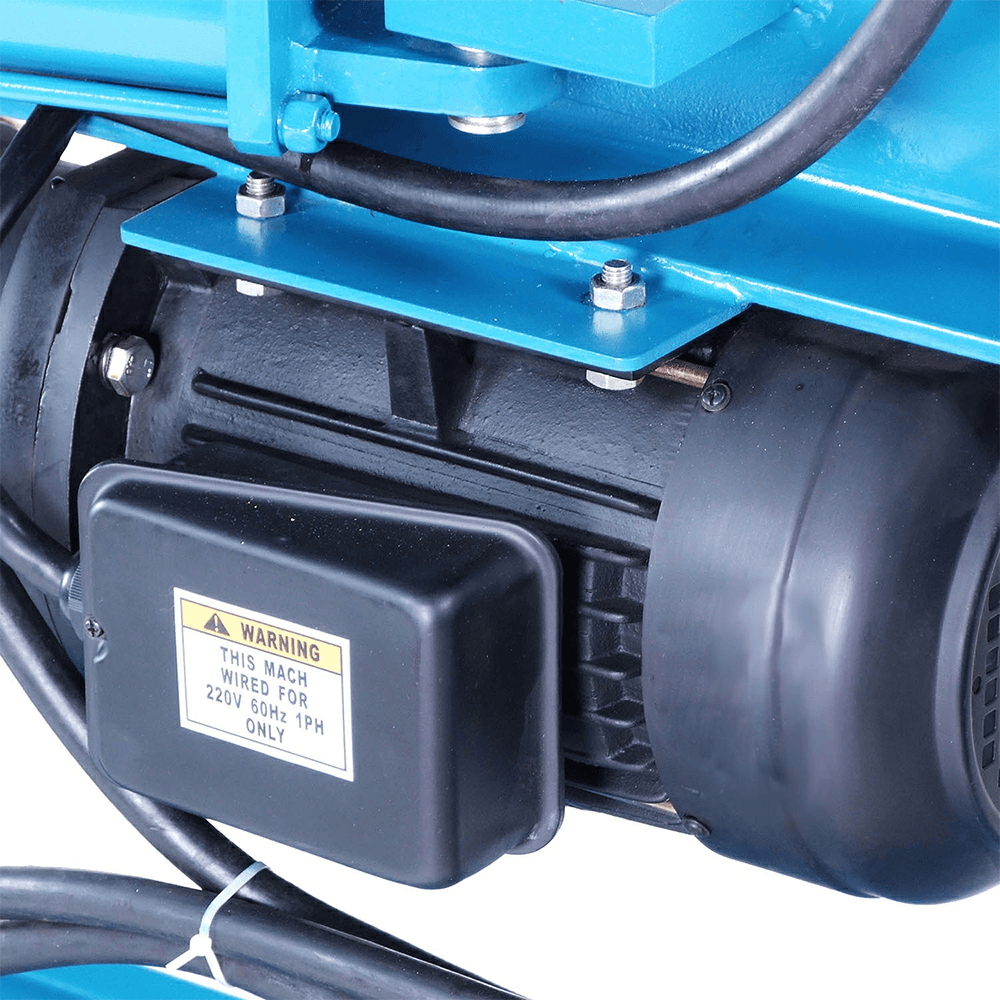

| Input Power | 220V / 1-phase |
| Chromoly Round Tube Wall | |
| Bend Direction | |
| Square Tube Capacity |
