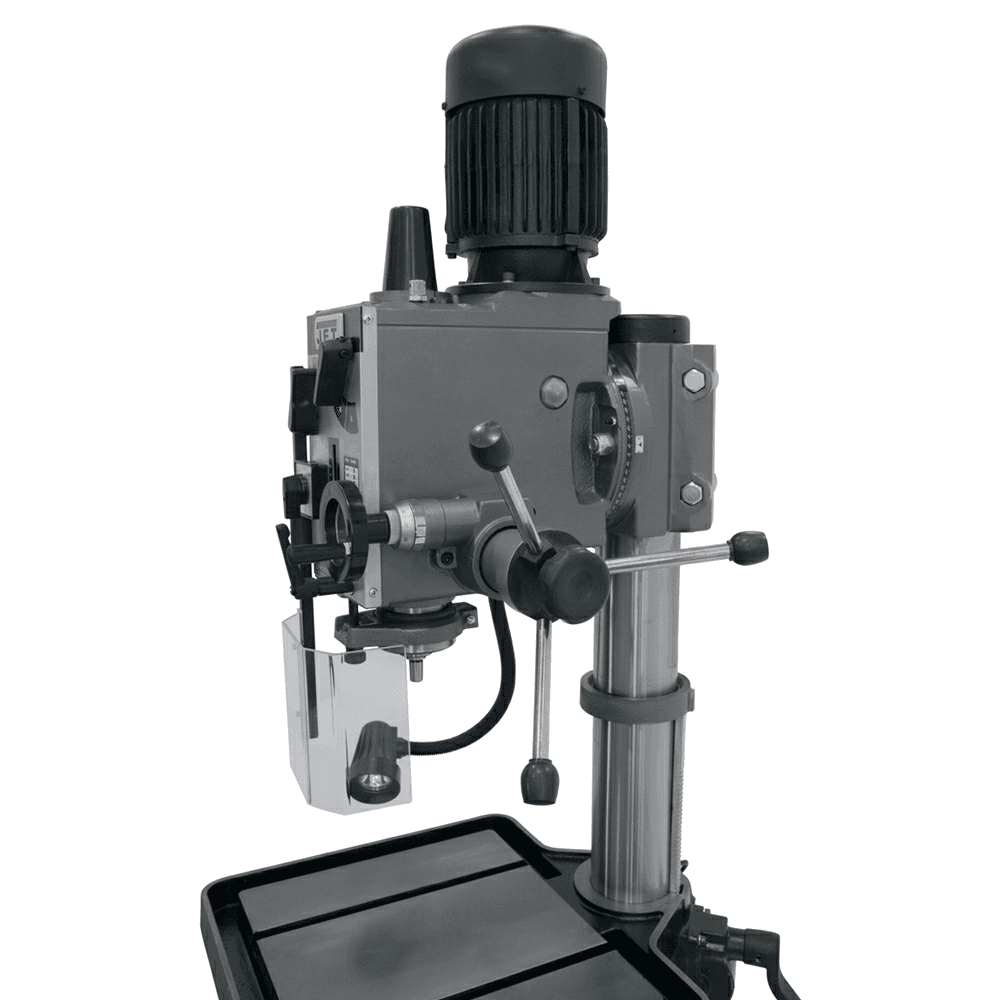

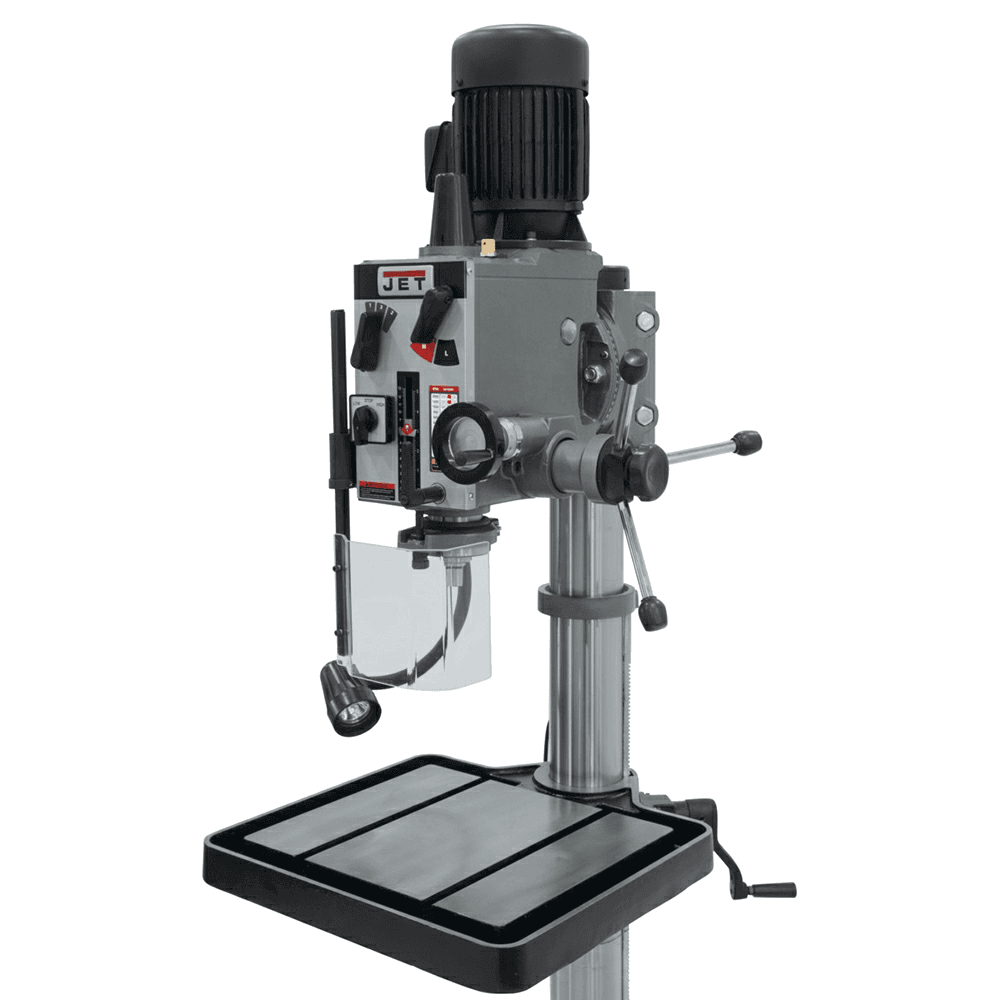

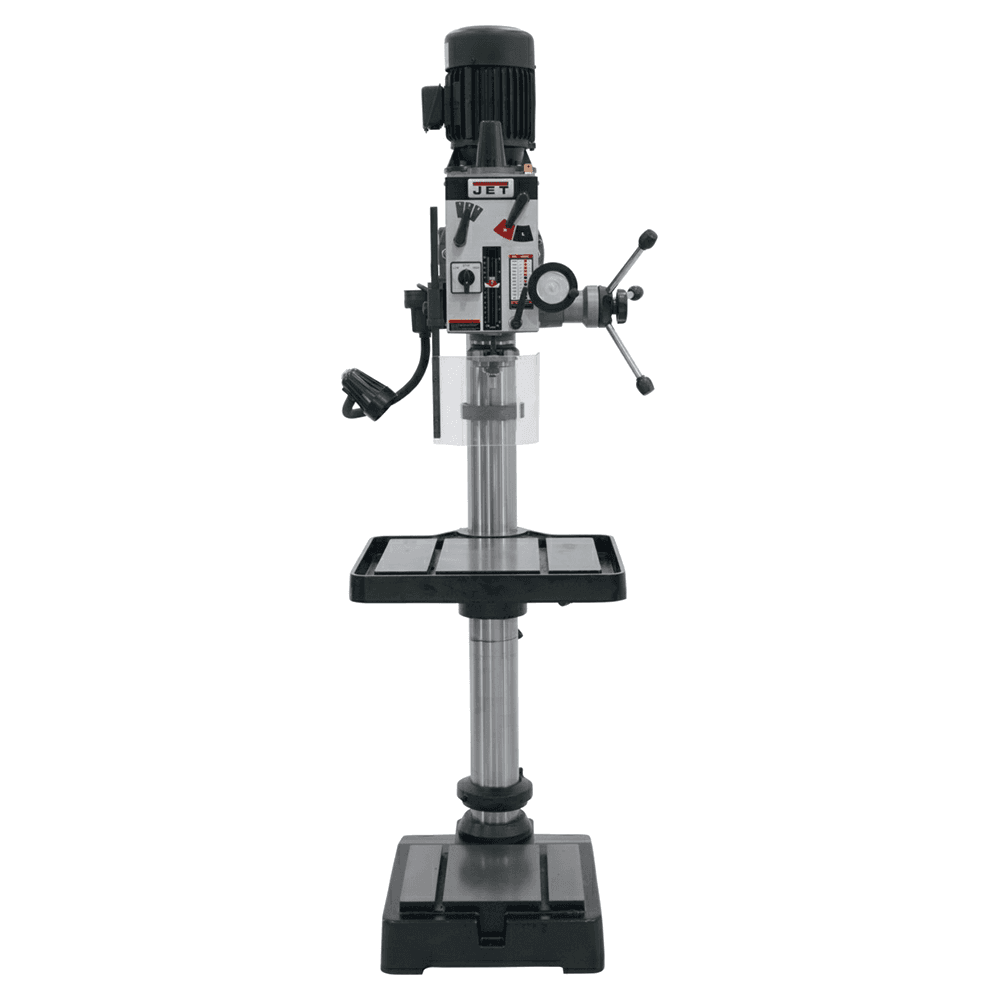

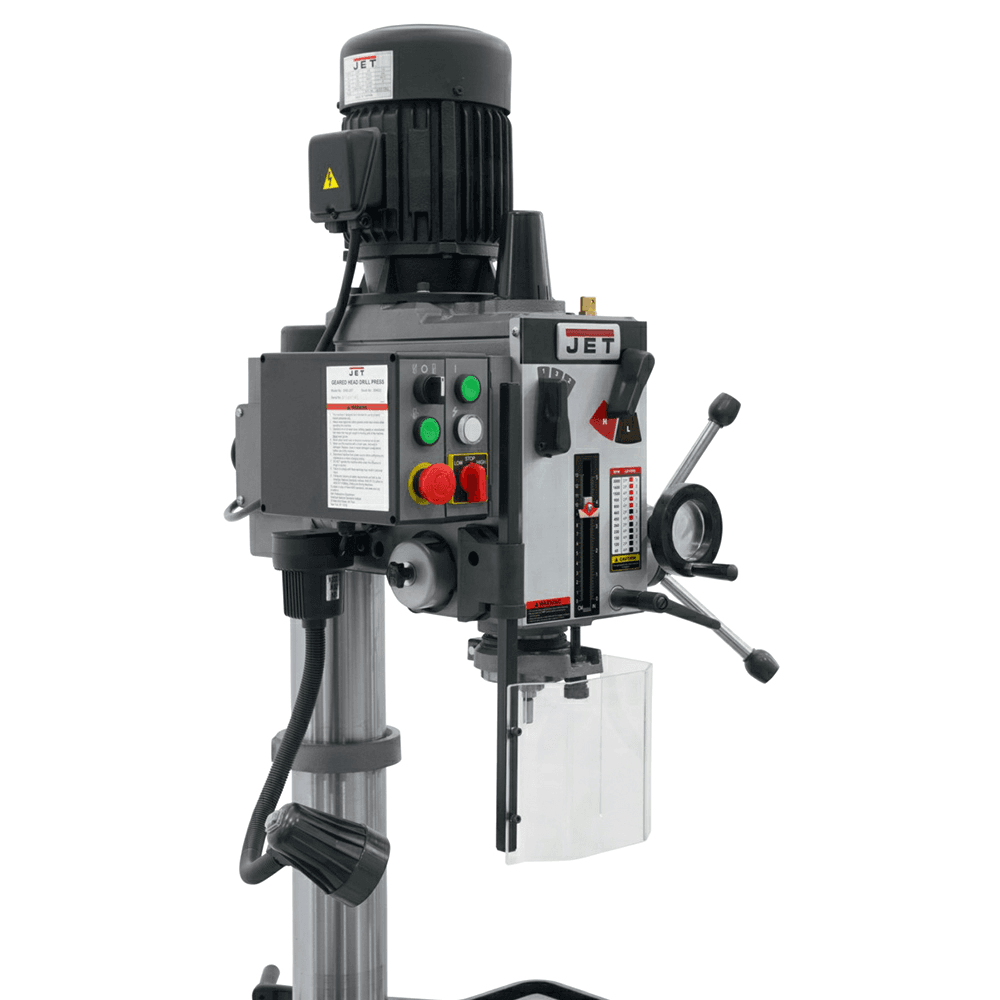

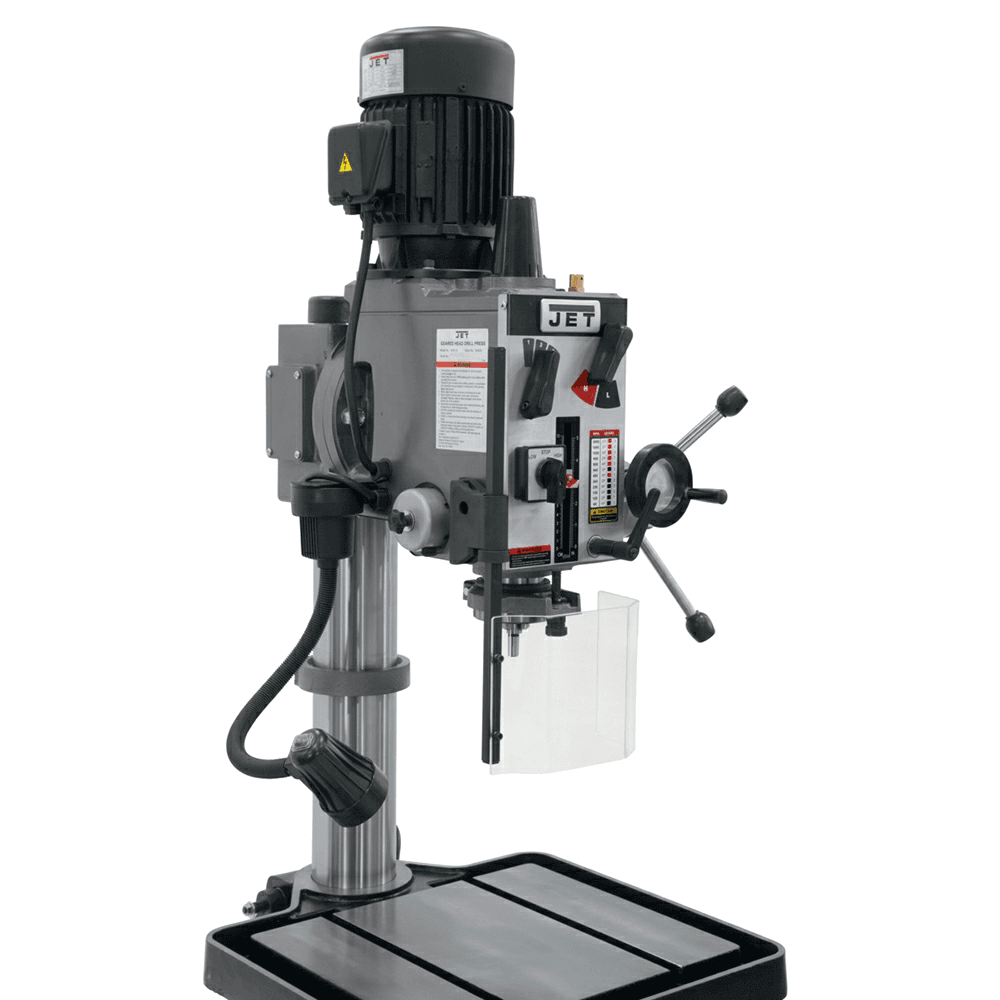

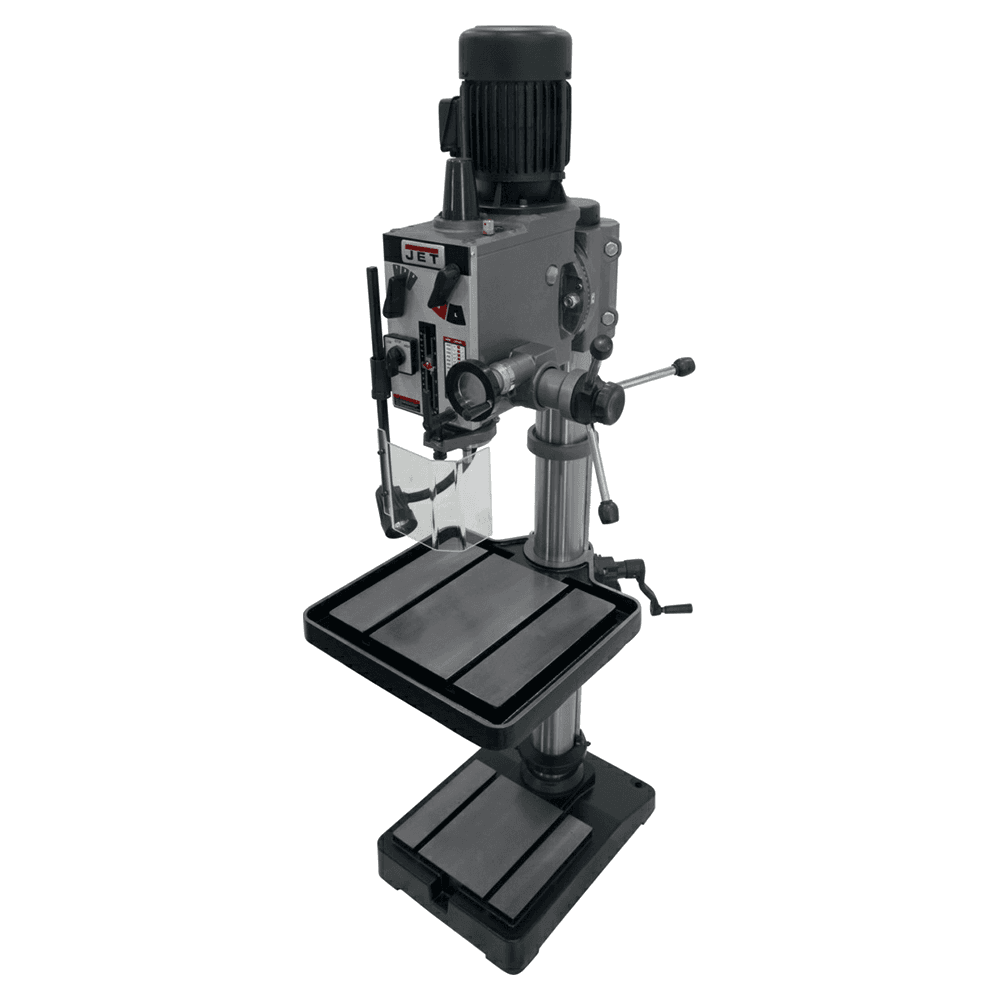

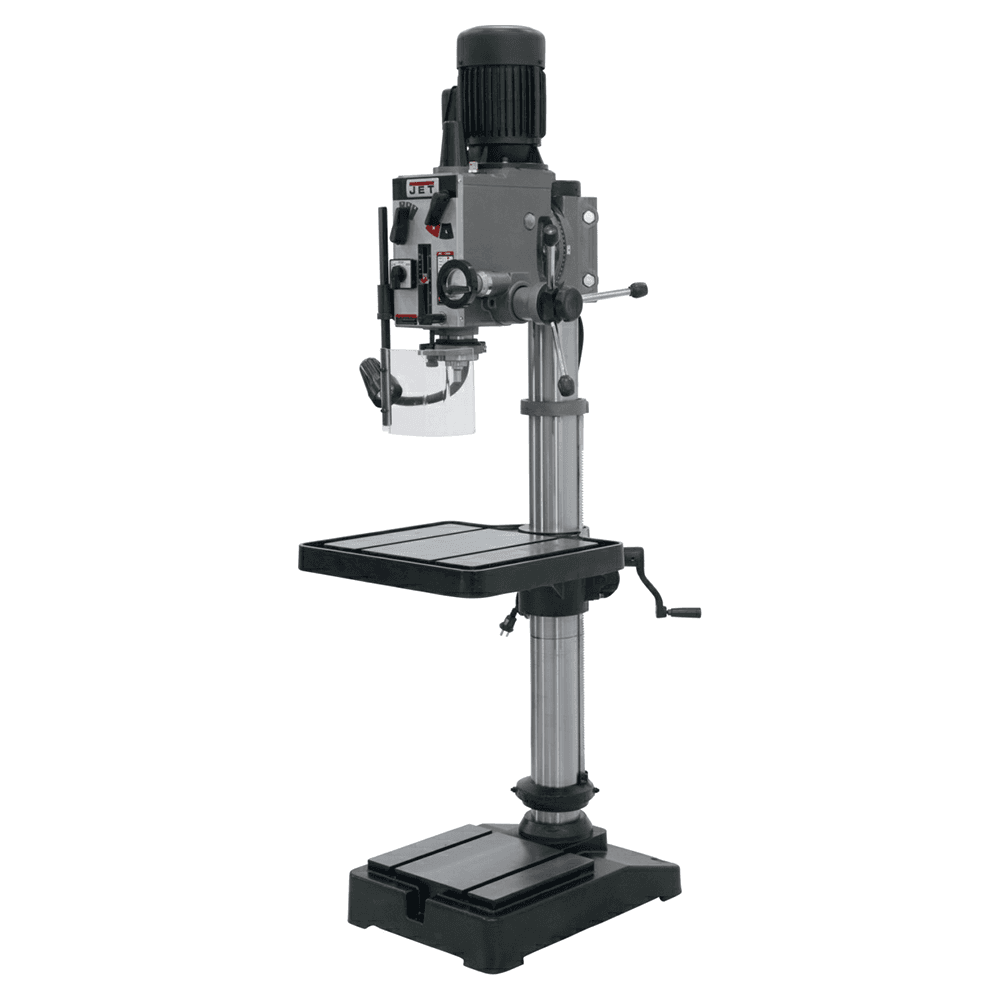

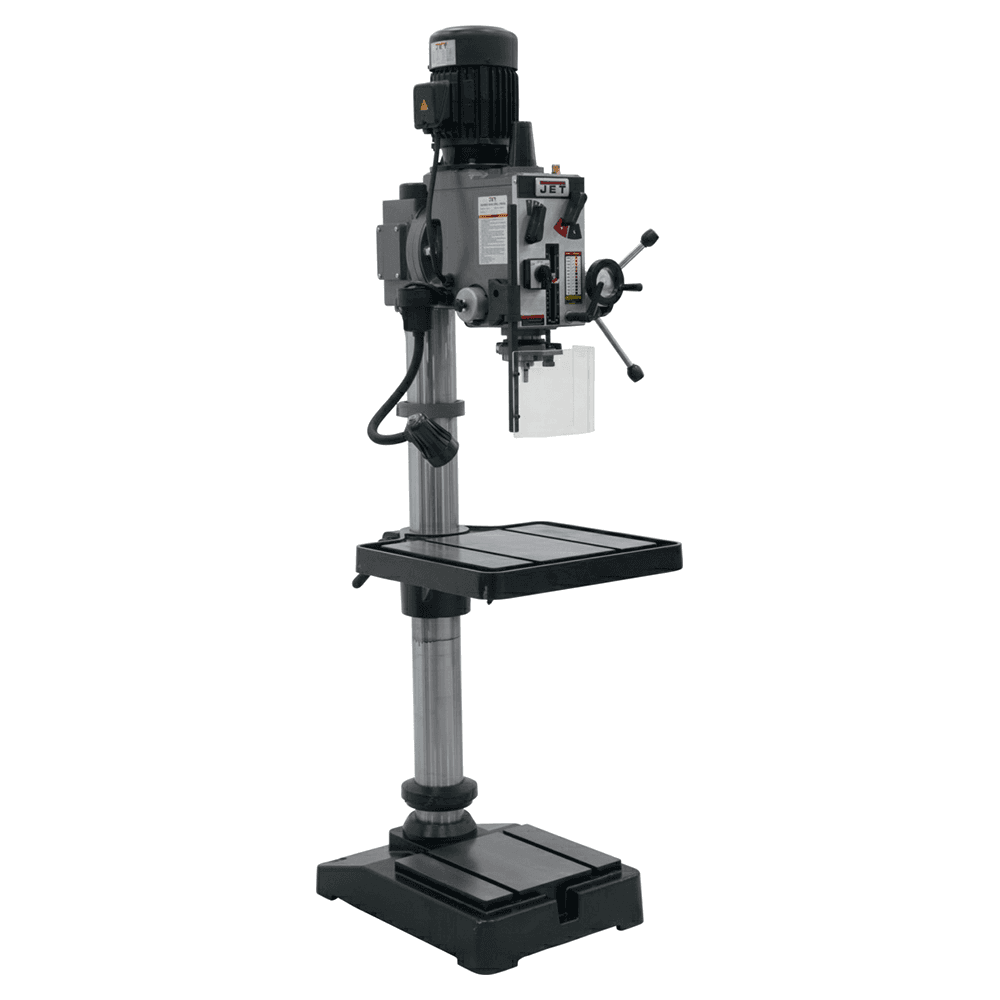

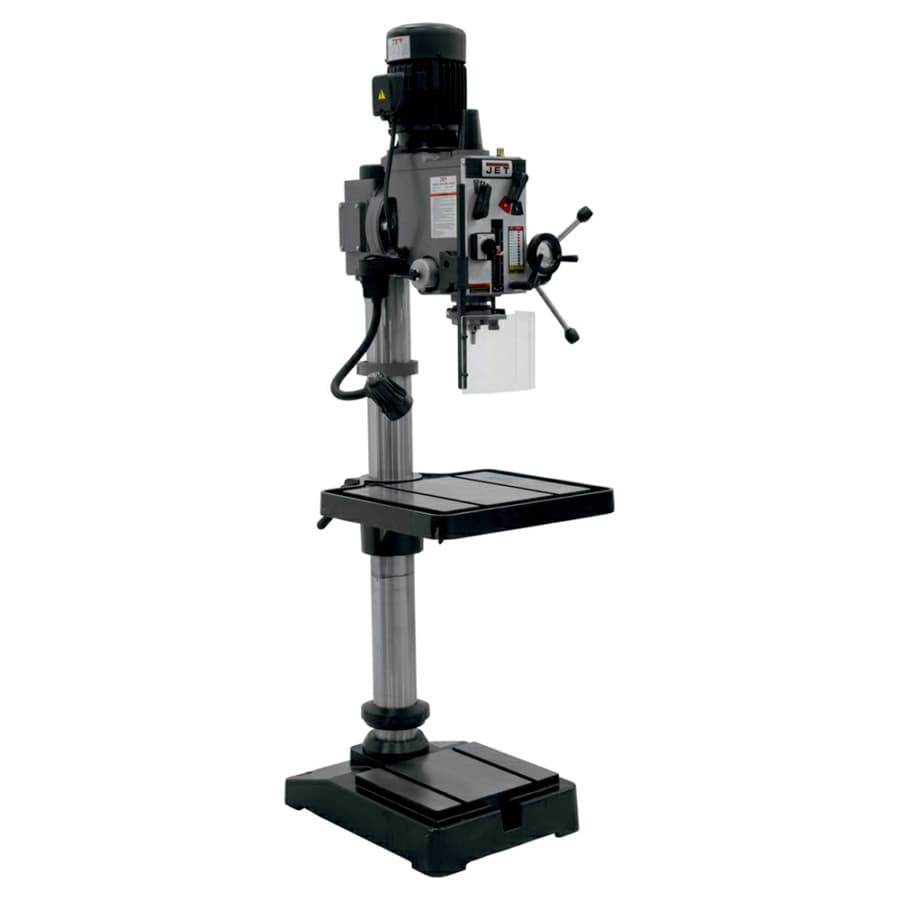

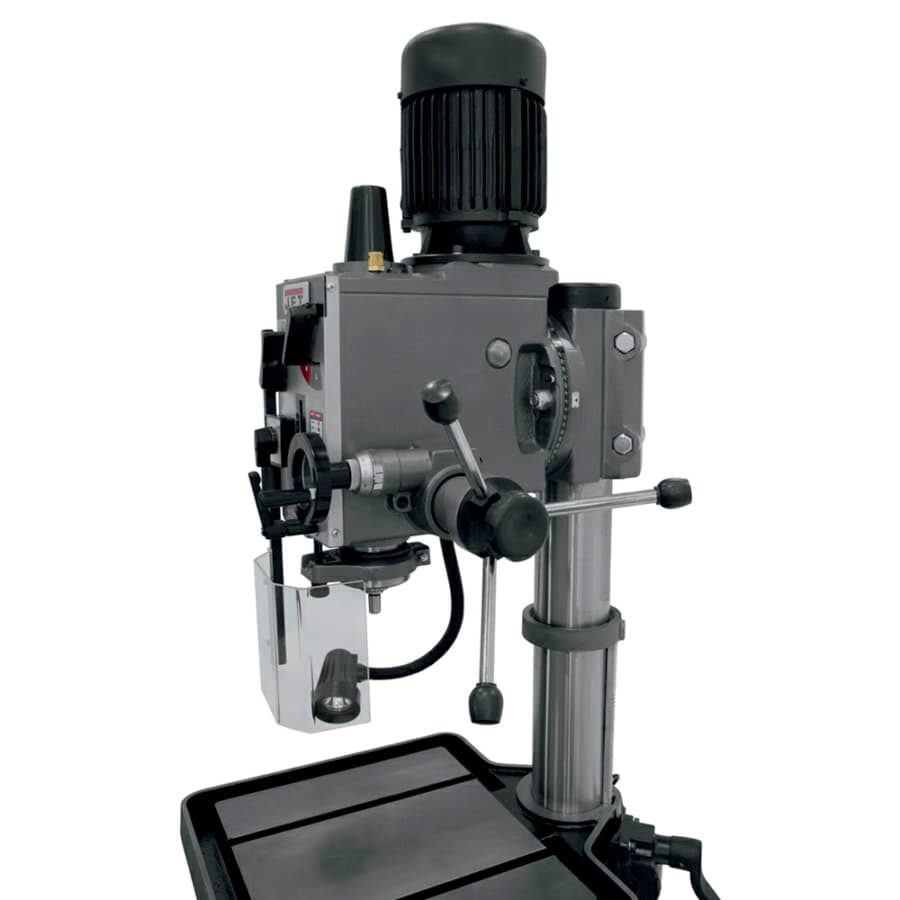

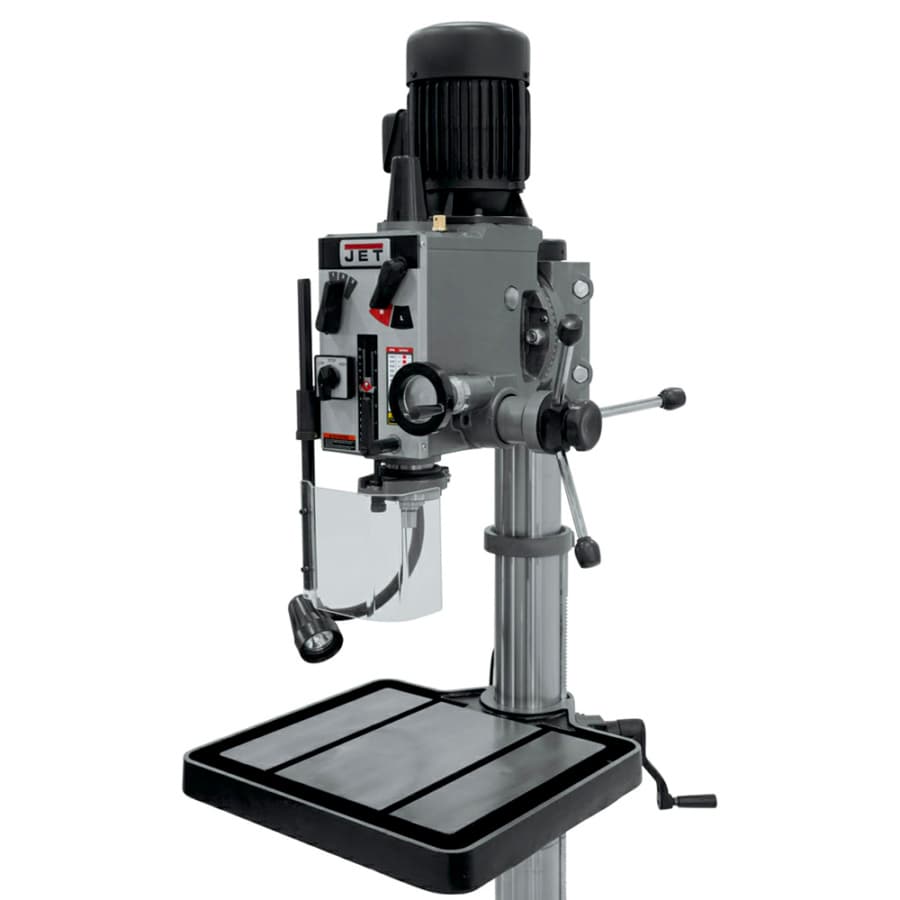

Jet Tools GHD-20 20" Gear Head Drill Press, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
Jet geared head drill presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and english/metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results. Features: • Easily accessible table raiser • Head tilts left or right • Large production table and T-slotted base • Three power downfeed rates
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 275lbs |
| Quill Feed | Manual |
| Quill Diameter | 3" |
| Product Type | Geared Head Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 32" x 24" x 71" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | |
| T-Slot Centers | 9" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 25-1/2" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-3 |
| Drills to Center of Circle | 20" |
| Drilling Capacity Mild Steel | 1-1/4" |
| Drilling Capacity Cast Iron | 1-1/2" |
| Motor Power (HP) | 2 HP |
| Column Diameter | 4-1/2" |
| Spindle Travel | 5" |
| Motor Phase | 3 |
| Base Size | |
| Motor Voltage (V.) | 230V |
| Spindle Taper | |
| Table Size (L x W) | 21-3/4" x 19-1/2" |
| Spindle Distance to Base | 44-15/16" |
| Spindle Distance to Table (Max.) | 30-1/2" |
| Number of Spindle Speeds | 2 |
| Distance Column to Spindle | 10" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | 15-1/4" x 13" |
| Base Slots Number & Size | |
| Base Dimensions | 26" x 18" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
