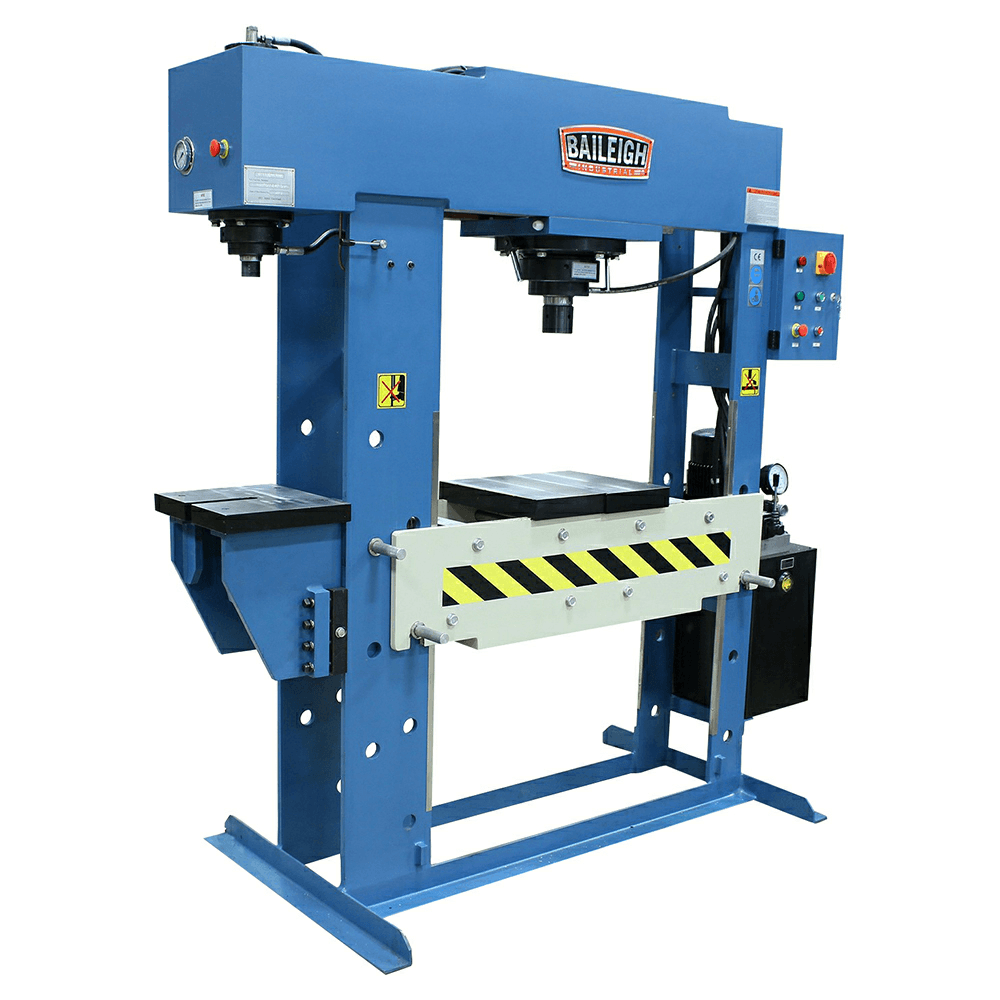

Baileigh HSP-60M-C 5.25 HP Two Station Hydraulic Press, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

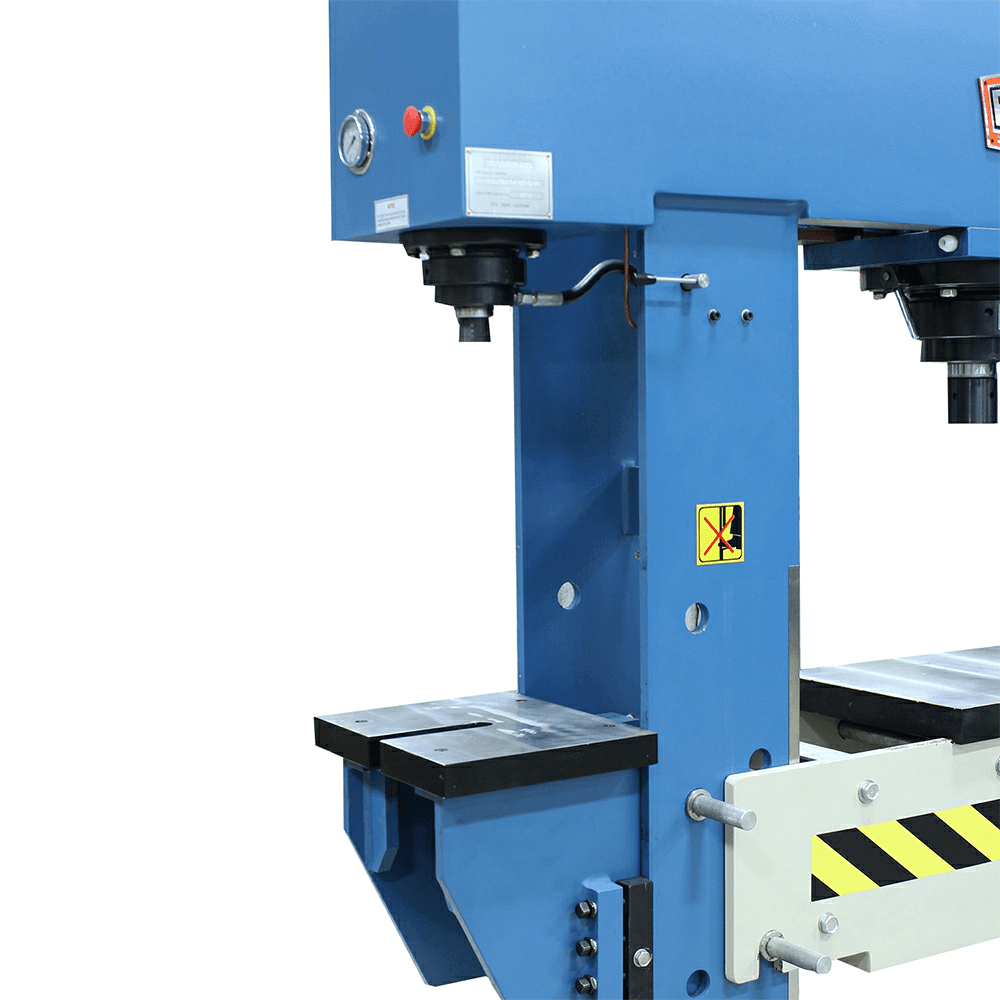

The Hydraulic workshop press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame. Another plus of the HSP-60M-C is the ability to use a second 24 ton station with an open C-frame design. Both presses come in one compact design. Features: • Unique two station design • 60-ton capacity on main press • 24-ton capacity on side press • 41.25"working width on main press • 7.5" cylinder moves left and right within the frame, ideal for off-center parts • Controlled by piston-style hydraulic pump • C-Frame Hydraulic Press includes 2-piece V-block set • Pressure gauge comes standard on both presses • Welded steel structure withstands the machine's full force without flexing
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | 24 Ton and 60 Ton |
| Product Type | Hydraulic Press |
| Work Table Size |
