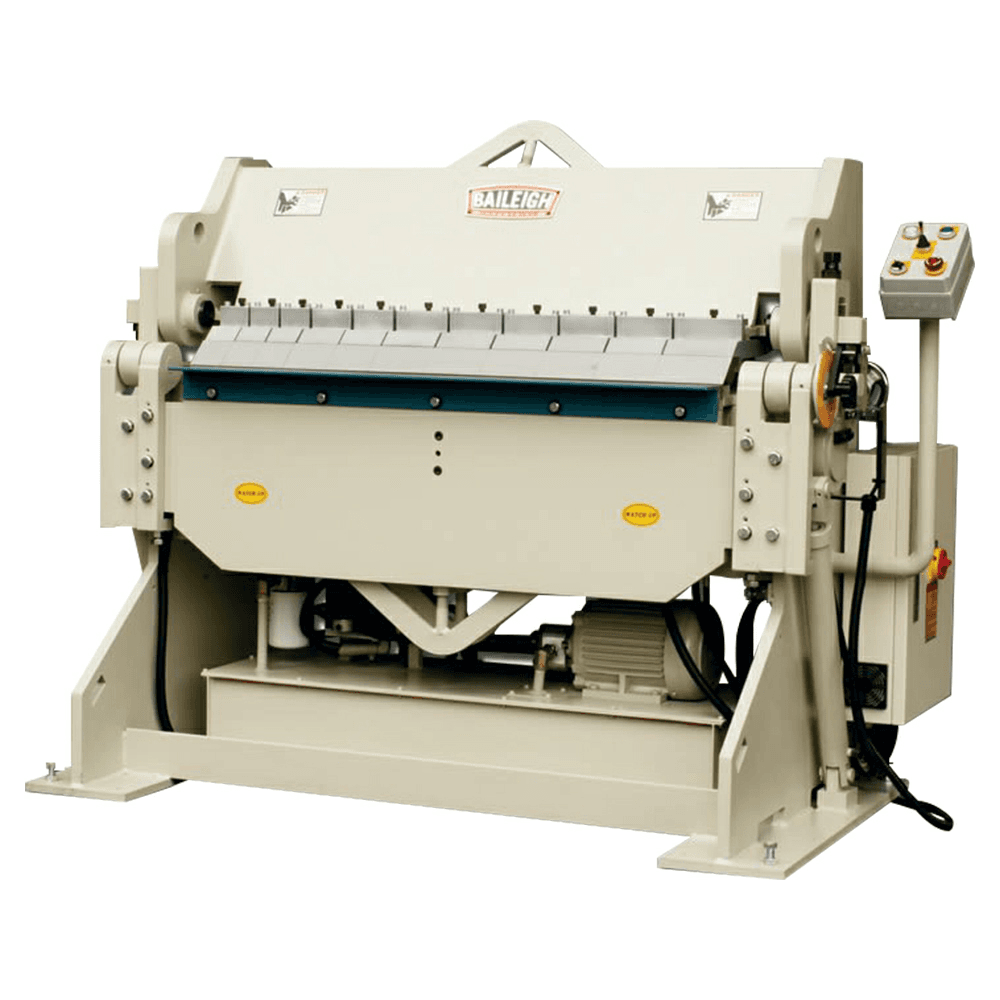

Baileigh BB-4810H Hydraulic Box/Pan Finger Brake, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
This Finger brake can bend 10 gauge mild steel across its 48" (4-foot) length. A welded steel frame prevents misalignment and ensures accuracy. Features: • Runs on 220-volt 3-phase power with a powerful 3 hp motor that controls all the hydraulic functions • 1" beam adjustment • Maximum bend angle of 135° • Includes 11 fingers (3 fingers of 3", 2 of 4", 5 of 5", 1 of 6"), allowing you to adjust for different size boxes and pans you want to make • Industrial-grade hydraulics lift the leaf for clean, precise motion • You can operate this hydraulic brake in manual or semi-automatic mode • Hydraulic motor turns a cam to lift and clamp the beam when bending 10-gauge mild steel • Adjustable bend auto-stop makes it easy to produce repeatable bends • Removable bending support lets you get closer between bends • Fully welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 10 |
| Motor (HP) | 3 HP |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 48" |
| Product Type | Hydraulic Sheet Metal Brakes |
| Short Description | *220V 3-phase box brake *10-gauge mild steel capacity *4-foot length *Includes 11 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | 48" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V/3-phase |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
