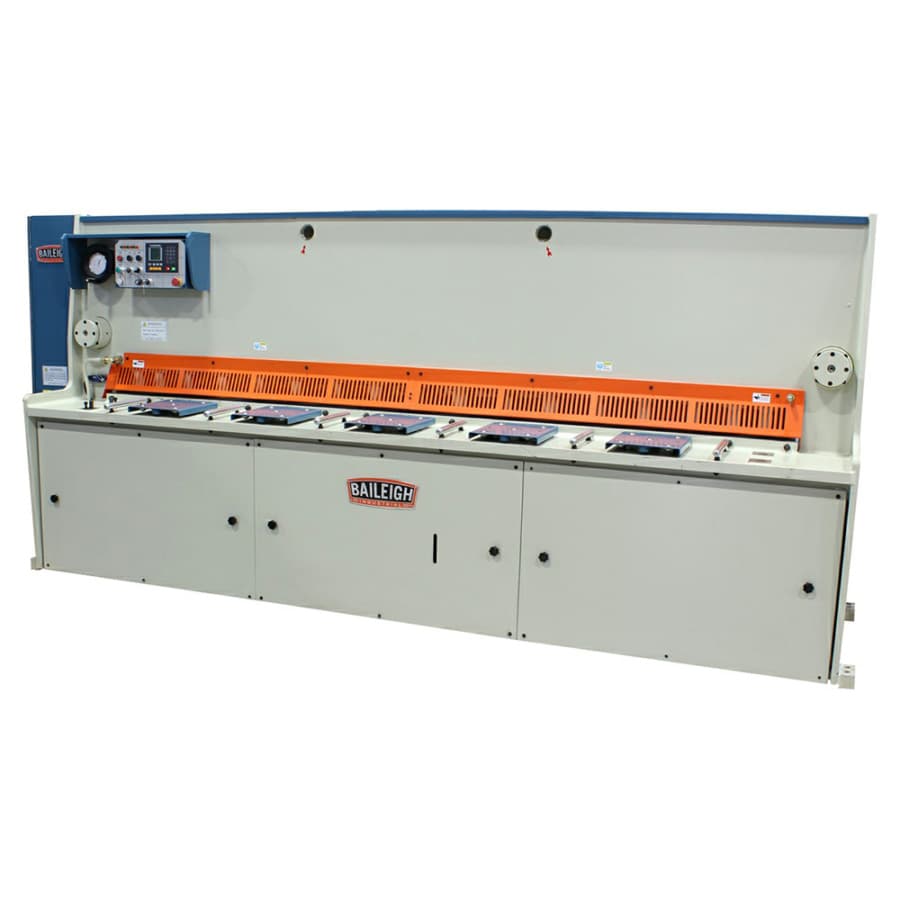

Baileigh SH-120250-HD Hydraulic Plate Shear, 3 Phase/220V

At 18 strokes per minute with an NC programmable back gauge, this Hydraulic Shear was designed for production. Its adjustable blade gap and rake angle ensure accuracy.
Also available in a 96" model with 1/4" maximum capacity and 120" model with 1/2" maximum capacity.

Features:

• 120"length for up to 10-foot sheets with a maximum capacity of 1/4"-thick mild steel
• 15 hp motor runs on 220-volt 3-phase power
• Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan
• Hydraulics are in the front for simple fluid changes. Just lift the panels using the convenient handles

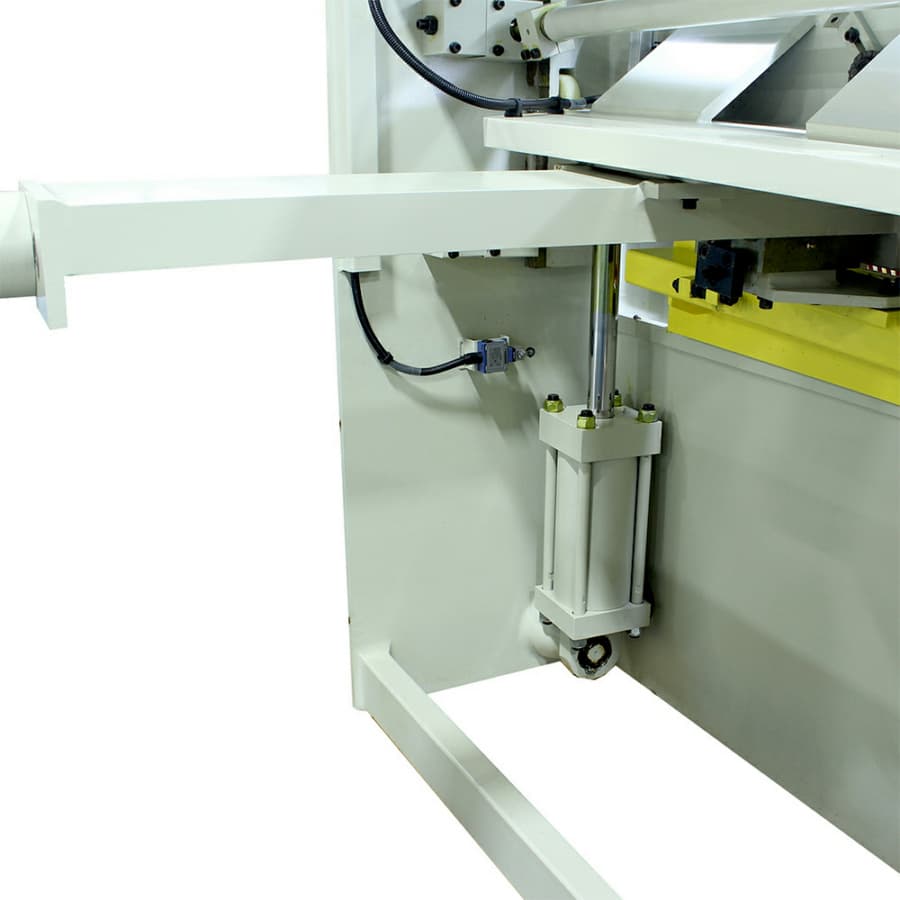

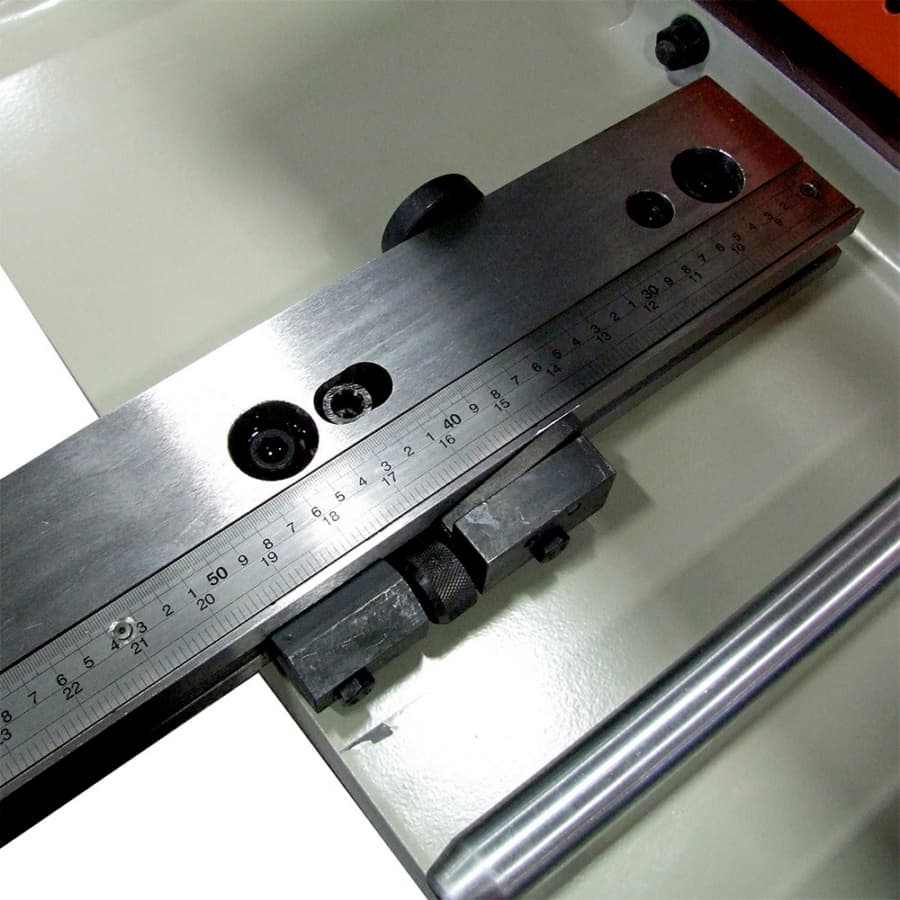

• Squaring arms support the material and keep it square to the blade

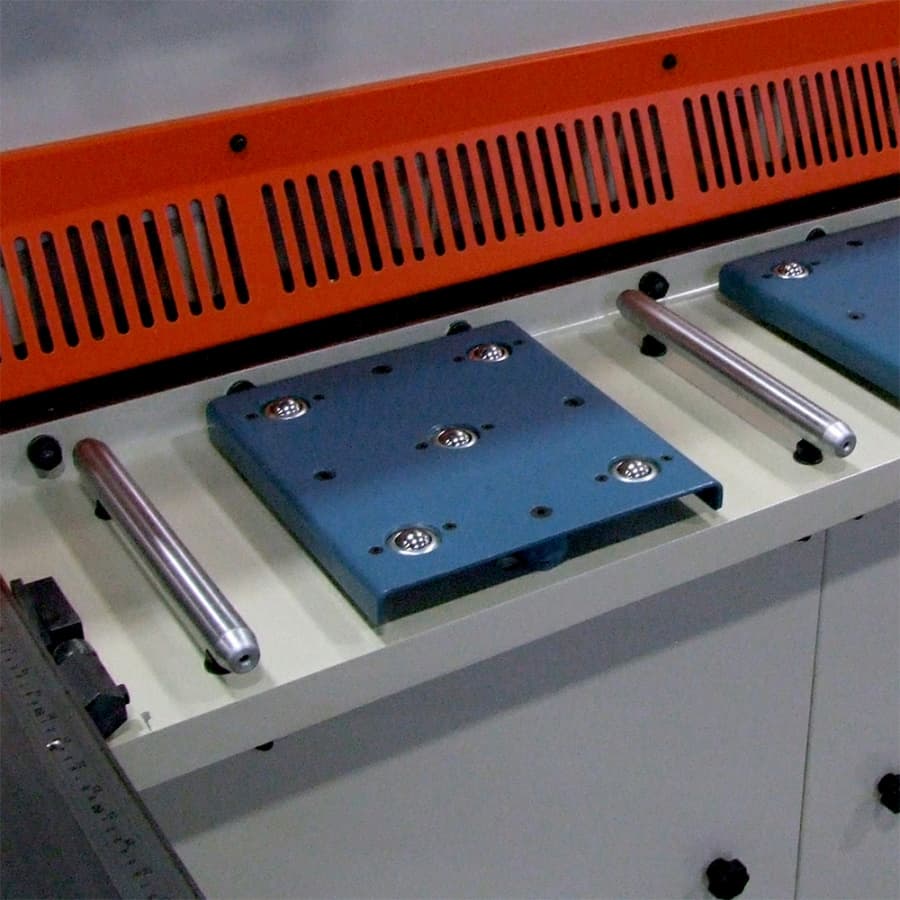

• Roller infeed tables, mounted on the front, help you load heavy materials

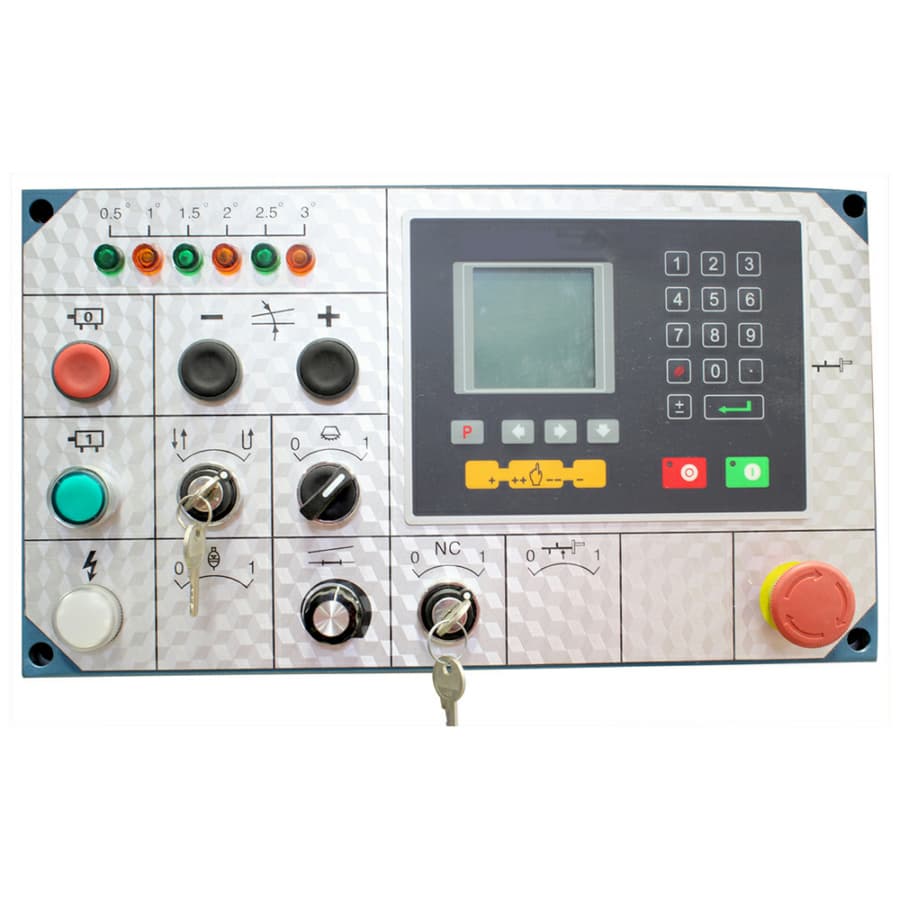

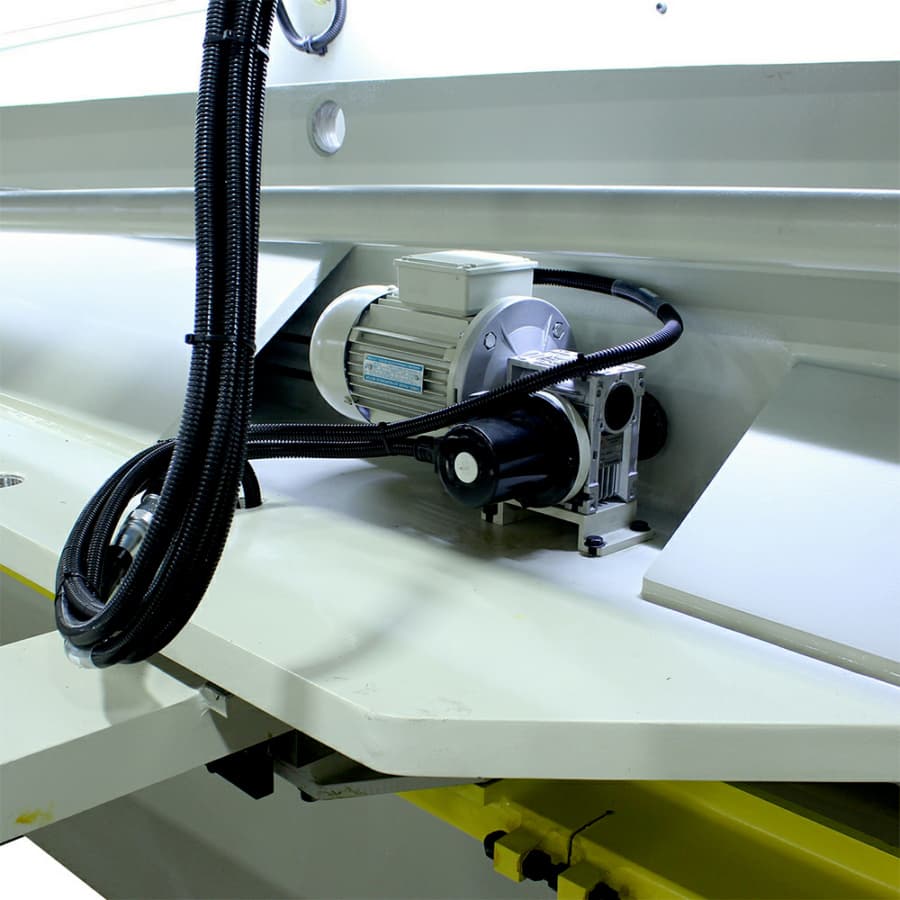

• Fully programmable back gauge is accurate to =/- .01mm with an internal memory that can hold up to 100 programs

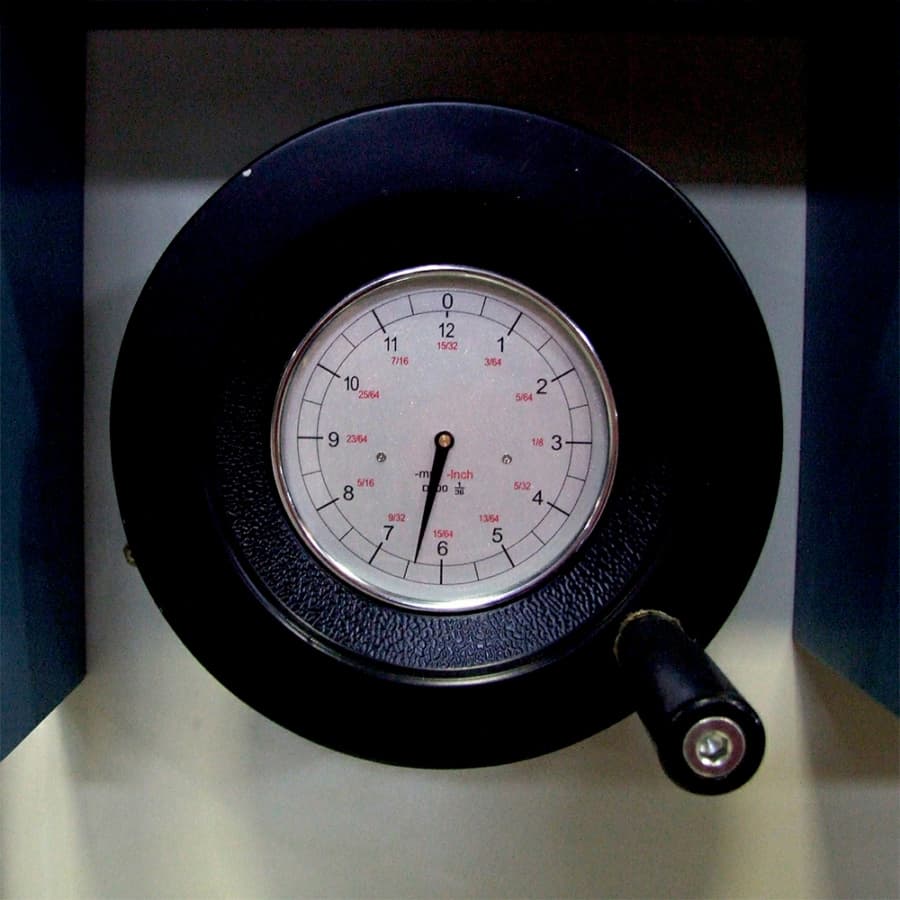

• Adjustable blade gap prevents crimping or folding. Just turn the handwheel

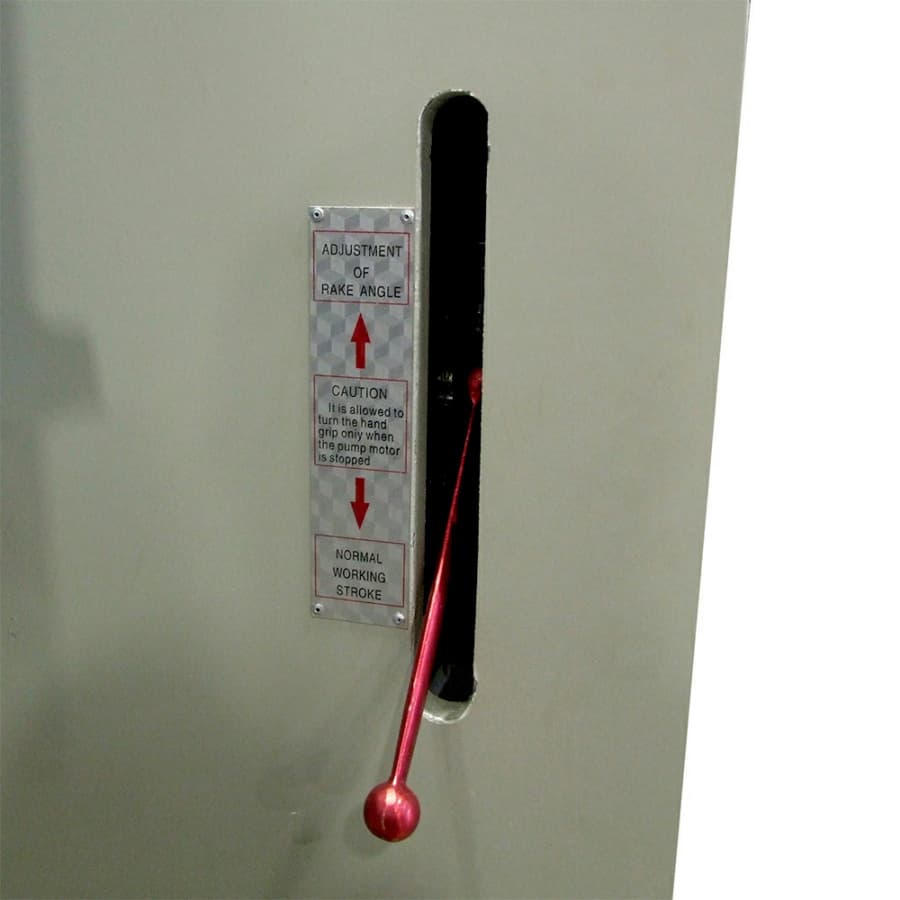

• You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics. Press a button, then pull the lever until the light goes on
• Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process and comes standard with shadow line positioner for accurate material placement
