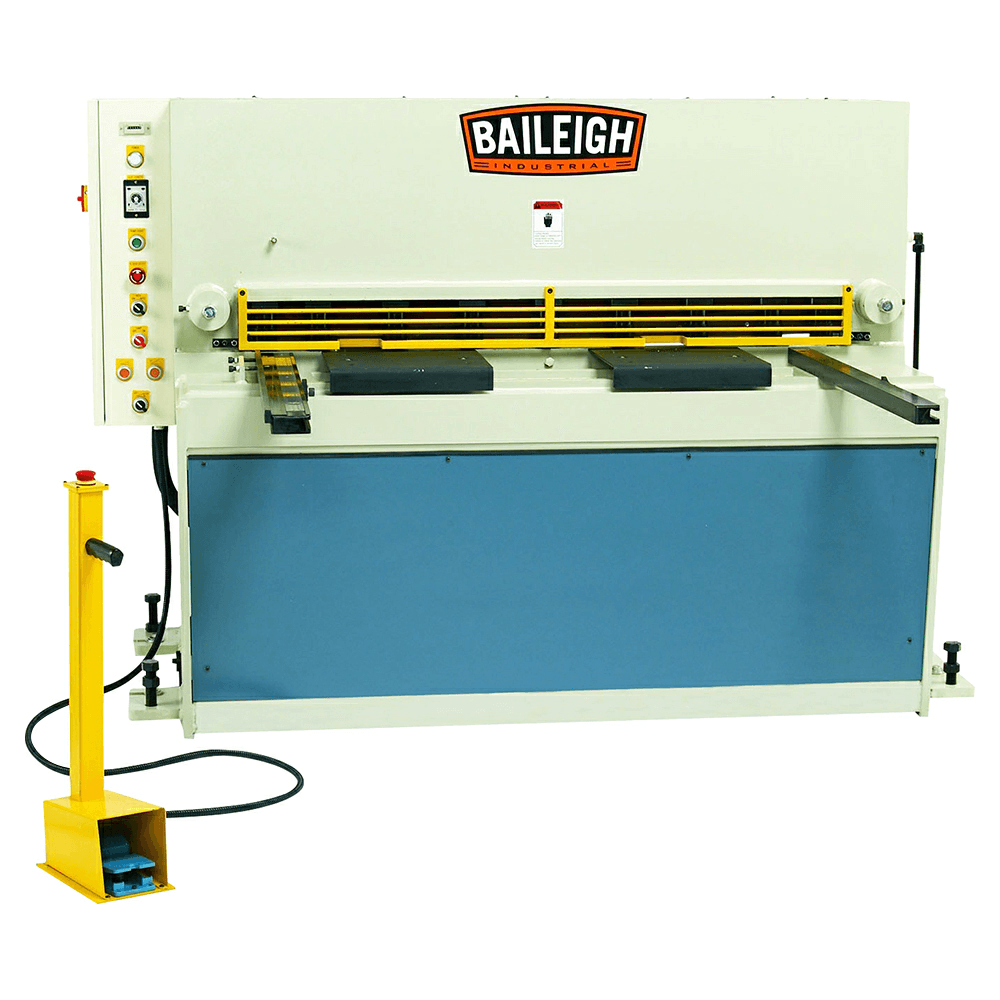

Baileigh SH-5210-HD 7.5 HP Heavy Duty Hydraulic Sheet Metal Shear, 3 Phase/220V

With its welded steel frame, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts. Also available in a more economical single-phase version, the SH-5210 sheet metal shear is designed for lighter production.

Features:

• 52" length with a 10-gauge mild steel maximum capacity and a minimum capacity of 24-gauge mild steel

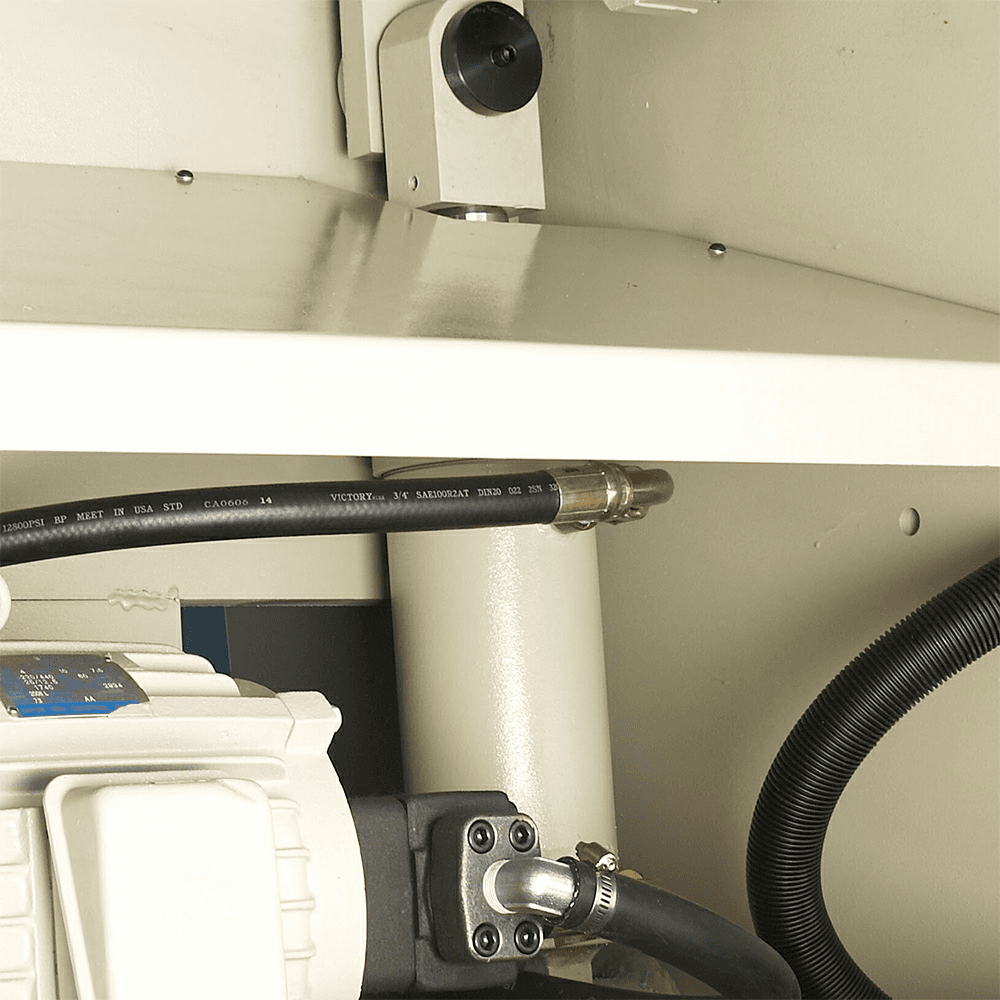

• 7.5 hp motor runs on 220-volt 3-phase power and generates 35 to 47 strokes per minute for speedy production

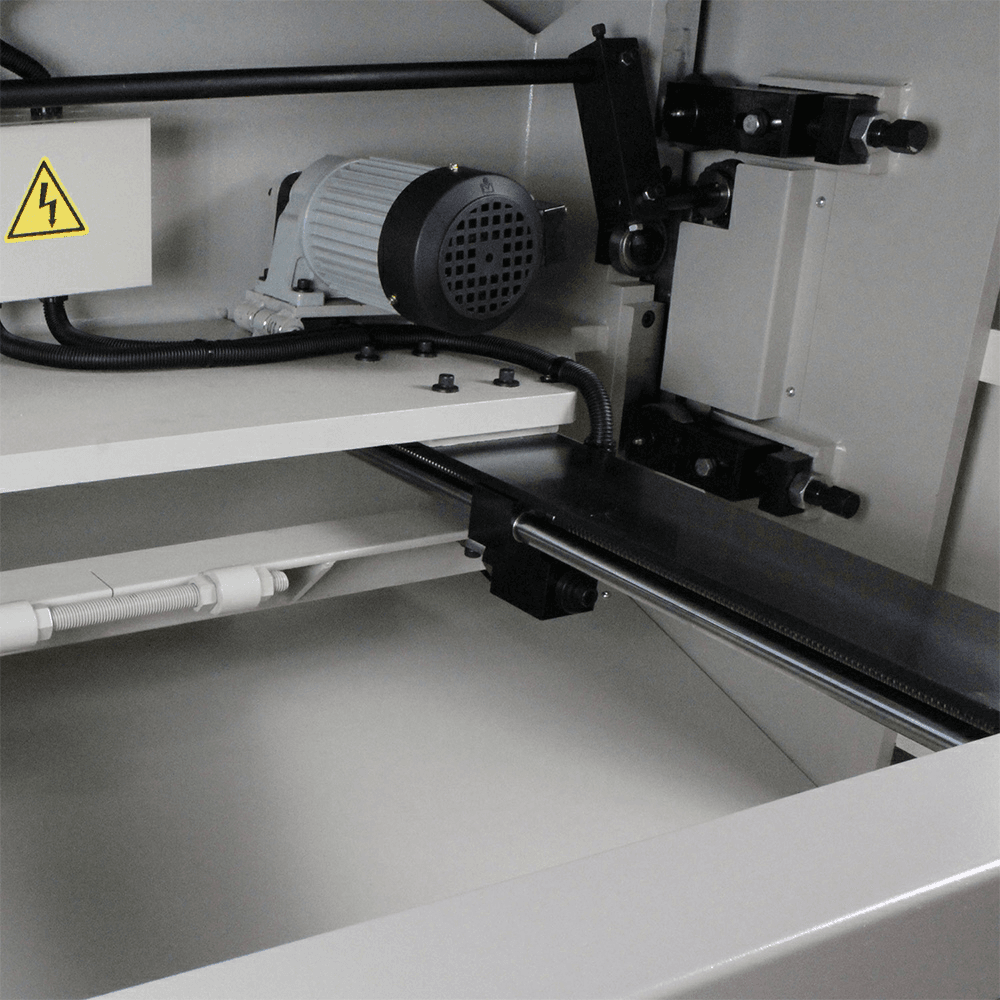

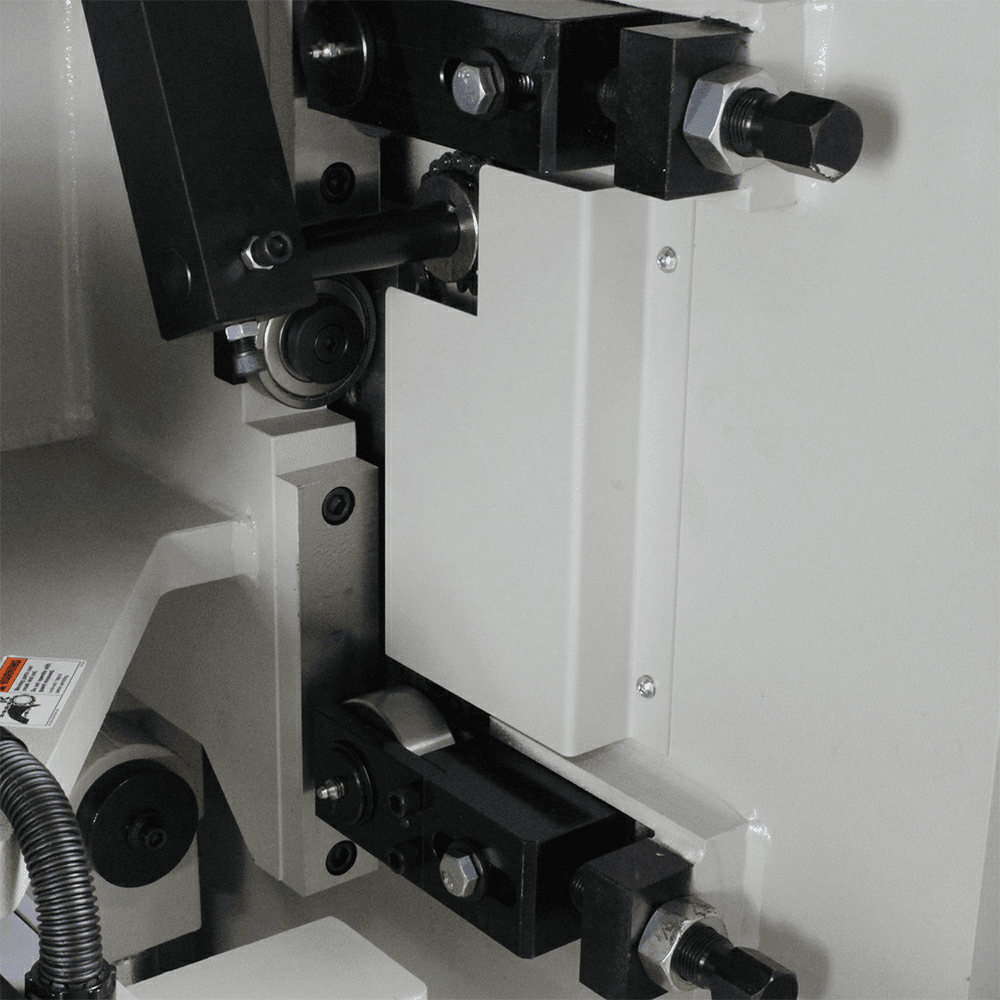

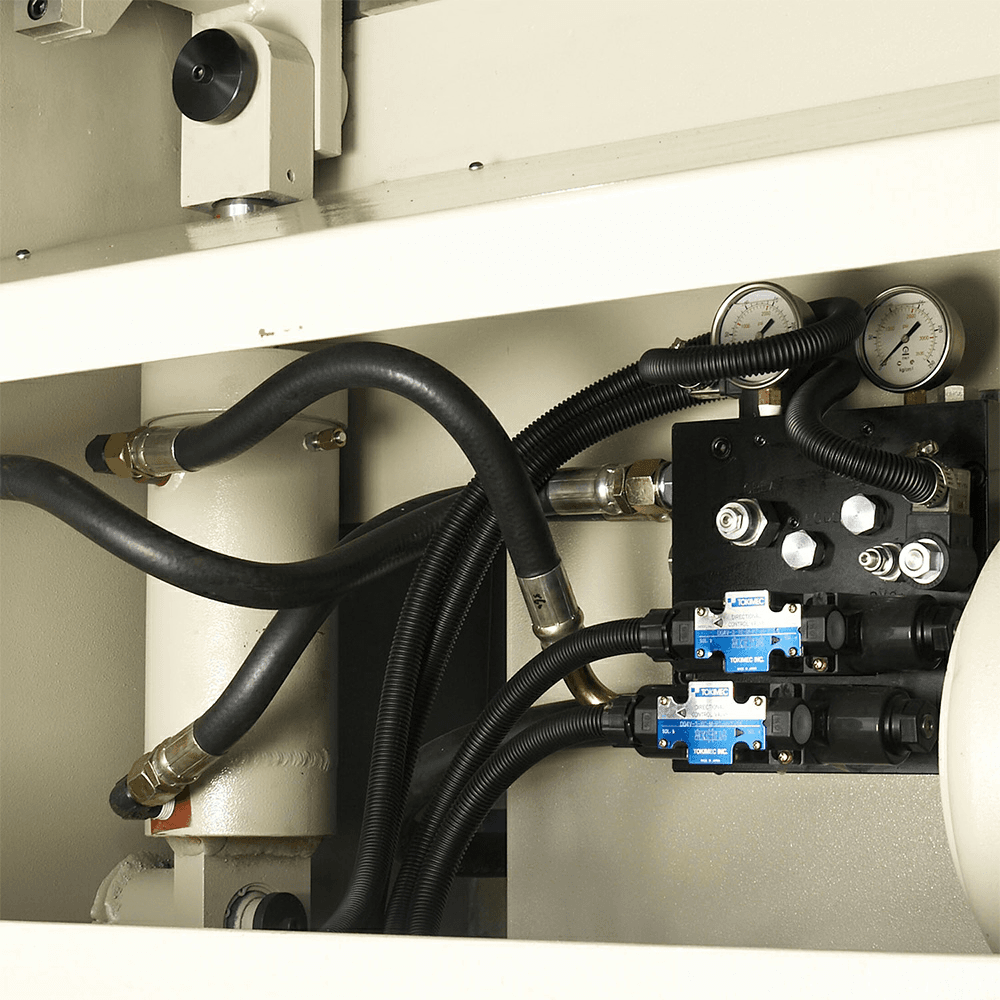

• Industrial-grade hydraulic system is in the front for easy fluid changes and shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction

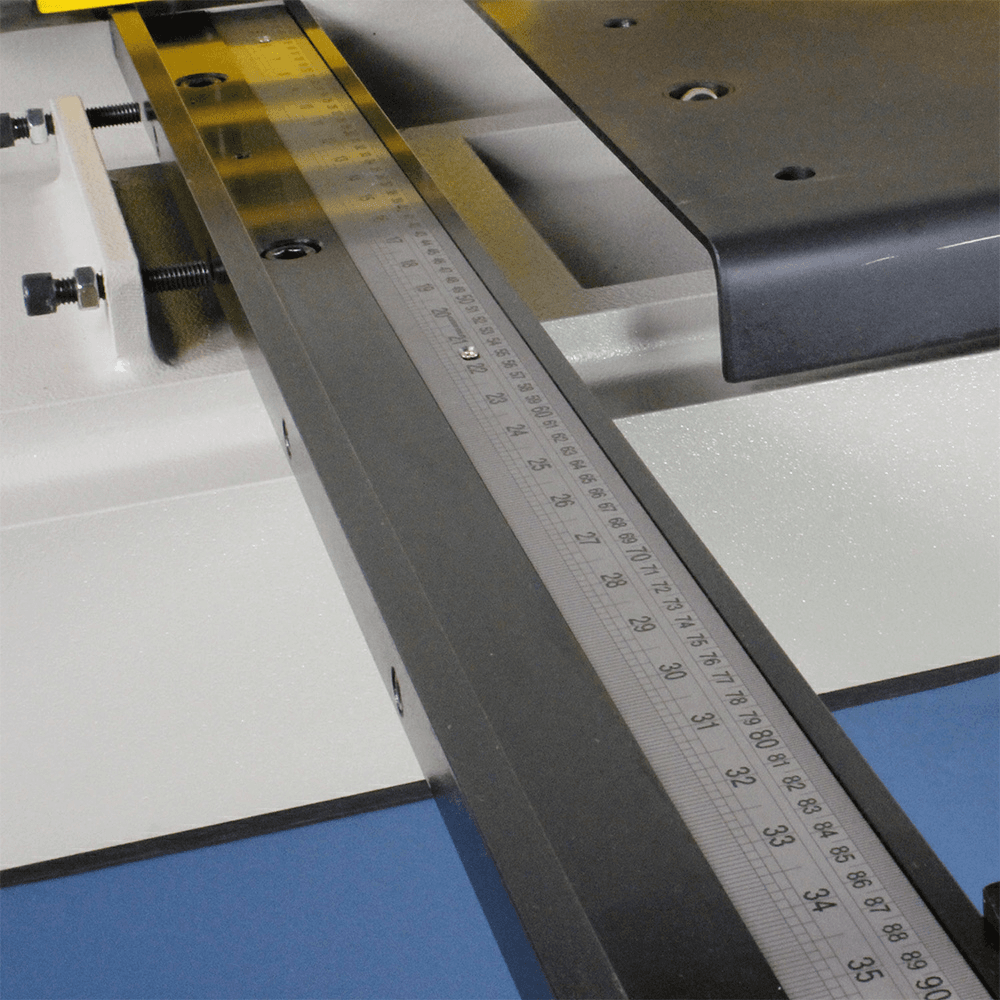

• Manually adjustable 23.62" back gauge ensures precise repeatability while side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material

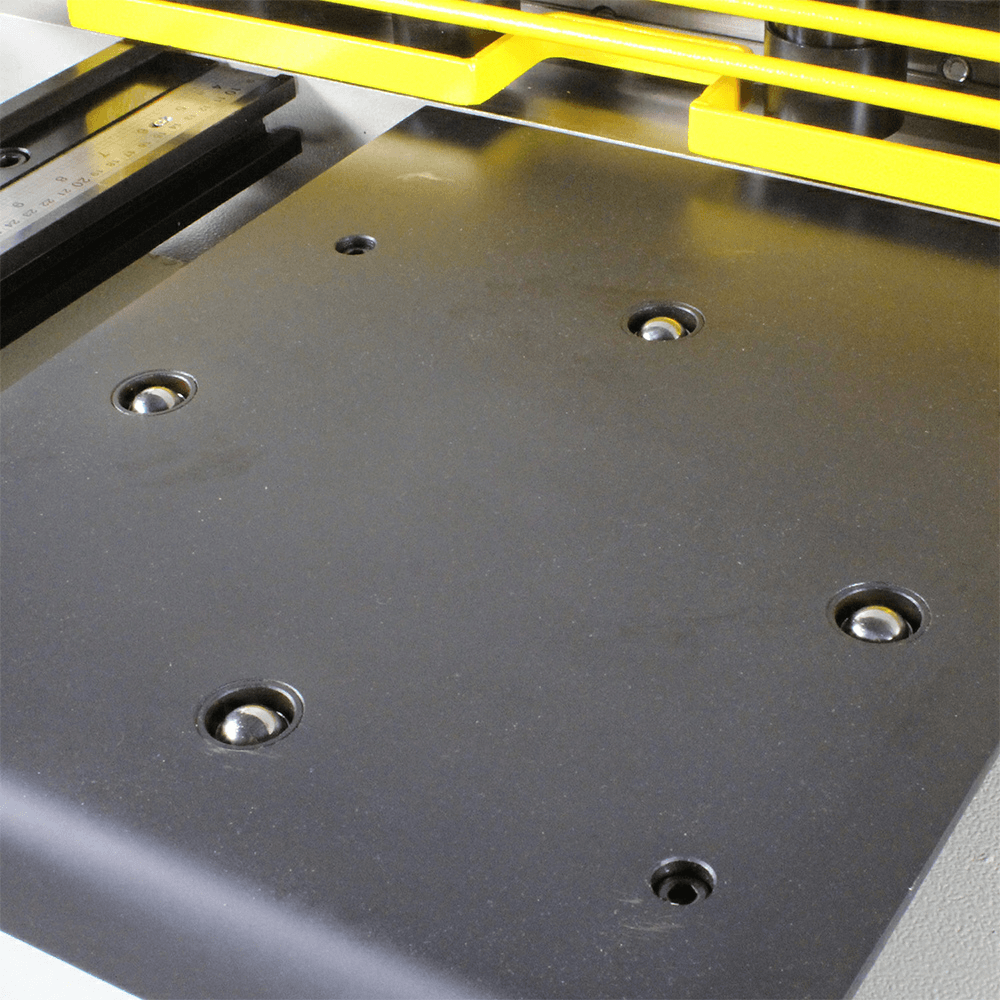

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy while the heavy-duty table with roller bars slides material into the machine more easily
• Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and Automatic cycling mode: Continuously cutting for production runs

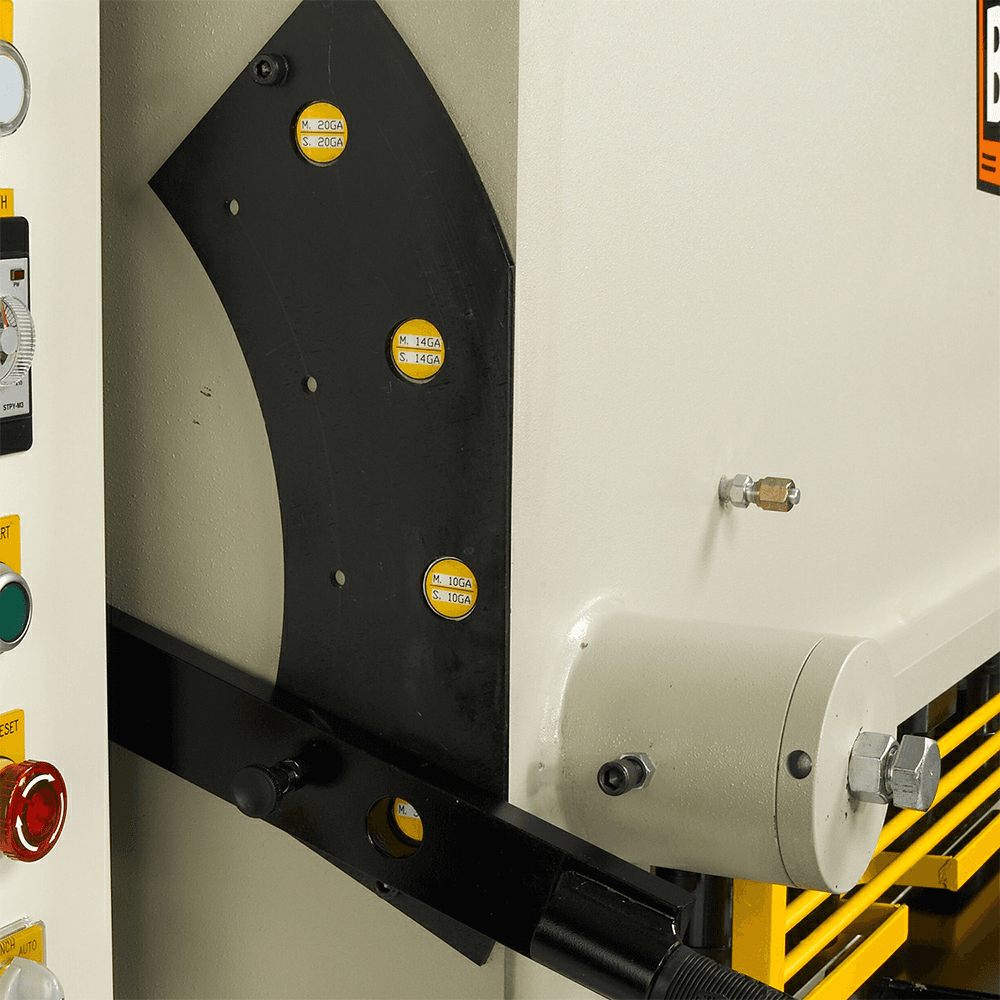

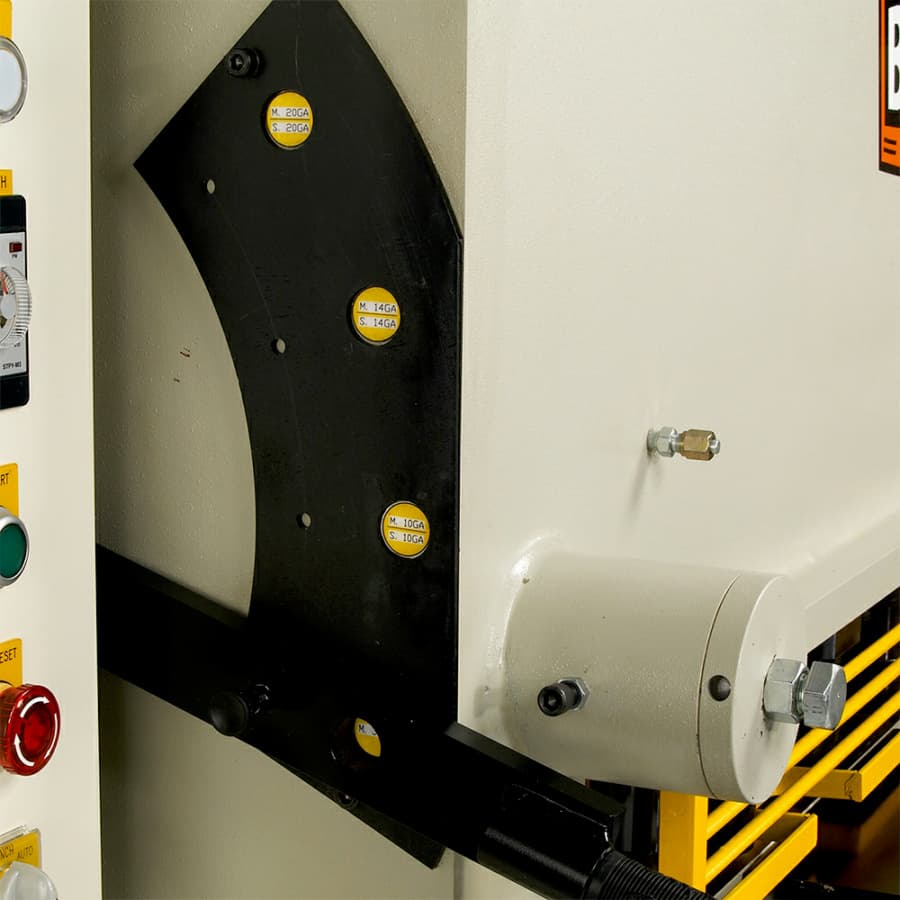

• Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics
• Convenient blade gap adjustment lets you eliminate folding and twisting and the SH-5210-HD comes standard with high carbon chromium blades

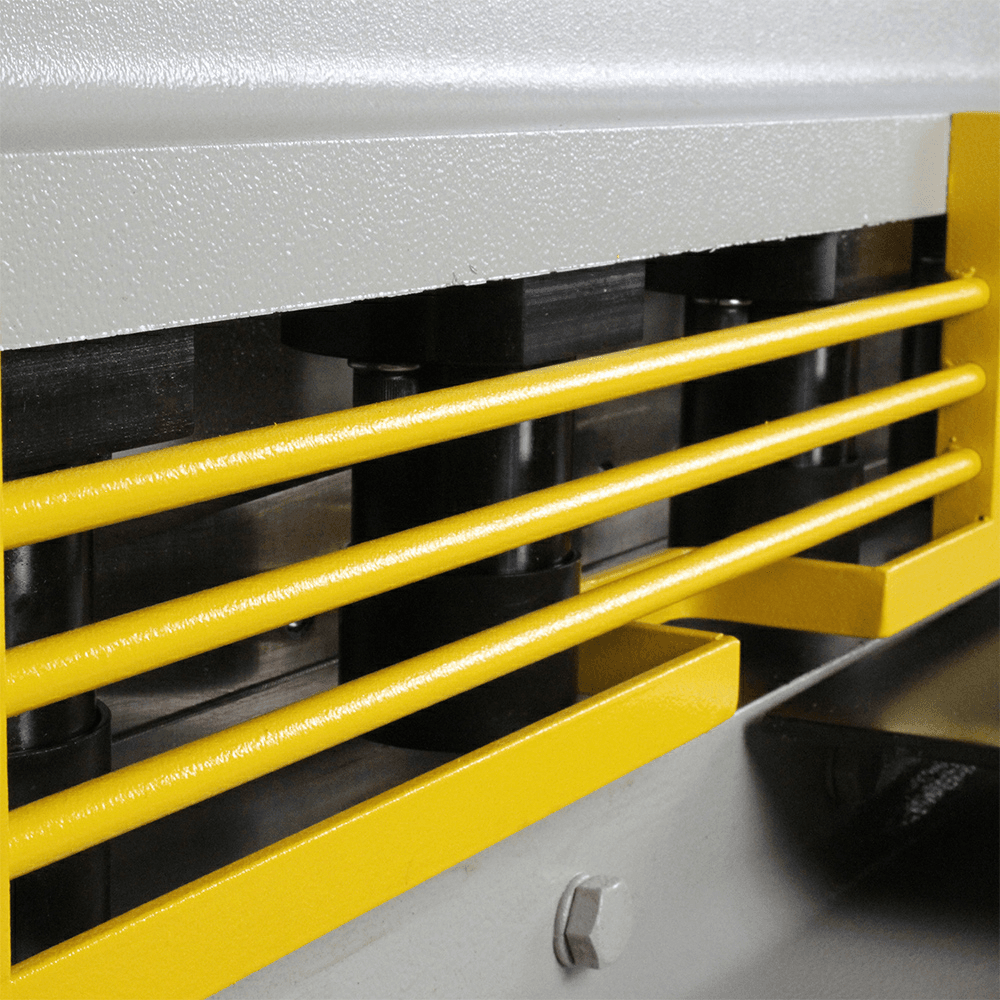

• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life

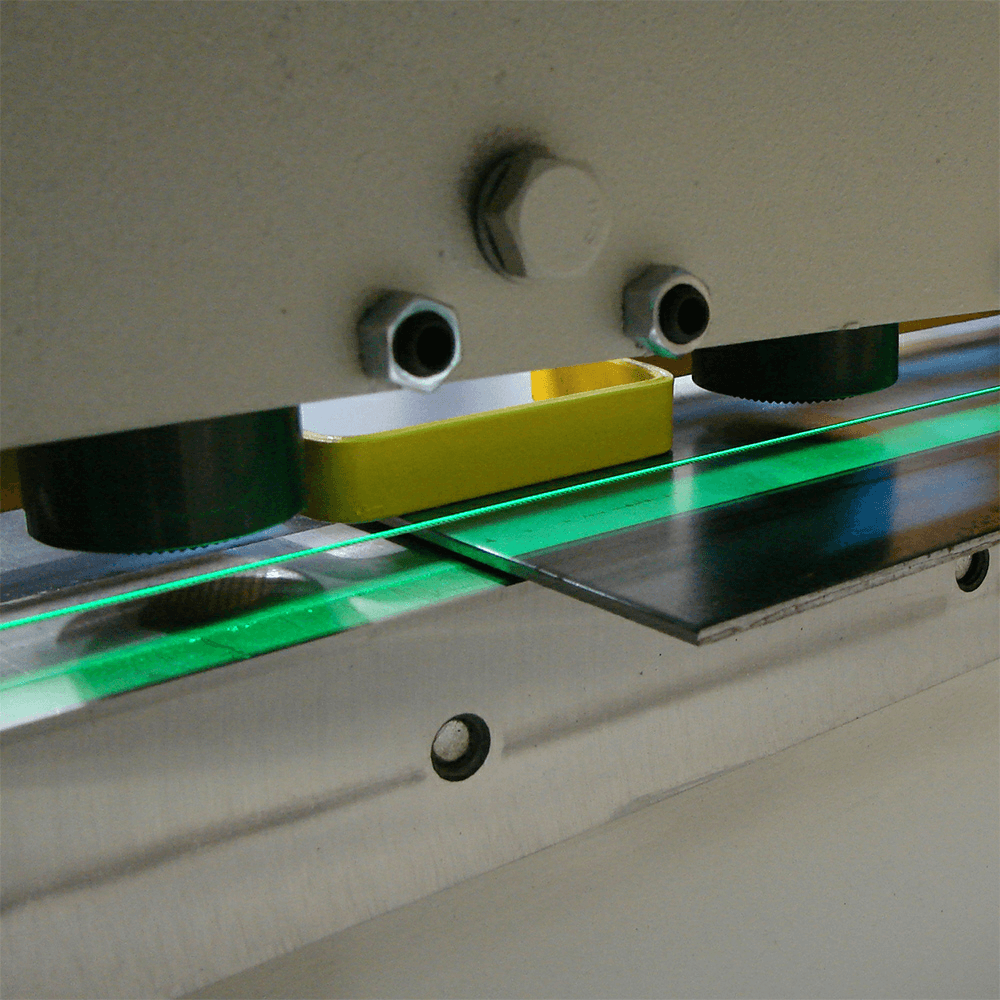

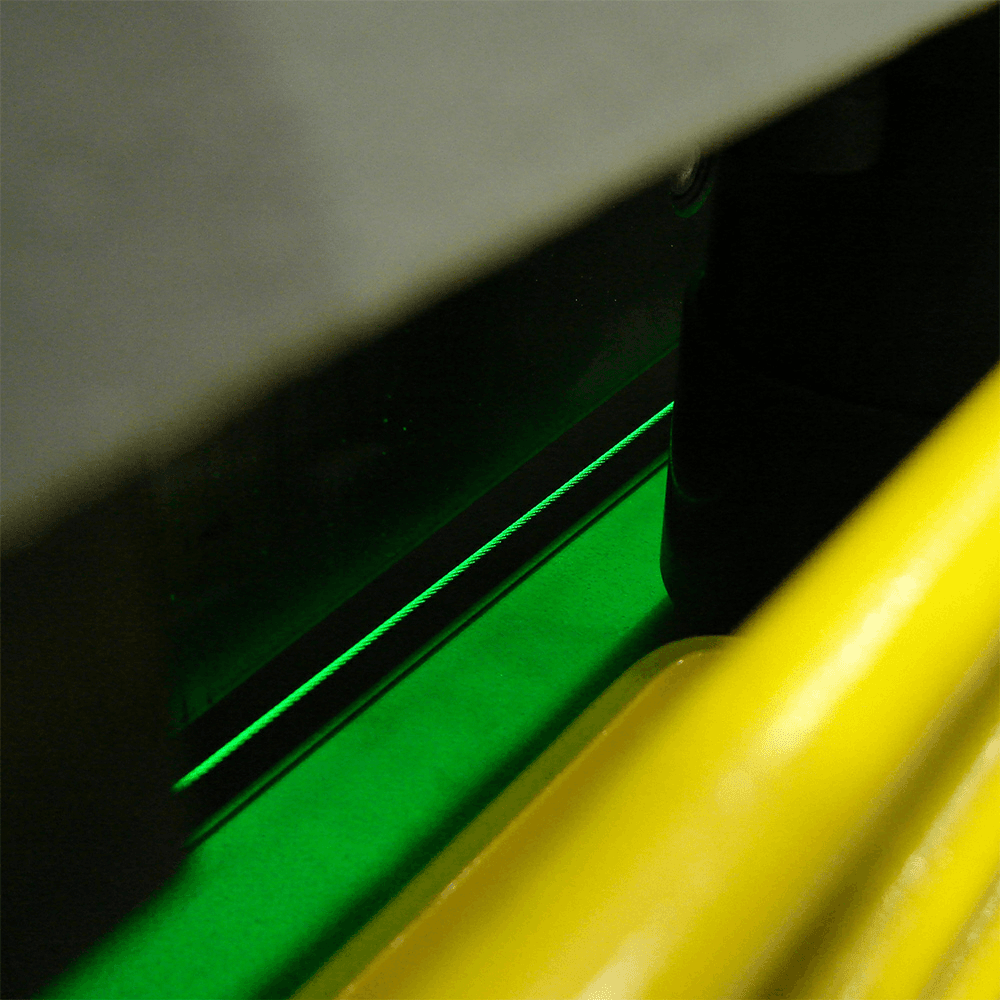

• Shadow line creates a reference line on the material so you know exactly where the cut will be while the 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money
