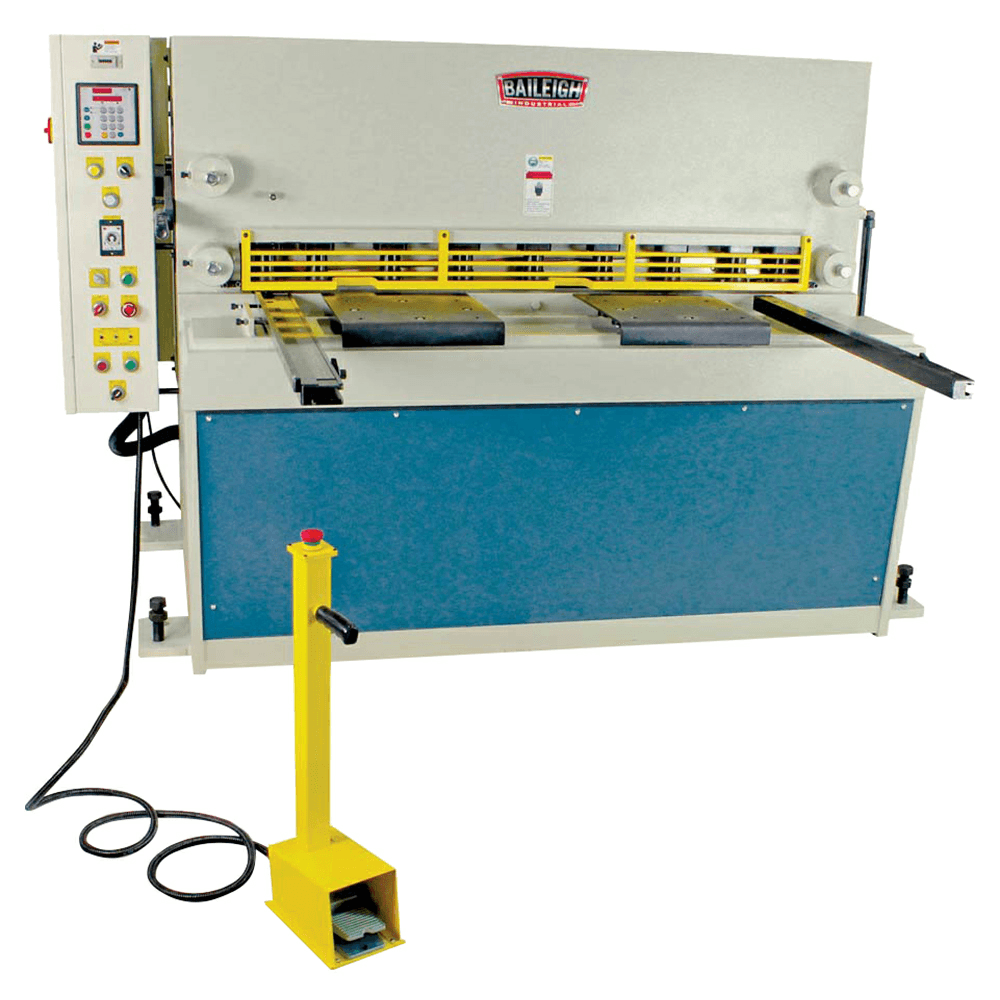

Baileigh SH-5203-HD-NC Heavy Duty Metal Cutting Shear, 3 Phase/220V

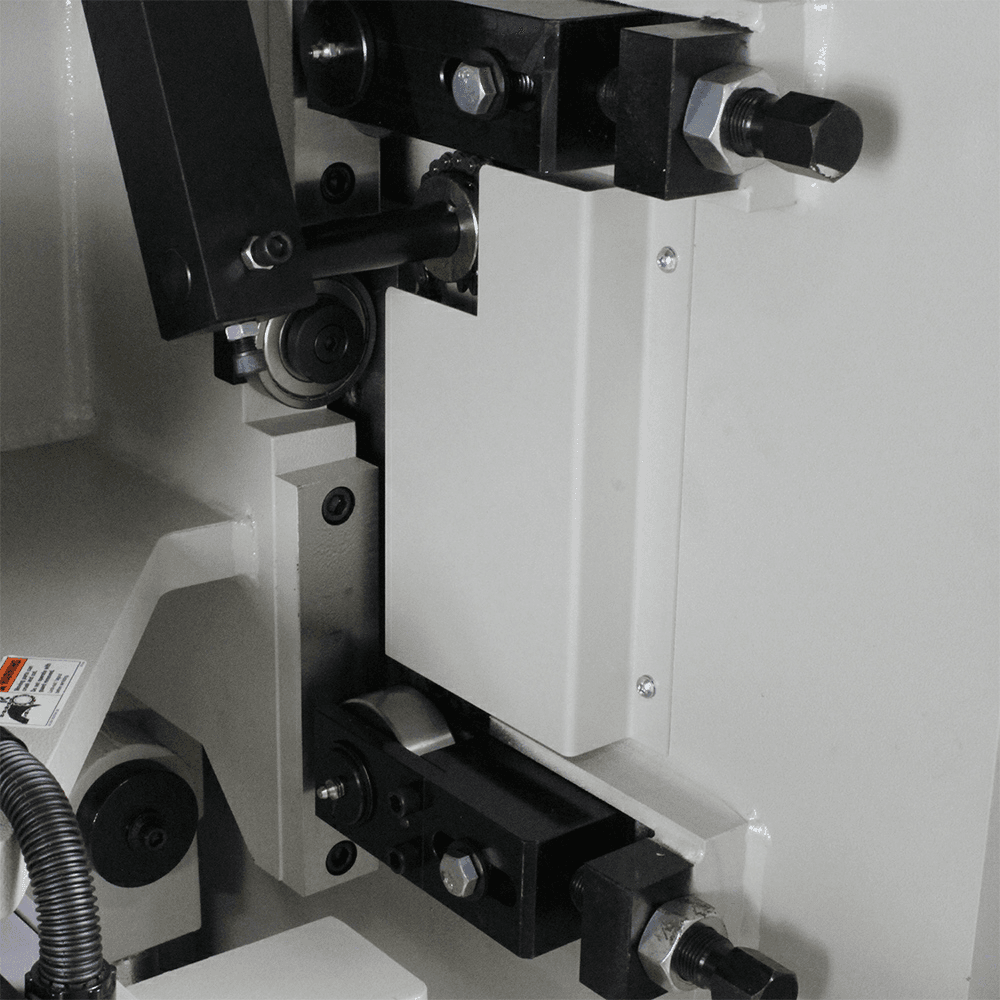

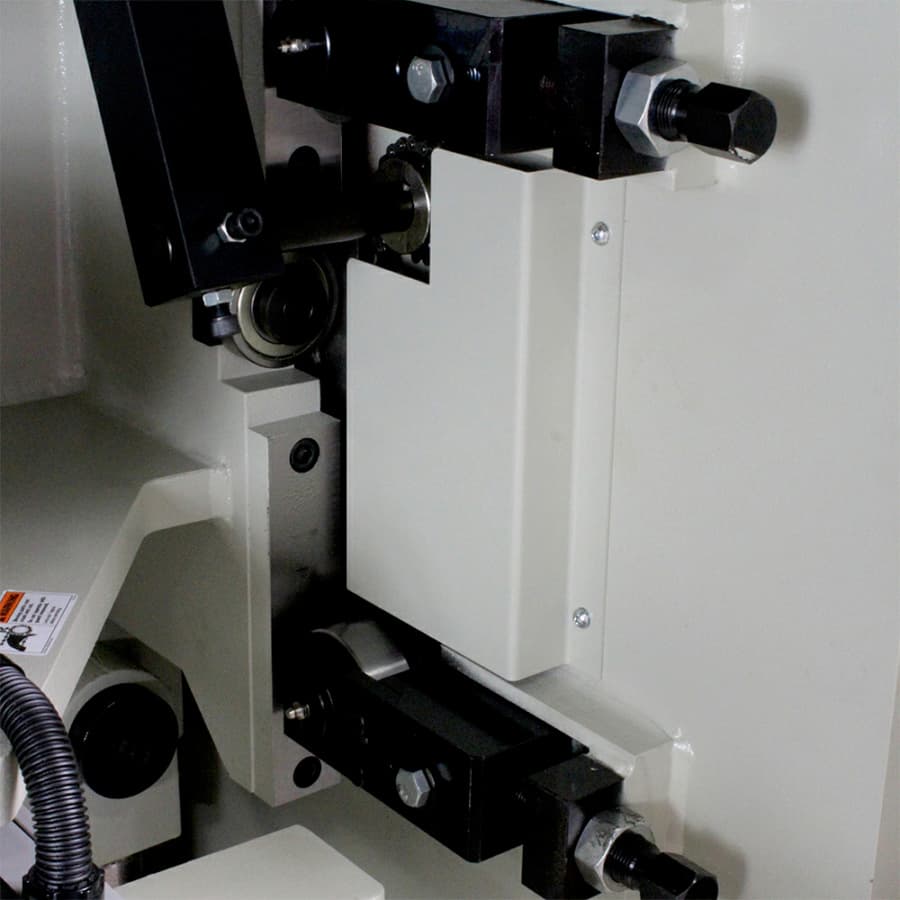

The Baileigh Industrial SH-5203-HD-NC is a heavy-duty hydraulic shear that is built for years of heavy cutting production requirements. This hydraulic shear can cut 52" wide sheet metal with a thickness up to 1/4" thick. The SH-5203-HD-NC sheet metal shearing machine comes standard with an upper blade carriage that rides in a 3-axis bearing housing that runs on a heavy-duty precision ground and hardened rail system for unbeatable accuracy and longevity of blade life. The Baileigh Industrial SH-5203-HD-NC heavy duty hydraulic shear is typically in stock for quick turn-around. For further information on our metal cutting shears, please feel free to contact a representative.

Features:

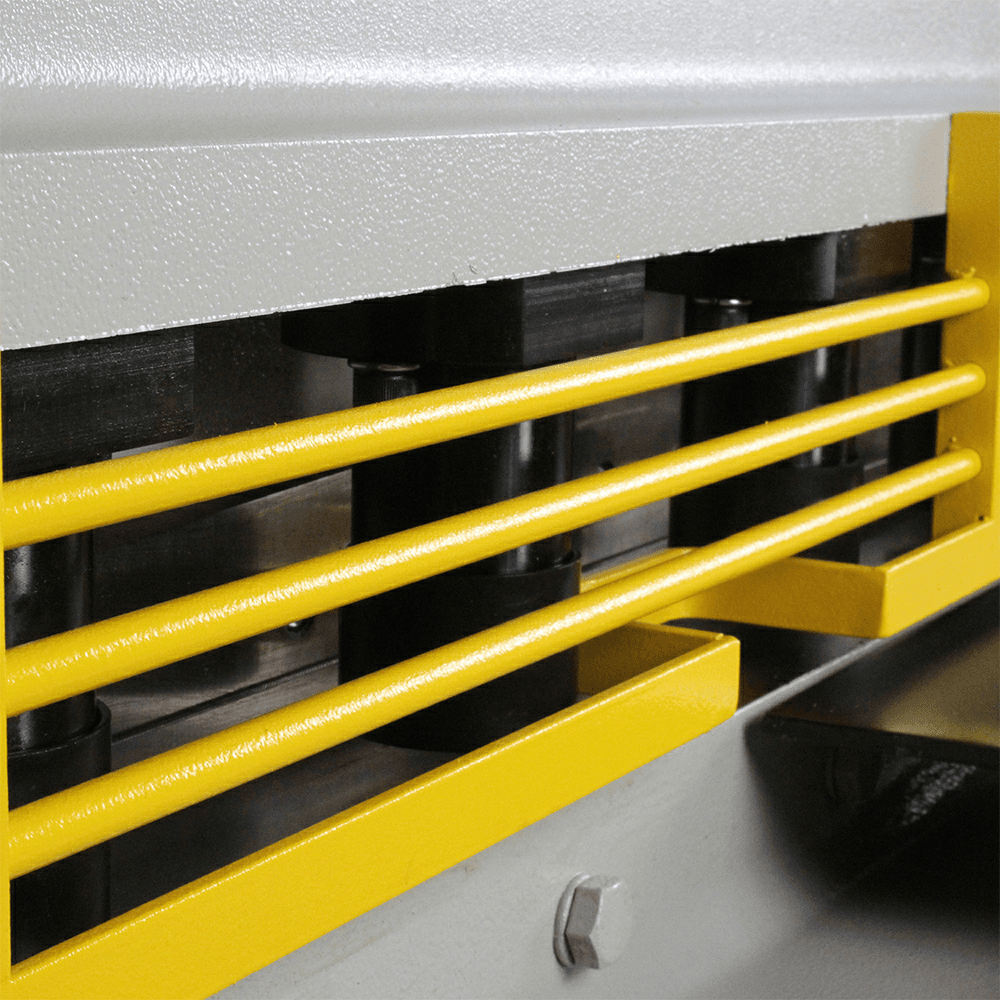

• Eight hydraulic hold downs providing 3.2 tons of pressure each, ensure the sheet of metal doesn't lift while being sheared to the required length

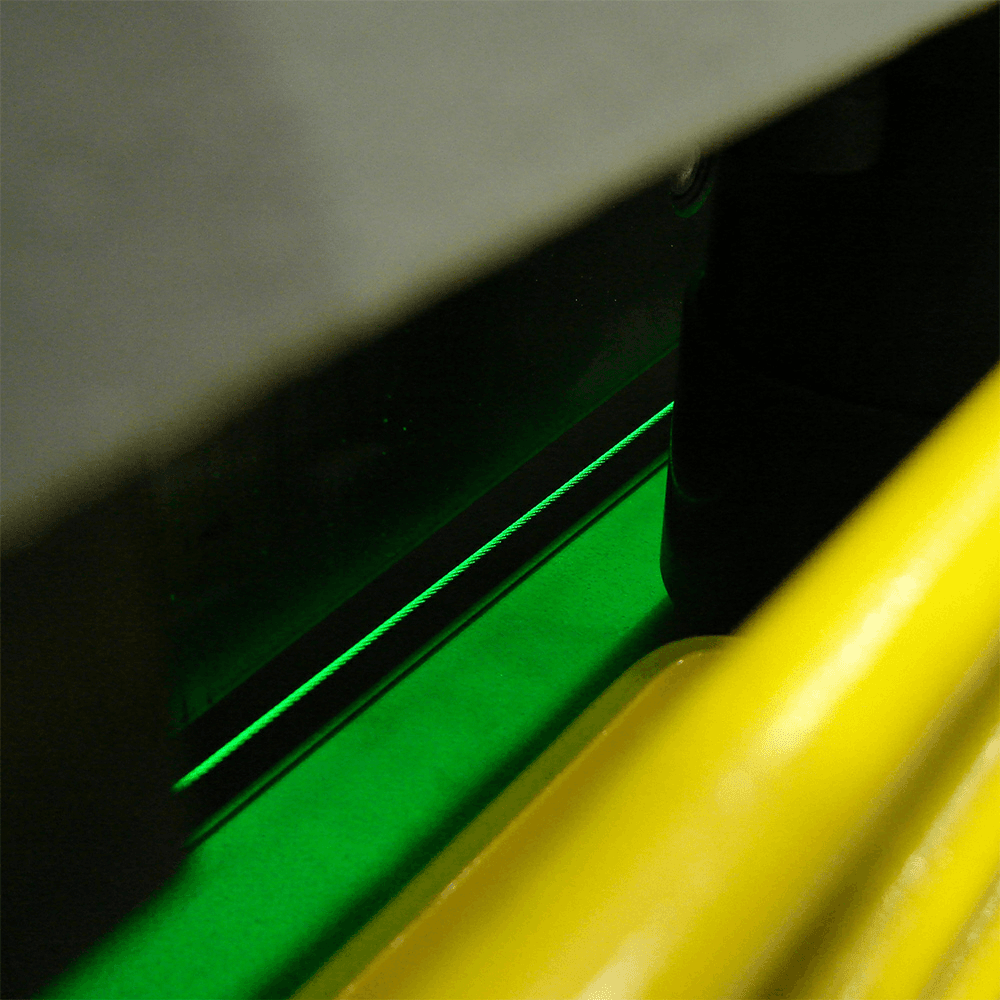

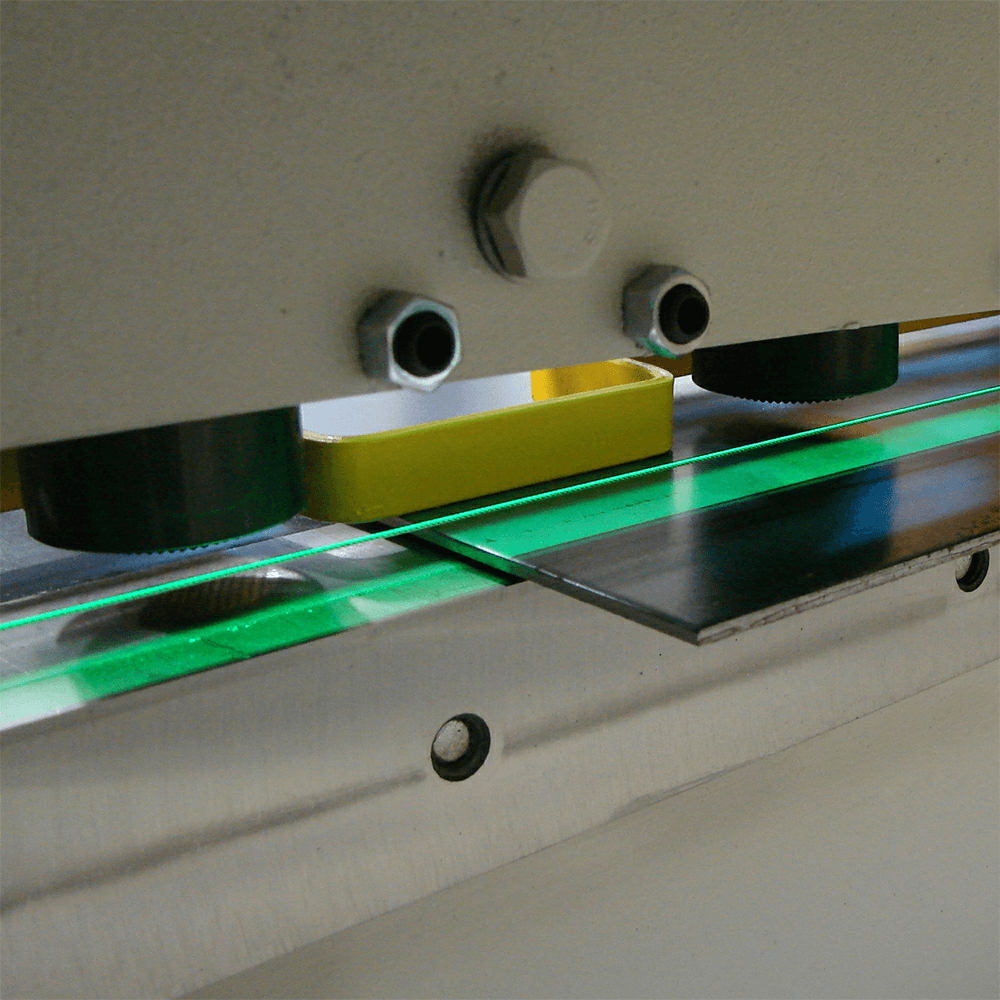

• Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements

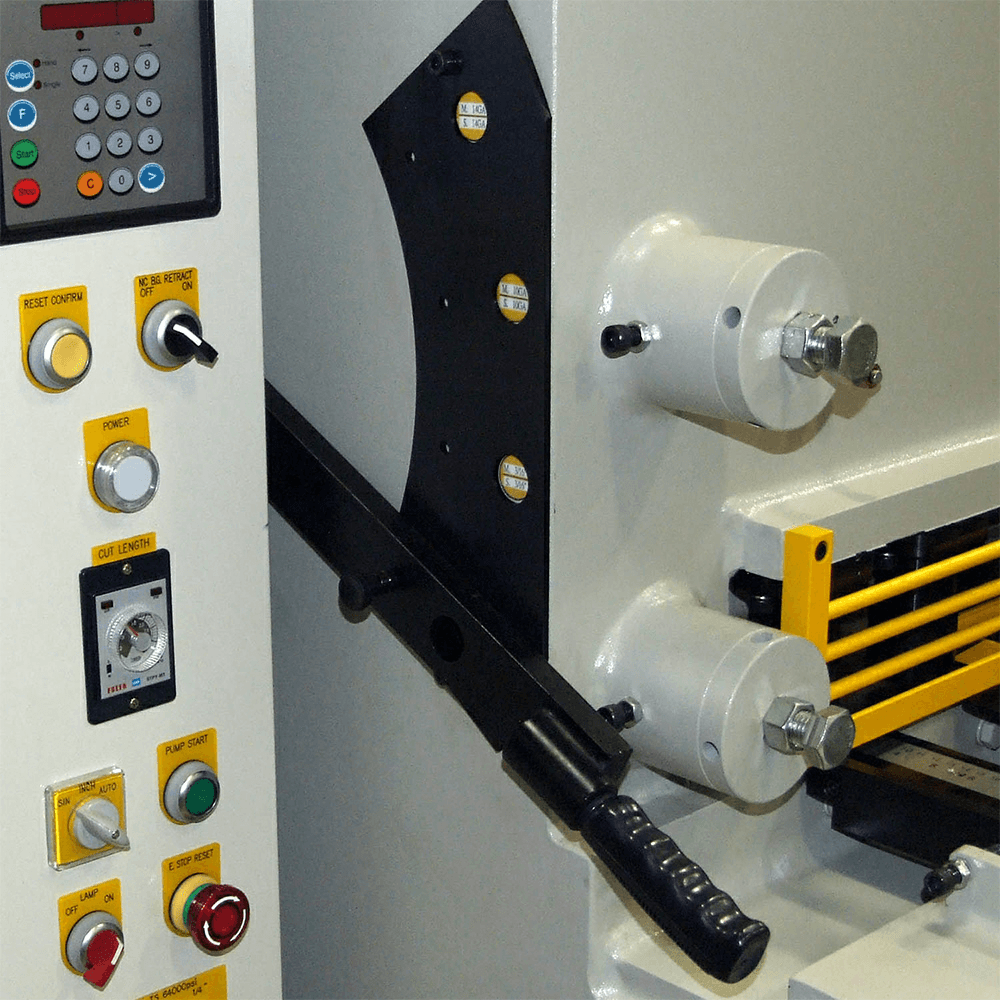

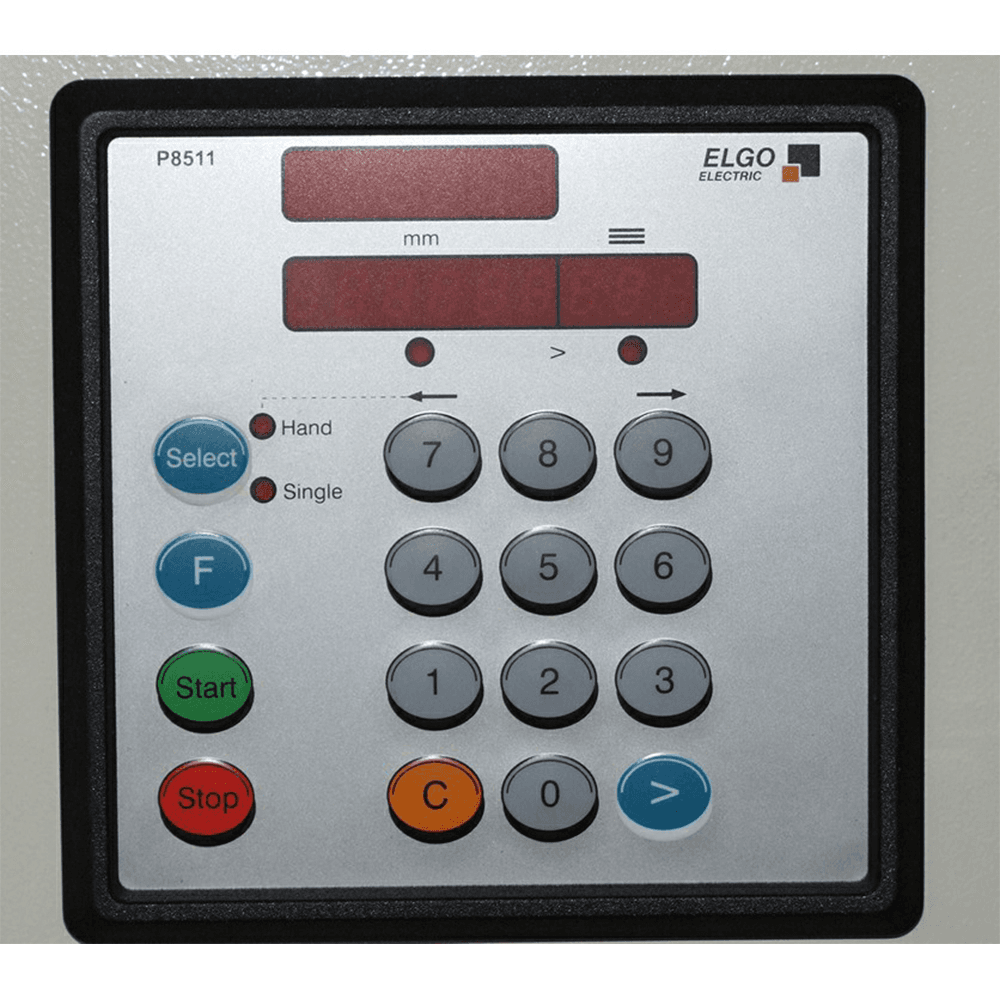

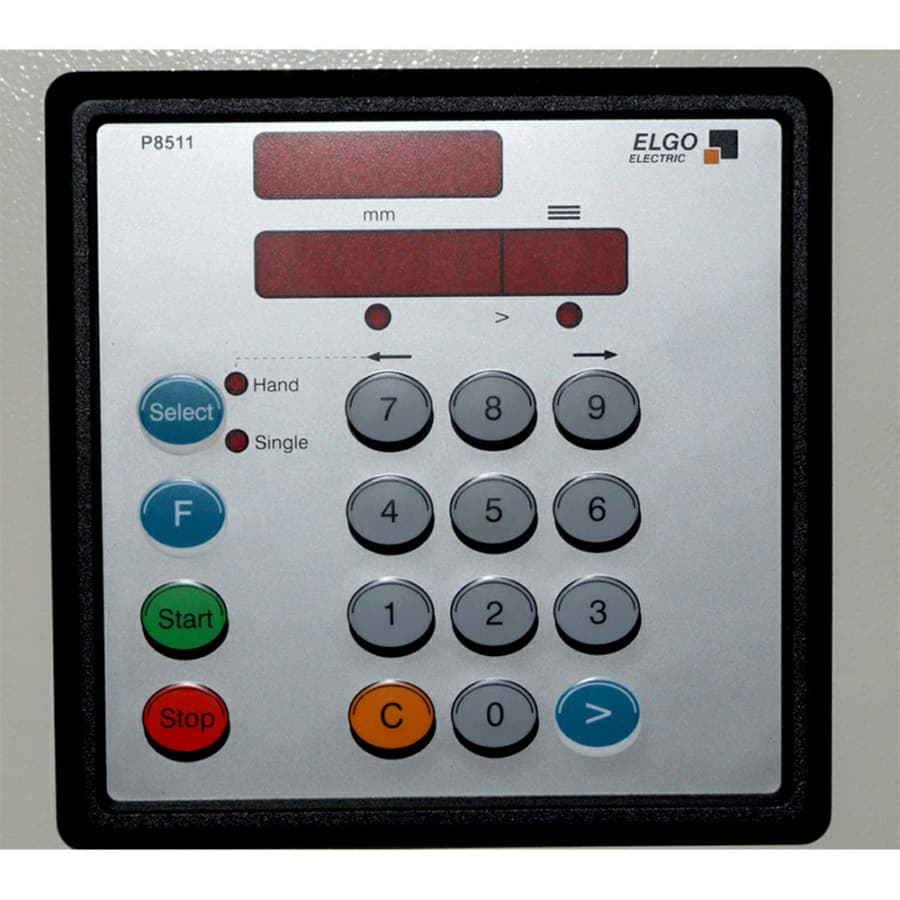

• Heavy-duty hydraulic shear comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the back gauge, and production counter
• Shears blade gap can be altered by a simple handle adjustment in seconds when changing material thicknesses
• High carbon chromium blades that have several edges, so as the blades wear, they can be flipped several times before re-sharpening is required
• Simple remote operator controls pendant house an E-Stop button and foot pedal controls
• The framework uses plate steel that is fully welded to increase stability and reduce vibration

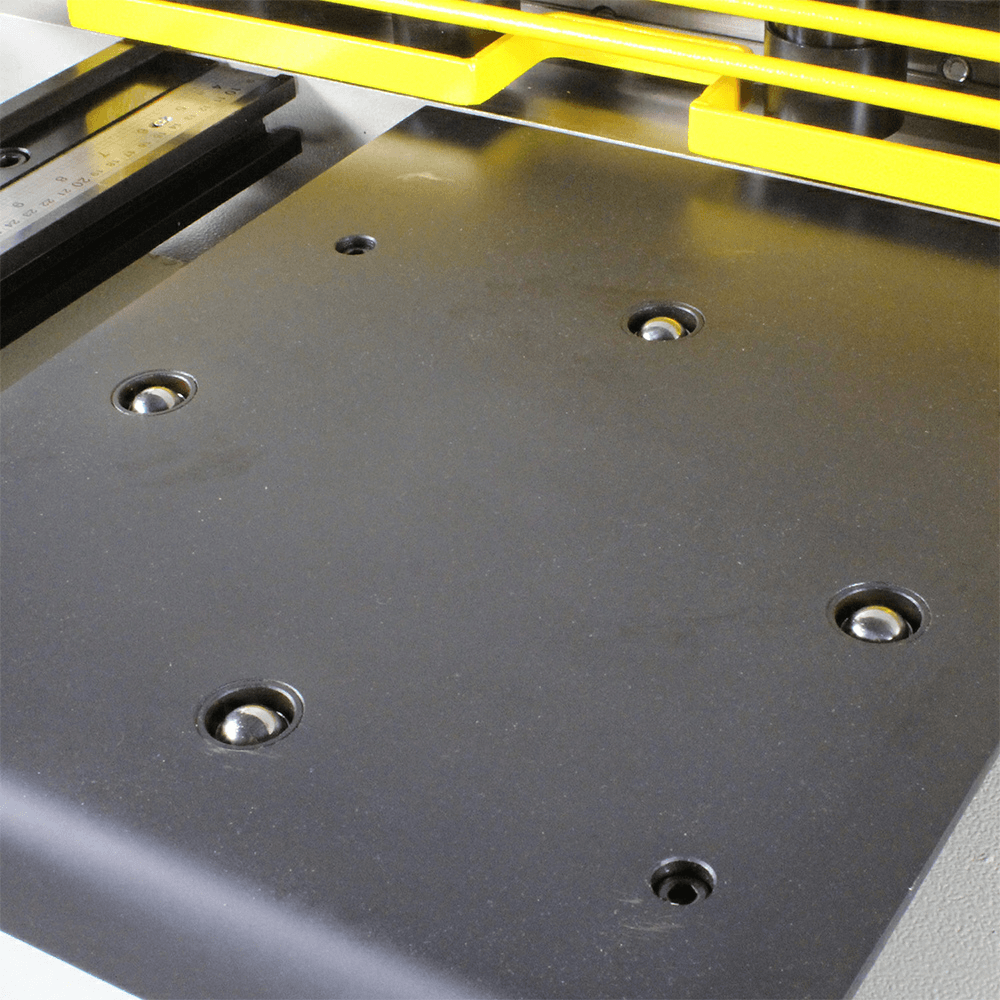

• Metal Cutting Shear includes front and rear product supports, a roller in feed table, and side guides to easily maneuver the plate steel for the next cut

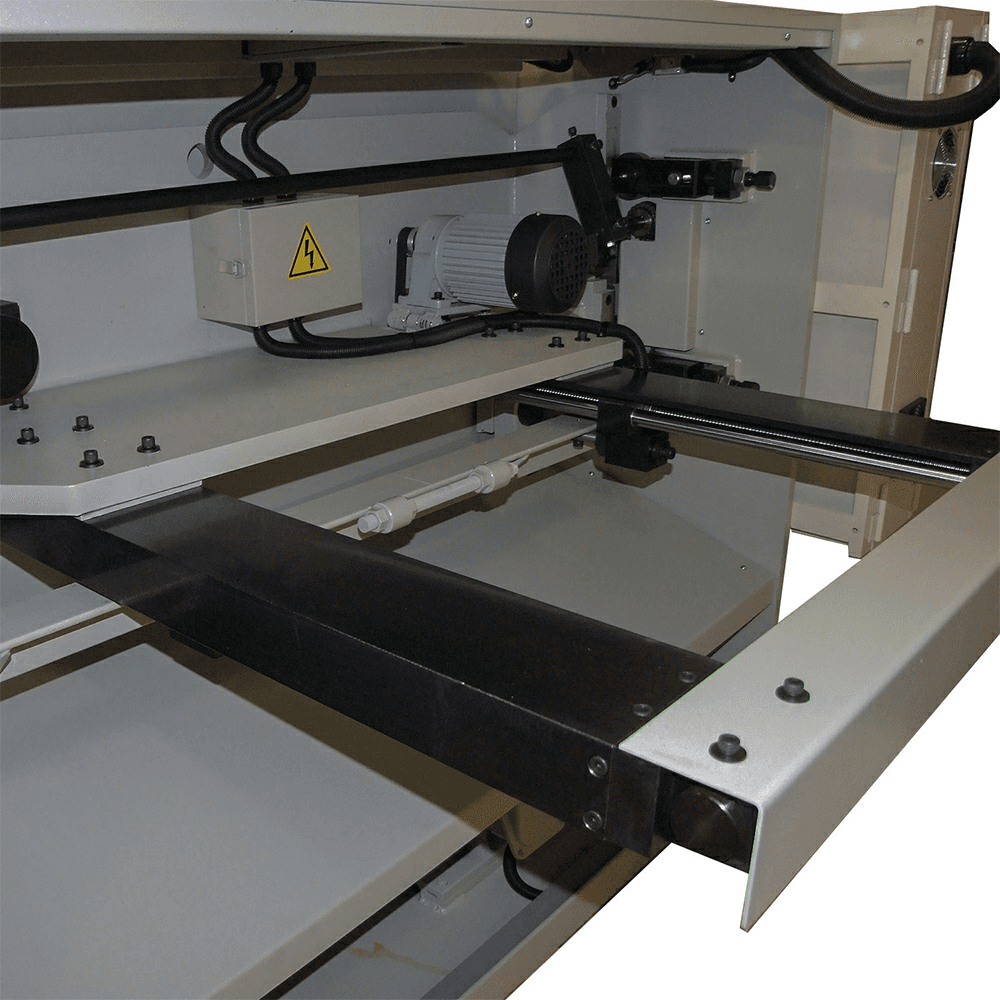

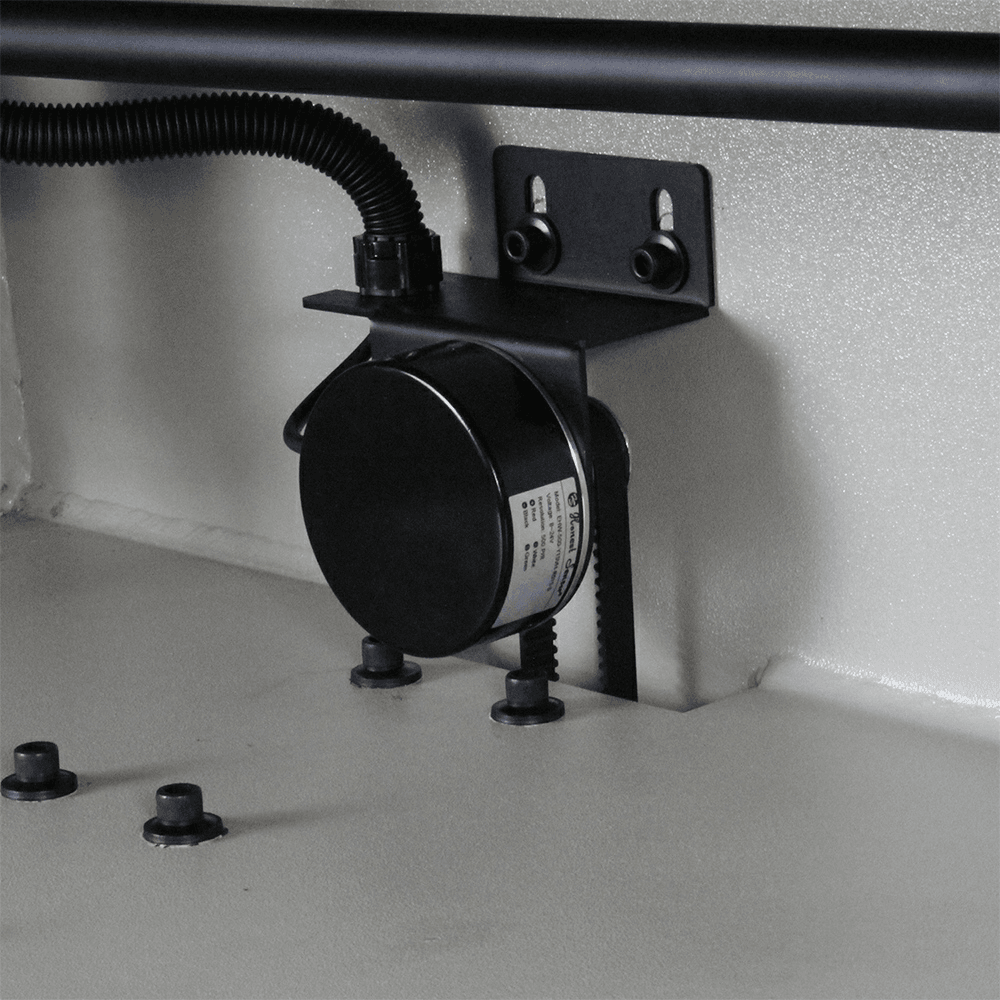

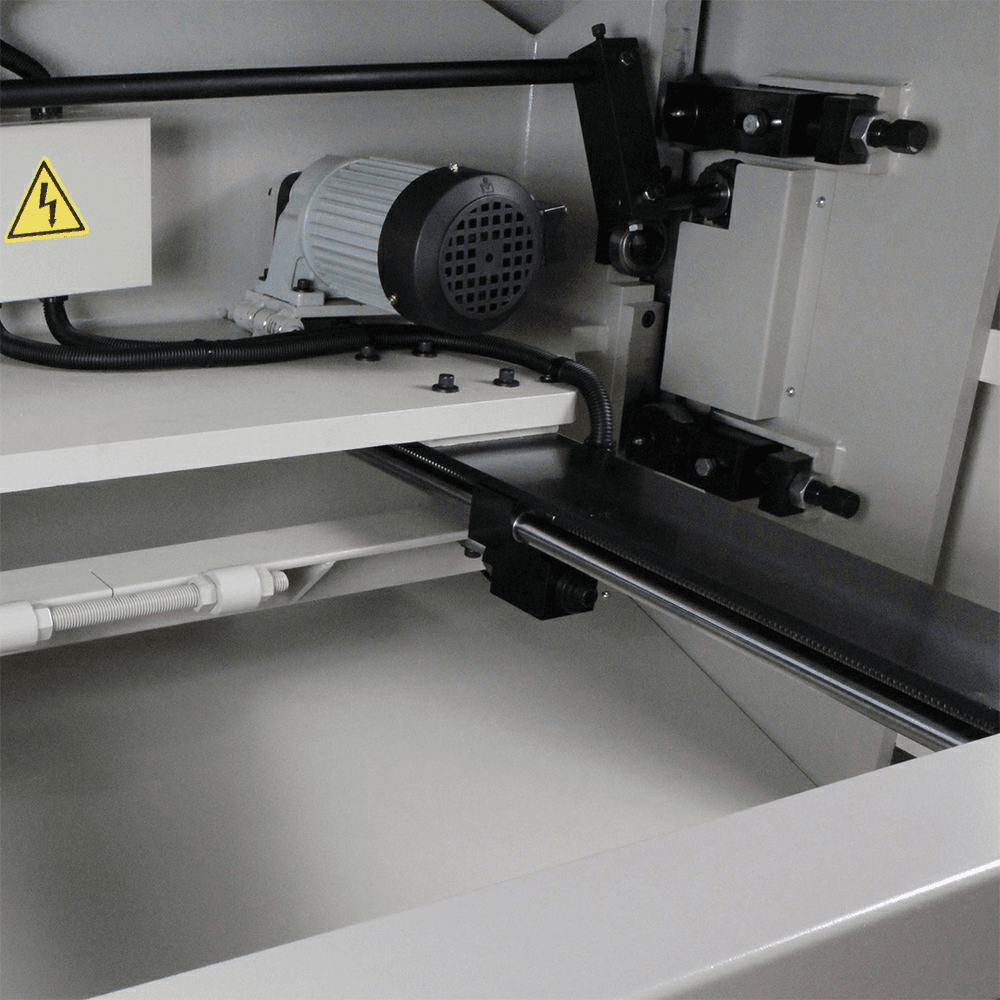

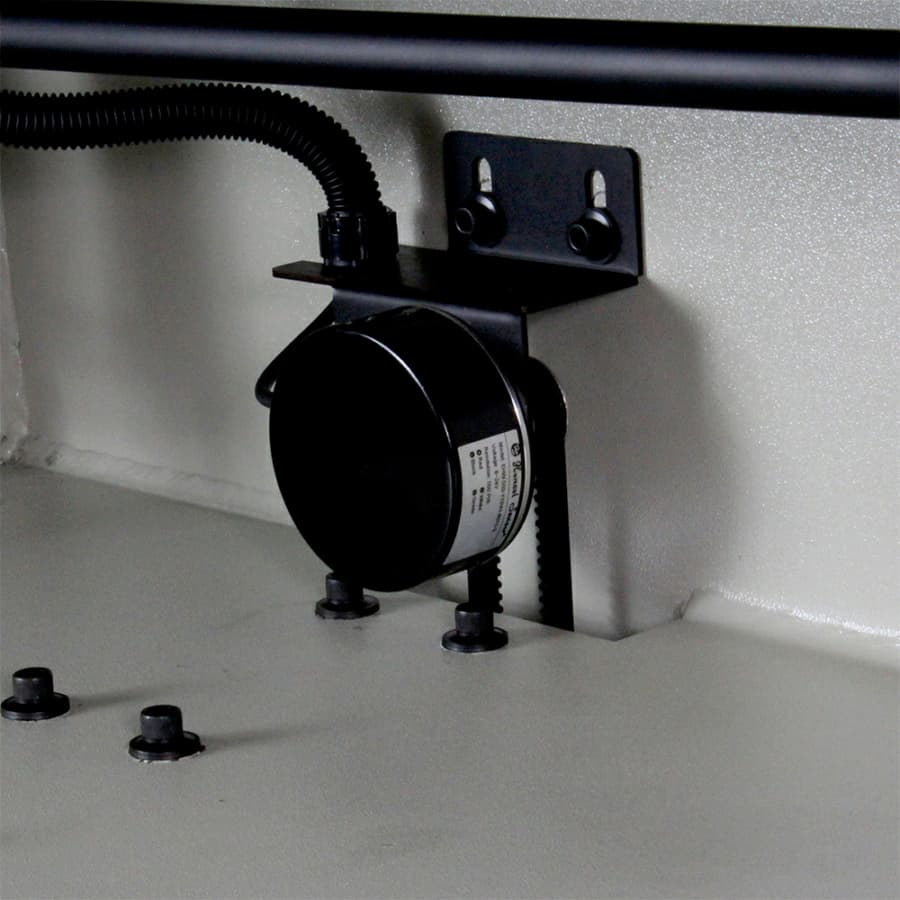

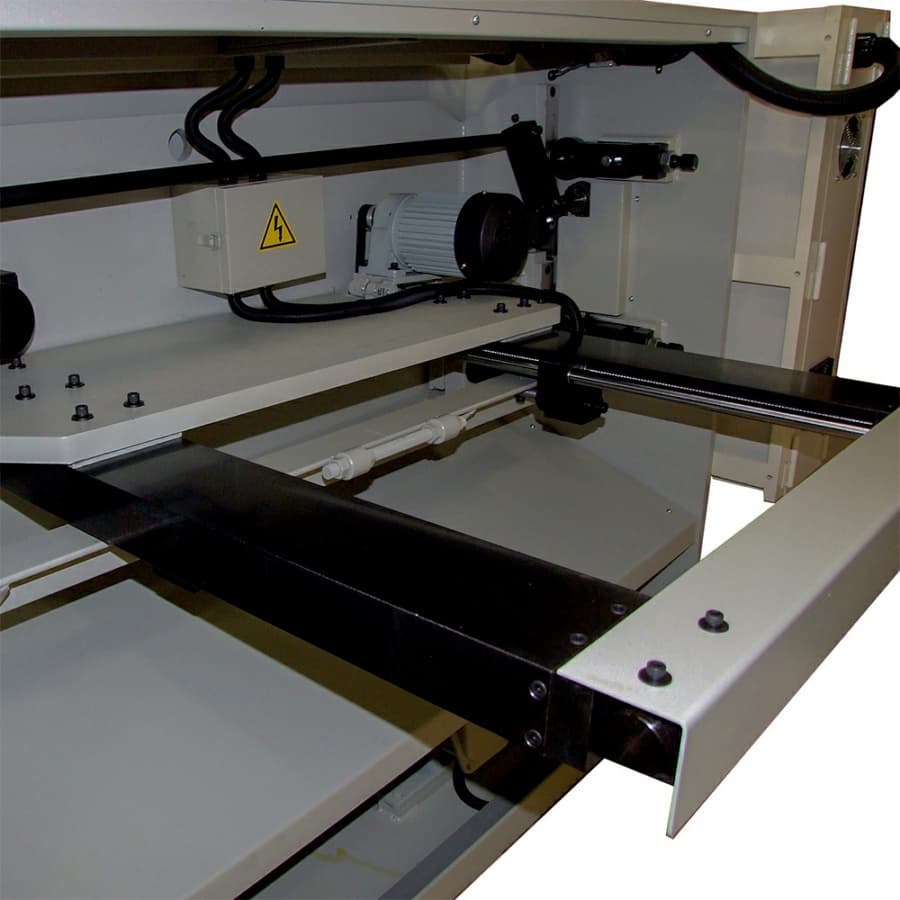

• Programmable quick change back gauge rides on a screw ball rail system that has a positioning encoder for accuracy
