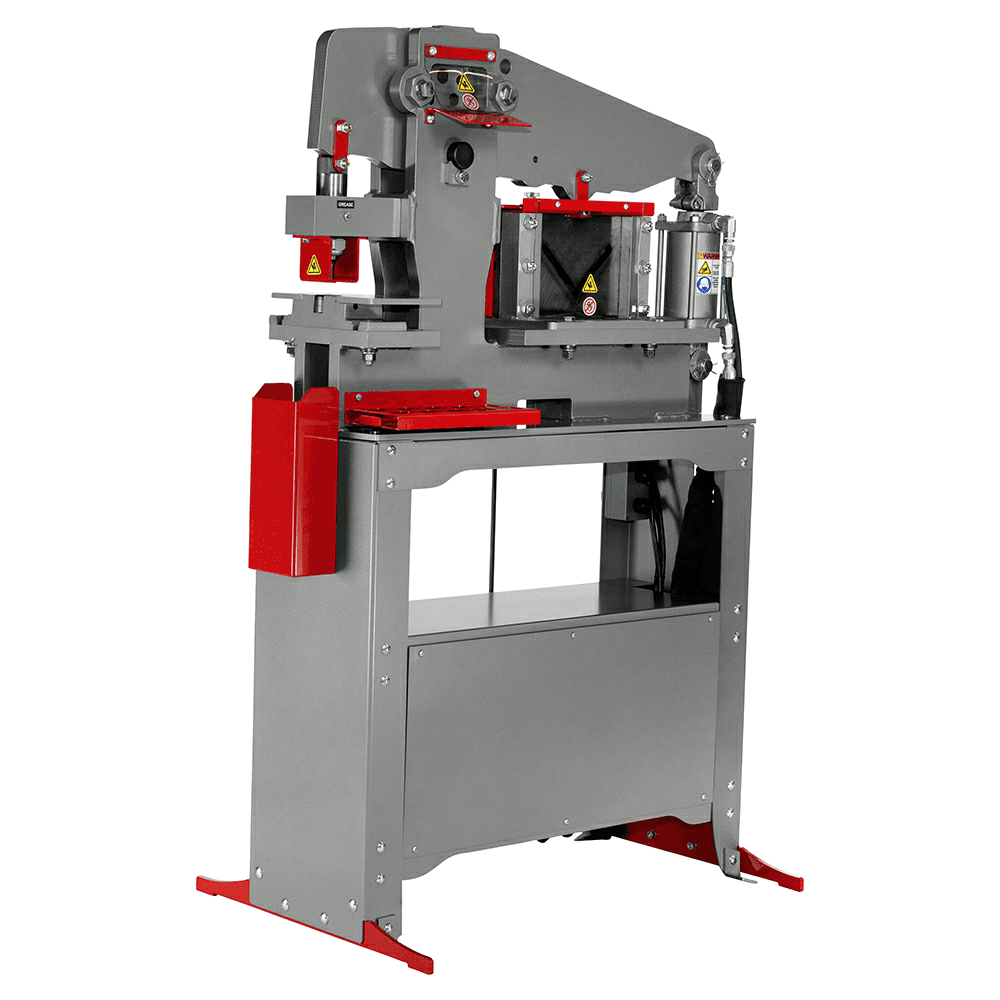

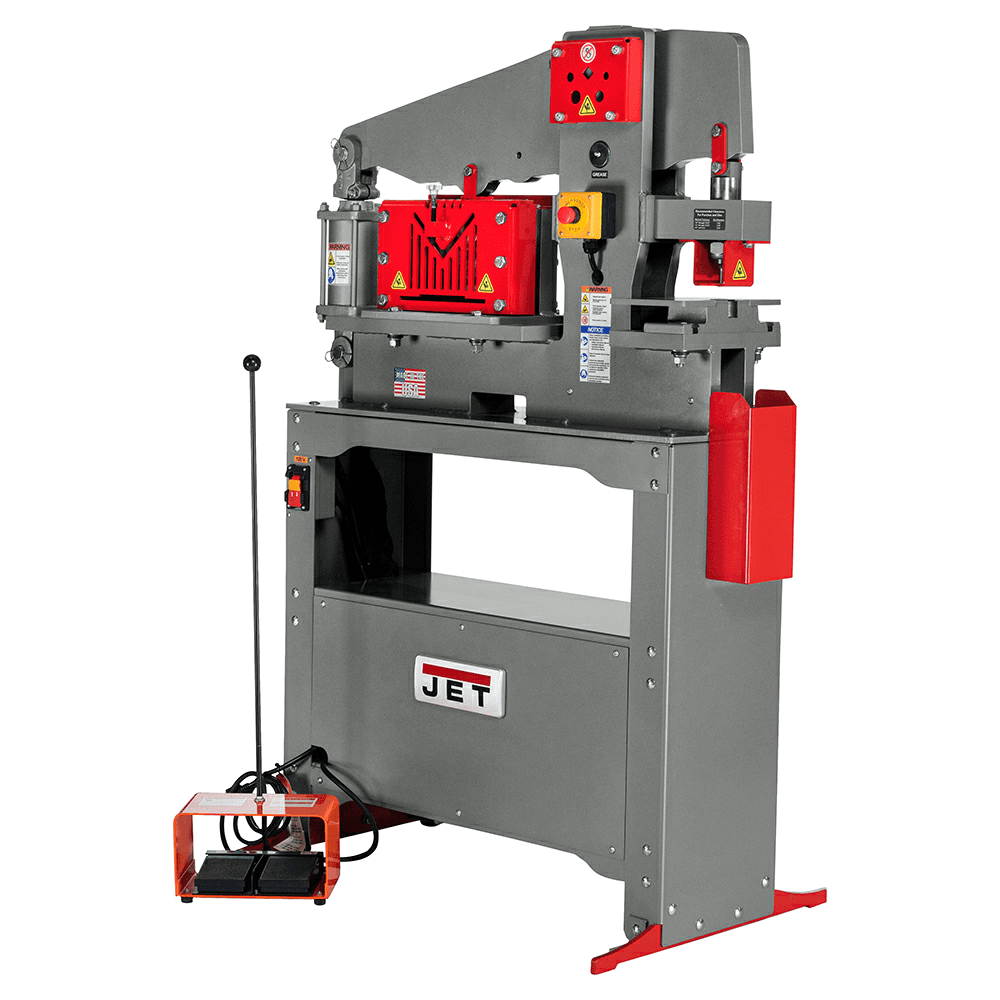

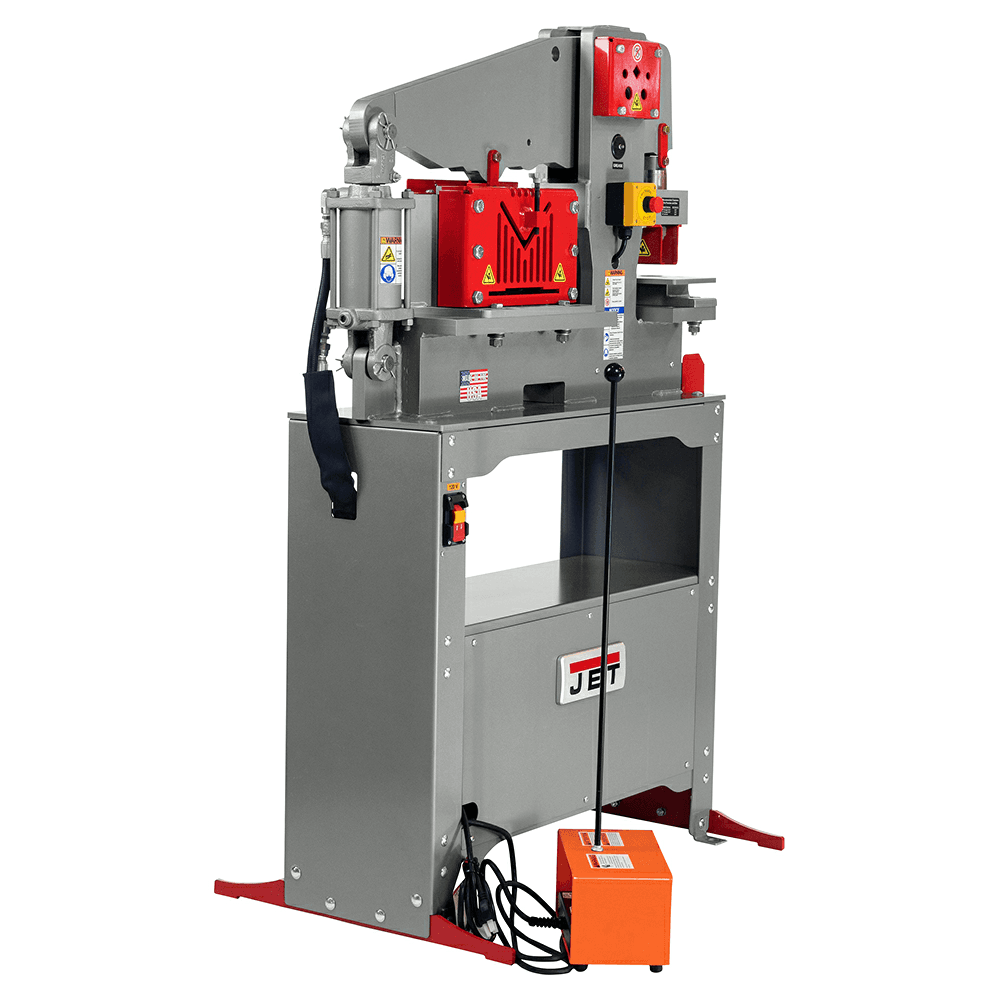

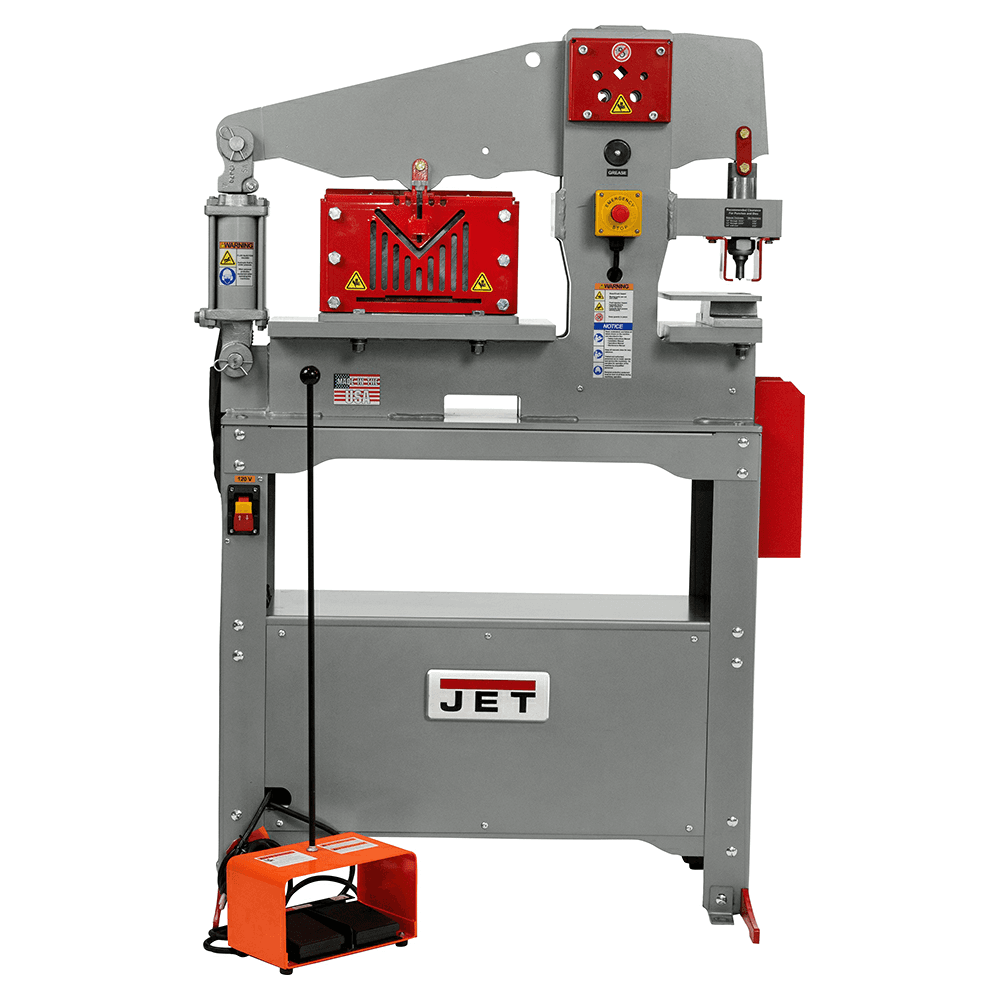

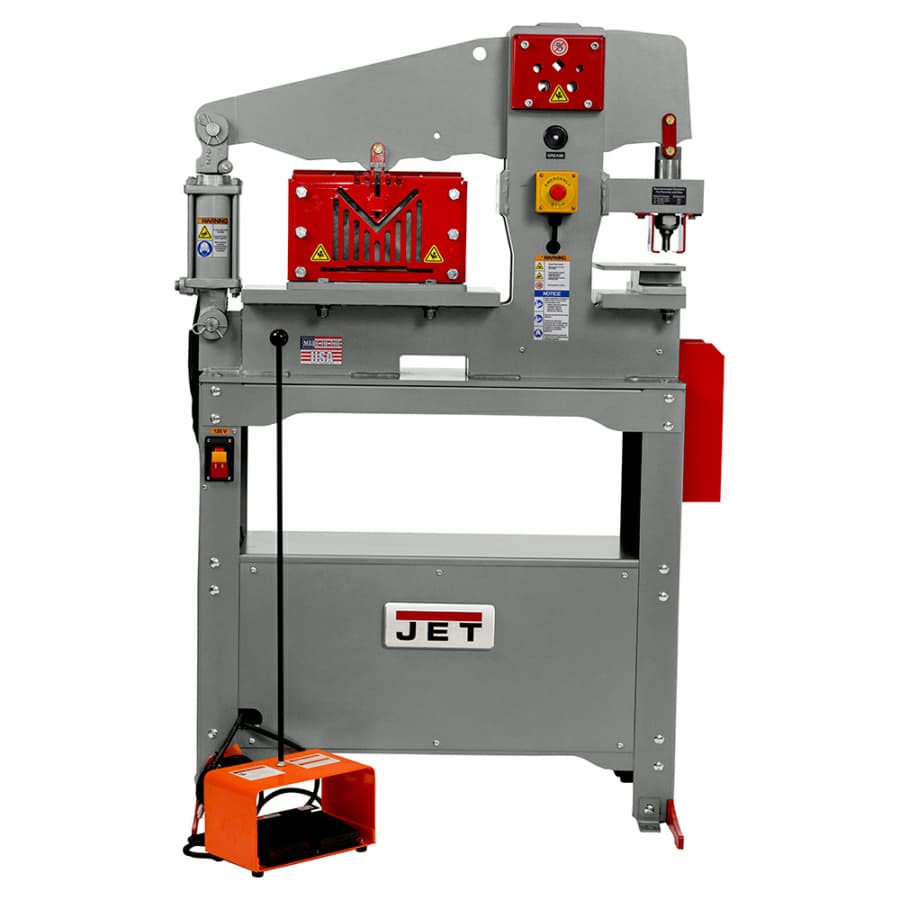

Jet Tools JIW-45T 1 1/2 HP 45 Ton Ironworker, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details

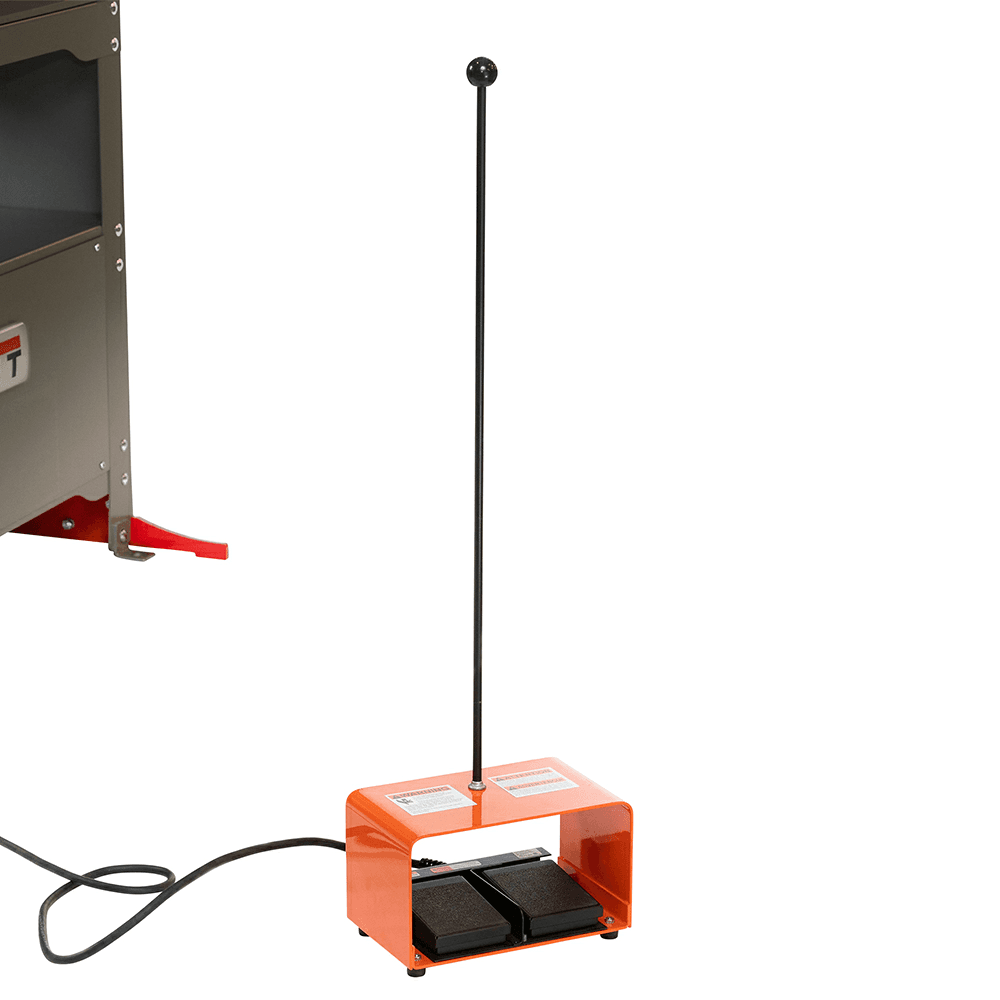

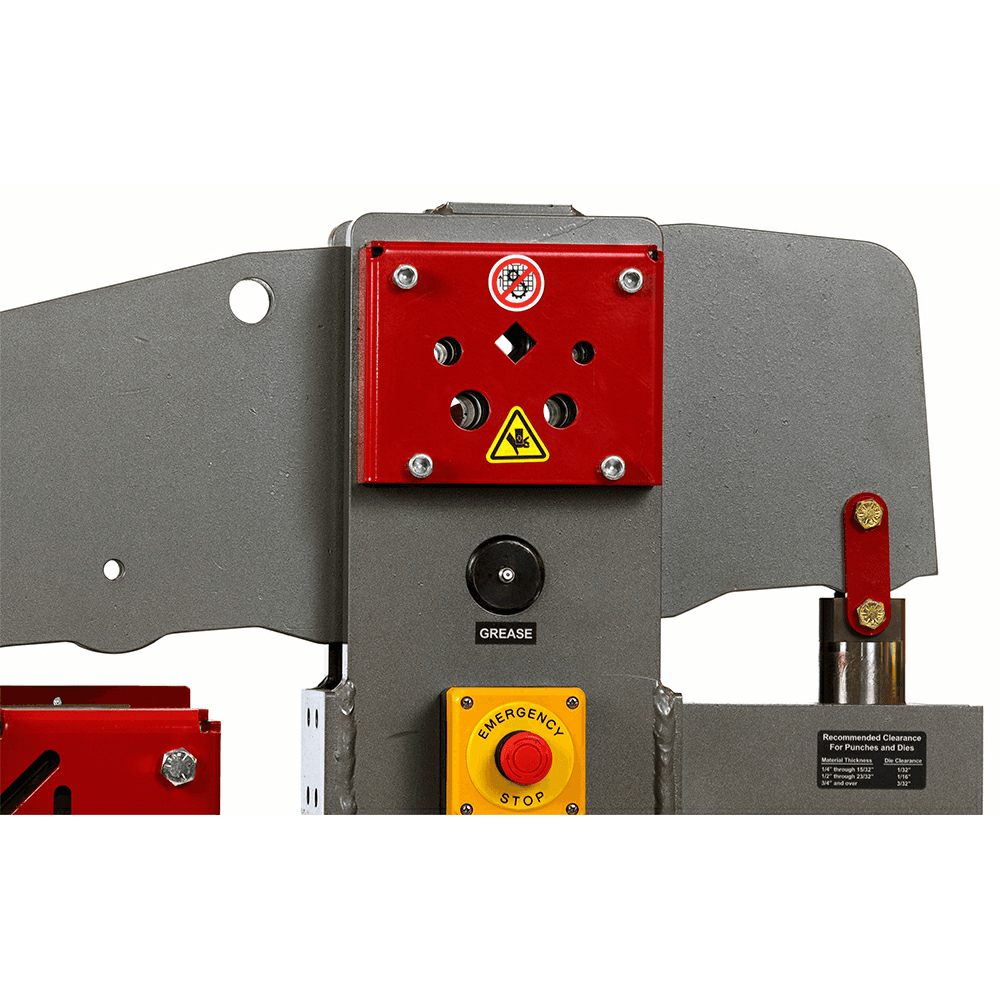

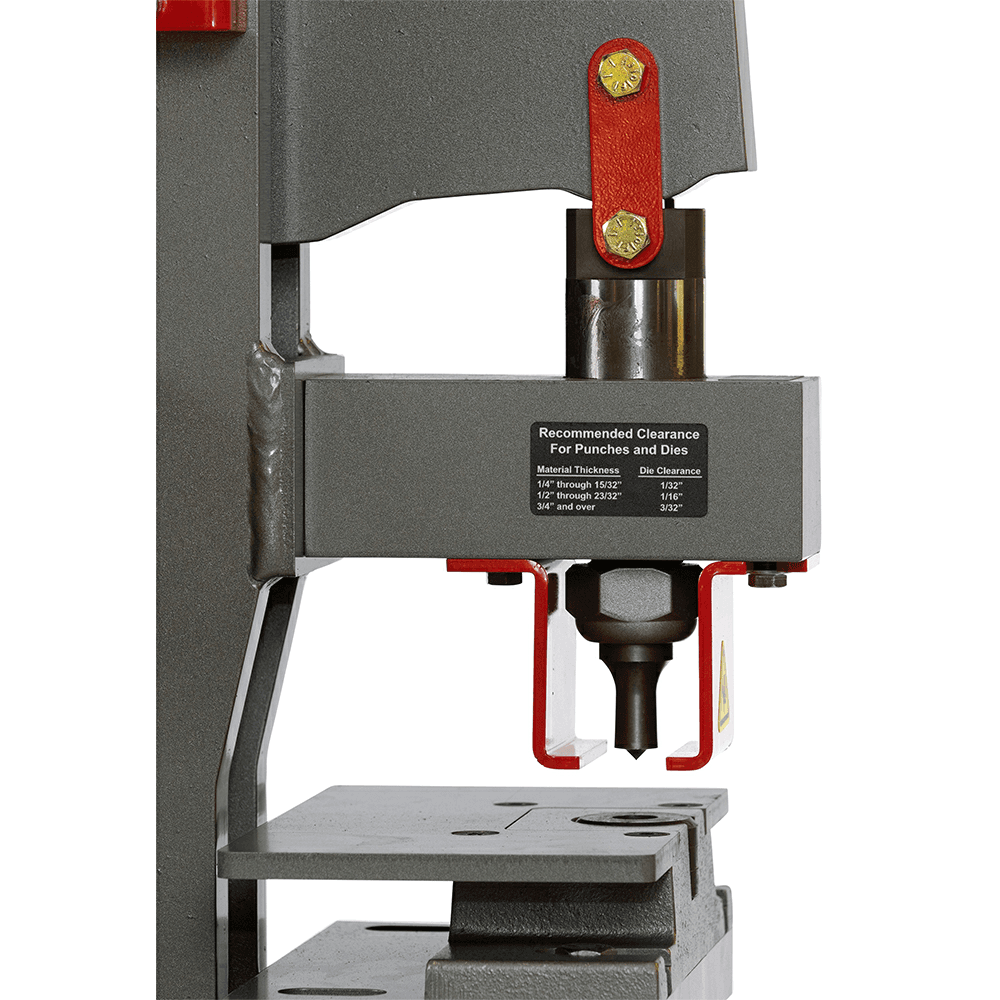

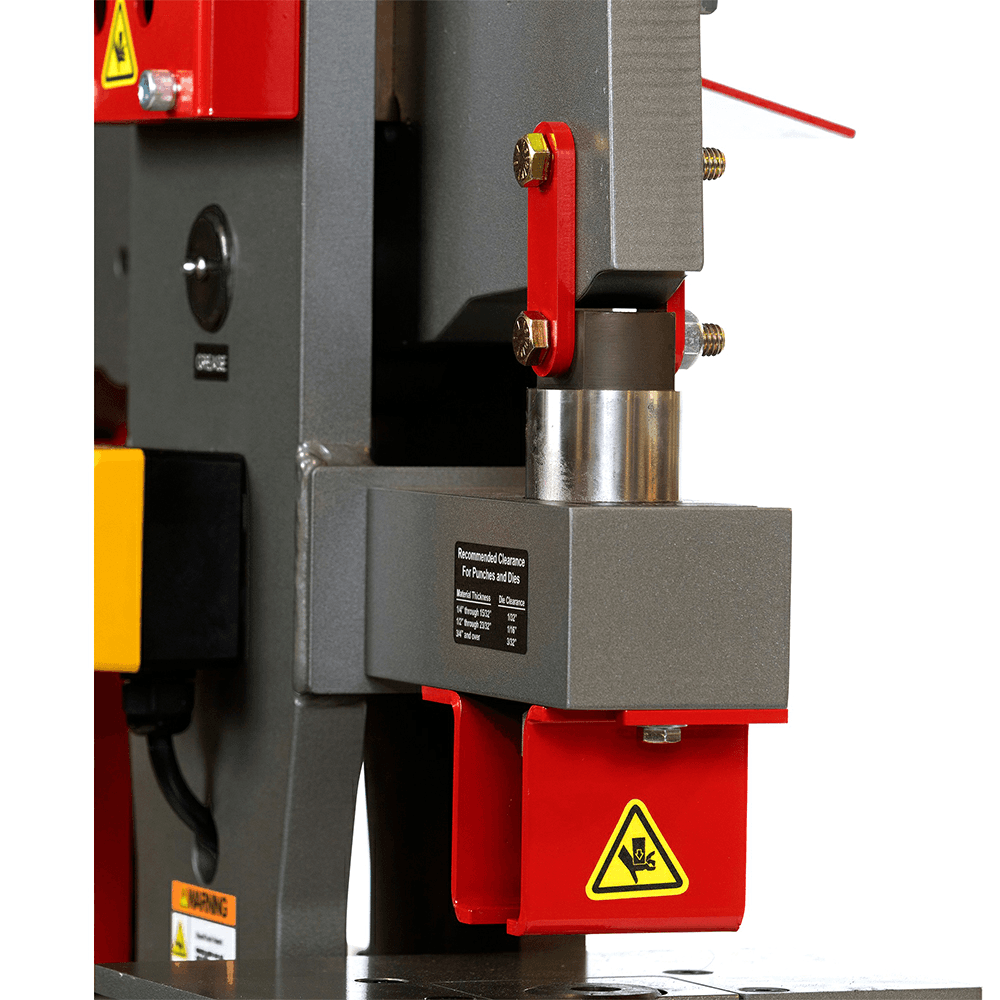

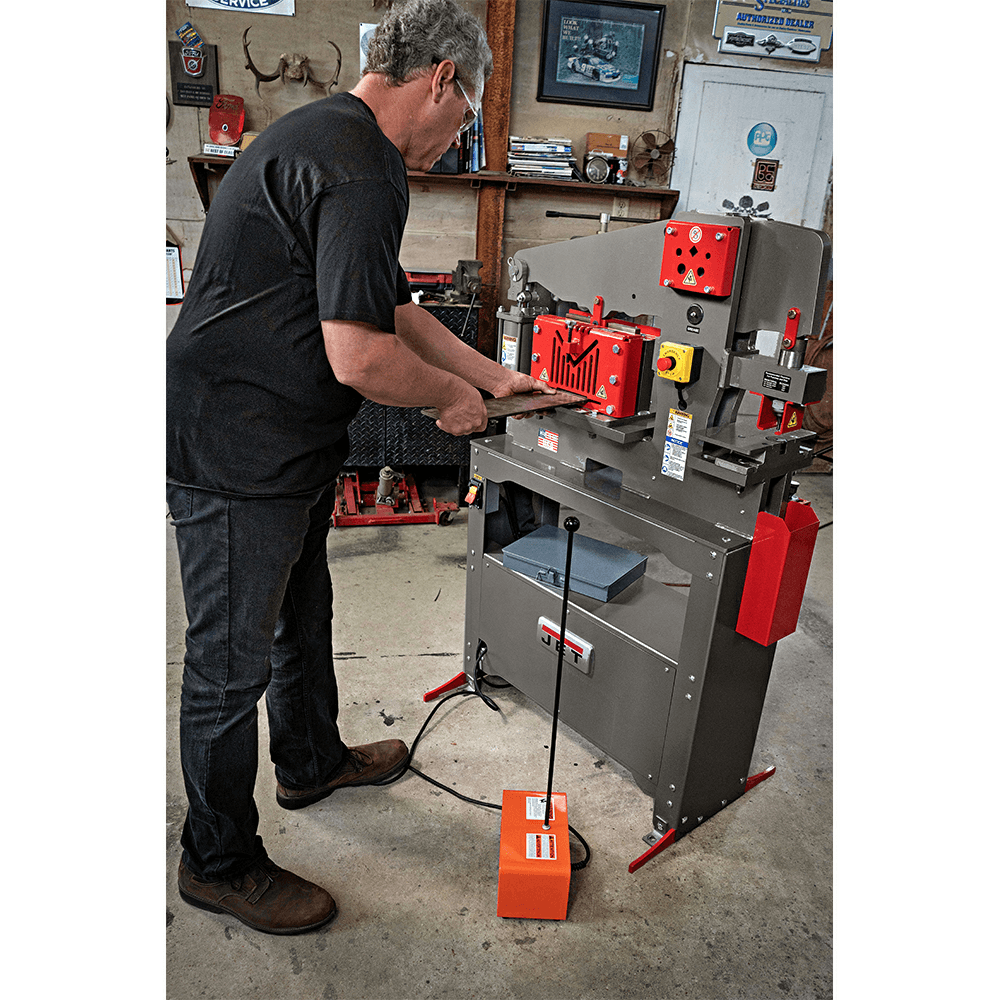

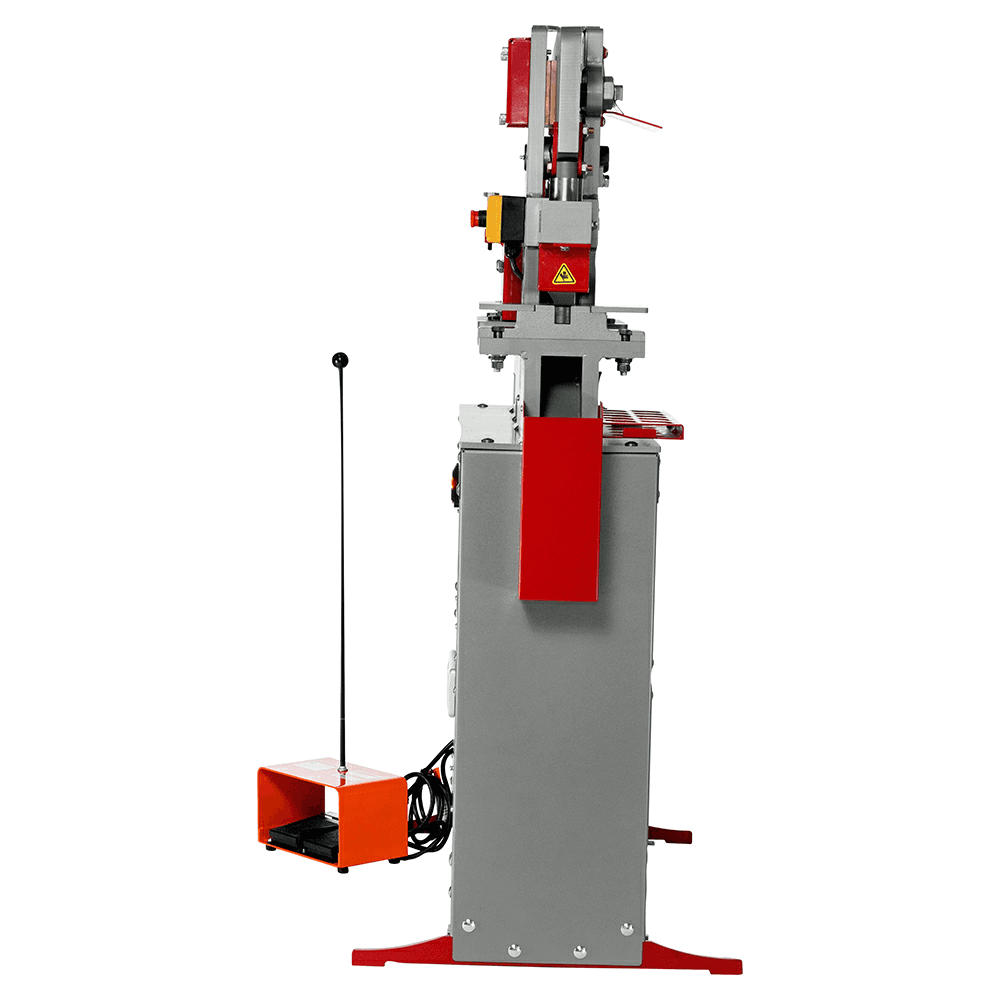

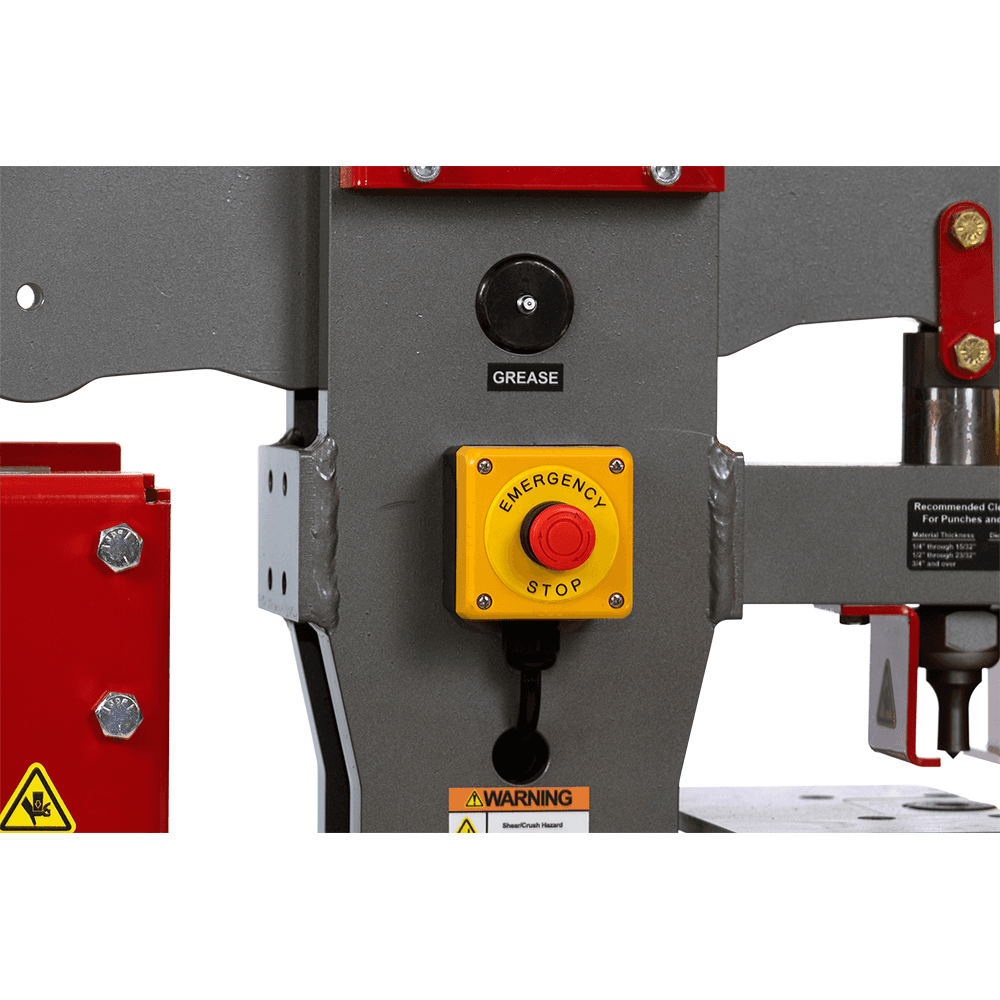

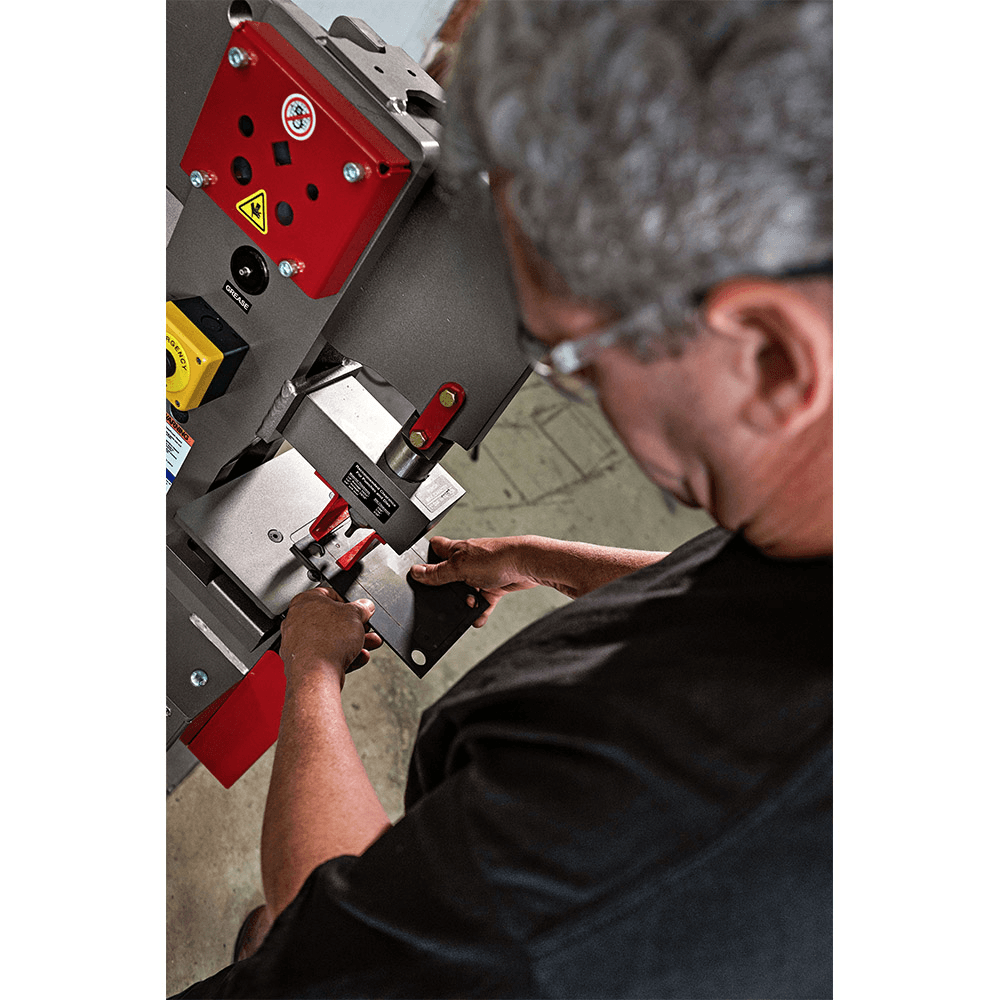

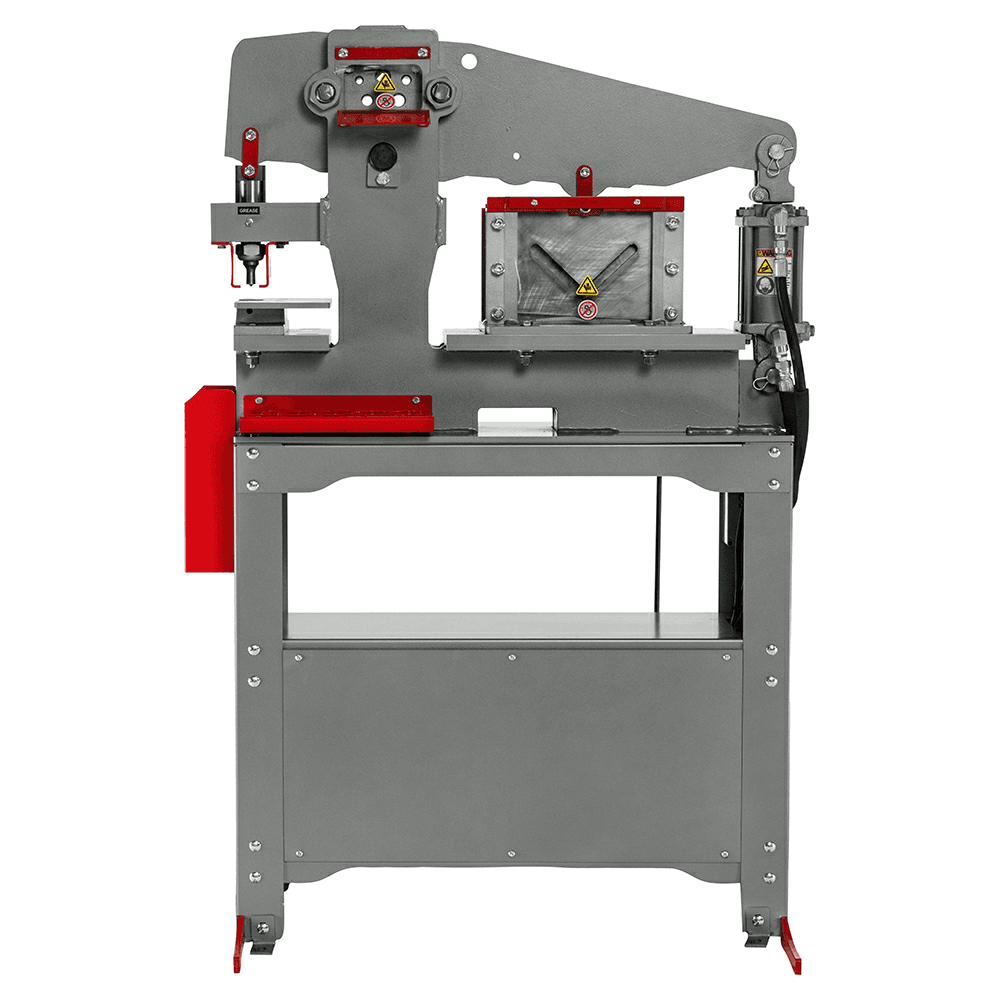

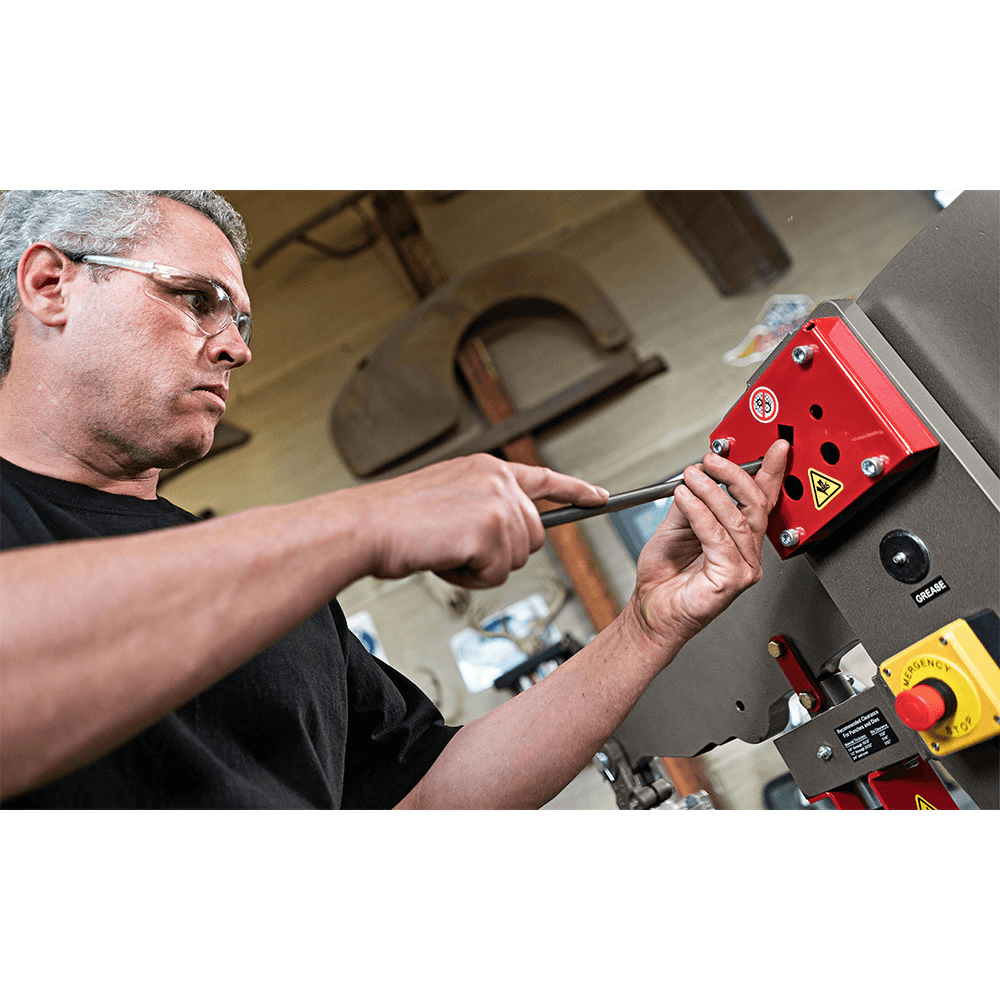

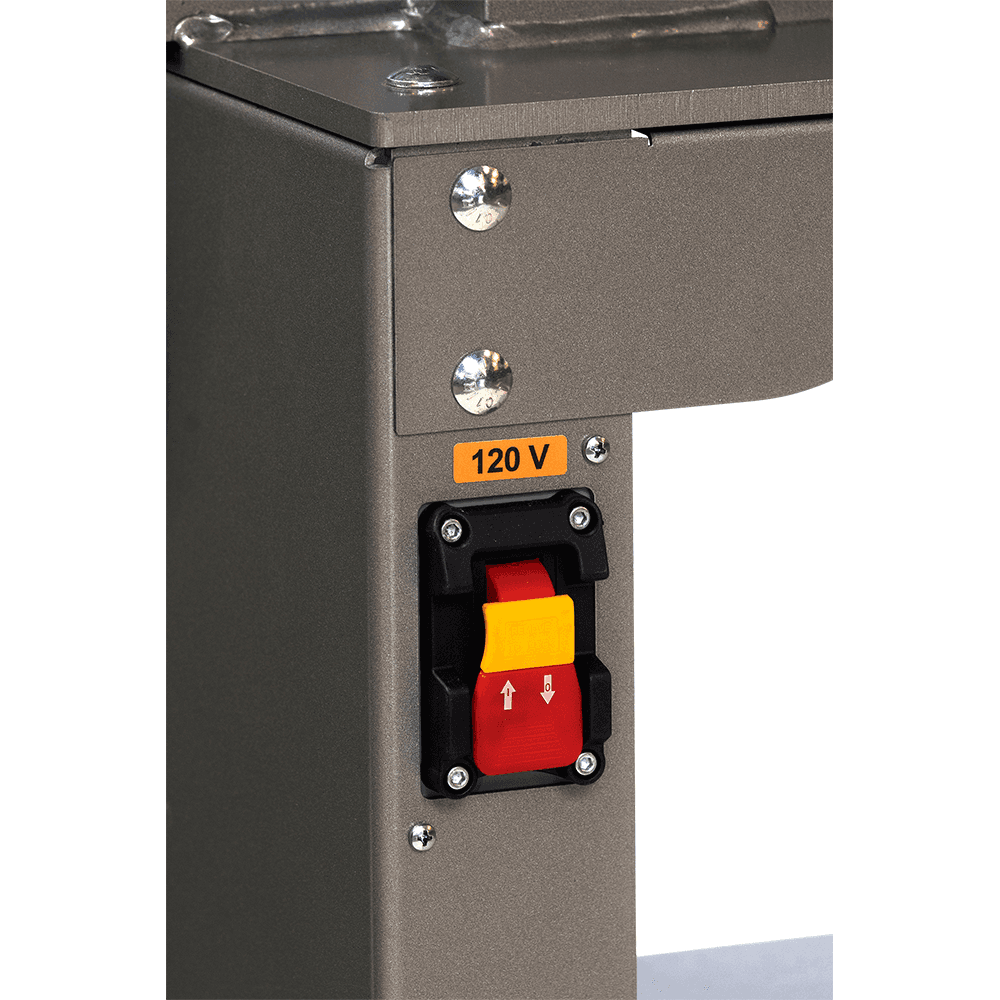

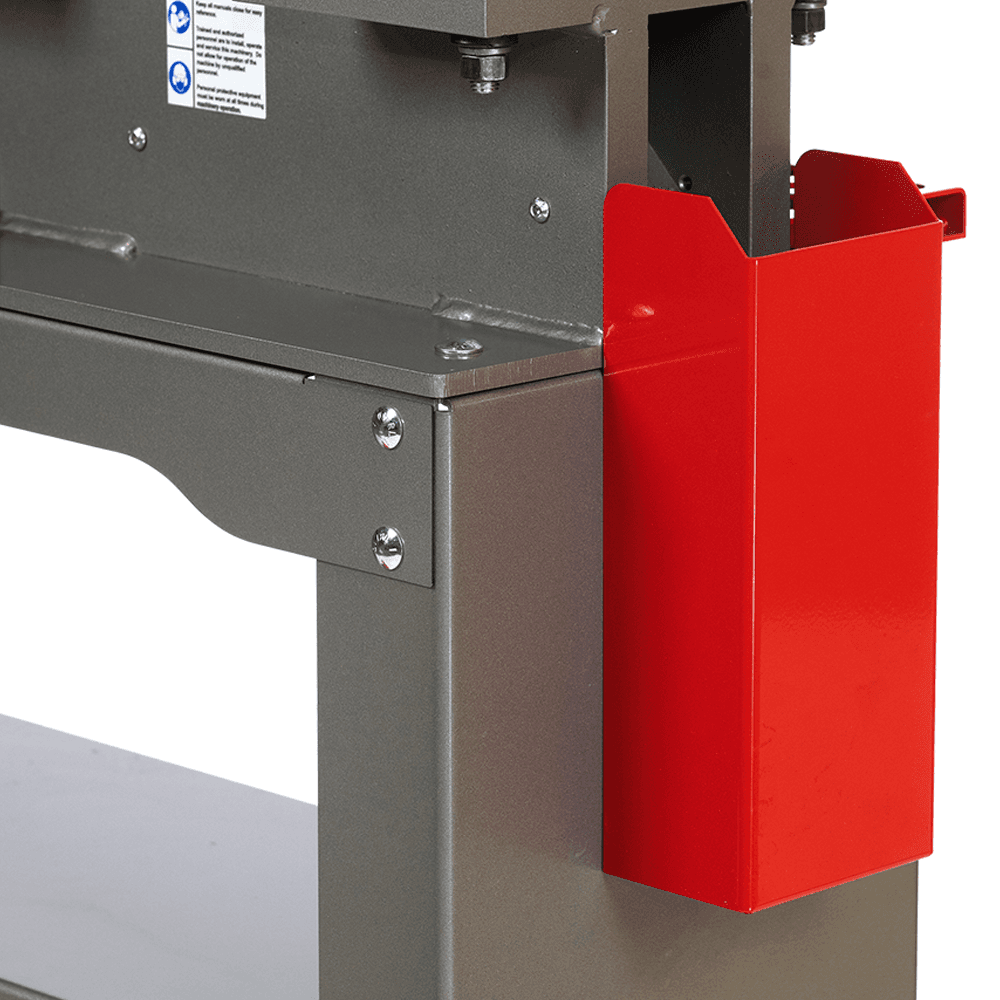

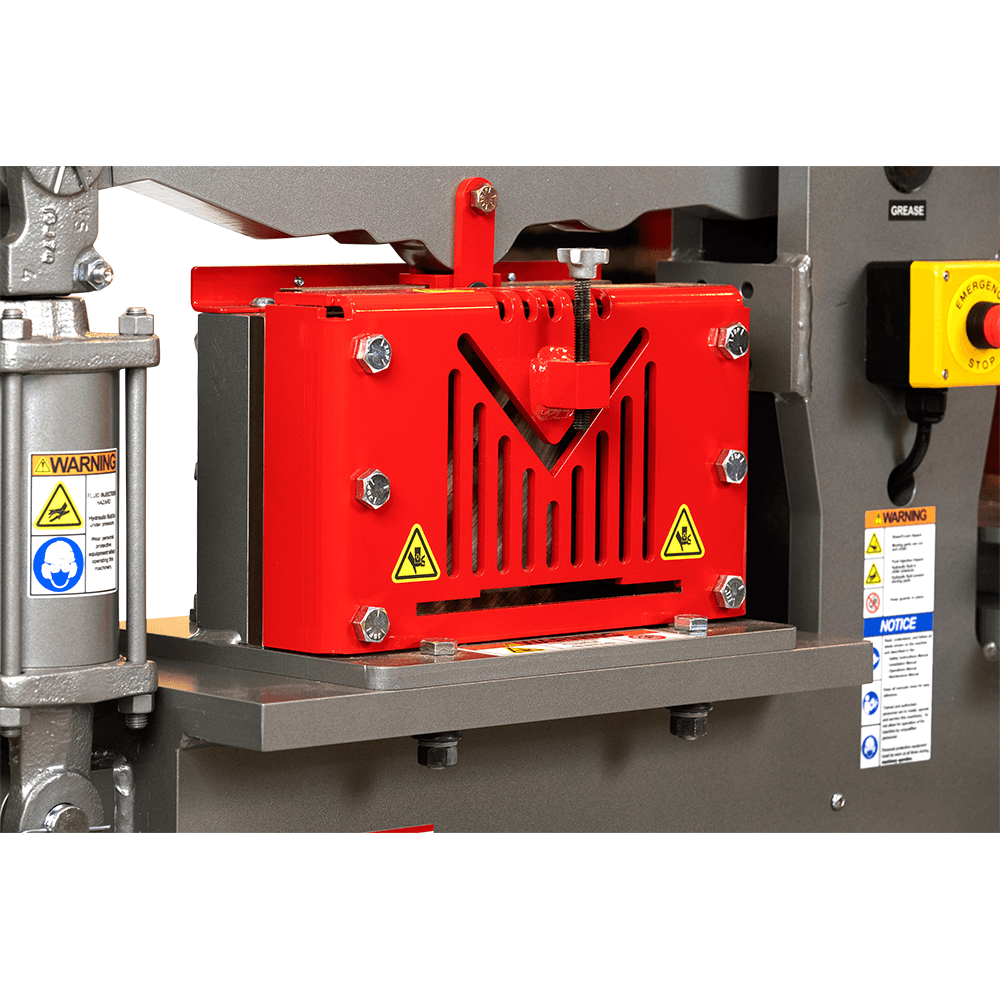

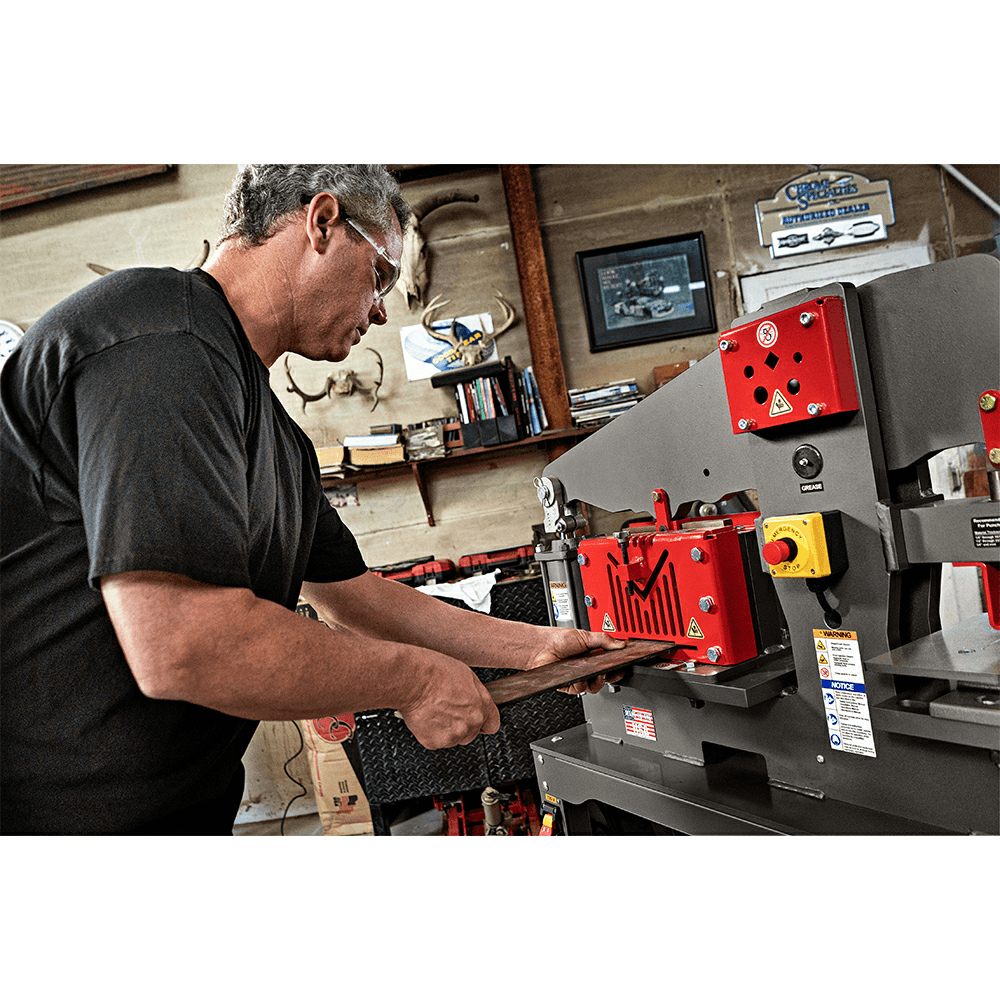

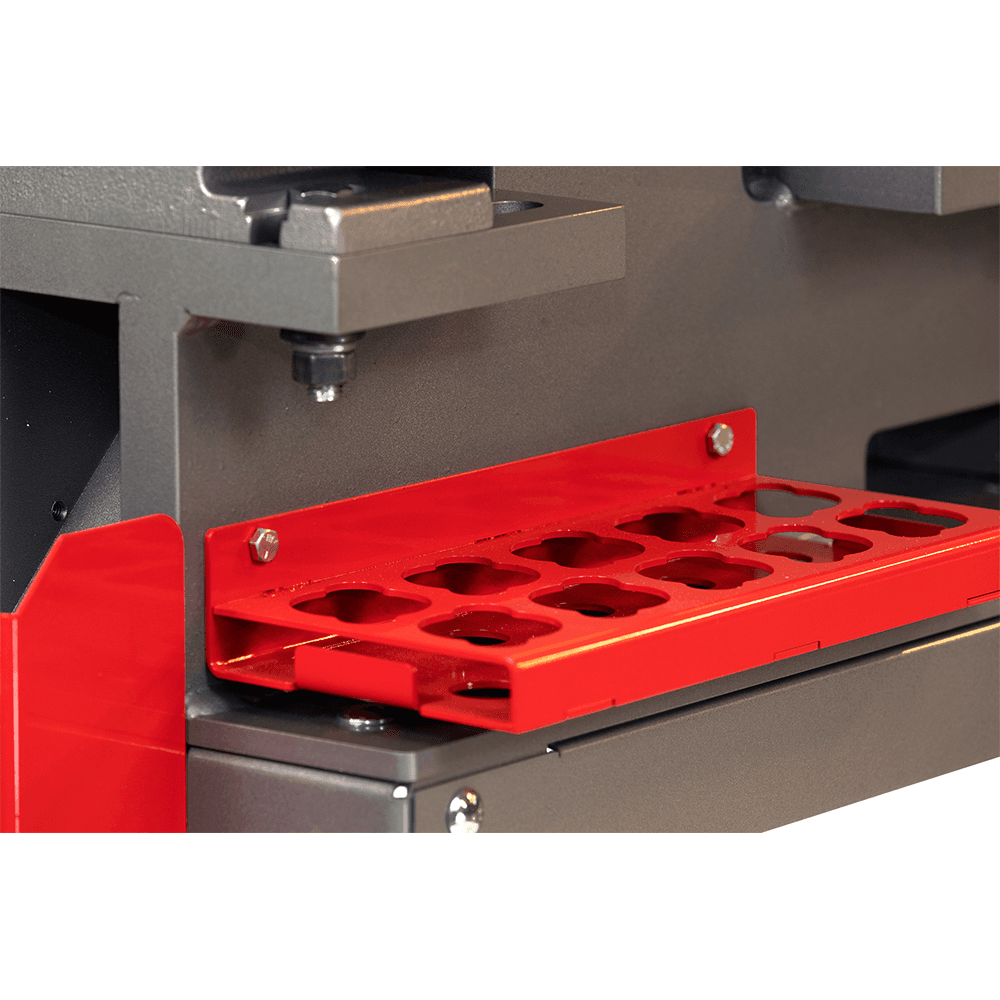

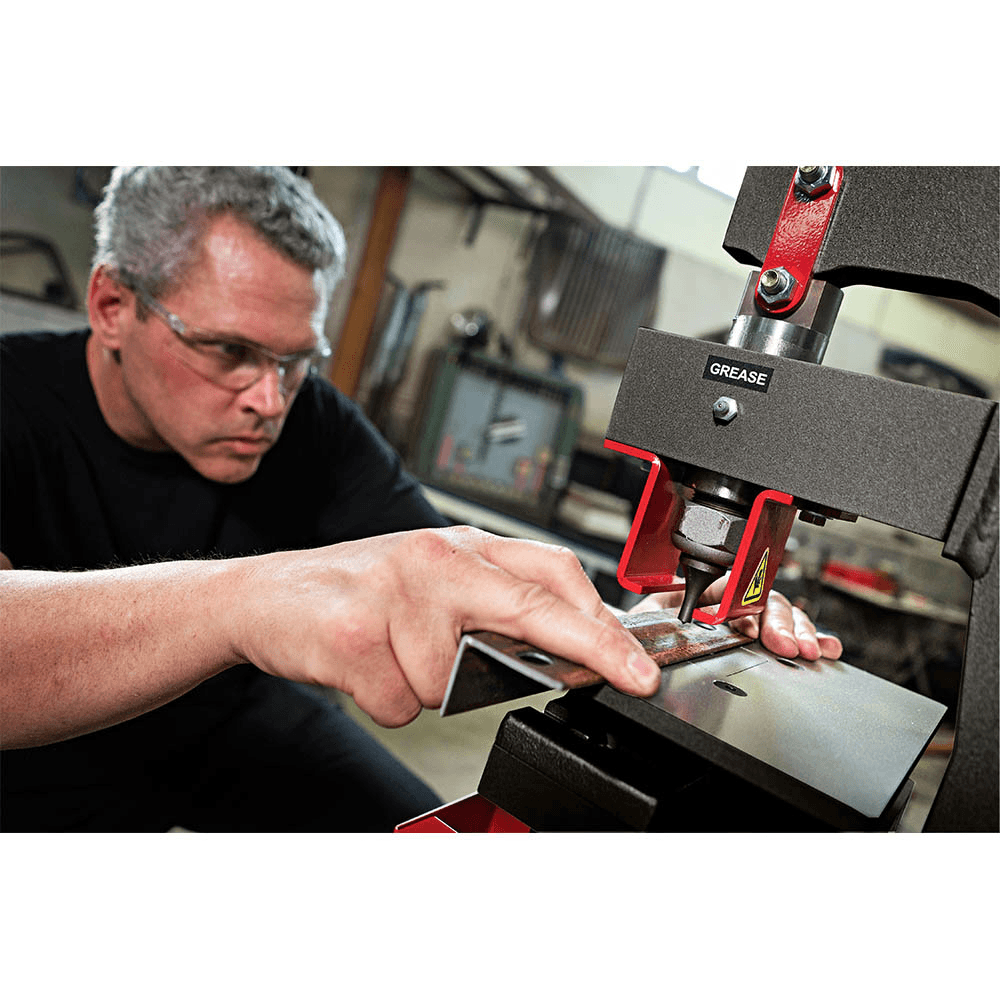

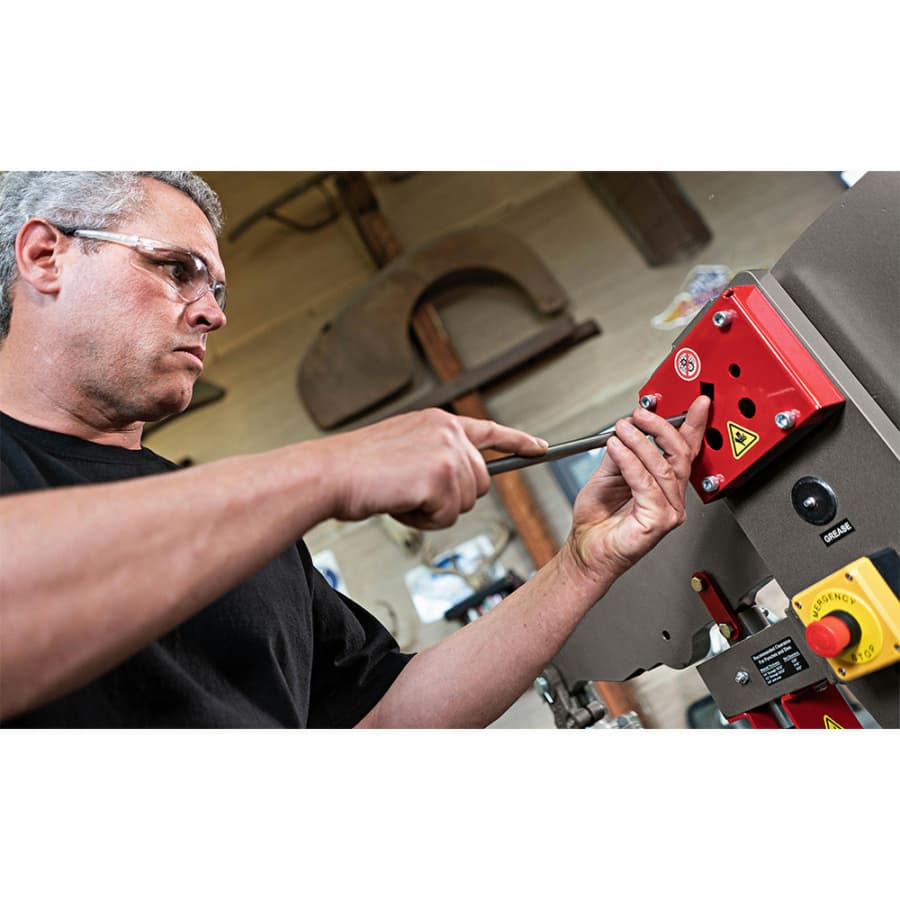

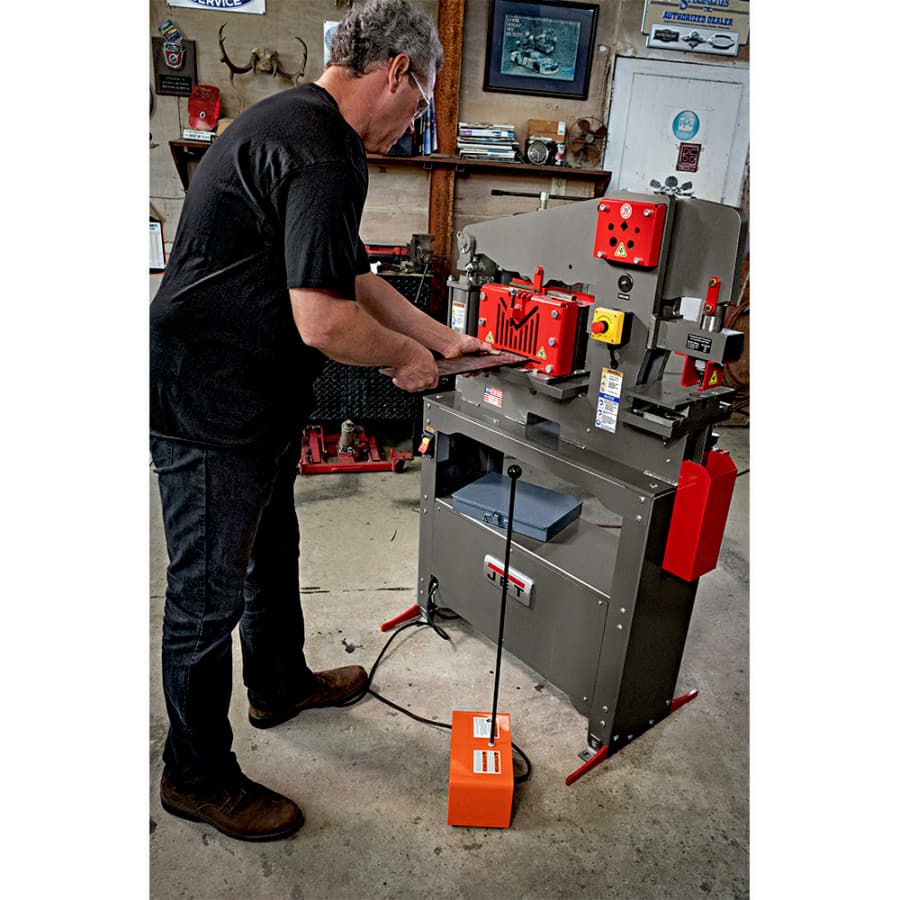

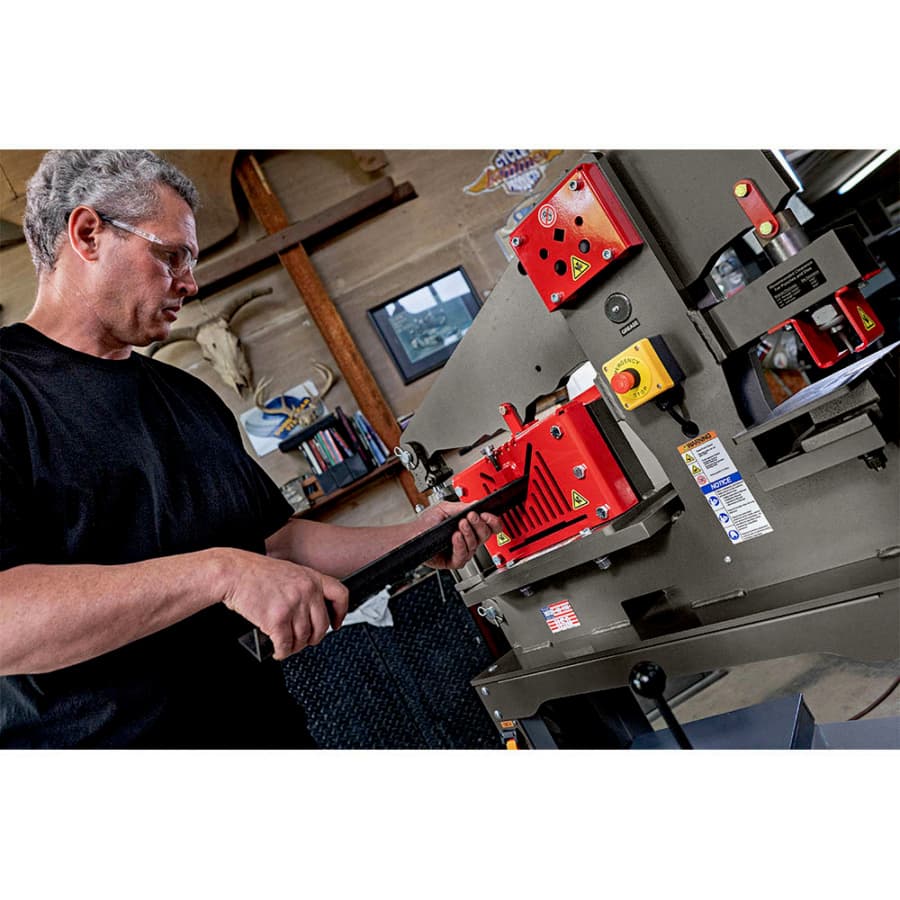

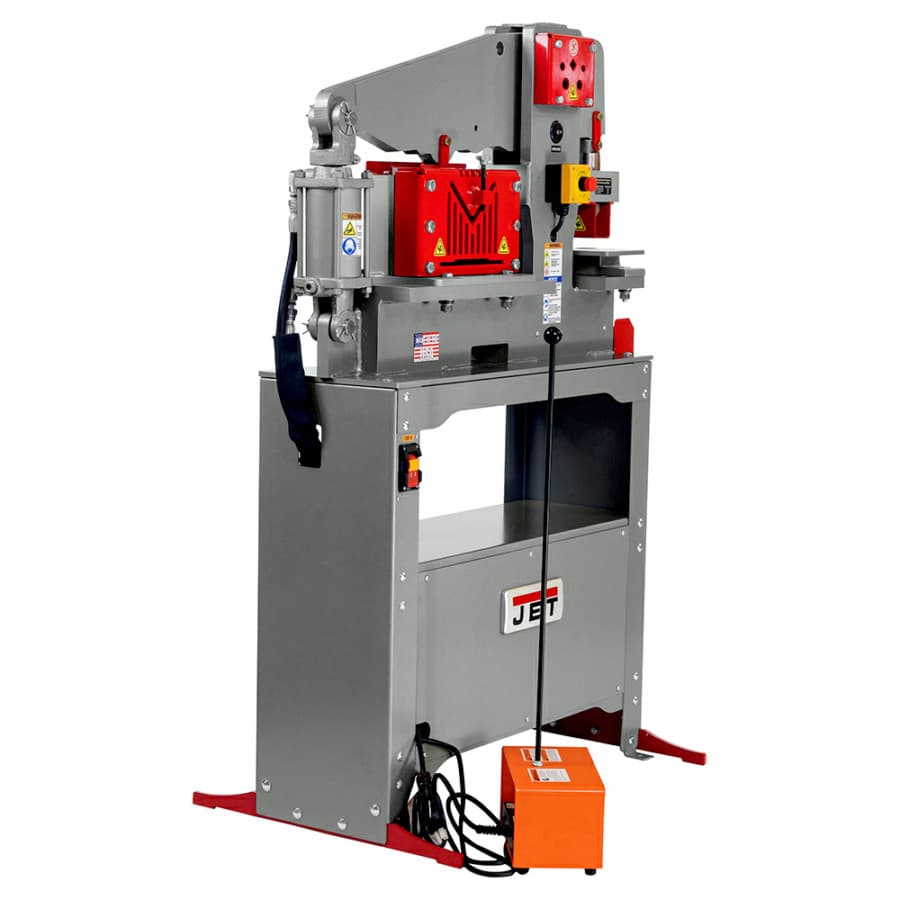

The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch and Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty. Features: • Four Workstations: Punch, Flat Bar Shear, Angle Shear and Rod Shear • Operates on 115V power allowing use almost anywhere • ANSI Compliant Guarding on the Angle and Rod Shears • E-stop with UL Listed compliant controls providing additional operator safety • Includes a Punch and Die Storage Tray able to hold up to 10 Punch and Die Sets • Convenient foot control with handle is easy to move between workstations • Optimized workstation heights reduce user fatigue • Slug receptacle collects all punch slugs keeping work area clear • Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life • Compatible with most MNards Punch and Die Sets including round, square, oblong, hex, and metric
Specifications
| Box Quantity | 1 |
| Valve Pressure (PSI) | 2800 PSI |
| Optional Coper Notcher Work Height | |
| Optional Coper Notcher Max Capacity | |
| Opt. Coper Notcher Work Height | |
| Opt. Coper Notcher Max Capacity | |
| Open Workstation Work Height | |
| Open Workstation Throat Depth | |
| Open Station Work Height | |
| Open Station Throat Depth | |
| Open Station Stroke | |
| Open Station Shut Height | |
| Open Station Open Height | |
| Motor Voltage (V.) | 115V |
| Motor Speed (RPM) | 3500 |
| Overall Dimensions (L x W x H) | 40" x 24" x 58" |
| Overall Height | 58 |
| Product Type | Ironworkers |
| Throat Depth | 5-3/4" |
| Rod Shear Work Height | 54" |
| Rod Shear Max Square | 5/8" |
| Rod Shear Max Round | 3/4" |
| Reservoir (Gal.) | |
| Rating (Tons) | 45 |
| Punch Work Height | 41" |
| Punch Throat Depth | |
| Punch Stroke | 1-1/2" |
| Punch Shut Height | |
| Punch Rating (Tons) | 45 |
| Punch Open Height | |
| Punch Max Capacity | 1 diam. In. 1/2" mild steel |
| Motor Phase | 1 |
| Motor Amps | 14 |
| Motor (HP) | 1-1/2 HP |
| Flat Bar Shear Max Capacity 1" | |
| Flat Bar Shear Max Capacity | 1/4" x 8", 3/8" x 6" |
| Cylinder | 3-1/2" Ram |
| Coper Notcher Work Height | |
| Coper Notcher Max Capacity | |
| Configurator Option Type | |
| Configurable Base Item | |
| Blade Length | |
| Angle Shear Work Height | |
| Angle Shear Max Capacity 3/8" | |
| Angle Shear Max Capacity 1/4" | 3" x 3" |
| Angle Shear Max Capacity 1/2" | |
| Angle Shear Max Capacity | 3" x 3" x 1/4" |
| Flat Bar Shear Max Capacity 1/2" | |
| Flat Bar Shear Max Capacity 1/4" | |
| Flat Bar Shear Max Capacity 3/4" | |
| Input Power | |
| Hydraulics (PSI) | |
| Hydraulics (GPM) | |
| Hydraulics | |
| Hydraulic Reservoir (Gal.) | |
| Hydraulic Pump (GPM) | |
| Flat Bar Shear Work Height | 40 |
| Flat Bar Shear Rating (Tons) | 45 |
| Flat Bar Shear Max Square Capacity | |
| Flat Bar Shear Max Square | |
| Flat Bar Shear Max Round Capacity | |
| Flat Bar Shear Max Round | |
| Flat Bar Shear Max Capacity 3/8" | |
| Amps |
